Red MechMaxx D50HTFL tracked mini dumper with hydraulic tipping bucket raised, gallery position 1

MechMaxx D50HTFL Tracked Dumper with Hydraulic Tipping and Lifting with Front Shovel

by MechMaxx
Save $200.00
$4,199.00
$3,999.00

Notify me when back in stock

Description

MechMaxx Hydraulic Tracked Dumperdelivers powerful lifting and dumping performance with its 10HP engine, hydraulic self-loading shovel, and high-tipping bucket. Built from heavy-duty steel with a 1100 lbs / 10 cu.ft. capacity, it’s designed for smooth, slippery, or muddy terrain while remaining compact enough to maneuver through tight worksites. With 6 forward and 2 reverse gears, this dumper ensures efficient, stand-alone material handling that saves both time and money.
Shipping & Returns

Free Shipping USA-wide. No extra charges. Ever.

30-day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We are dedicated to providing the best heavy-duty equipment built for real-world jobs possible. We partner only with reputable brands to deliver reliable, contractor-grade tools backed by integrity and service you can trust. When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.


Found a better price? We can match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877

MechMaxx Hydraulic Tracked DumperBuilt with heavy-duty steel and a powerful hydraulic system, this dumper delivers strong lifting and dumping performance. The self-loading shovel and high-tipping bucket make material handling easy and efficient. Compact yet powerful, it runs on a 10HP engine with 6 forward and 2 reverse gears—ideal for tight, tough worksites.

  • UNIQUE DESIGN:This tracked dumper is equipped with 6 forward and 2 reverse transmission, which offers an advantage over friction driven designs used on similar machines.
  • EASY OPERATION:Hydraulic self-loading and high-tipping function. Stand-alone loading without the need for another machine transport materials from worksites efficiently, saving money and time.
  • BEST APPLICATION:The robust steel bucket has a large 1100 lbs & 10 cu.ft. capacity for transportation of a wide variety of materials. The track drive and about 4.3" ground clearance makes this dumper suitable for smooth, slippery or muddy terrain.
  • COMPACTNESS:The narrow design helps you to navigate through hard-to-reach spaces. And there is a smart turning circle as well, for maximum maneuverability in tight spaces.
  • POWERFUL:10 HP, 302cc, Single Cylinder, 4 Stroke, Air-Cooled, OHV, ELECTRIC START gas engine.
  • Gasoline/Petrol:Clean, fresh, unleaded gasoline
  • Engine Oil:10W-30
  • Hydraulic Oil:AW 46 Hydraulic Oil

NOTE!

  • This machine doesn't come with oil and fuel in the engine. Before starting the engine, fill the engine with oil and fuel. Read the engine manual.
  • This machine doesn't come with hydraulic oil. Please make sure to fill it with hydraulic oil before use.

Product manual (PDF)

Download PDF

Engine manual (PDF)

Download PDF

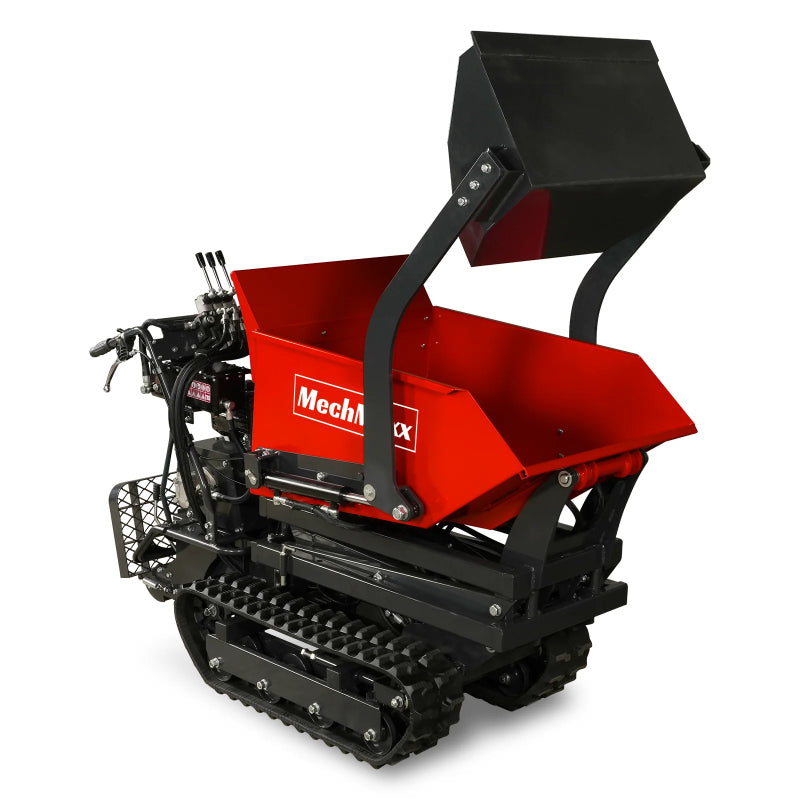

Hydraulic System
Hydraulic System

The hopper has a hydraulic dumping mechanism. Powerful hydraulics and cylinders are installed on the machine for ease of use.

•Simply start and go: Thanks to the hydrostatic drive system, there is no need for frequent gear changes and the operator can focus on the task.

•The hydraulic drive system and the working hydraulics can be operated independently of each other.

•The high dumping system with self-loader expands the working range. The hydraulic self-loading bucket makes it easy to load a variety of materials into the bucket. With a folding step, the operator can stand on the machine and take it with him.

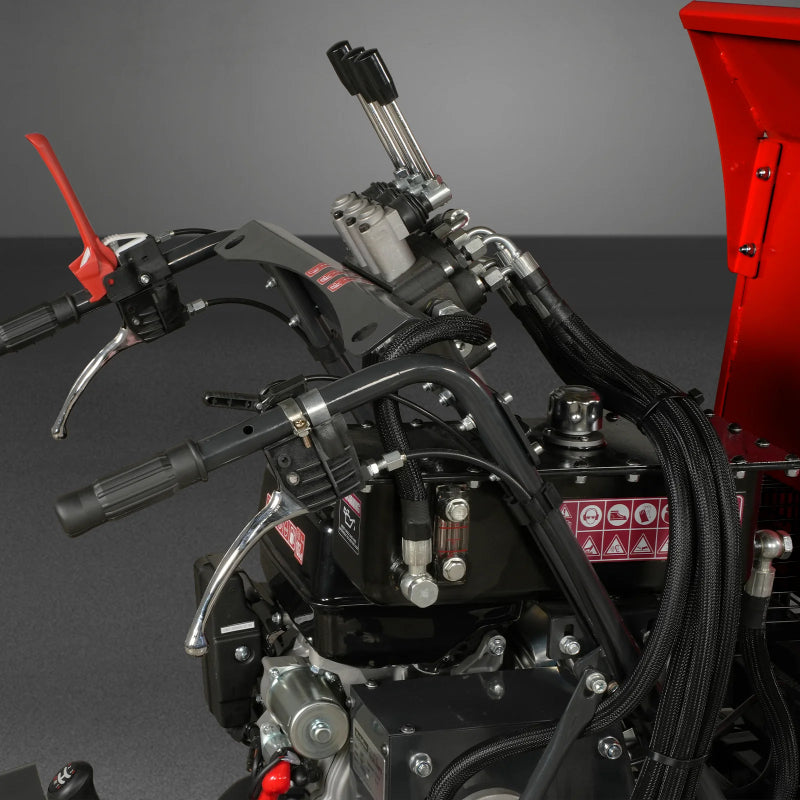

ELECTRIC START Gasline Engine
ELECTRIC START Gasline Engine

This machine is equipped with a 10 HP, 302cc, Single Cylinder, 4 Stroke, Air-Cooled, OHV, ELECTRIC START gas engine, which provides ample power for the machine.

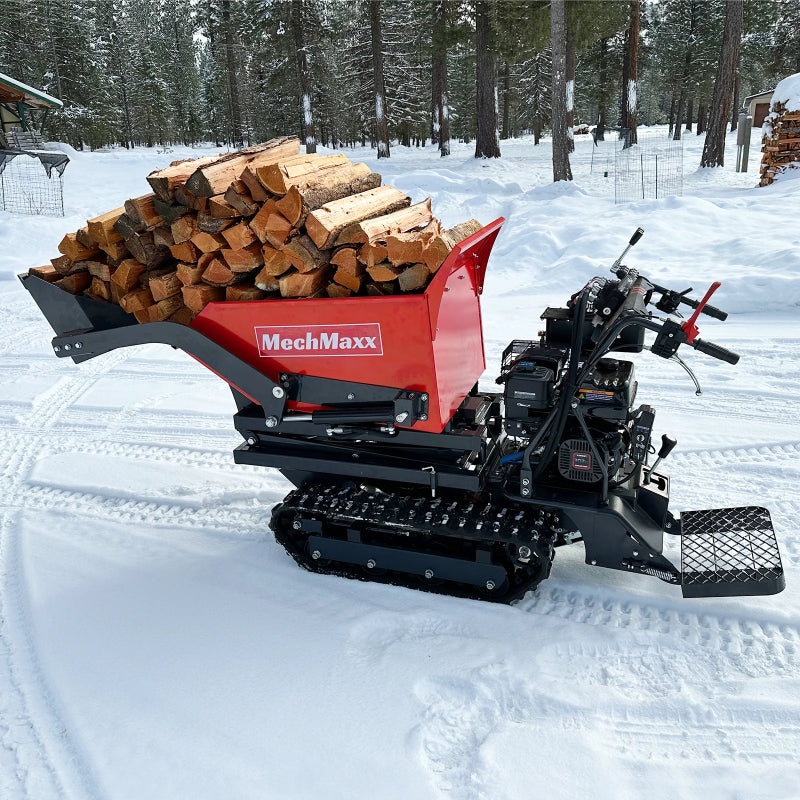

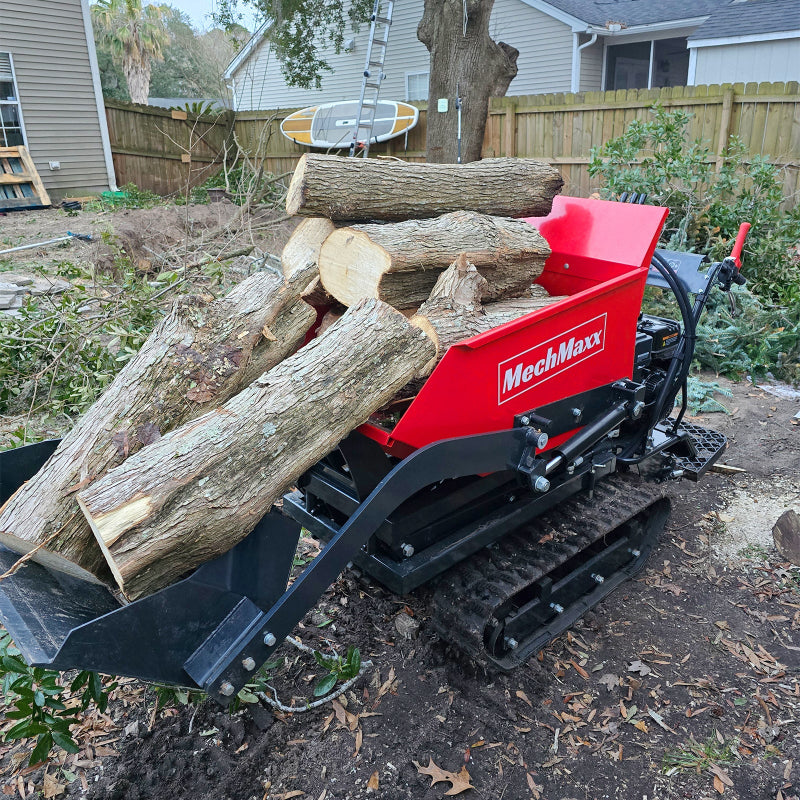

Large Capacity
Large Capacity

It has a large capacity of 1100 lbs & 10 cu.ft. for transportation of a wide variety of materials. The large capacity can improve work efficiency and meet different handling needs.

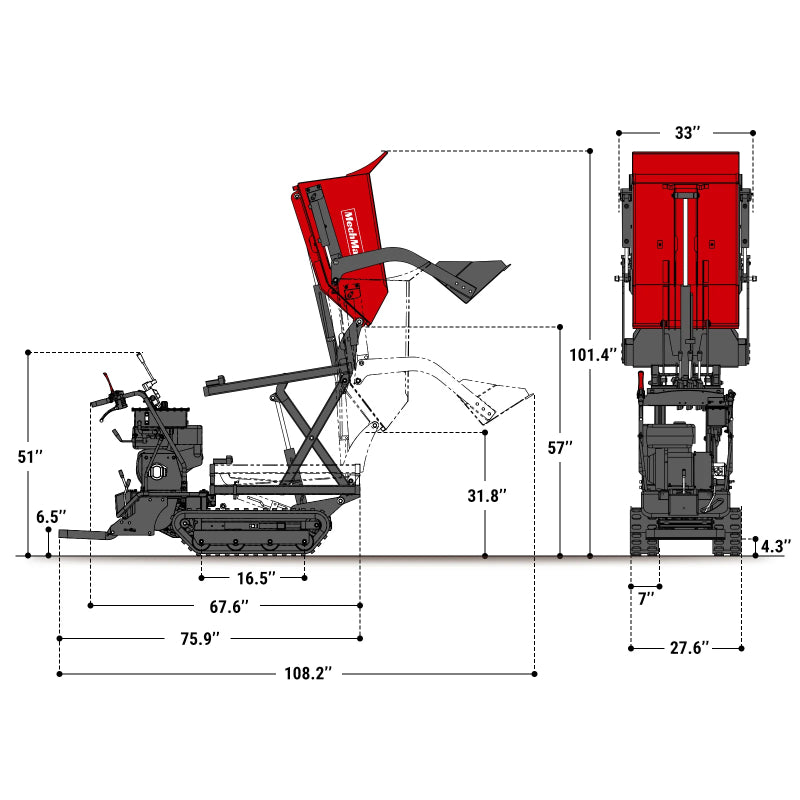

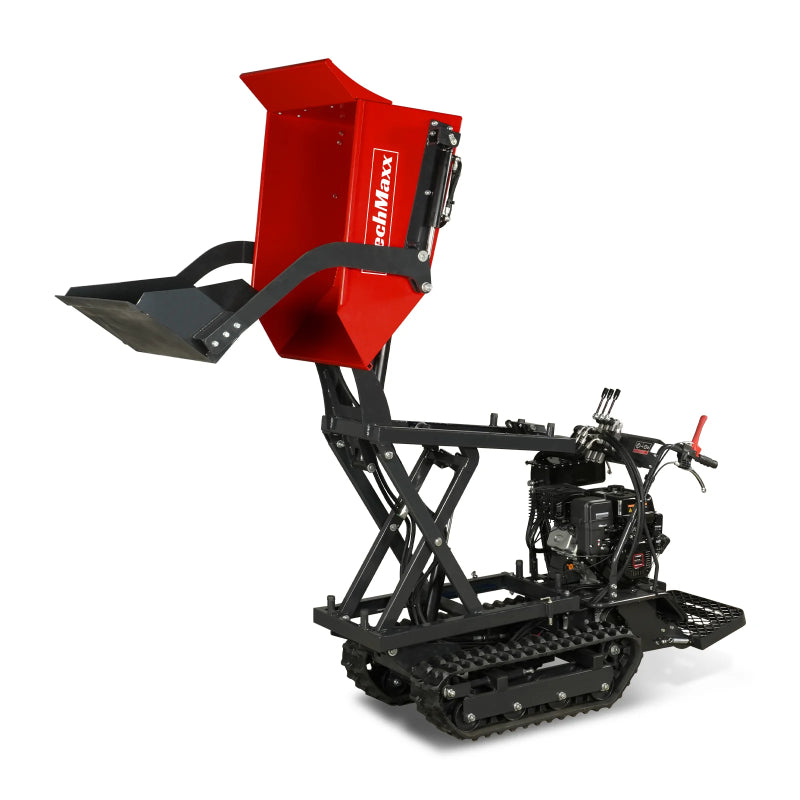

Lift Height
Lift Height

The hydraulically controlled hopper can be raised and lowered, saving manpower. The maximum lifting height is 57'', and the highest point of the hopper dumping can reach 101.4'', which can meet the dumping in different situations.

Transmission
Transmission

This machine is equipped with 6 forward and 2 reverse transmission, which offers an advantage over friction driven designs used on similar machines. It can meet different speed requirements.

Small Dimension, High Manoeuvrability
Small Dimension, High Manoeuvrability

Max machine width is 33'', which narrow design helps you to navigate through hard-to-reach spaces. The track drive and about 4.3'' ground clearance makes this dumper suitable for smooth, slippery or muddy terrain.

Speed Adjustment
Speed Adjustment

This machine has high and low speed adjustment. The forward speed is 0-4.47 mph and the reverse speed is 0-1.49 mph, which can be adjusted according to the user's needs.

  • Demonstration-1
  • Demonstration-2
  • Assembly & Installation
Product Warranty

MechMaxx D50HTFL Tracked Dumper with Hydraulic Tipping and Lifting with Front Shovel (SKU:100900) stands up to extreme testing and come with a one-year warranty for engine, one-year warranty for machine.

Product Extended Warranty Plans

Our extended warranty plans provide an additional 1 to 2 years of product protection on select eligible products.

Engine LONCIN G300FD Gasoline Engine Bucket Capacity 10 cu.ft.
Engine Type Single Cylinder, 4 Stroke, Air-Cooled, OHV Shovel Capacity

1.8 cu.ft.

550lbs
Engine Displacement 302 cc Overall Width 33 in
Horsepower 10 HP Max. Dumping Height 57 in
Start Electric Start (battery included) Bucket Size 39.9 x 27.5 x 17.7 in
Fuel Tank Capacity 1.59 gal (6L) Track Width 7 in
Engine Oil Capacity 0.25 gal (0.95L) Ground Clearance 4.3 in
Hydraulic Oil Capacity 0.79 gal (3L) Working Pressure 16 Mpa
Transmission Transaxle 6 Forward / 2 Reverse Speed Track Roller 8 Pcs
Forward Speed 0-4.47 mph Track Size 180W x 60P x 38L
Reverse Speed 0-1.49 mph Package Method Iron Frame
Max. Gradeability 30% Packing Size 75.5 x 30 x 51 in
Loading Capacity 1100 lbs Weight (N.W / G.W.) 930 / 1012 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
