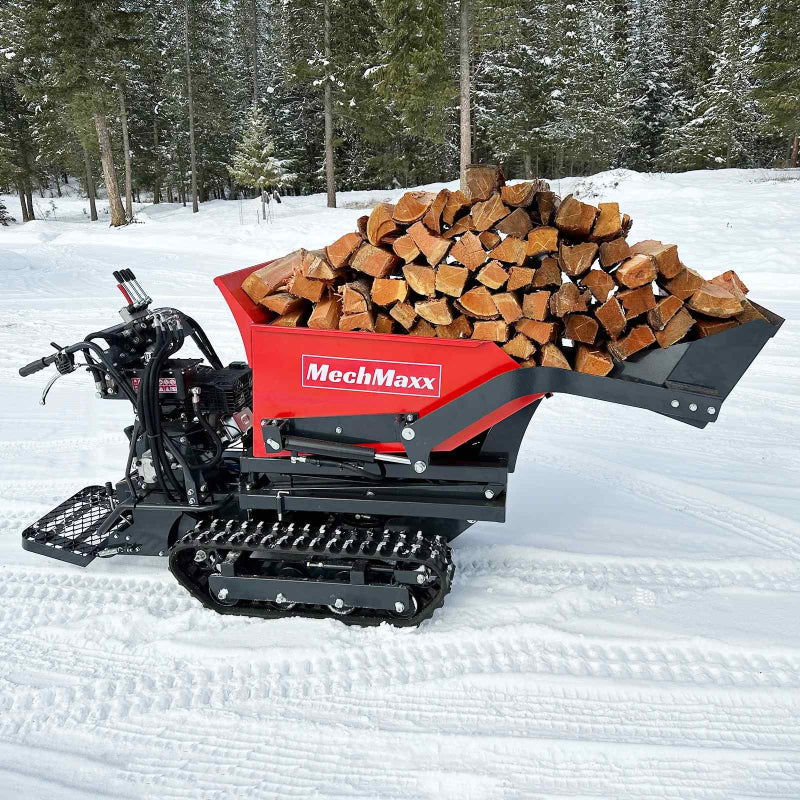

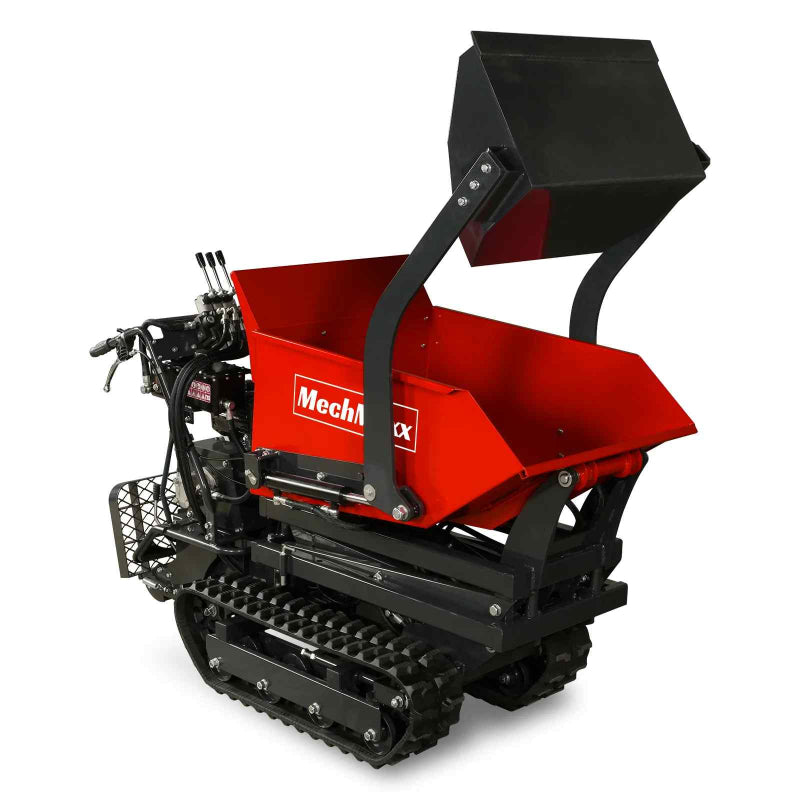

Red MechMaxx D50HTFL tracked mini dumper with hydraulic tipping bucket raised, gallery position 1

MechMaxx D50HTFL Tracked Dumper with Hydraulic Tipping and Lifting with Front Shovel

Save $200.00
$4,199.00
$3,999.00

Notify me when back in stock

Description

MechMaxx Hydraulic Tracked Dumperdelivers powerful lifting and dumping performance with its 10HP engine, hydraulic self-loading shovel, and high-tipping bucket. Built from heavy-duty steel with a 1100 lbs / 10 cu.ft. capacity, it’s designed for smooth, slippery, or muddy terrain while remaining compact enough to maneuver through tight worksites. With 6 forward and 2 reverse gears, this dumper ensures efficient, stand-alone material handling that saves both time and money.
Shipping & Returns

Free Shipping on MOST USA‑wide. No extra charges.

30‑day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We’re dedicated to providing the best heavy‑duty equipment built for real‑world jobs.

We partner only with reputable brands to deliver reliable, contractor‑grade tools backed by integrity and service you can trust.

When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.
A portion of every sale helps fund local trade programs and community rebuilding efforts and more.

Found a better price? We’ll match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877

MechMaxx D50HTFL Tracked Dumper with Hydraulic Tipping & Front Shovel

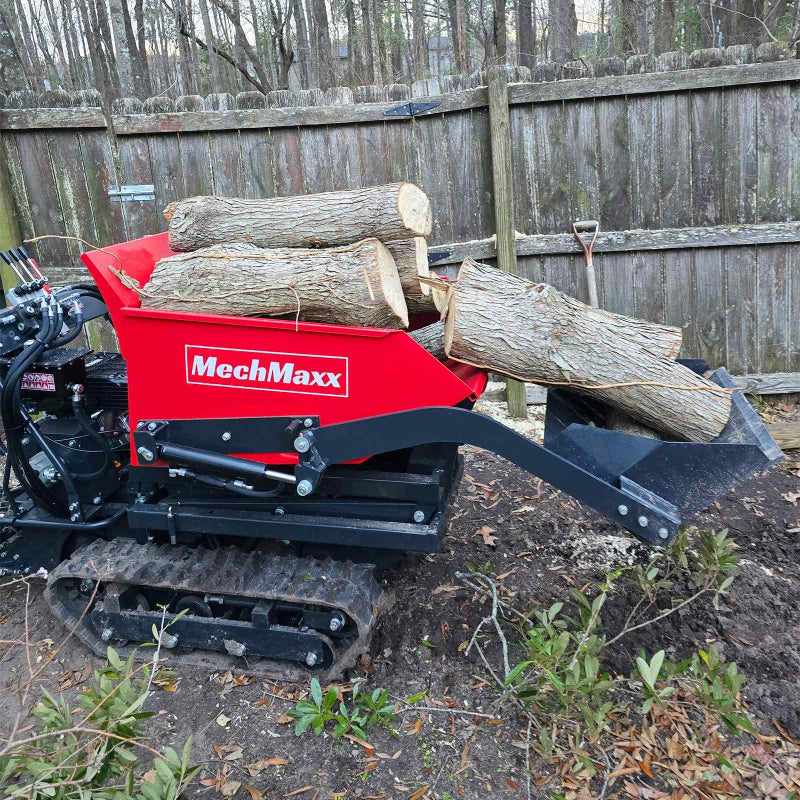

Move and load materials with this tracked dumper featuring hydraulic tipping and an integrated front shovel. The track system supports stable operation on uneven or soft terrain, while the hydraulic dump bed helps operators unload material with controlled movement. The front shovel allows light excavation, scooping, and material handling without switching machines.

The dumper’s compact structure makes it suitable for landscaping, construction, and property‑maintenance tasks in areas with limited access. Its layout supports predictable handling and steady performance during routine hauling and loading work.

Product manual (PDF)

Download PDF

Engine manual (PDF)

Download PDF

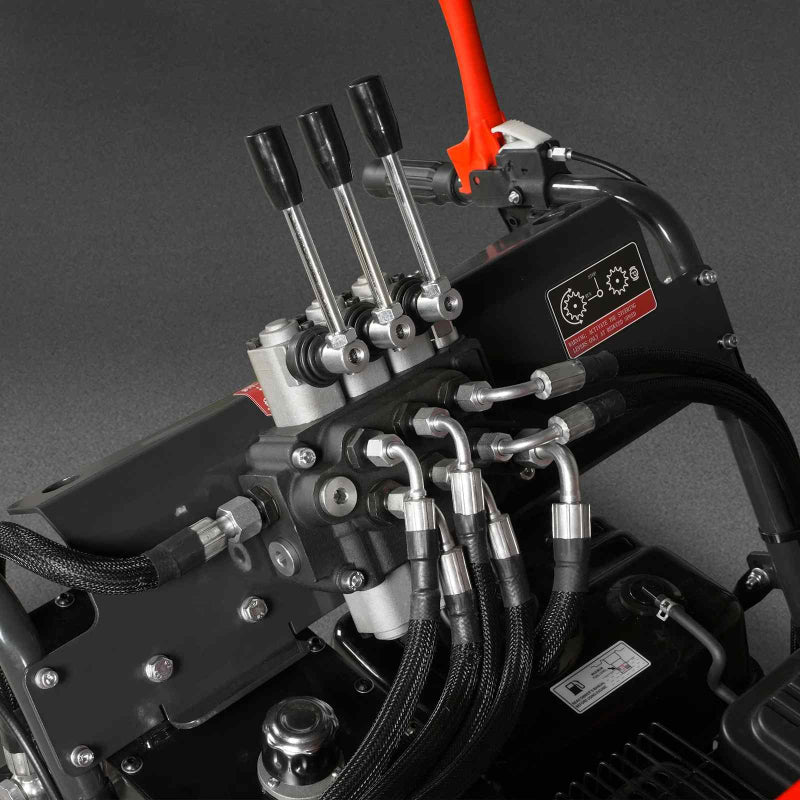

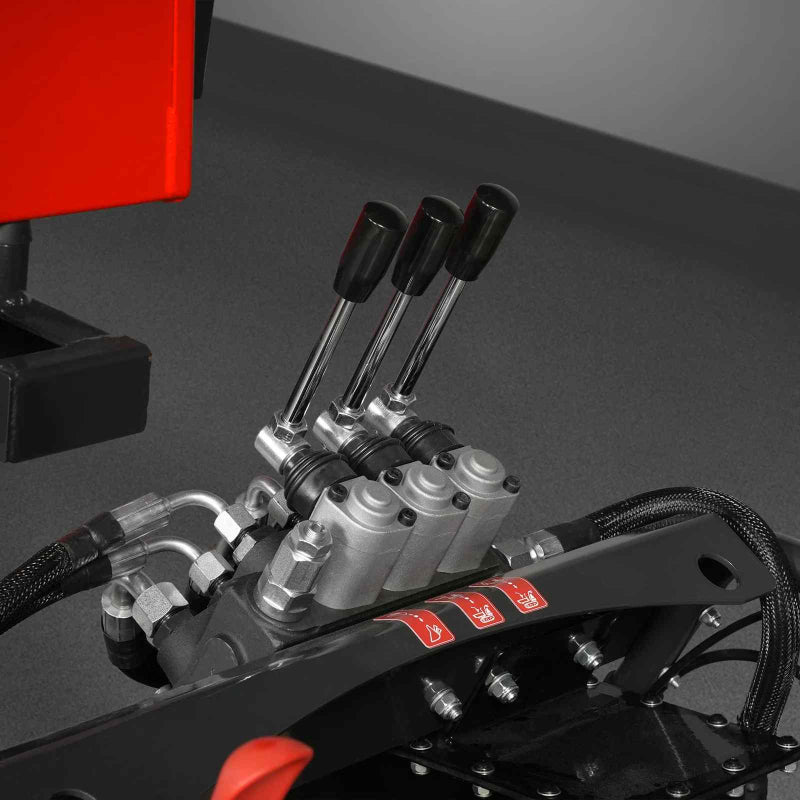

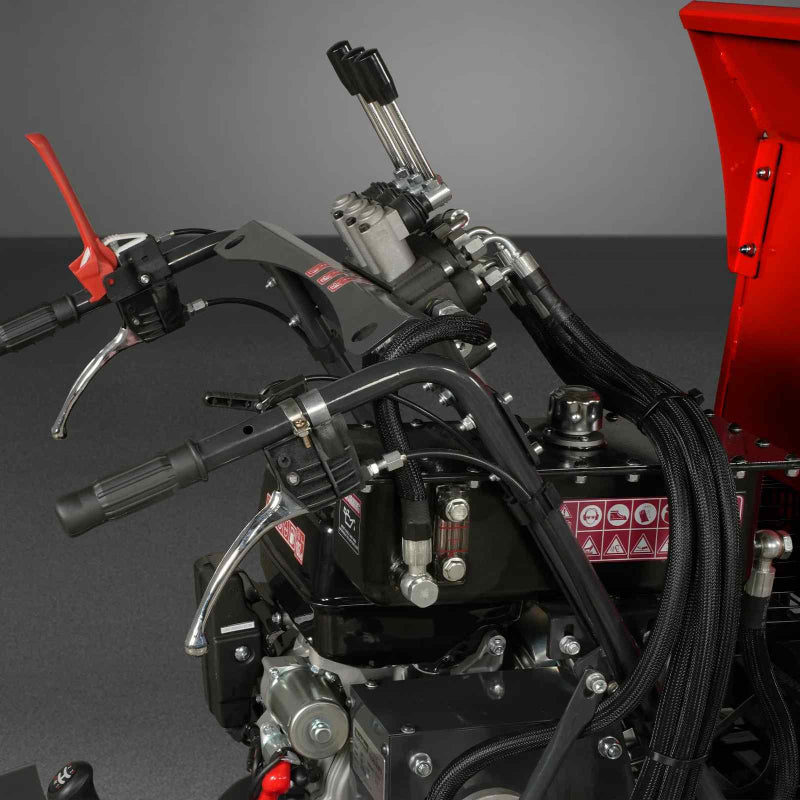

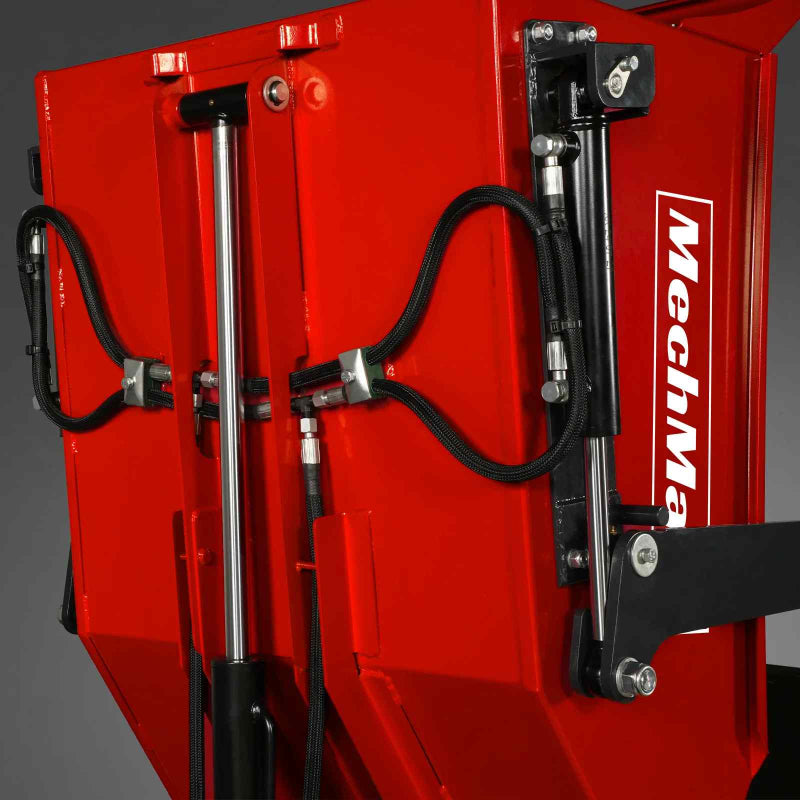

Hydraulic System
Hydraulic System

The hopper has a hydraulic dumping mechanism. Powerful hydraulics and cylinders are installed on the machine for ease of use.

•Simply start and go: Thanks to the hydrostatic drive system, there is no need for frequent gear changes and the operator can focus on the task.

•The hydraulic drive system and the working hydraulics can be operated independently of each other.

•The high dumping system with self-loader expands the working range. The hydraulic self-loading bucket makes it easy to load a variety of materials into the bucket. With a folding step, the operator can stand on the machine and take it with him.

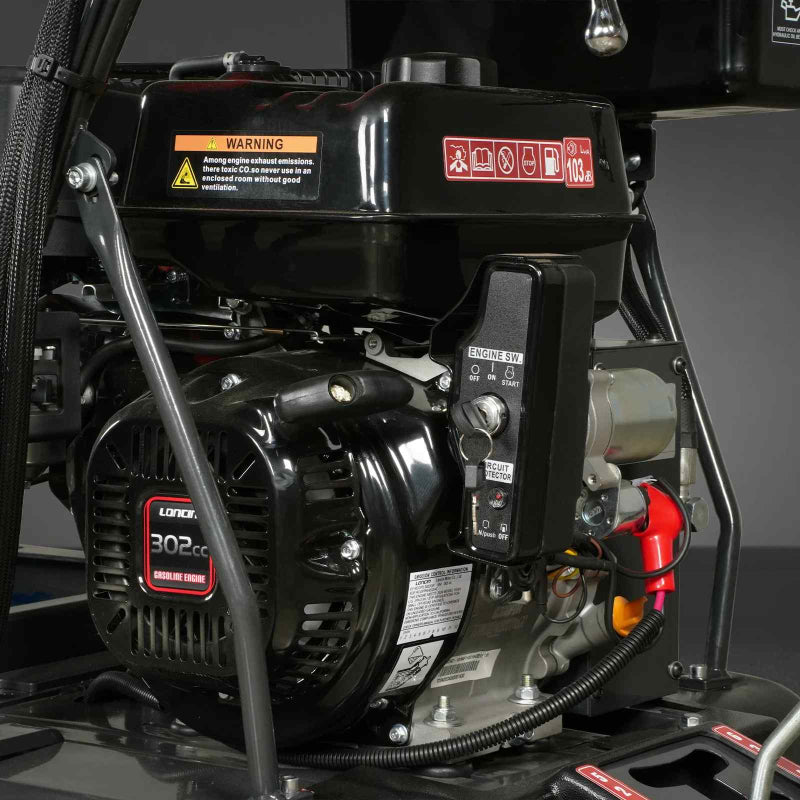

ELECTRIC START Gasline Engine
ELECTRIC START Gasline Engine

This machine is equipped with a 10 HP, 302cc, Single Cylinder, 4 Stroke, Air-Cooled, OHV, ELECTRIC START gas engine, which provides ample power for the machine.

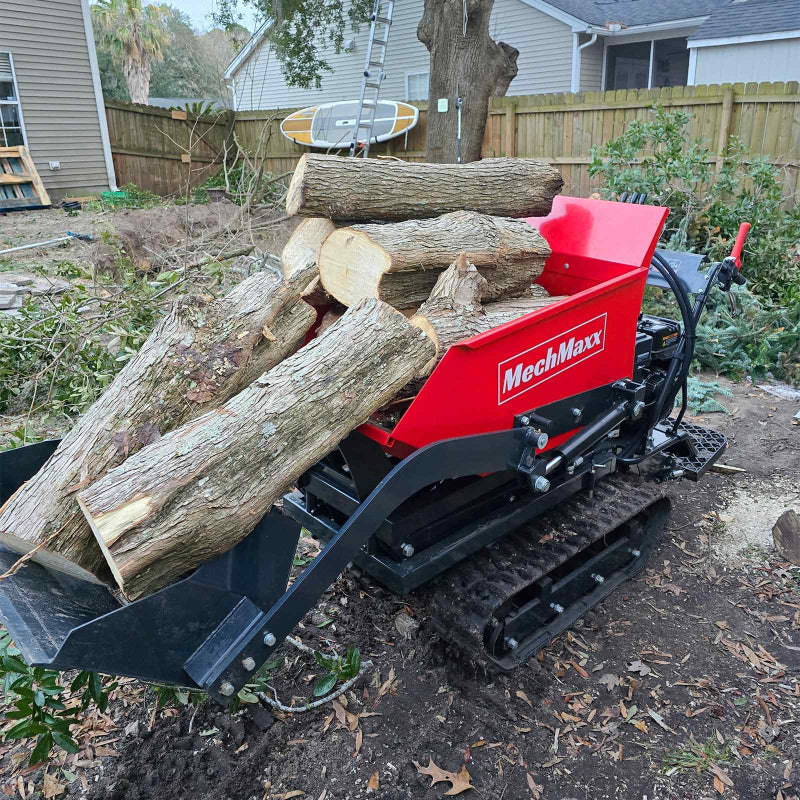

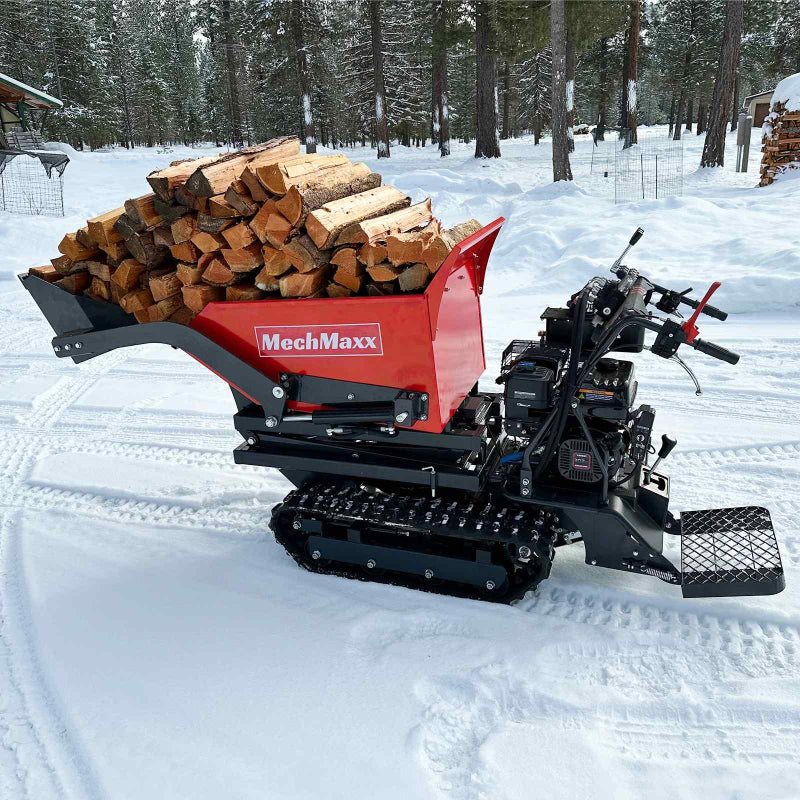

Large Capacity
Large Capacity

It has a large capacity of 1100 lbs & 10 cu.ft. for transportation of a wide variety of materials. The large capacity can improve work efficiency and meet different handling needs.

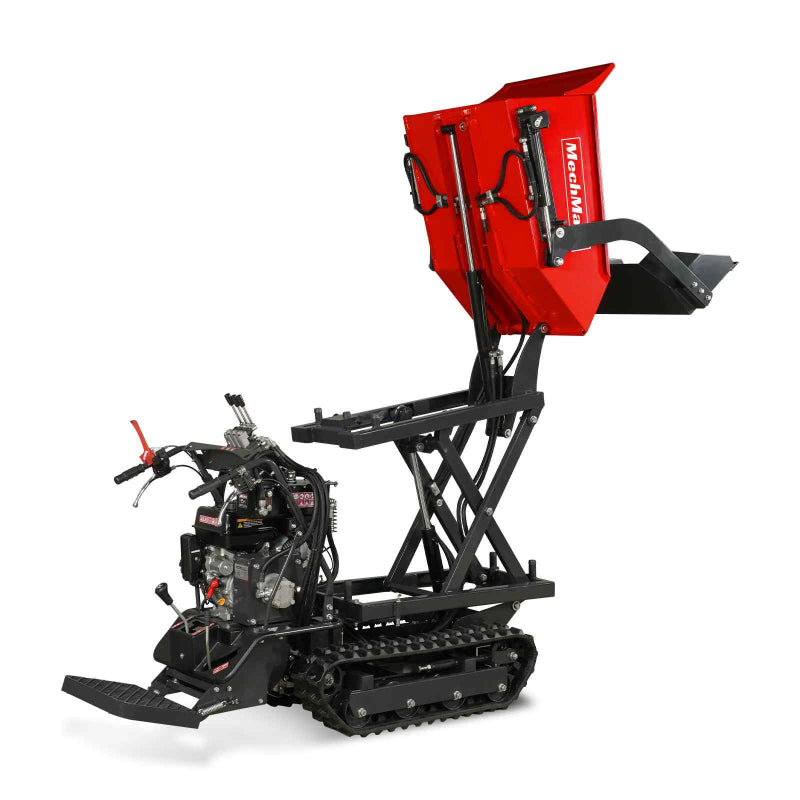

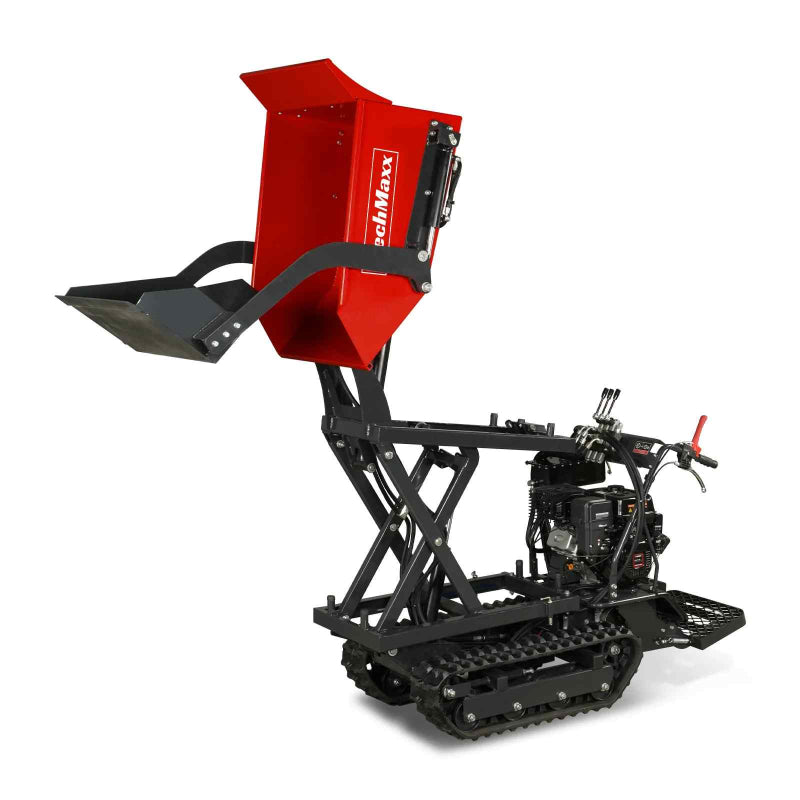

Lift Height
Lift Height

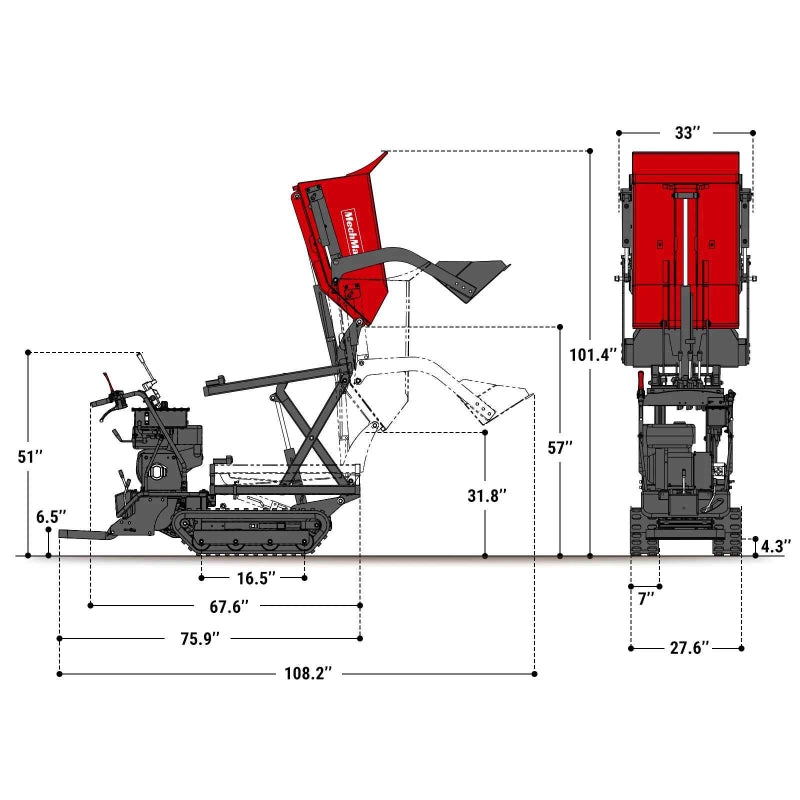

The hydraulically controlled hopper can be raised and lowered, saving manpower. The maximum lifting height is 57'', and the highest point of the hopper dumping can reach 101.4'', which can meet the dumping in different situations.

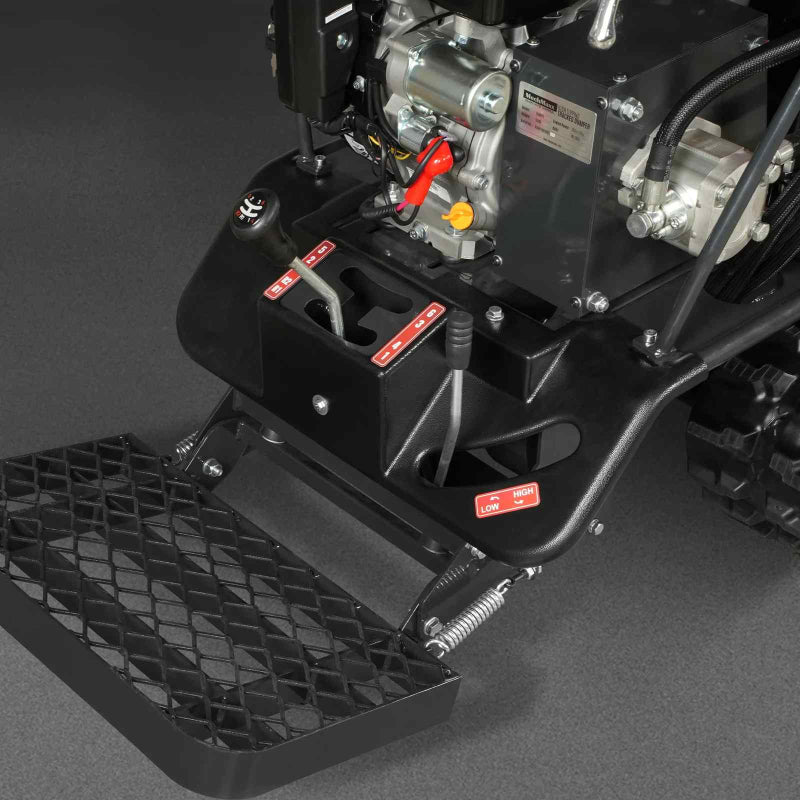

Transmission
Transmission

This machine is equipped with 6 forward and 2 reverse transmission, which offers an advantage over friction driven designs used on similar machines. It can meet different speed requirements.

Small Dimension, High Manoeuvrability
Small Dimension, High Manoeuvrability

Max machine width is 33'', which narrow design helps you to navigate through hard-to-reach spaces. The track drive and about 4.3'' ground clearance makes this dumper suitable for smooth, slippery or muddy terrain.

Speed Adjustment
Speed Adjustment

This machine has high and low speed adjustment. The forward speed is 0-4.47 mph and the reverse speed is 0-1.49 mph, which can be adjusted according to the user's needs.

  • Demonstration-1
  • Demonstration-2
  • Assembly & Installation
Product Warranty

MechMaxx D50HTFL Tracked Dumper with Hydraulic Tipping and Lifting with Front Shovel (SKU: 100900) includes a standard one-year manufacturer warranty covering defects in materials and workmanship under normal use.

Product Extended Warranty Plans

Extended warranty plans may be available for select products. Contact us to confirm eligibility and coverage details.

Engine LONCIN G300FD Gasoline Engine Bucket Capacity 10 cu.ft.
Engine Type Single Cylinder, 4 Stroke, Air-Cooled, OHV Shovel Capacity

1.8 cu.ft.

550lbs
Engine Displacement 302 cc Overall Width 33 in
Horsepower 10 HP Max. Dumping Height 57 in
Start Electric Start (battery included) Bucket Size 39.9 x 27.5 x 17.7 in
Fuel Tank Capacity 1.59 gal (6L) Track Width 7 in
Engine Oil Capacity 0.25 gal (0.95L) Ground Clearance 4.3 in
Hydraulic Oil Capacity 0.79 gal (3L) Working Pressure 16 Mpa
Transmission Transaxle 6 Forward / 2 Reverse Speed Track Roller 8 Pcs
Forward Speed 0-4.47 mph Track Size 180W x 60P x 38L
Reverse Speed 0-1.49 mph Package Method Iron Frame
Max. Gradeability 30% Packing Size 75.5 x 30 x 51 in
Loading Capacity 1100 lbs Weight (N.W / G.W.) 930 / 1012 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
