MechMaxx 72" Heavy Duty PTO Flail Mower with Hydraulic Side Shift

Save $1,300.00
Original Price $5,199.00
Current Price $3,899.00

Notify me when back in stock

⏱ Usually Ships in 10-15 days

Free Shipping for this Product!

Description

Clear large fields, roadside areas, and overgrown vegetation with the KDK72H 72" heavy‑duty PTO flail mower featuring hydraulic side shift, automatic belt tensioning, and a robust 3‑point hitch for stable, wobble‑free operation. This mower is built for farmers, landowners, and municipal crews running 50–75 HP tractors who need wide‑cut efficiency, precise height control, and reliable performance in tough mowing conditions.

Shipping & Returns

  • Free Shipping for this Product!

30‑day Easy Returns. Not happy with your product? We'll take it back, no questions asked.

Why Buy From Us

We’re dedicated to providing the best heavy‑duty equipment built for real‑world jobs.

We partner only with reputable brands to deliver reliable, contractor‑grade tools backed by integrity and service you can trust.

When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.
A portion of every sale helps fund local trade programs and community rebuilding efforts and more.

Found a better price? We’ll match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877


UnionBuilt Supply is an authorized dealer of MechMaxx. All manufacturer warranties are honored.

MechMaxx 72" Heavy Duty PTO Flail Mower with Hydraulic Side Shift

The MechMaxx 72" Heavy Duty PTO Flail Mower is designed for tractors that require a versatile cutting width for property maintenance, pasture care, and roadside trimming. Its hydraulic side‑shift system allows operators to offset the mower for improved reach along edges and obstacles.

A steel housing and balanced rotor support consistent cutting action in grass and light brush. The mower connects to standard 3‑point hitch and PTO systems for straightforward operation.

Fits Category I/II 3‑Point Tractors

Product manual (PDF)

Download PDF
72-Inch High-Efficiency Mower
72-Inch High-Efficiency Mower

This mower features a 72-inch working width and is suitable for 50–75 HP tractors. Equipped with a CAT 2 three-point hitch, it can be easily attached and provides stable operation across various working conditions, enhancing both efficiency and ease of use.

Flexible side offset design
Flexible side offset design

Connects to the tractor via hydraulic hoses, with hydraulic side-to-side control allowing horizontal movement up to 13.4 inches. Adjustable cutting direction enables easy trimming of distant overgrown areas.

CMR Gearbox
CMR Gearbox

High-quality CMR bearings from Italy efficiently transmit power to all key components of the machine, ensuring smooth and reliable operation, reducing wear, and enhancing both lifespan and efficiency.

Outside Rotor Bearing
Outside Rotor Bearing

Externally mounted bearings allow easy maintenance and repairs. High-quality Swedish SKF shaft bearings handle high loads, run quietly and coolly, ensuring reliable performance.

Openable Back Cover
Openable Back Cover

Features an openable rear cover for easy blade replacement and blockage clearing. Thickened shaft improves mowing efficiency for smoother operation.

Adjustable Height Roller Bar
Adjustable Height Roller Bar

The adjustable height roller bar allows you to raise or lower the cutting height to your desired level, and features a self-cleaning scraper to enhance cutting performance.

  • Assembly & Installation
Product Warranty

MechMaxx 72" Heavy Duty PTO Flail Mower with Hydraulic Side Shift (SKU: 150206) includes a standard one-year manufacturer warranty covering defects in materials and workmanship under normal use.

Product Extended Warranty Plans

Extended warranty plans may be available for select products. Contact us to confirm eligibility and coverage details.

Power Required 50-75 hp Drive Type Gearbox with belt
Minimum Power 50 hp Number of Belts 5
Working Width 72 in Belt Type AV 17*1245
Overall Width 81 in Drive Blet Tensioner Yes, bolts tightened
Variable Cutting Height 0-3 in Deck Material 0.2 in
Horicontal Etending Distance 13 in Side Plate Material 0.3 in
With Rear Open Door 1 pcs rear open door PTO Shaft RPM 540 rpm
Blade Number 16 Driveline Shaft Length 39-50 in
Blade Type hammer Spline End:   PTO Shaft Spline 1.375"  z6
Blade Weight 2.7 lbs 3-Point Hitch CAT 2
Blade Material Cast steel Tractor Mount Three-point hitch
Rotor Bearing SKF Bearing Gearbox 0il Type 85W/90
Rotor Diameter 6 in Dimensions (L x W x H) 81x46x37 in
Rotor Swing Diameter 16 in  Packing Size  82x38x28 in
Rotor Thickness 0.3 in Finsh  Durable Powder Coated finish
Rotor Shaft Speed 2082 rpm Warranty 1 year
Blade Speed

31.5 mph

Net Weight 1085 lbs
Rotor Rotation Clockwise Gross Weight 1232 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.

  • 5 stars: 34 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
B
Brent K

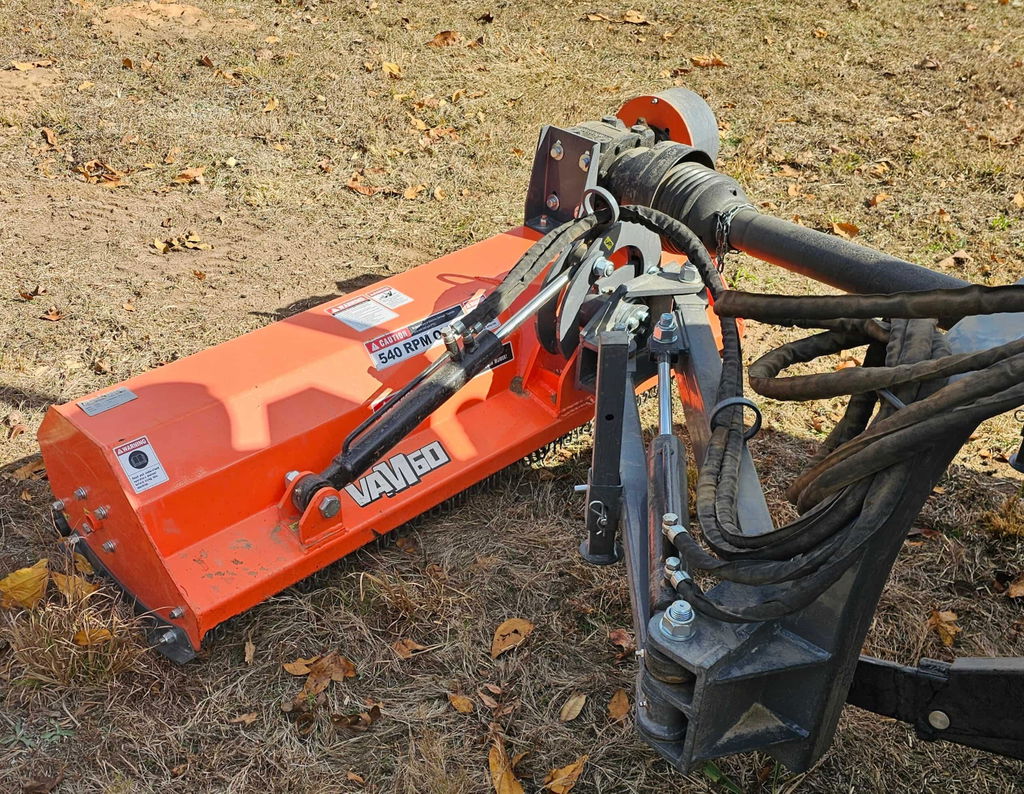

I bought the VAM60 to mow ditches and hillsides around the farm and it has delivered wonderfully. My yard is bordered by woods and this flail mower is great for getting under the low branches and cleaning up the brush.

G
Greg H

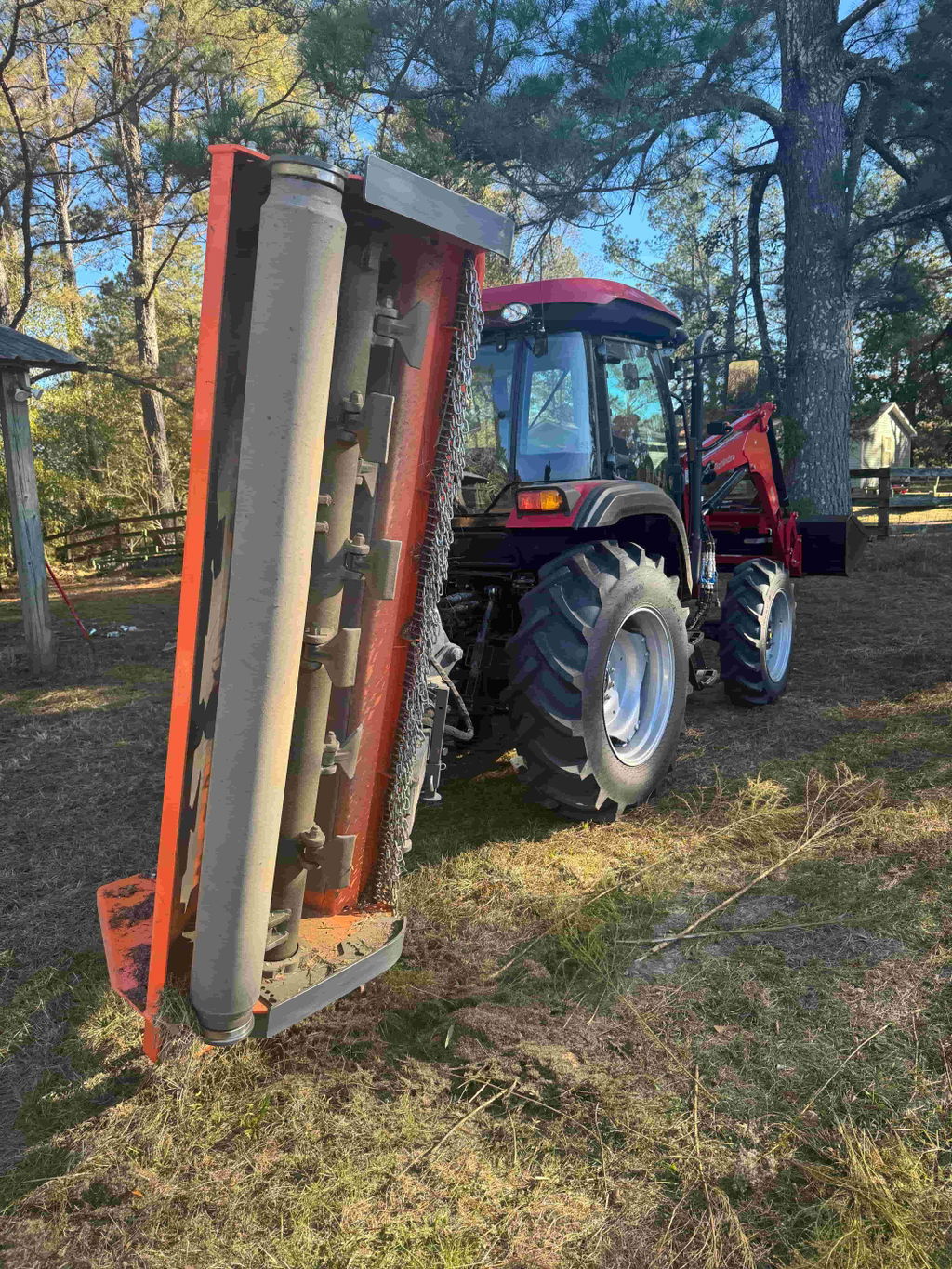

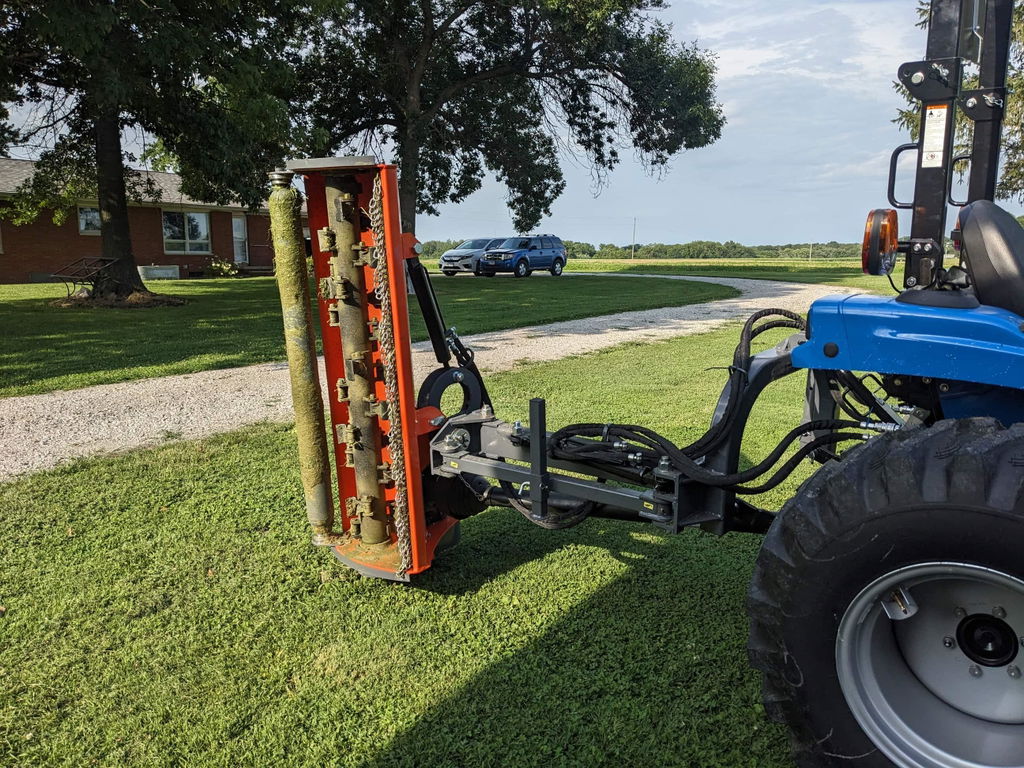

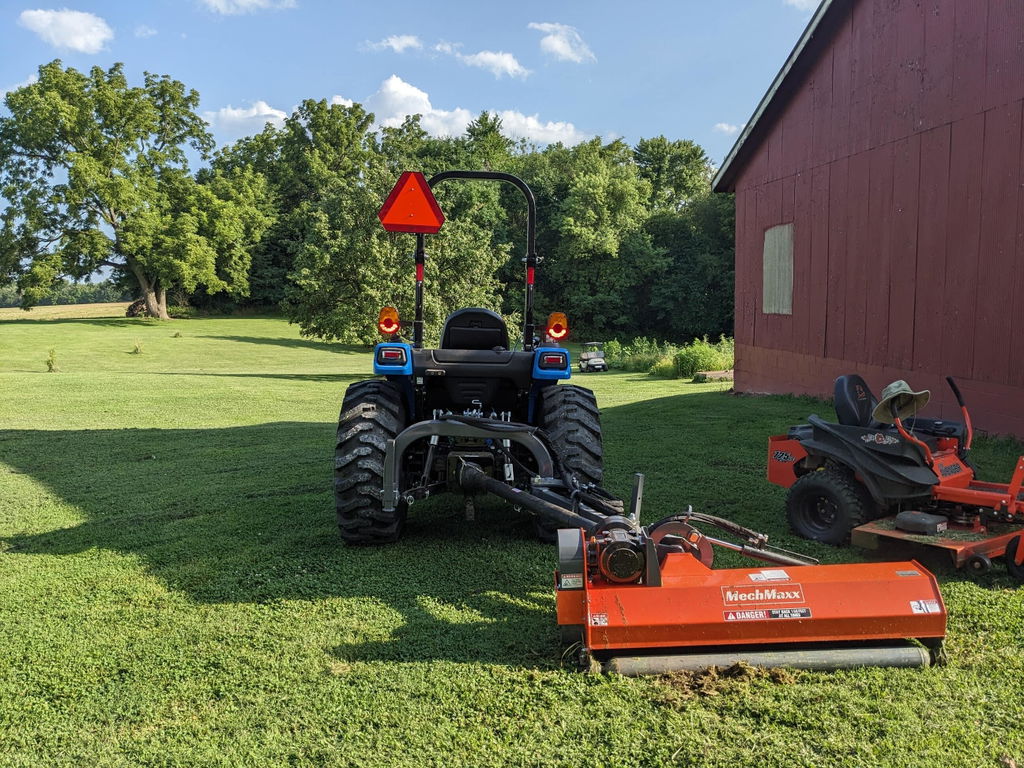

This has become our favorite new implement. The MechMaxx VAM60 60" Offset Flail Mower is so much more versatile than a brush cutter. Yes, it will cut brush, but it also leaves more of a "mulched" finish mower look. Rarely does it bend random weeds down like a brush cutter does from time to time. The offset feature of this flail mower means I no longer need another implement to cut vertically down wooded pathways. Very heavy duty. Very well built. We have been using it for a couple of months and it just works well everytime. The hammers have a few dings from use, but they just keep on cutting. Assembly was straightforward, just a few tools, use the tractor to lift off the crate.

M
Matt D

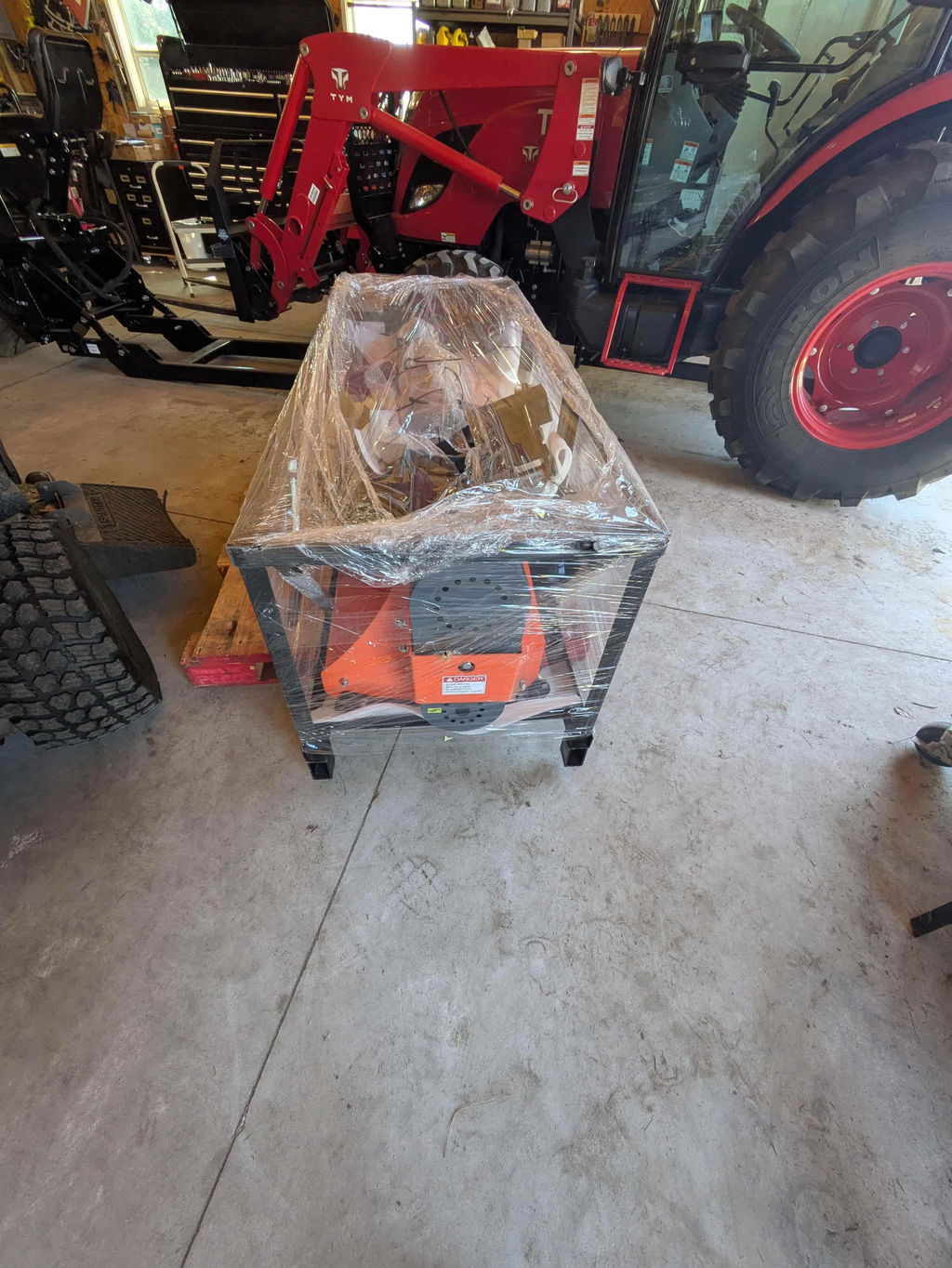

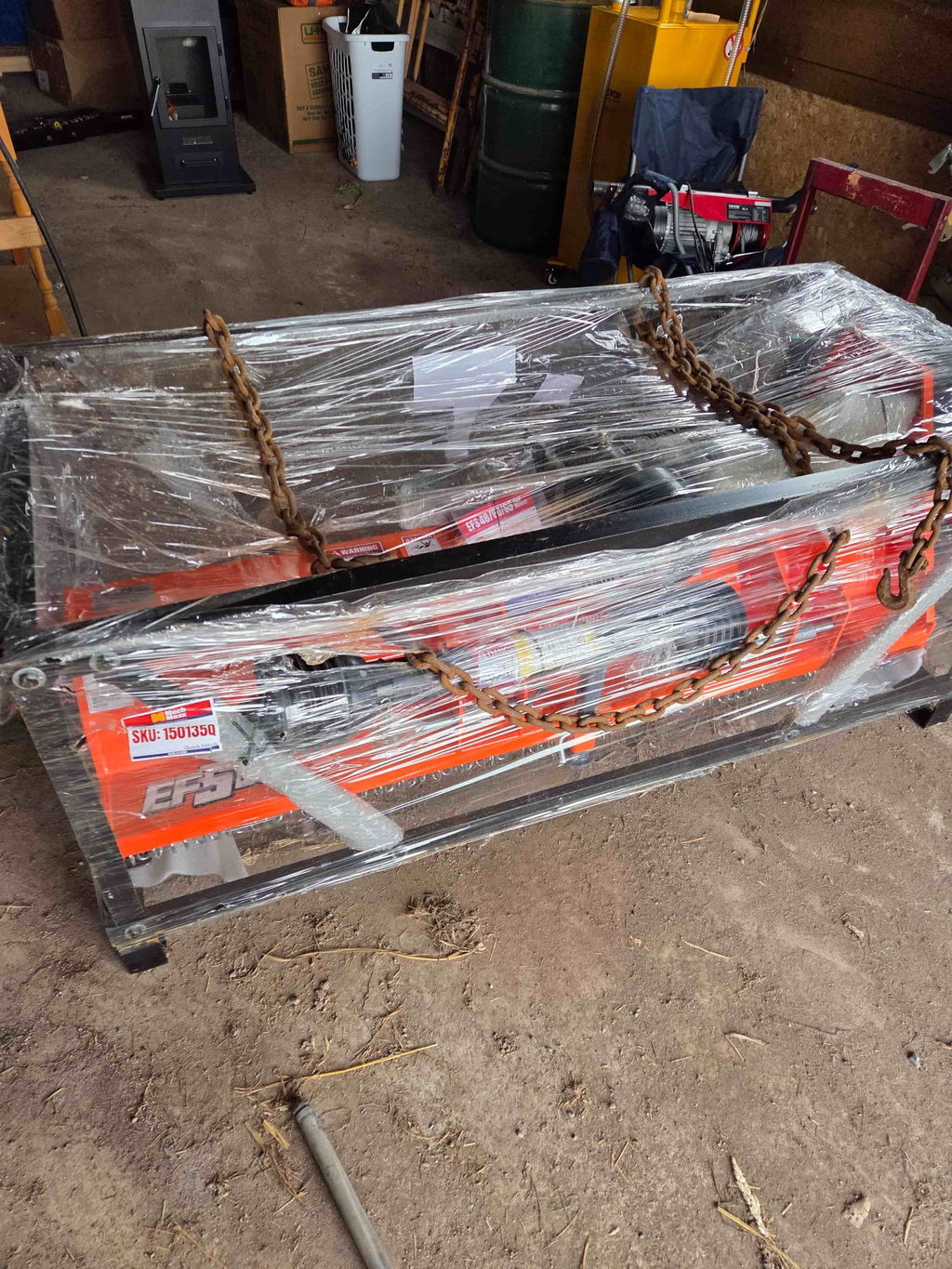

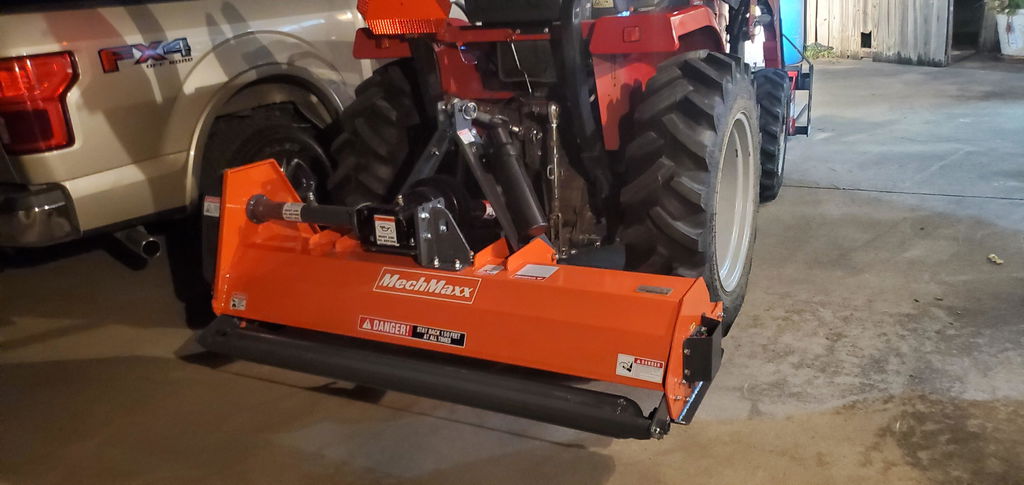

Flail mower showed up very well packaged. Even in my remote lovation it only took a couple days for it to arrive. Assembly has been straight forward. I used a good quality gear oil in the gear box. Im waiting for the next good stretch of weather to try it out!

E
Edward S

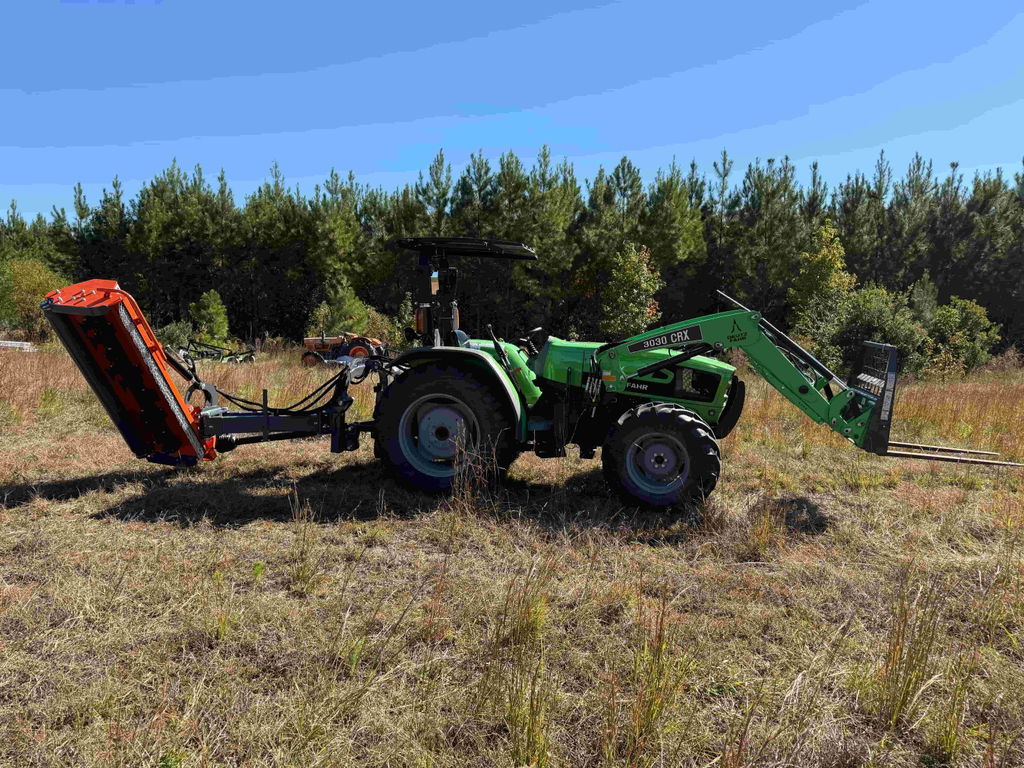

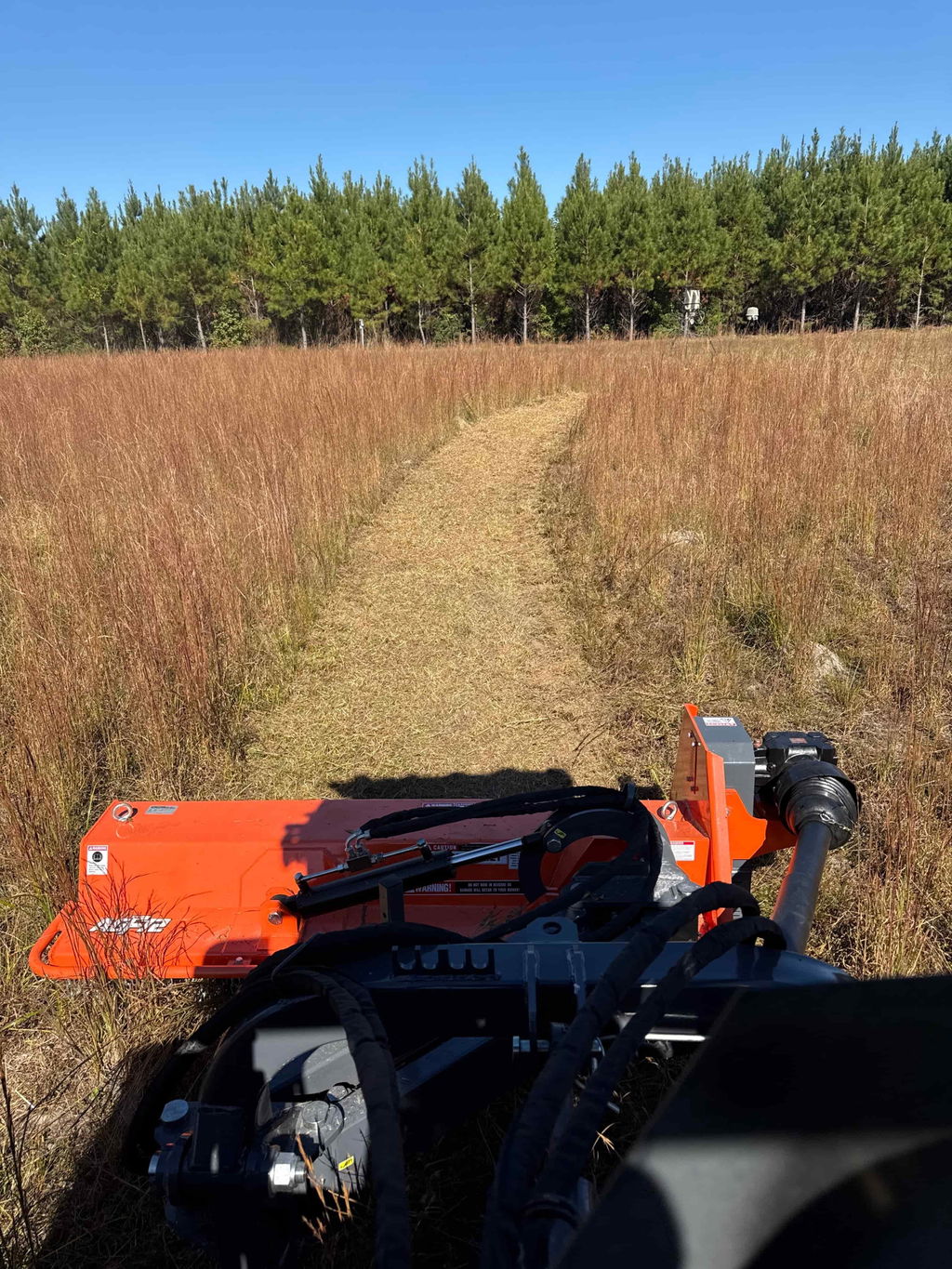

The AGF72 heavy duty ditch bank flail mower is a beast. I have it on the back in a Mahindra 6085 and it works wonderfully. This mower provides a nice clean cut. I've cut up to 4'' diameter brush with it and it never misses a beat.

P
Pedro F

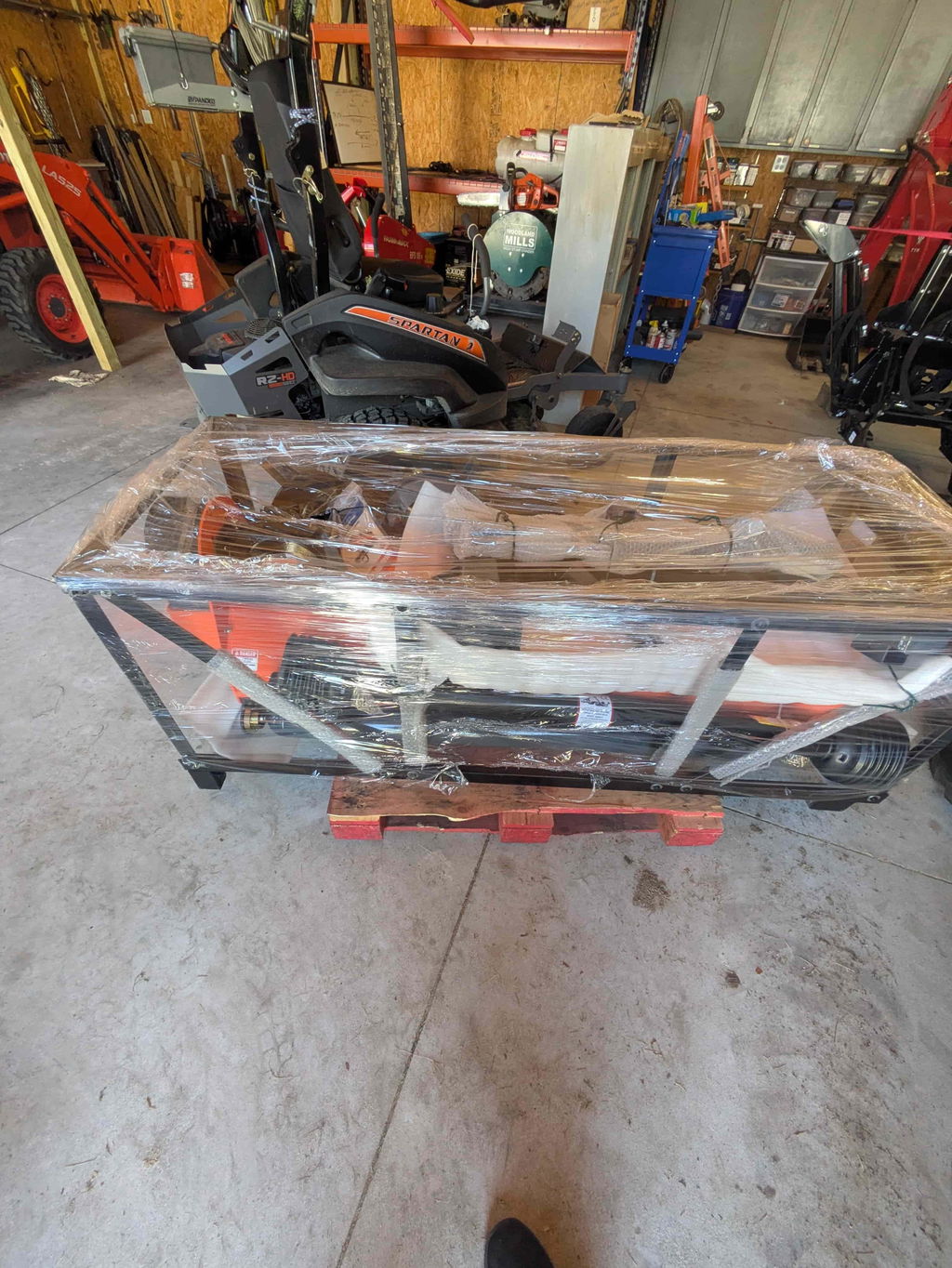

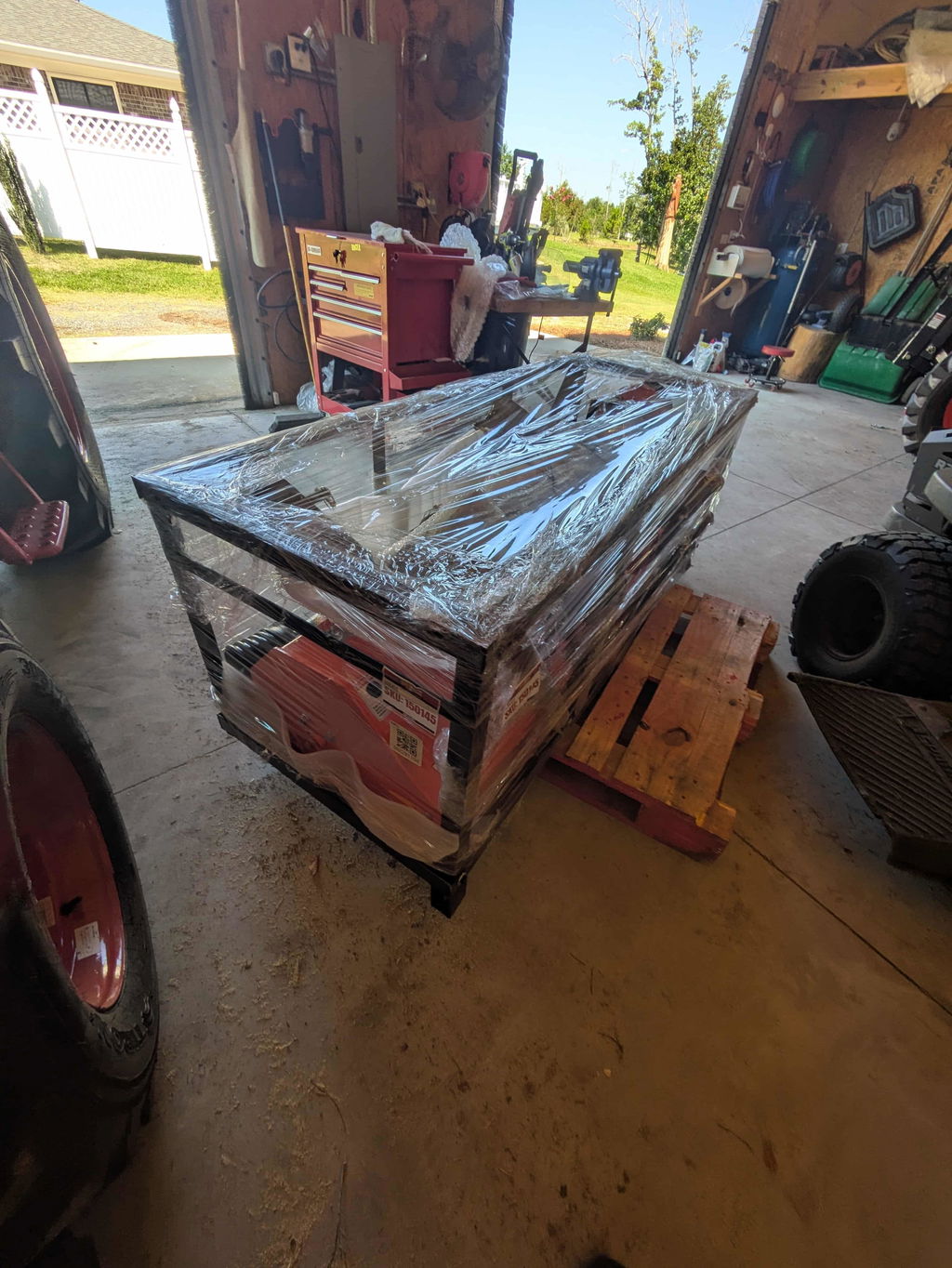

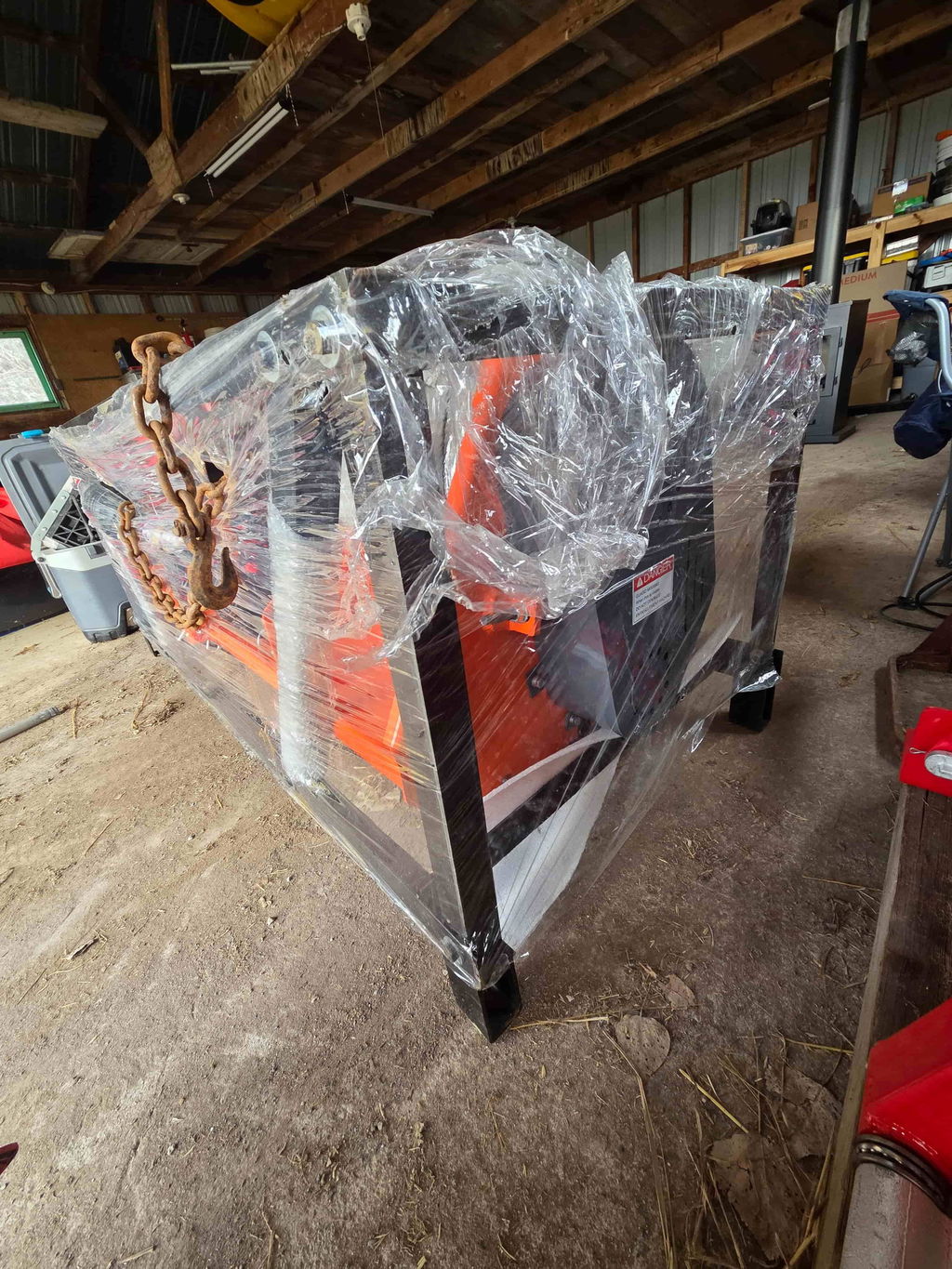

Pleased with results so far. The flail mower came very well packaged with a steel crate. Assembly was not difficult and I was able to do it by myself without any assistance. I adjusted the roller to the maximum height based on what I've seen other users do - and it was the right decision. Not sure that I would use the capability but I would like for it to have an even higher setting. I had no issues at all mowing a field and also some ditch banks. Don't forget to add oil to the gear as it comes empty from the factory. I also greased all the fittings. I'm using on a TYM T494 and it performed great on it. The heft of the tractor kept everything balanced and I had no concerns about the tractor being tippy.

J
Jason L

I am beyond pleased, this is an amazing piece of equipment that is making my life so much easier. It's easy to operate and cute so well. I'm kicking myself for waiting so long to buy one. The assembly instructions were a little confusing but I managed.

M
Mike S

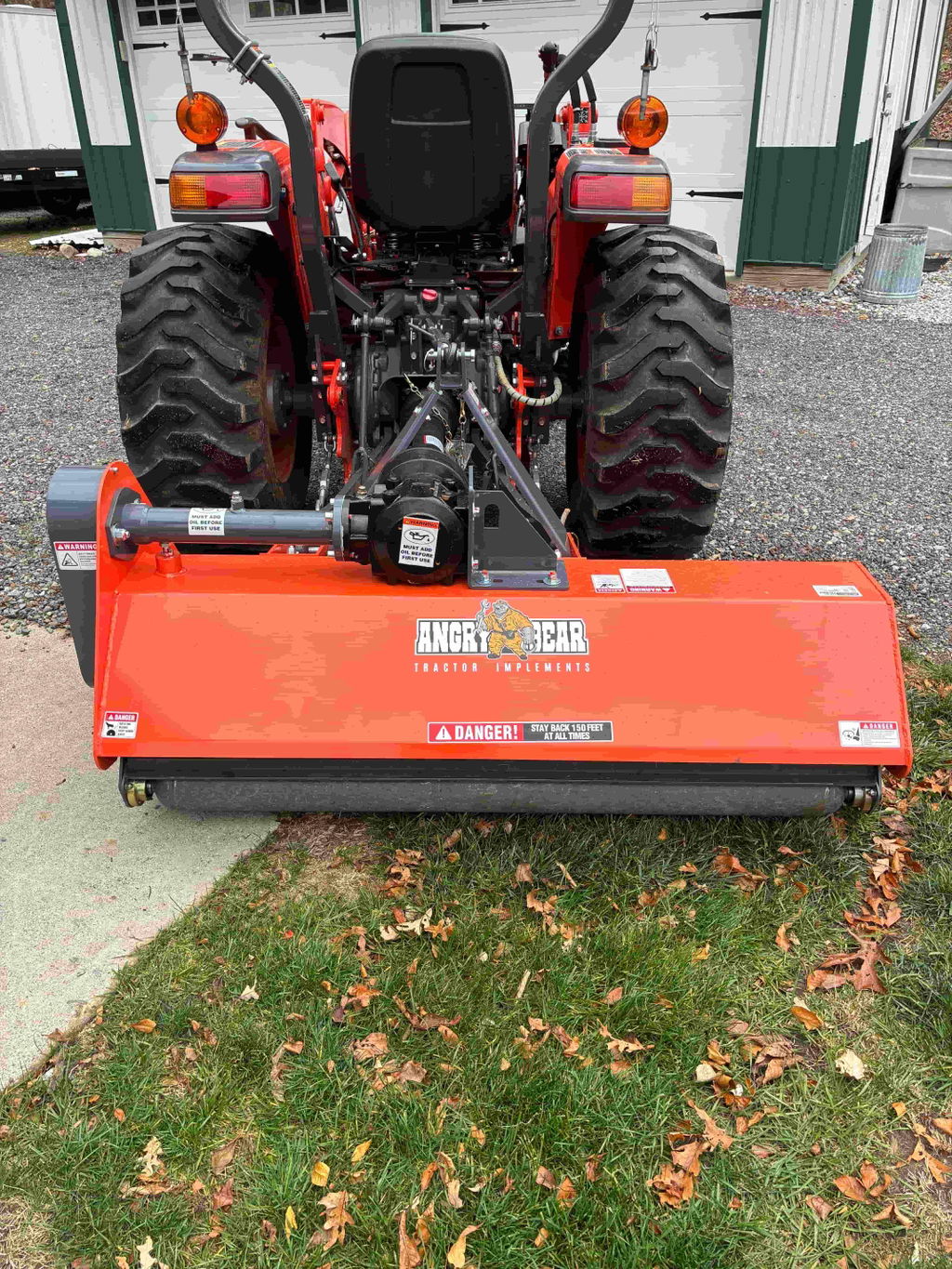

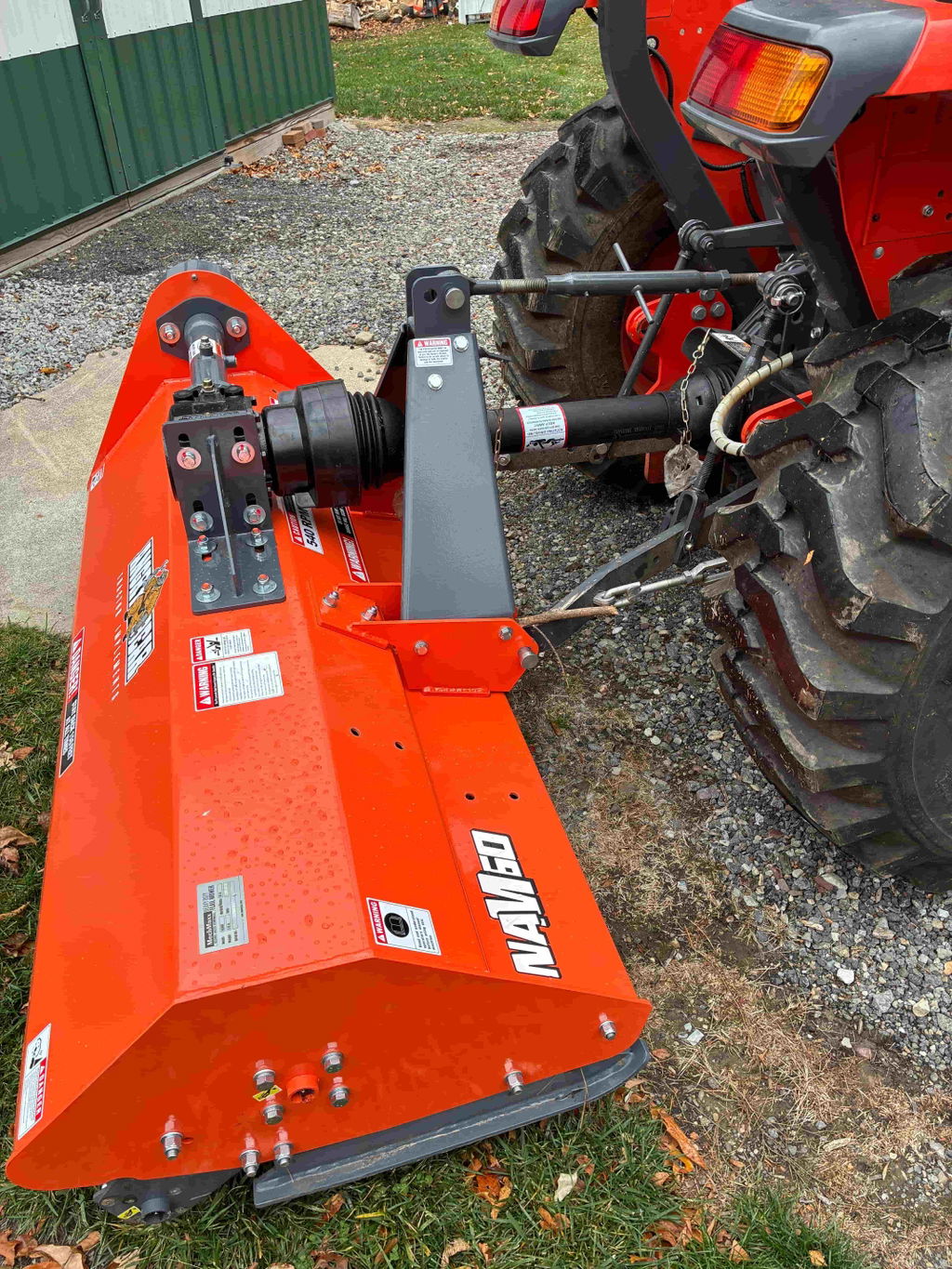

I am very pleased with the performance of the Nam60 flail mower on my Kubota L3901. Mowed 6 acres with it so far and it cut through heavy grass and light brush. The offset is good around the few trees I have. Easily assembled and fitted on my tractor. Cuts so much better than my 60" bushhog. Mechmaxx is a great company to purchase from as well! Thank you!

C
Clayton P

I purchased the NAM60 and could not be happier with the results so far. I mowed my 2.5 acre overgrown pasture with ease and also used it to clear out some willow saplings. It mulches everything really well. I was a little worried because my tractor was on the low end for HP (31hp) but it runs it just fine. I have a Yanmar 3110D. I did have to cut the PTO shaft but no big deal.

B
Bill W

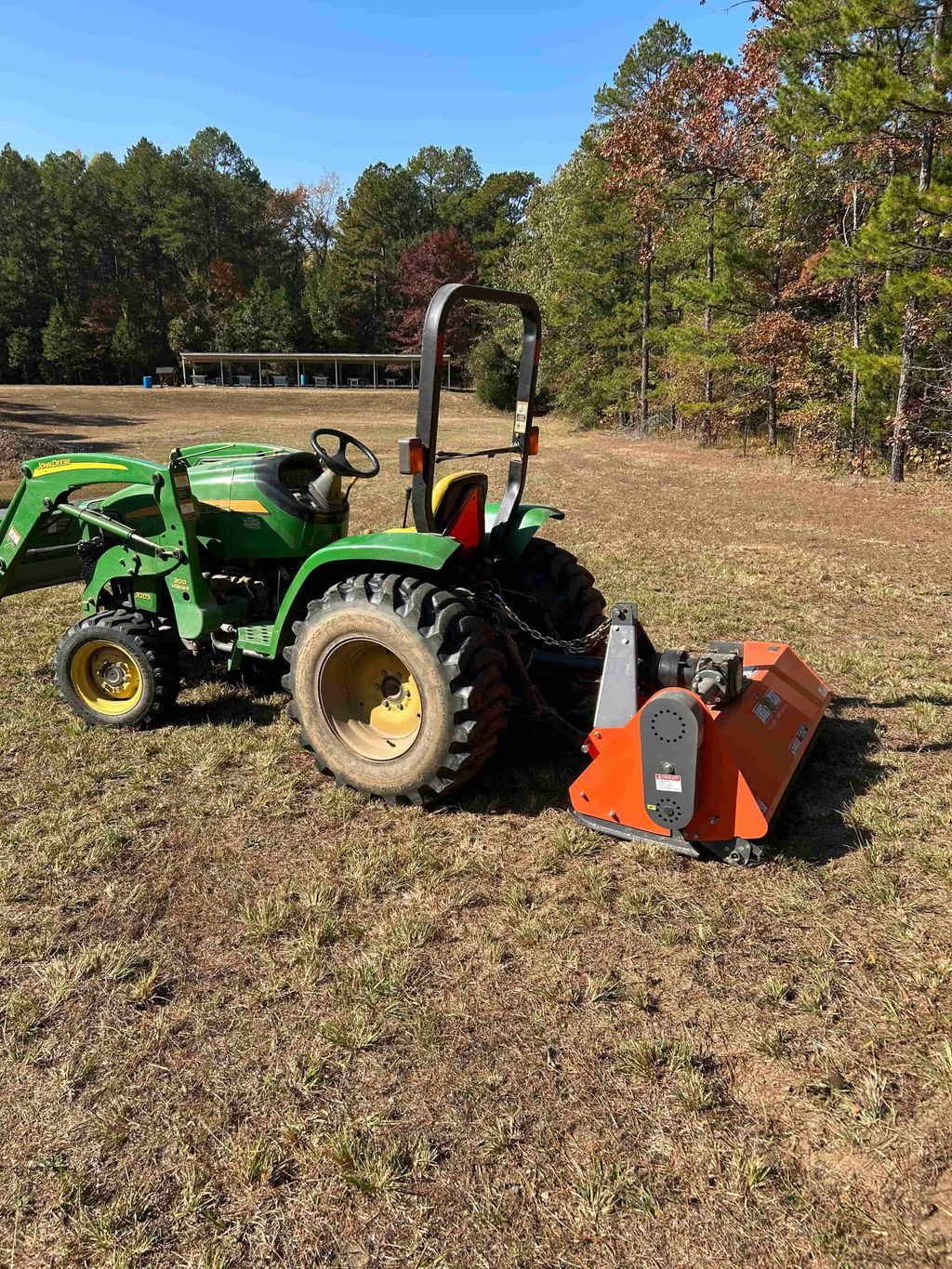

Purchased the NAM60 model to mow a gun club. I couldn't be more pleased with this mower. I don't think you could get any better cut with a Zero turn mower at six times the price!!! It's sturdy beyond my needs, easy to assemble and use and the shipping cradle was impressive!!! I have it mounted to a John Deere 3203 hydrostatic drive which provides plenty of power. Yes, I had to cut the PTO shaft but that was expected, no biggie!! I went with a flexible top link (chain) because our land is VERY uneven and this allows the mower to float better behind the tractor when running the “moguls”. Granted, I haven't used it to demolish any forest products but I'm sure it will handle most tasks with ease.
The value of this mower exceeds the price and I wouldn't hesitate to buy it again.

E
Eugene W

This product exceeded my expectations, works better tham my 60" brush hog cutter. Cuts lower and cleaner and leaves the cuttings like a mulcher would do instead leaving clumps of long cuttings. Its easier to maneuver than a brush hog as well. I would suggest this over a brush hog for cutting tall grasses or weeds.

S
Scott N

Good service! these guys were incredibly patient with my shipping questions. After about 40 hours of use, I can confidently say this mower was worth the investment. It handles heavy material without bogging down my tractor, cuts evenly, and leaves a much cleaner finish than a rotary cutter.

D
Denise G

I’m very happy with the power transmission. It’s smooth, reliable, and efficient.

E
Emily L

The side shift is very smooth and doesn't bind up even under load. Definitely built for hard work.

D
David L

Very quiet. Works great on my 66hp tractor.

R
Ronald S

Excellent for agricultural fields. I'm clearing about 2 acres an hour with this 72-inch deck.

M
Michael J

The hydraulic side shift is a total game changer. I can slide it over to reach right under the treeline without risking my tractor's cab.

H
Harold R

Stability is top-notch. I can mow at a decent clip without the machine bouncing around behind me.

J
Jeff E

Packaging was solid and delivery was fast.

A
Angel F

My 100HP tractor runs it effortlessly.

B
BRIAN G

Mows close to fences and trees thanks to the offset.

D
Doug A

The hammer blades leave a very clean finish. Looks almost like it was landscaped.
