Yellow tow-behind wood chipper with elevated discharge chute, black feed hopper, engine, and trailer wheel

MechMaxx TX1000 - 35HP 1000cc Gas Powered 8-Inch Commercial Wood Chipper

Save $2,000.00
$16,699.00
$14,699.00

Notify me when back in stock

⏱ Usually Ships in 10-15 days

Free Shipping for this Product!

Description

Turn logs and brush into clean, uniform chips with a commercial‑grade 35HP wood chipper. Built for tree crews, landscapers, and property managers who need fast, reliable material reduction.
Shipping & Returns

  • Free Shipping for this Product!

30‑day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We’re dedicated to providing the best heavy‑duty equipment built for real‑world jobs.

We partner only with reputable brands to deliver reliable, contractor‑grade tools backed by integrity and service you can trust.

When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.
A portion of every sale helps fund local trade programs and community rebuilding efforts and more.

Found a better price? We’ll match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877


UnionBuilt Supply is an authorized dealer of MechMaxx. All manufacturer warranties are honored.

Turn Heavy Timber into Clean Chips with the MechMaxx TX1000 Commercial Wood Chipper

The MechMaxx TX1000 is built for tree crews, landscapers, and rental fleets that need fast, reliable material reduction. Its commercial‑grade design handles high‑volume chipping with consistent performance. Powered by a 35HP 1000cc gasoline engine with electric start and a 12V 48Ah battery, the TX1000 uses an intelligent feeding system that monitors engine RPM and adjusts feed rollers to prevent overload. A heavy‑duty 12" × 11" feed roller processes branches up to 8 inches in diameter, while dual emergency stop buttons above the chute provide immediate shutdown capability. The quick‑reverse feed roller clears jams quickly and resumes operation smoothly. A foldable feed box improves storage and transport efficiency. This machine is built for professional use and requires unleaded gasoline and 10W‑30 oil.

  • 35HP 1000cc commercial engine
  • Intelligent feeding system
  • 12" × 11" feed roller handles 8" material
  • Dual emergency stop buttons
  • Quick‑reverse roller for jam clearing
  • Foldable feed box for compact storage
  • Built for professional crews & rental fleets

Product manual (PDF)

Download PDF

Engine manual (PDF)

Download PDF

Assembly guide (PDF)

Download PDF
Electric Start and Battery
Electric Start and Battery

The TX1000 Wood Chipper is powered by a 35hp, 1000cc electric start EFl gasoline engine with a torque of 74Nm,and is equipped with a 12V 48Ah battery.

Intelligent Feeding System
Intelligent Feeding System

The TX1000 is equipped with an intelligent Feeding System that monitors engine RPM and controls the feed rollers, boosting operational efficiency while reducing engine strain.

Maximum Wood Chip Diameter 8 in
Maximum Wood Chip Diameter 8 in

The TX1000 Wood Chipper is driven by a motor that powers hydraulic feed, allowing it to operate efficiently against walls. It delivers maximum cutting force, effortlessly shred-ding branches up to 8 inches in diameter.

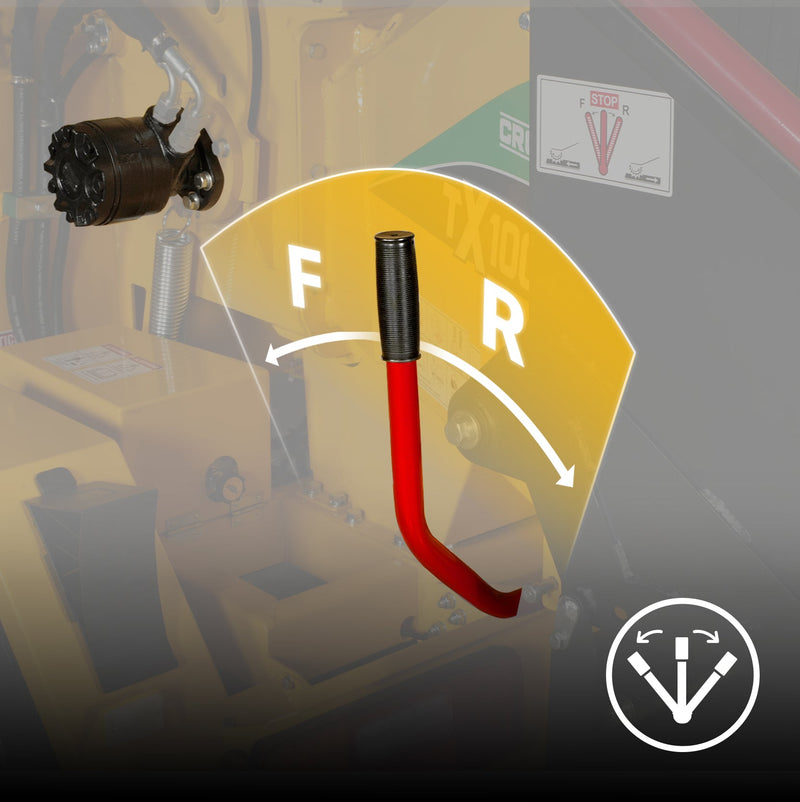

Feed Roller Reversing Lever
Feed Roller Reversing Lever

Specifically designed for convenience and safety, it allows quick reversal of the feed rollers to clear jams or adjust feed direction, ensuring smooth operation, reducing downtime, and protecting both the machine and the operator during intensive chipping tasks.

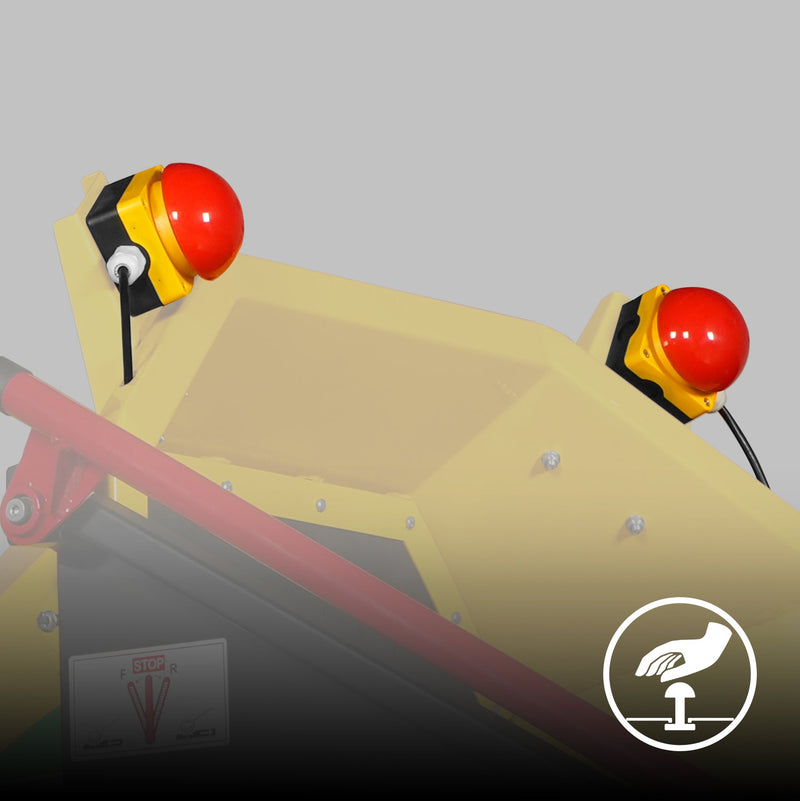

Safety Devices
Safety Devices

Two emergency stop buttons are installed on both sides of the upper feeding chute. In case of an emergency, these devices can stop the machine (including the engine) at anytime, ensuring operational safety.

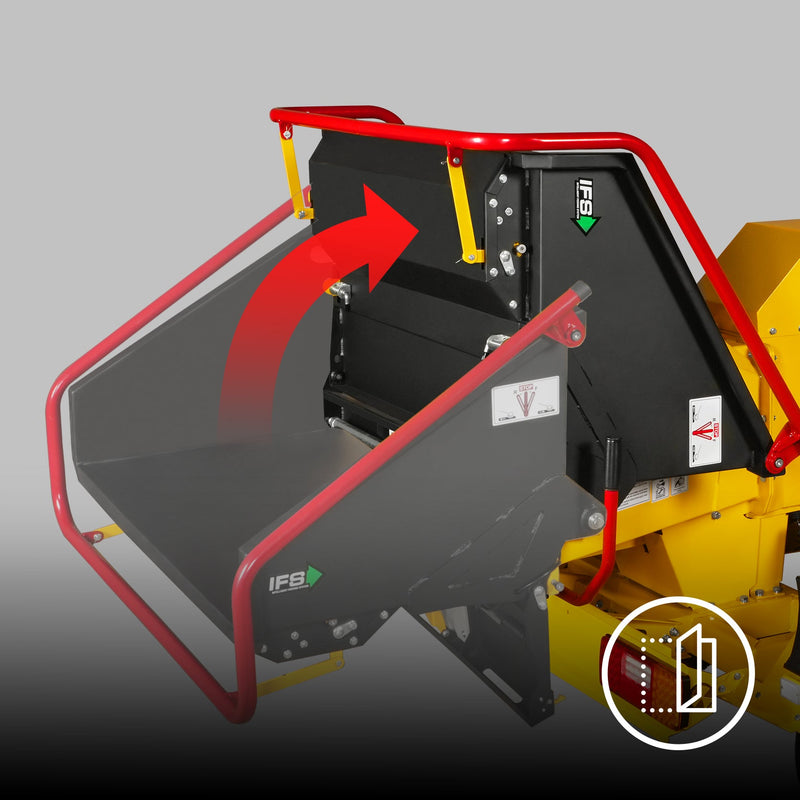

Folding Feeding Box
Folding Feeding Box

The feeding box is designed to be collapsible, allowing it to be easily folded upwards when not in use. This feature makes storage and transport more convenient, saving space and making the machine more portable and user-friendly.

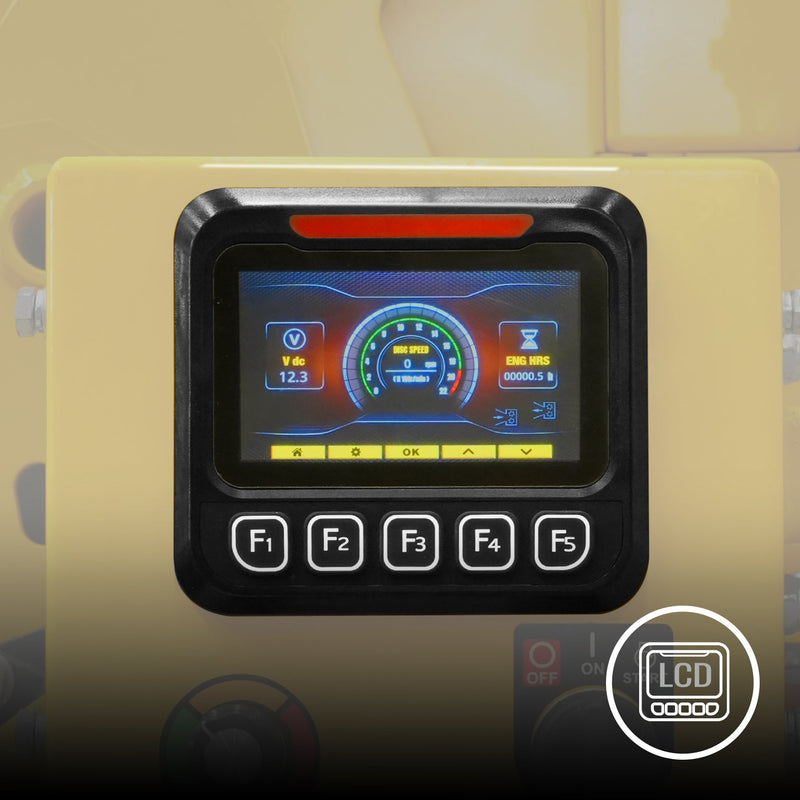

4.3’’ Color LCD Monitor
4.3’’ Color LCD Monitor

The TX1000 features a 4.3-inch color LCD monitor, enabling real-time monitoring of the machine's status. This simplifies maintenance and improves overall efficiency.

Feed Control Lever
Feed Control Lever

With a simple press, feeding stops instantly to ensure maximum operator safety during operation. When the handle is pulled back up, feeding resumes smoothly and efficiently-making the process fast, easy, and reliable for continuous work.

Tail Light and Wheelbase
Tail Light and Wheelbase

The TX1000 features a tail light with an American 7-pin plug for synchronized brake and turn signals when towed. It comes with φ594 x 165R13 tires and a 55’’ wheelbase for stable performance.

Product Warranty

MechMaxx TX1000 - 35HP 1000cc Gas Powered 8-Inch Commercial Wood Chipper (SKU: 110701) includes a standard one-year manufacturer warranty covering defects in materials and workmanship under normal use.

Product Extended Warranty Plans

Extended warranty plans may be available for select products. Contact us to confirm eligibility and coverage details.

Engine Parameter
Engine Brand Model Zonsen GB1000EI
Engine Power 35HP
Torque 74Nm
Fuel Tank Capacity 18L
Max Fuel Consumption 2.38gal/h
Fuel Type Gasoline 92#
Air Cleaner Double Filtration
Oil Filter Screw Mountiing
Recommended Oil SAE 10W-30
Oil Volume with Filter 2.5L
Maximum Continuous Working Angle 20°
Cooling Medium Forced Cooling
Alternator 25A/300W
Clutch Type Manual Clutch
Engine Shaft Diameter 1.125 in
Tensioner Spring Automatic Tensioning
Belt 2SB1505LE
General Dimensions And Weight
Overall Length-Feed Table Up 135 in
Overall Length-Feed Table Down 155 in
Overall Width 55 in
Overall Height-Discharge Chute Up 79 in
Overall Height-Discharge Chute Down 92 in
Overall Weight 1874 lbs
Tongue Weight 198 lbs
Feed System
Feed Roller Orientation Horizontal
Feed Roller Nos. 1
Feed Roller Clamp Load 344 lbs
Knife Nos. 4
Number Of Feed Roller Motors 1
Feed Roller Clamping Mechanism Type Spring + Feeding Roller Weight
Feed Roller Dimension φ12*11 in
Minimum Distance From Feed Roller To Blade Housing 5 in
Weight Of Feed Roller Assembly 123 lbs
Feed Speed 54ft/min
Infeed Table Height 22 in
Infeed Table Length 24 in
Infeed Table Width 41 in
Infeed Throat Size 12*8 in
Distance From Feed Roller To End Of Feed Table 61 in
Distance From Feed Table To Ground 30 in
Safety System
Bottom Feed Stop Bar Function Feed Roller Stopped - Reset
Bottom Feed Stop Bar Standard
Bottom Feed Stop Bar Diameter 1.2 in
Bottom Feed Stop Bar Material Thickness 0.07 in
Stop Bar Resetting Method Manual Reset
Three-Position Feed Control Bar Standard
Control Bar Diameter 1 in
Control Bar Material Thickness 0.07 in
Control Bar Position Function Forward/Stop/Reverse
Red Emergency Stop Button Stop The Engine
Red Emergency Stop Button Reset Method Manual Reset
Blade Housing Parameter
Chipping Capacity 8 in
Blade Housing Width 7 in
Cutting Disc Size 30*0.7 in
Cutting Disc Rotating Speed 1800
Weight With Shaft 225 lbs
Safety Lock - Number Of Positions 1
Blade Size 4*1*0.5 in
Blade Cutting Edge Nos. 2
Blade Bolt Nos. 3
Vertical Anvil Size 3.5*7.8*0.5 in
Vertical Anvil Cutting Edge Nos. 2
Horizontal Anvil Size 3.7*11.6*0.4 in
Horizontal Anvil Cutting Edge Nos. 2
Blade Material A8 Steel
Anvil Material Cr12
Blade Holder Replaceable No
Fan Blades Nos. 4
Fan Blade Fixation Method Bolt Fixing
Fan Blade Air Flow 3249CFM
Disc
Bearing Nos. 2
Bearing Hole Diameter 2 in
Bearing Type Spherical Bearing
Bearing Brand SKF
Dynamic Capacity 23.2KN
Static Capacity 27KN
Tensioner Automatic Tensioning
Belt Type Combined Belt
Discharge System
Chute Height 97 in
Flange Thickness 0.2 in
Side Wall Thickness 0.07 in
Chute Rotation Angle 360°
Rotation Type Manual
Rotatation Lock Included
Rotational Lock Type Tighten The Dual Handle Bolts
Hydraulic System
Tank Capacity 7.4 gal
Recommended Oil Type hm46
System Type Open Center
Filtration Method Return Oil Filtration - 10um
Pump flow at the maximum RPM 4.2 gal
Maximum Pressure 2102psi
Electric Control Parameter
System Voltage 12V
Battery 12V 48AH
Display Screen Size 4.3 in.
Controller Function Timer, Automatic Control, Status Display, Speed Display, Etc.
Shutdown System Engine
Trailer Lights Vehicle Power Supply
Others
Tow Ball Size 2" Coupler Hitch / 2" Ball Coupler
Hook Type Ball Coupler
Axle Load-Bearing Capacity 2756 lbs Torsion Shaft
Mud Guard Bolt Fixing
Torque Shaft Type Solid Torque Shaft
Tyre φ594x165R13

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
