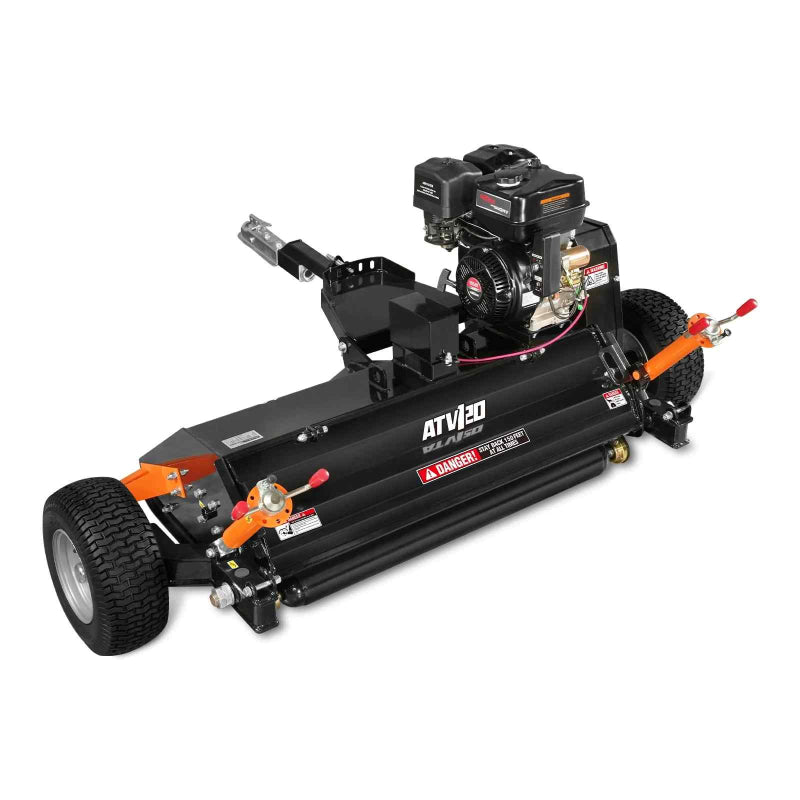

angled front view of black MechMaxx ATV120 48-inch tow-behind offset flail mower with engine and large tires gallery position 1

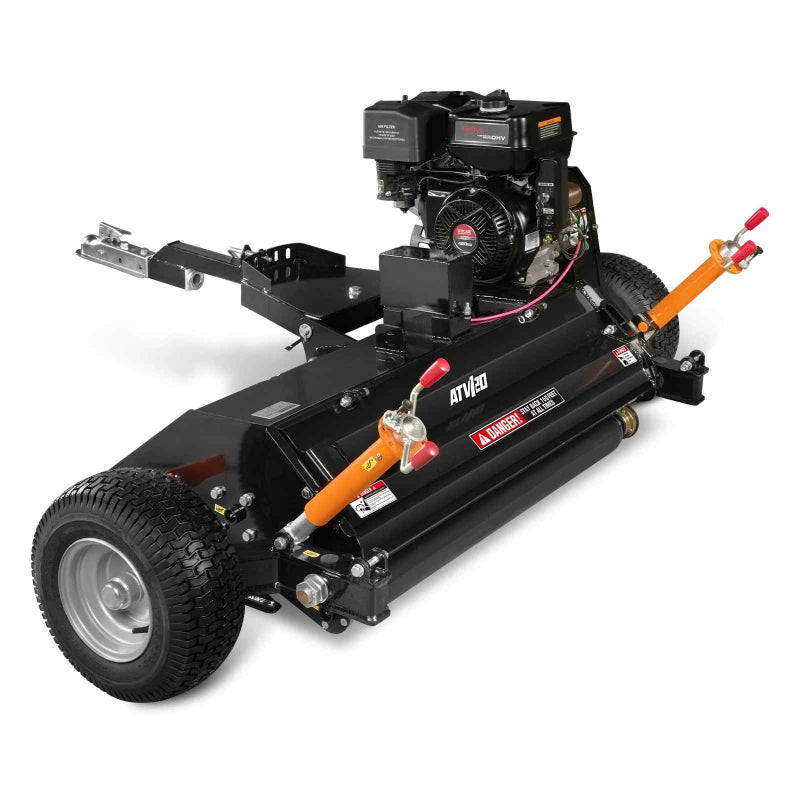

MechMaxx ATV120 48" Tow-Behind ATV Offset Flail Mower

by MechMaxx
Save $400.00
$3,299.00
$2,899.00

Notify me when back in stock

Description

Tackle fields, trails, and large properties with the MechMaxx 48" tow‑behind ATV flail mower featuring a 15HP 459cc electric‑start ZONSEN engine, 5‑point offset cutting, and adjustable mowing height for precise control. Built for landowners and commercial users running ATVs or UTVs with a 2" ball receiver, it delivers strong mulching performance, even discharge, and all‑terrain stability with dual 16" tires for reliable mowing anywhere.
Shipping & Returns

Free Shipping USA-wide. No extra charges. Ever.

30-day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We are dedicated to providing the best heavy-duty equipment built for real-world jobs possible. We partner only with reputable brands to deliver reliable, contractor-grade tools backed by integrity and service you can trust. When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.


Found a better price? We can match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877
  • It has ZONSEN GB460B(E) gasoline engine which matches any ATV equipped with a 2-inch ball receiver.
  • The handle can adjust the cutting height.
  • 48" working width with 5-point offset for fast and precise mowing of large areas around buildings.
  • Compatible with 2-inch ball receivers that easily attach to your ATV or UTV for use on your home, farm or commercial property.
  • Powered by the reliable ZONSEN electric start engine that are durable and high performing.
  • Backed by two 16-inch all-terrain rubber tires, it can tackle tough work wherever you are, and it has an included stand for better storage.
  • It produces a consistent, well-sized mulch that is evenly distributed on the backside (through the rear drain) and requires no additional cleanup.

Product manual (PDF)

Download PDF

Engine manual (PDF)

Download PDF
Engine
Engine

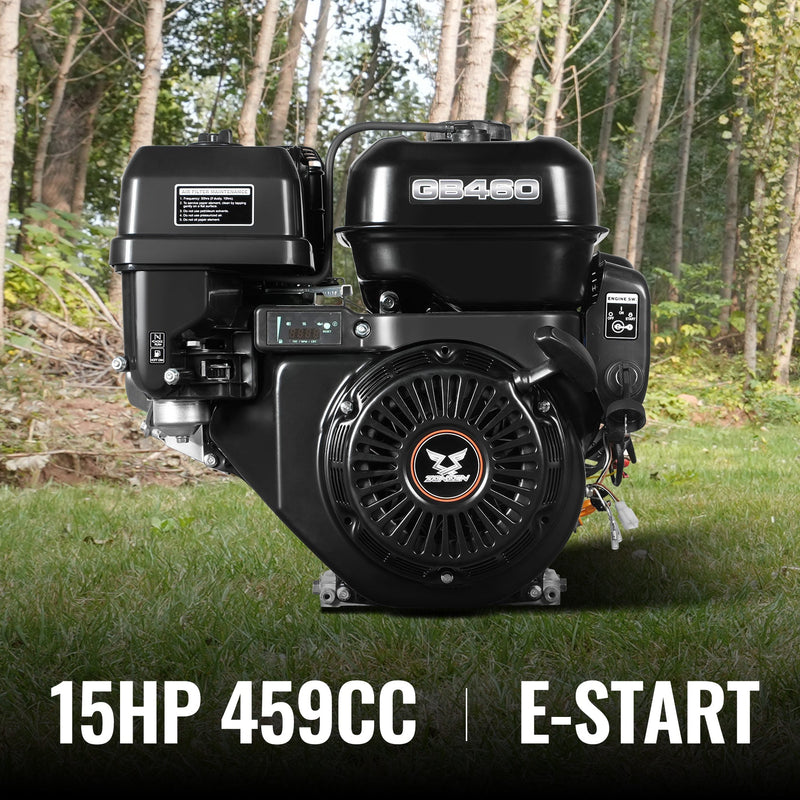

This ATV mower is equipped with a 15HP 459cc ZONSEN GB460B(E) engine, which has excellent performance, reliable quality, and can be used for a long time.

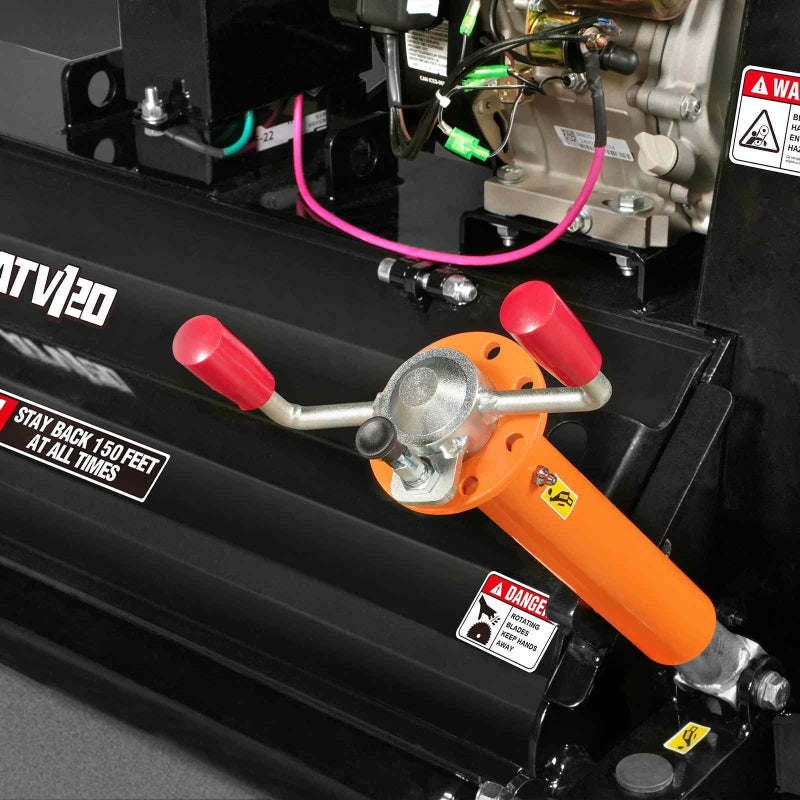

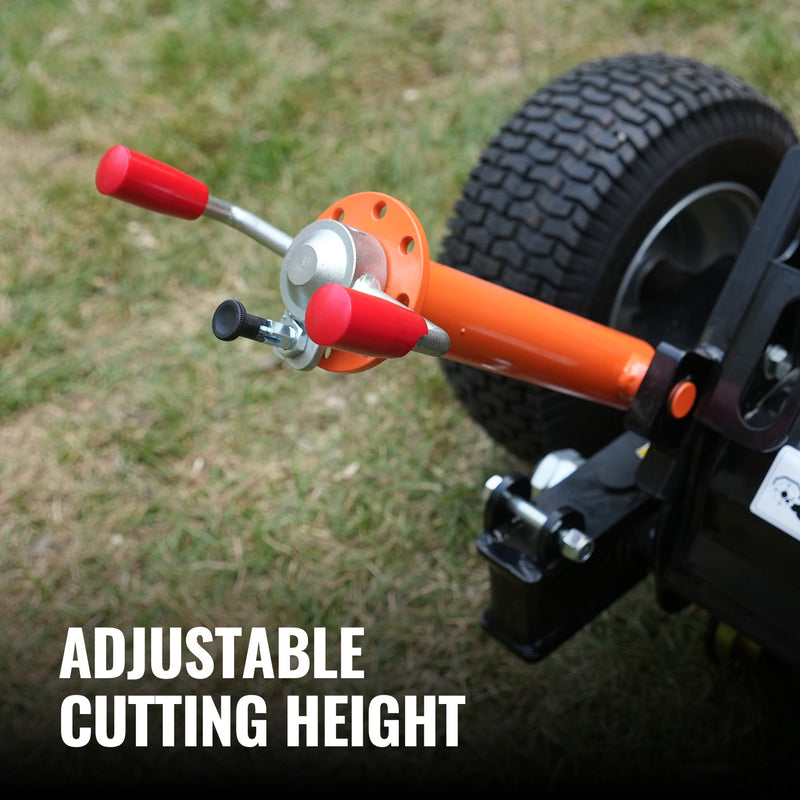

Adjustable Cutting Height
Adjustable Cutting Height

The handle can adjust the cutting height to meet the various needs of users.

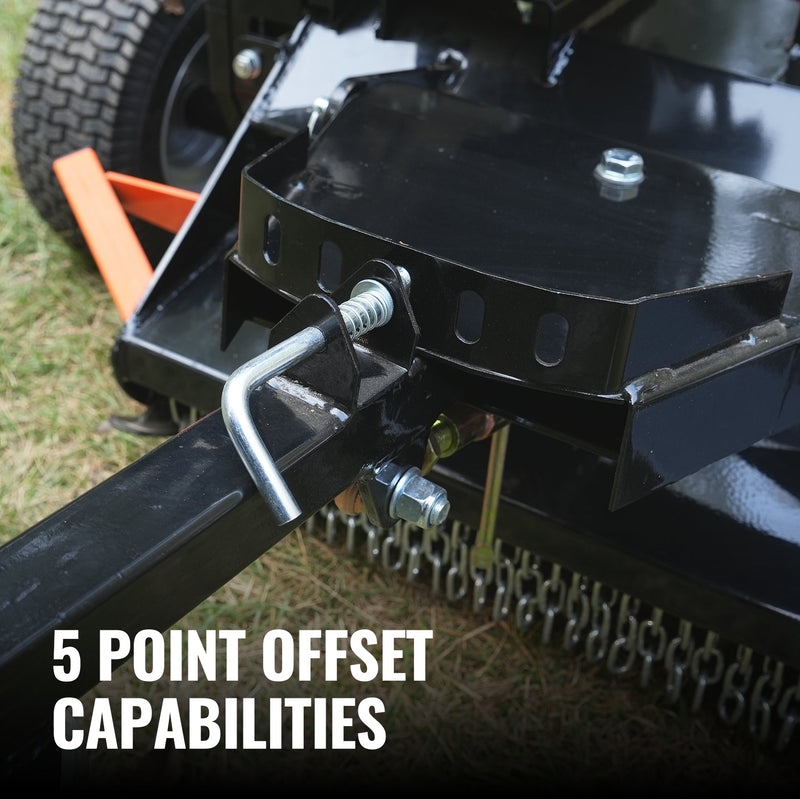

5-Point Offset Capabilities
5-Point Offset Capabilities

48'' working width with 5-point offset for fast and precise mowing of large areas around buildings.

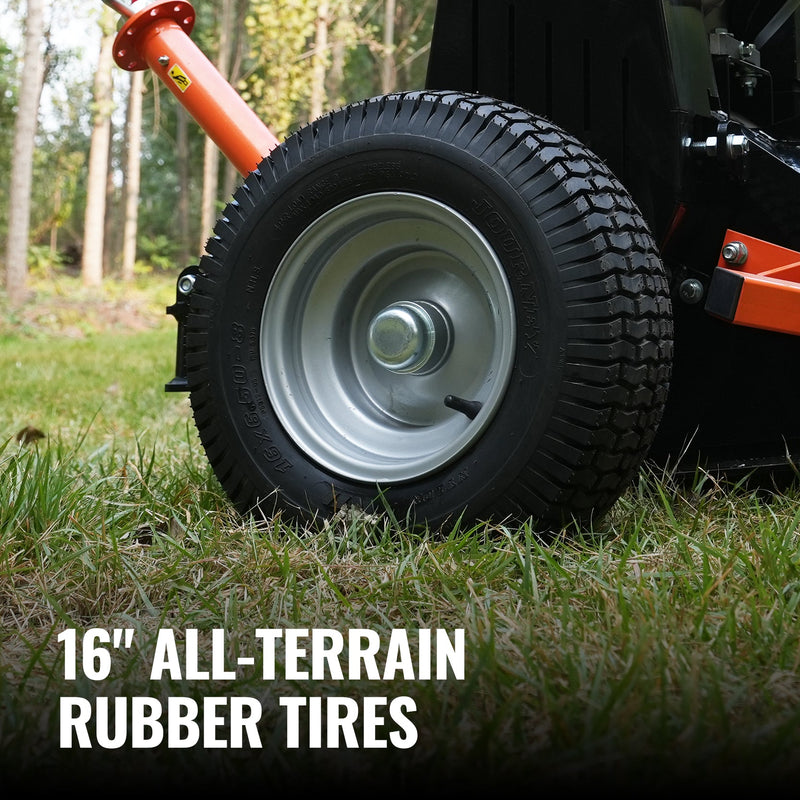

16-Inch All-Terrain Rubber Tires
16-Inch All-Terrain Rubber Tires

Backed by two 16-inch all-terrain rubber tires, it can tackle tough work wherever you are, and it has an included stand for better storage.

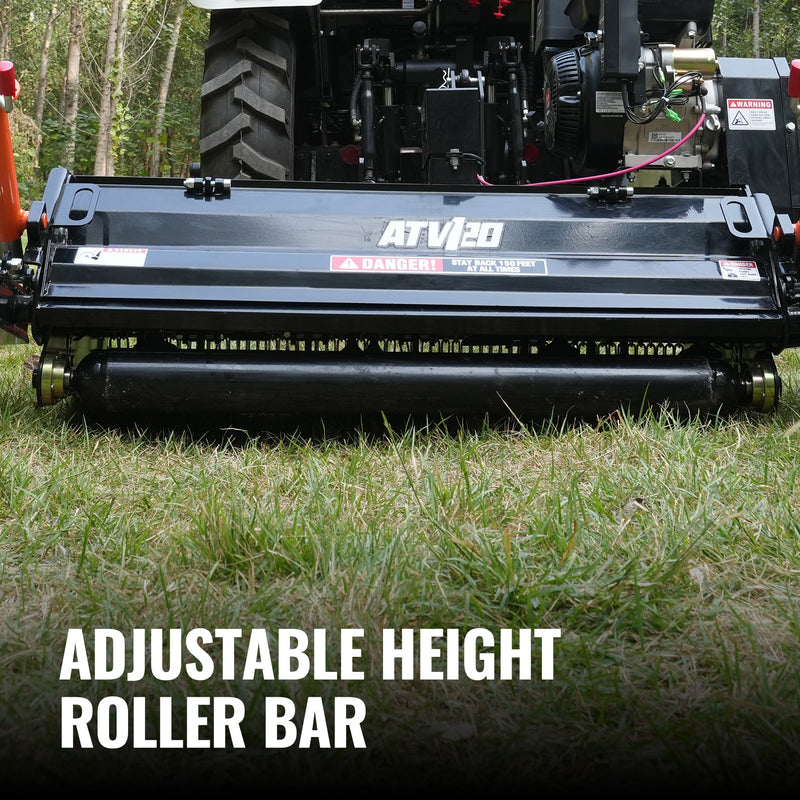

Adjustable Height Roller Bar
Adjustable Height Roller Bar

Adjustable Height Roller Bar adjusts to raise or lower the cutting height to your desired need.

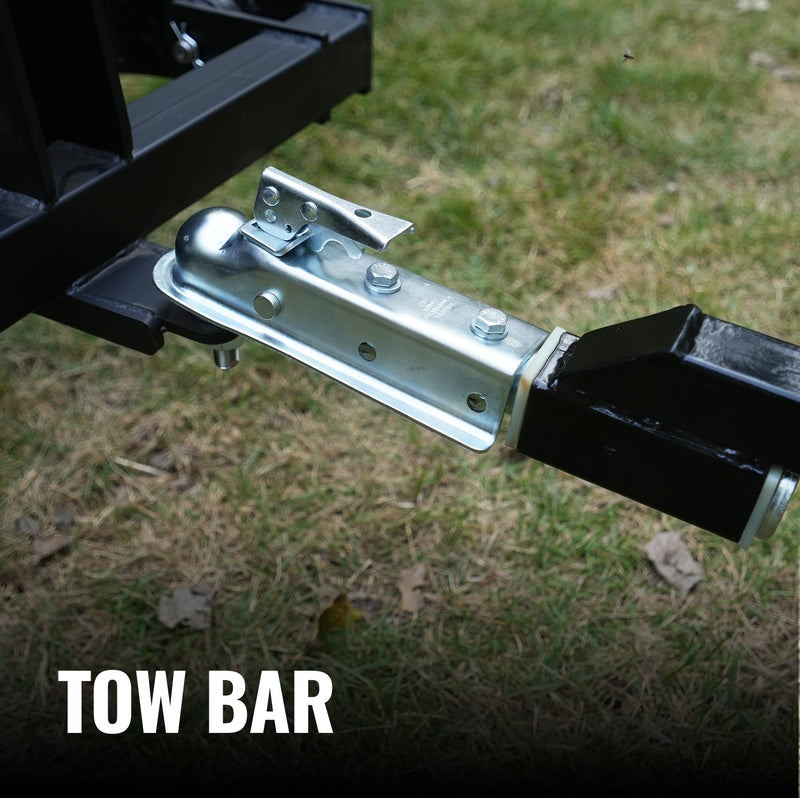

Tow Bar
Tow Bar

A 2-inch coupler is mounted on the tow bar, compatible with a 2 inch trailer ball. When outdoor work is needed, you can use the ATV or pickup truck to tow the mower to work area.

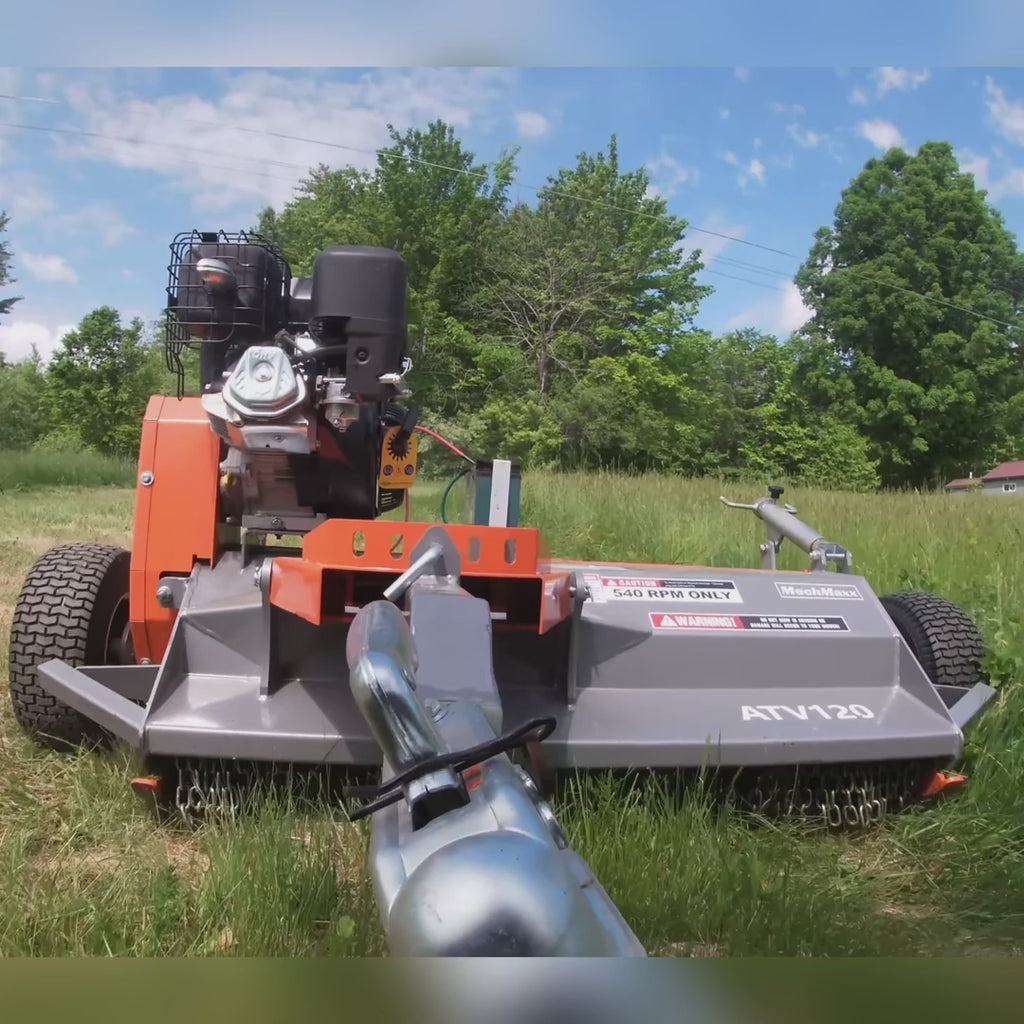

  • Demonstration
  • Highlights
  • Assembly & Installation
Product Warranty

MechMaxx ATV120 48" Tow-Behind ATV Offset Flail Mower (SKU:150149) stands up to extreme testing and come with a one-year warranty for engine, one-year warranty for machine.

Product Extended Warranty Plans

Our extended warranty plans provide an additional 1 to 2 years of product protection on select eligible products.

Engine ZONSEN GB460B(E) 459cc/15hp Electric Start Gasoline Engine
Working Width 48 in
Overall Width 72 in
Cutting Height 0.4-2.5 in
Number of Blades 20
Blade Type Hammers
Size of Blades 4x2.6 in
Blade Weight 0.8 lbs
Blade Material Cast Steel
Rotor Bearing SKF Bearing
Rotor Rotation Reverse
Drive Type Belt Drive
Number of Belts 3
Belt Size 0.7x40 in(17X1016)
Tire Size 16 in
Finish Powder Coat Paint Galvanized Steel
Warranty 1 Year
Net Weight/Gross Weight 609lbs/675lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
