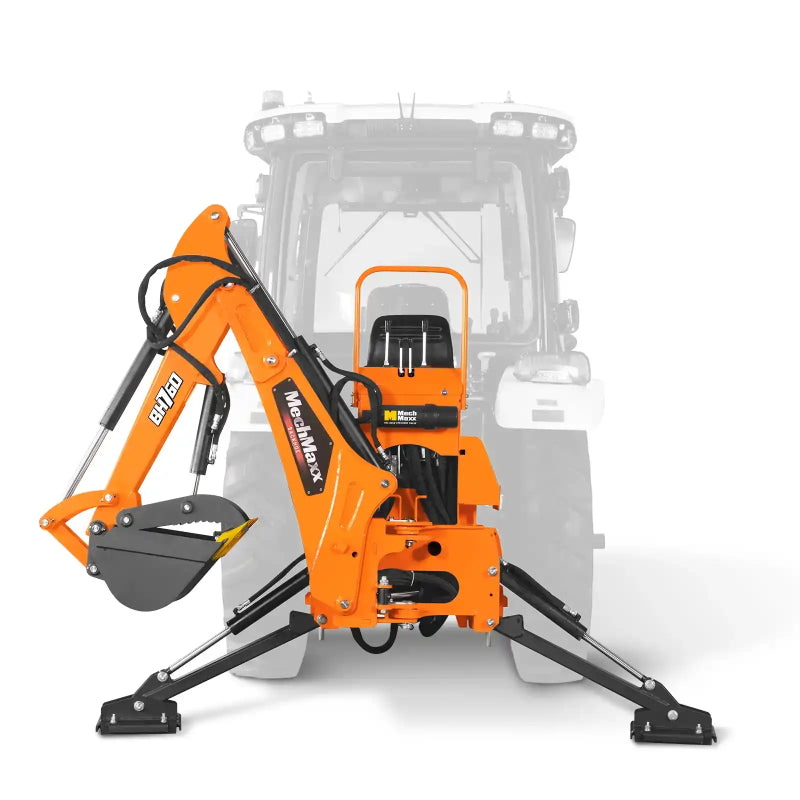

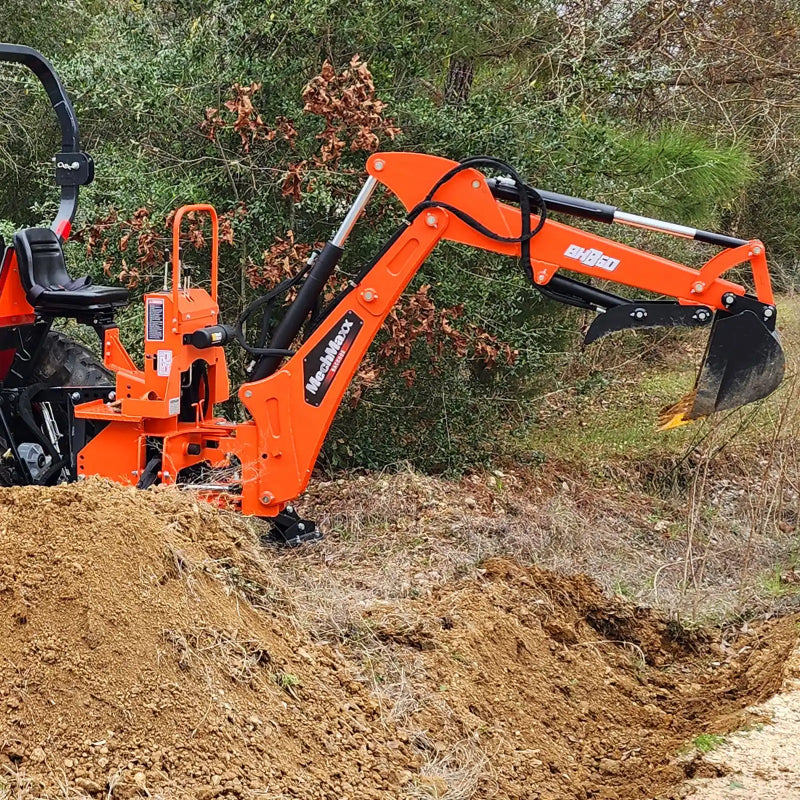

front view of orange MechMaxx BH760 8-foot tractor backhoe attachment with hydraulic thumb at gallery position 1

MechMaxx BH760 8' Tractor Backhoe Attachment with Hydraulic Thumb

by MechMaxx
$4,899.00
Model : 8 ft In Stock
8 ft 7 ft 9 ft

Notify me when back in stock

Description

Handle digging, trenching, and property maintenance with the BH760 8' tractor backhoe featuring a hydraulic thumb, 15" bucket, and a self‑contained pump for smooth, independent hydraulic power. This backhoe is built for landowners, farmers, and contractors running 20–100 HP tractors who need reliable digging depth, stable operation, and fast CAT I/II hitch compatibility.
Shipping & Returns

Free Shipping USA-wide. No extra charges. Ever.

30-day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We are dedicated to providing the best heavy-duty equipment built for real-world jobs possible. We partner only with reputable brands to deliver reliable, contractor-grade tools backed by integrity and service you can trust. When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.


Found a better price? We can match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877
  • The MechMaxx BH760 backhoe is a reliable solution for a wide range of digging and excavation tasks. Designed to fit CAT I & II 3-point hitch tractors, it requires a minimum of 20 PTO horsepower and a tractor weight of at least 2,300 lbs. This backhoe is ideal for ditching on farms and grazing lands, digging pools, cleaning waterways, as well as assistant excavating work in construction and building roads.
  • Max. 8 ft digging depth. 180° boom swing & 180° bucket rotation. Enable you to easily complete comprehensive mining tasks.
  • Hydraulic thumb and 15" bucket included. More sizes of buckets and attachments available.

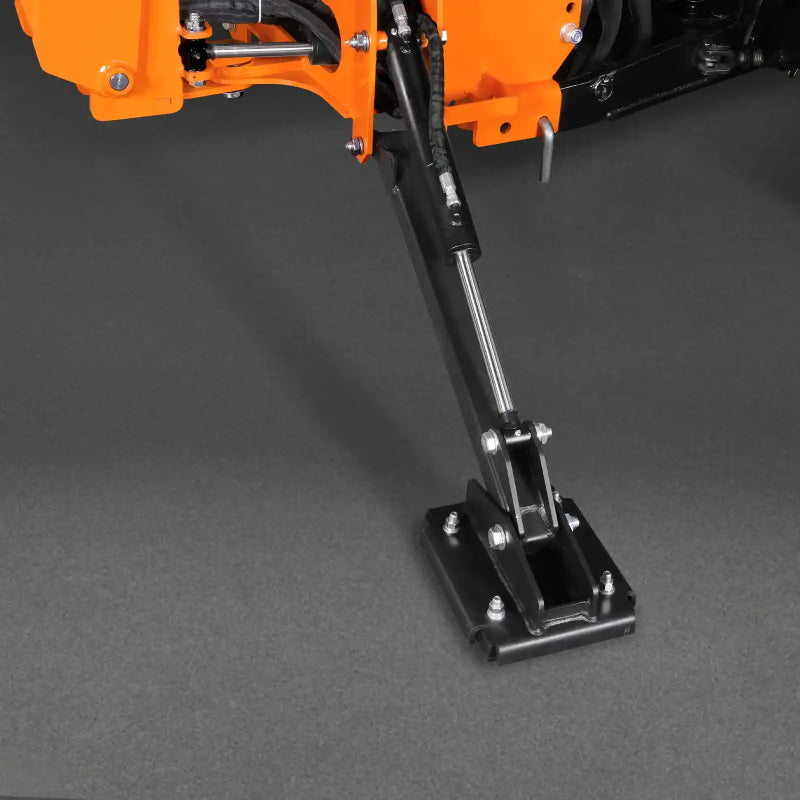

  • Two hydraulic stabilizer legs with replaceable rubber pads, help to prevent tipping, reduce damage to supporting surfaces.
  • Equipped with a self-contained gear pump and hydraulic oil tank. Quick installation, reliable performance.
  • Allow you to change the control pattern between ISO or SAE to suit your preference.Note！
  • Review the specifications of both the backhoe and the tractor — including recommended PTO horsepower, minimum tractor weight, rear lift capacity, hitch type, PTO speed, and connection — to ensure compatibility. If you are unsure, please contact us.
  • Please ensure all pivot pin set screws are fully tightened during assembly. If needed, re-tighten and apply threadlocker to secure the pin and prevent loosening during use.
  • Before use, check and grease all grease fittings on the machine.
  • Add approx. 4 gallons of hydraulic oil before first use, then add approx. 2 more gallons after startup.
  • Do not raise the 3-point hitch after the backhoe is attached to your tractor, as it may cause damage.

Product manual (PDF)

Download PDF
Digging Depth (two foot flat bottom)
Digging Depth (two foot flat bottom)

All-round 7’6” digging depth extension capability allows access to hard-to-reach areas without the need for mobile equipment.

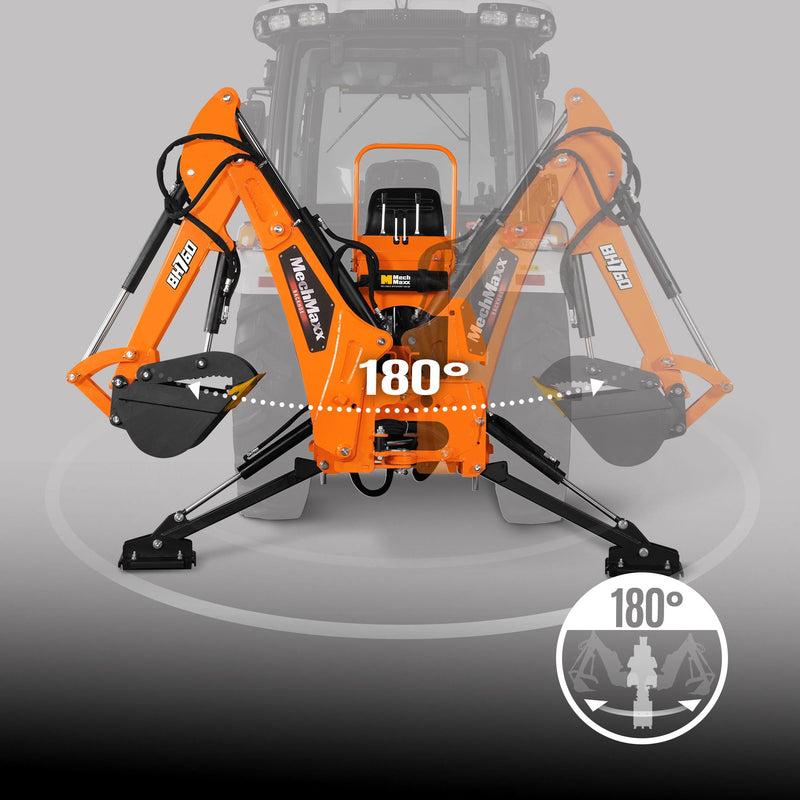

180° Swing Arc
180° Swing Arc

The digging boom allows for a 180-degree swing from side to side. This allows you to dig into those tight spots and dump the dirt where you want it.

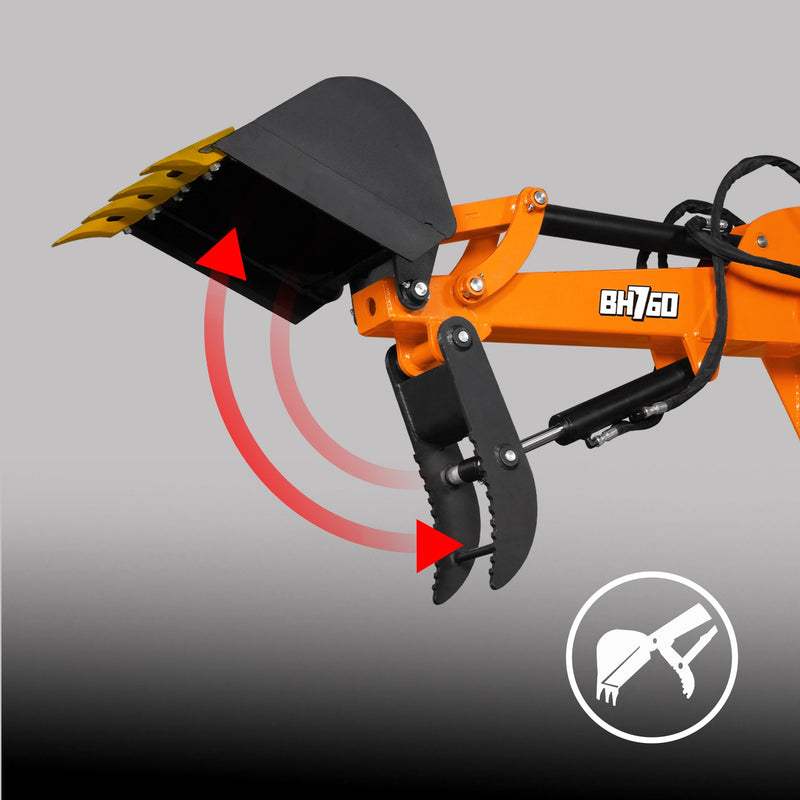

Hydraulic Thumb
Hydraulic Thumb

The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.

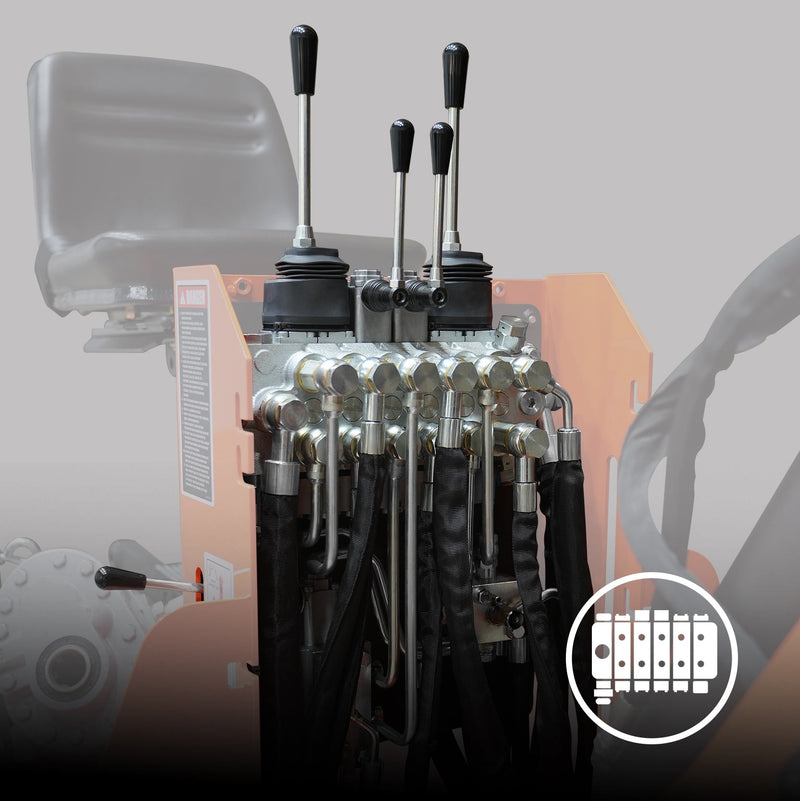

Smooth Control
Smooth Control

High quality control valve are developed by Italian technology, with high precision and shows very exact control features, offers smooth and precise operation.

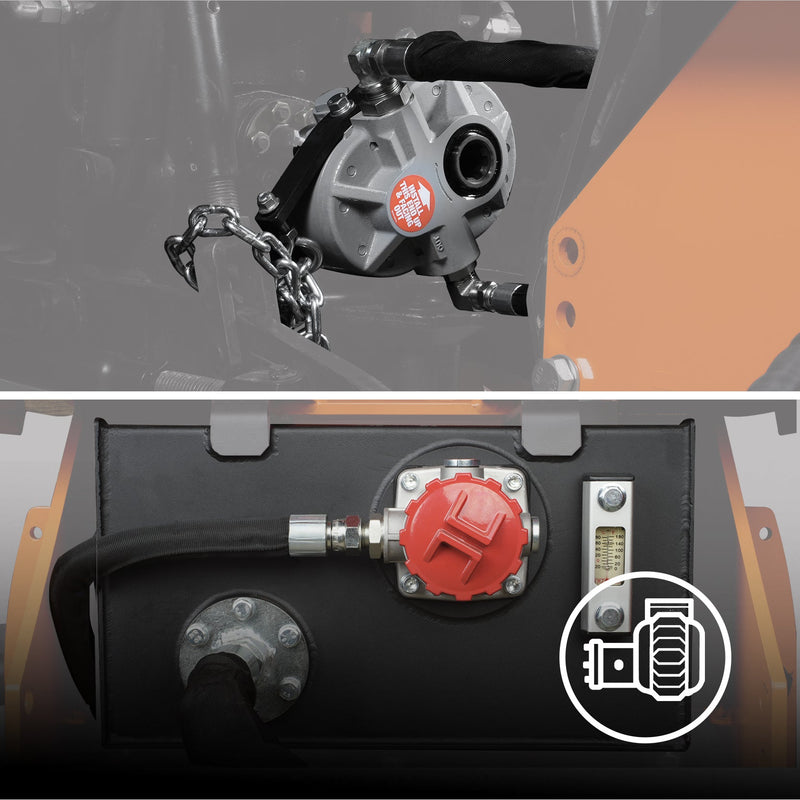

Self-contained Gear Pump & Hydraulic Oil Tank
Self-contained Gear Pump & Hydraulic Oil Tank

The self-contained gear pump and hydraulic tank operate independently of the tractor's hydraulic system. Provide stable flow and pressure. Easy to install, superior to PTO driveshaft. (Note! We don't recommend using the tractor's hydraulic ports to power the backhoe. Unstable flow can cause unsmooth operation. Moreover, the MechMaxx backhoe has its own filtration system. Using tractor hydraulics may contaminate the hydraulic oil, damaging components like pump and cylinder.)

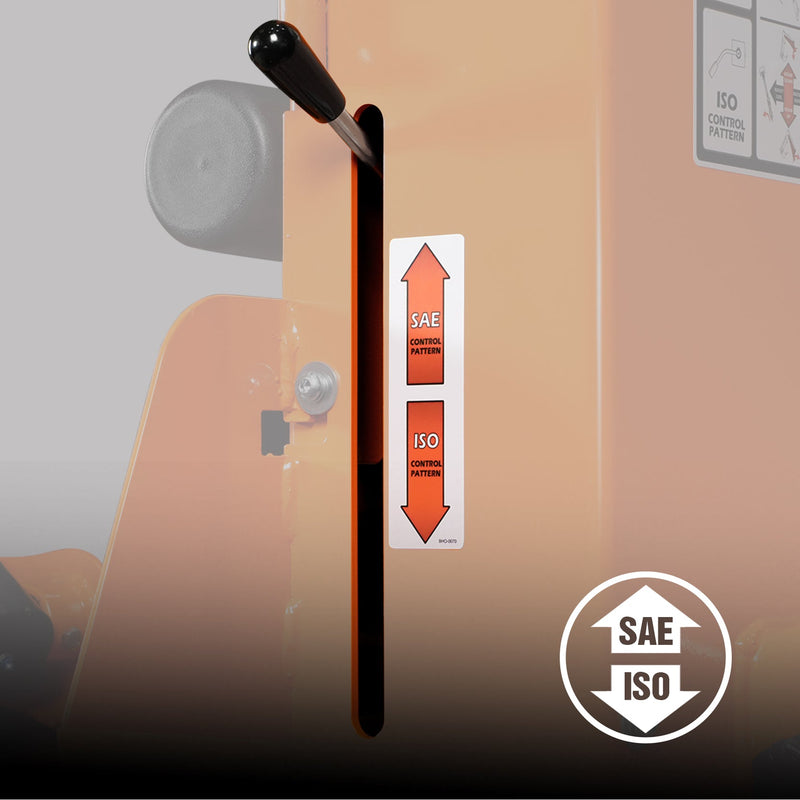

ISO or SAE Control Pattern
ISO or SAE Control Pattern

Allow you to change the control pattern between ISO or SAE to suit your preference.

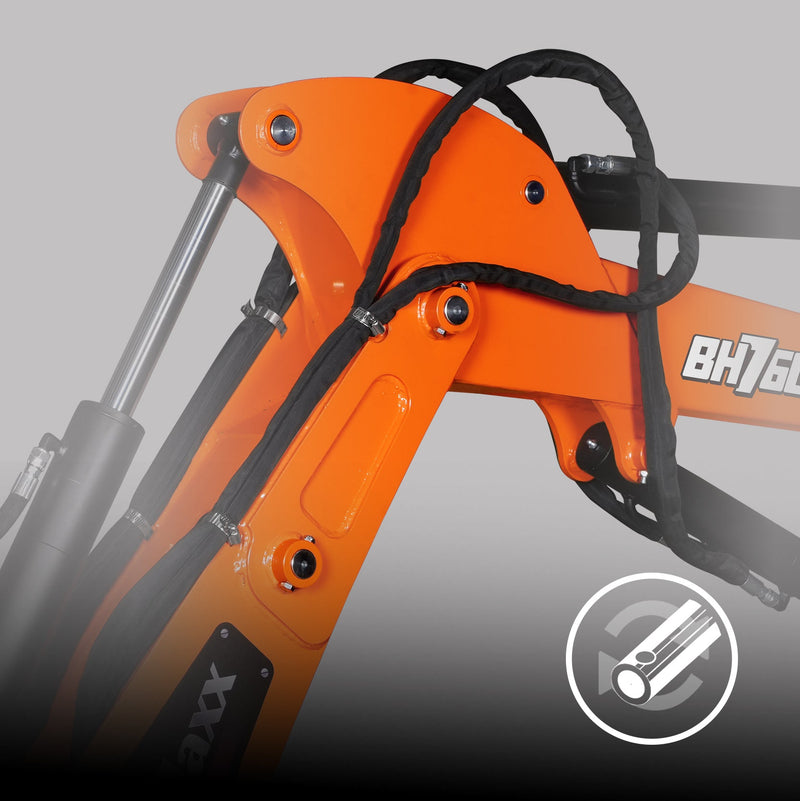

Replaceable Bushings & Pins
Replaceable Bushings & Pins

Replaceable bushings & pins simply replacing, easy maintenance. A full line of replacement parts can be quickly provided.

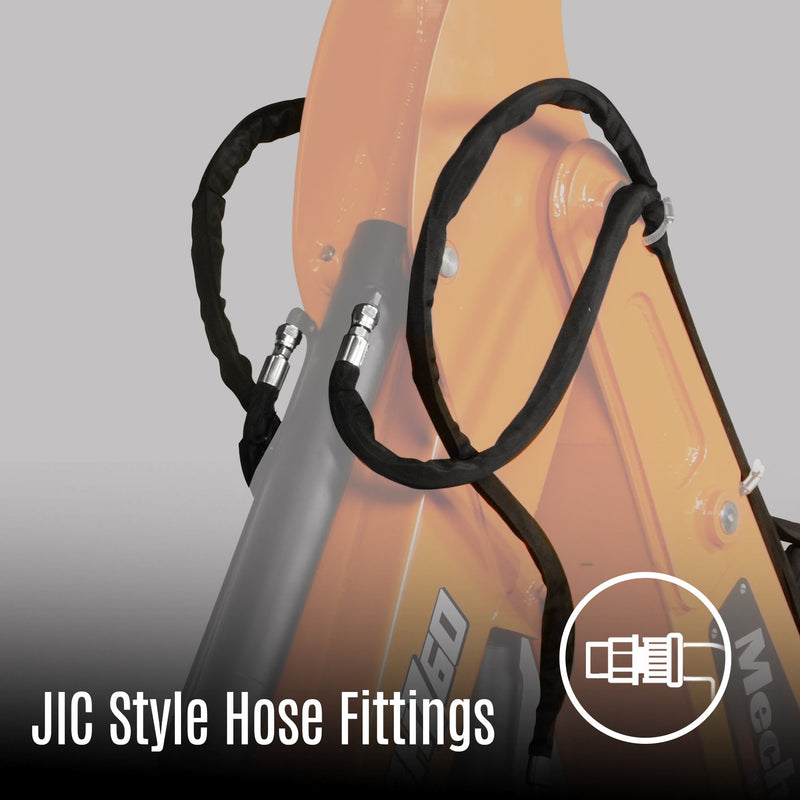

Standard Hose Fittings
Standard Hose Fittings

JIC(Joint Industrial Council) style hose fittings are rated for 5000 psi. Usually easy to get if you need to replace hydraulic hoses. Not troubled by mismatched joint threads.

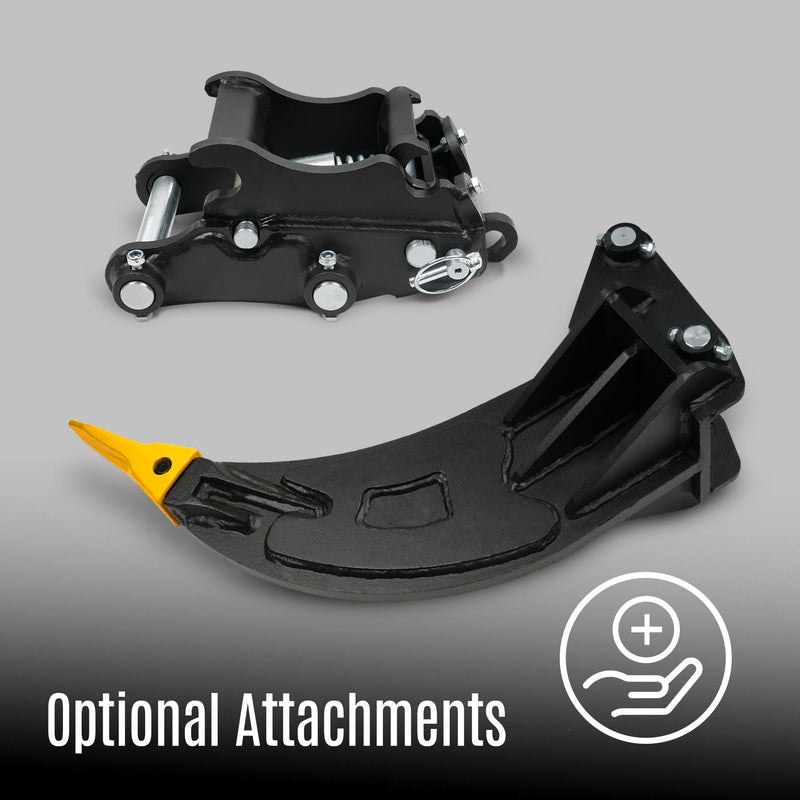

Optional Attachments (Sold Separately)
Optional Attachments (Sold Separately)

Parts and accessories in stock. Optional multiple buckets sizes, ripper and quick attach.

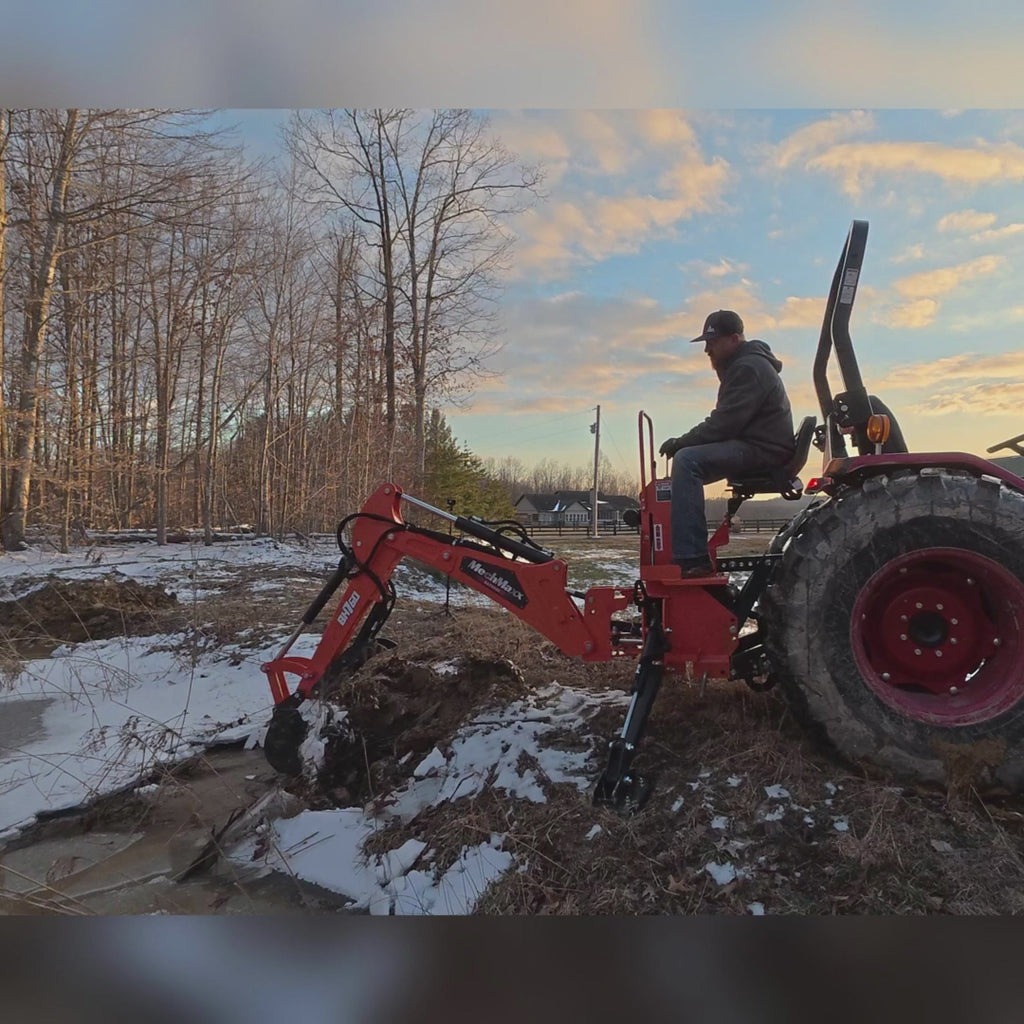

  • Demonstration
  • Assembly & Installation-1
  • Assembly & Installation-2
Product Warranty

MechMaxx BH760 8' Tractor Backhoe Attachment with Hydraulic Thumb (SKU:150163) stands up to extreme testing and come with a one-year warranty for engine, one-year warranty for machine.

Product Extended Warranty Plans

Our extended warranty plans provide an additional 1 to 2 years of product protection on select eligible products.

Max. Digging Depth 8 ft Dipper Stick Cylinder Digging Force 2005 lbs
Digging Depth (two foot flat bottom) 7 ft 6 in Hydraulic Volume Requirements 5 to 6 GPM
Swing Arc 180 Degrees Hydraulic Pressure Requirements 2250psi
Loading Height (bucket at 60 °) 6 ft Hydraulic Tank Capacity 4.1 US Gal (15.5L)
Reach from Center Line of Swing Pivot 9 ft 9 in Hydraulic Type Recommended AW 46
Transport Height (maximum) 5 ft 7 in Self-contained PTO Pump & Tank Included
Bucket Rotation 180 Degrees ISO or SAE Switch Included
Loading Reach (bucket at 60 °) 3 ft 7 in Standard Thumb Hydraulic
Transport Overhang 4 ft 3 in Standard Bucket Size 15 in (4 teeth)
Undercut 2 ft 3 in PTO Speed 540 RPM
Stabilizer Spread (down position) 6 ft 7 in PTO Connection 1-3/8" 6 Spline
Stabilizer Spread (up position) 5 ft 9 in Recommended PTO HP 20 to 100 HP
Stabilizer Spread (lifting height) 3 ft 8 in 3-Point Hitch CAT I & II
Transportation Height (maximum altitude) 8 ft 4 in Min Tractor Weight 2300 lbs
Loading Height (bucket at 180 °) 9 ft 7 in Min Tractor Rear Lift Capacity 1392 lbs
Transport Overhang (maximum) 4 ft 5 in Packing Size (LxWxH) 57 x 30 x 71 in
Bucket Cylinder Digging Force 2840 lbs Weight with Bucket (N.W/G.W.) 1160/1343 lbs
Regarding tractor compatibility, ensure that the tractor’s PTO HP and 3-point hitch are compatible with the backhoe, and that it meets the minimum weight requirement for safe operation. If the tractor is too light, it can become unstable during travel or operation. To improve stability and reduce tipping hazards, add front ballast as needed. Additionally, take into account factors like speed and terrain slope. Above all, always prioritize safety during operation.



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
