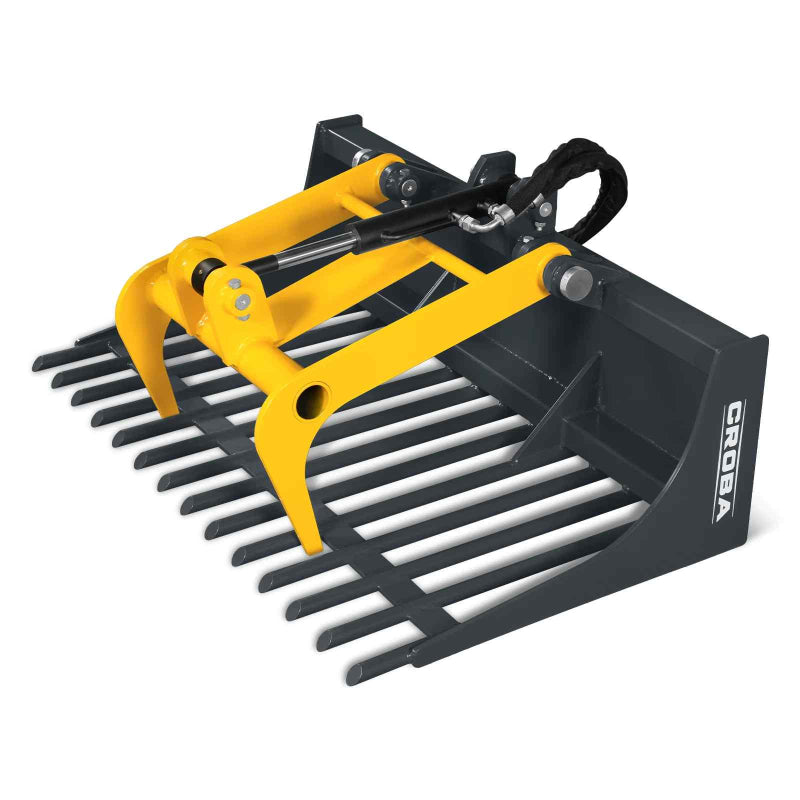

angled clear view of MechMaxx 20-inch mini skid steer rock grapple bucket with yellow grapple arms gallery position 1

MechMaxx 20'' Width Mini Skid Steer Rock Grapple Bucket

$1,399.00

Notify me when back in stock

Description

20" mini skid steer rock grapple bucket, perfect for landscapers, contractors, and property crews needing precise rock, brush, and debris handling in tight spaces.
Shipping & Returns

Free Shipping on MOST USA‑wide. No extra charges.

30‑day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We’re dedicated to providing the best heavy‑duty equipment built for real‑world jobs.

We partner only with reputable brands to deliver reliable, contractor‑grade tools backed by integrity and service you can trust.

When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.
A portion of every sale helps fund local trade programs and community rebuilding efforts and more.

Found a better price? We’ll match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877

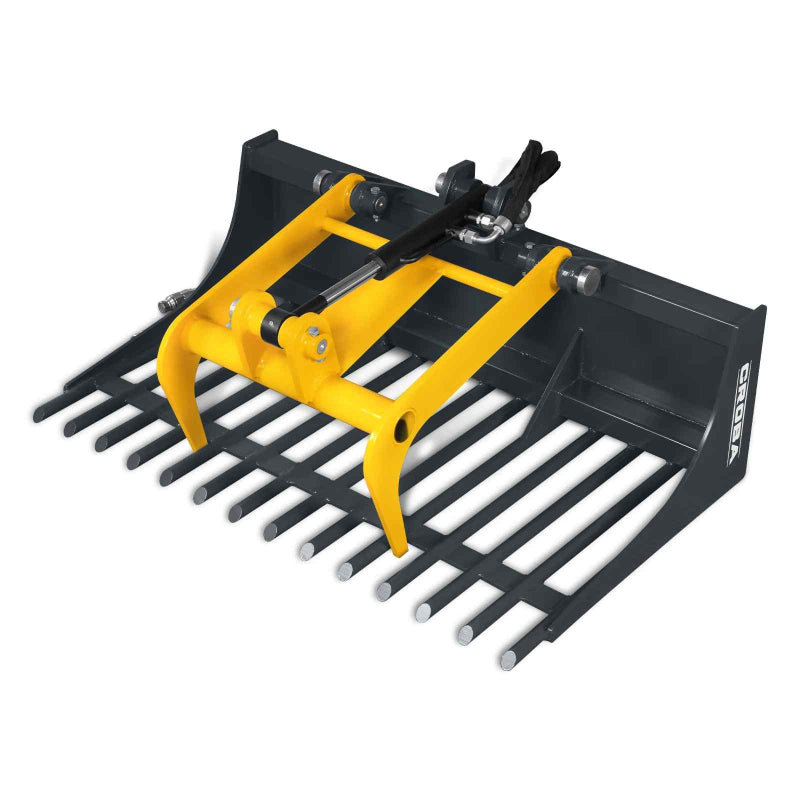

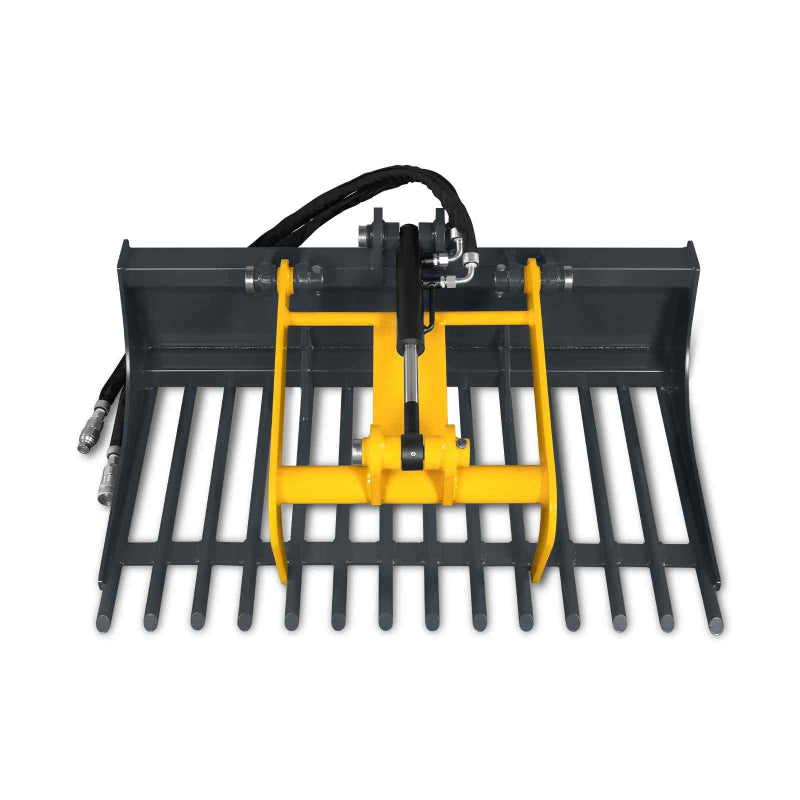

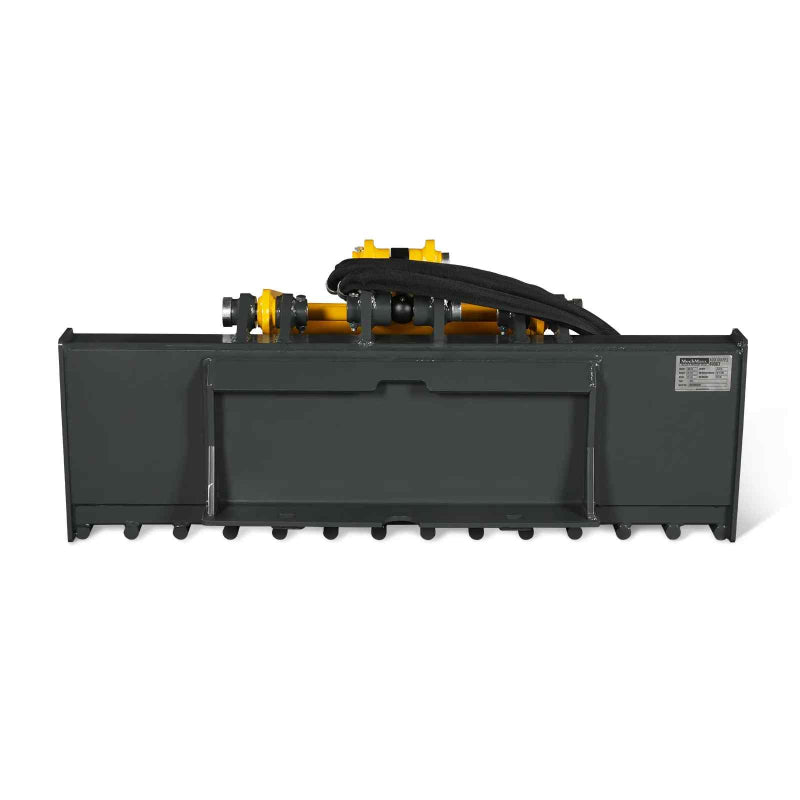

MechMaxx 20" Mini Skid Steer Rock Grapple Bucket

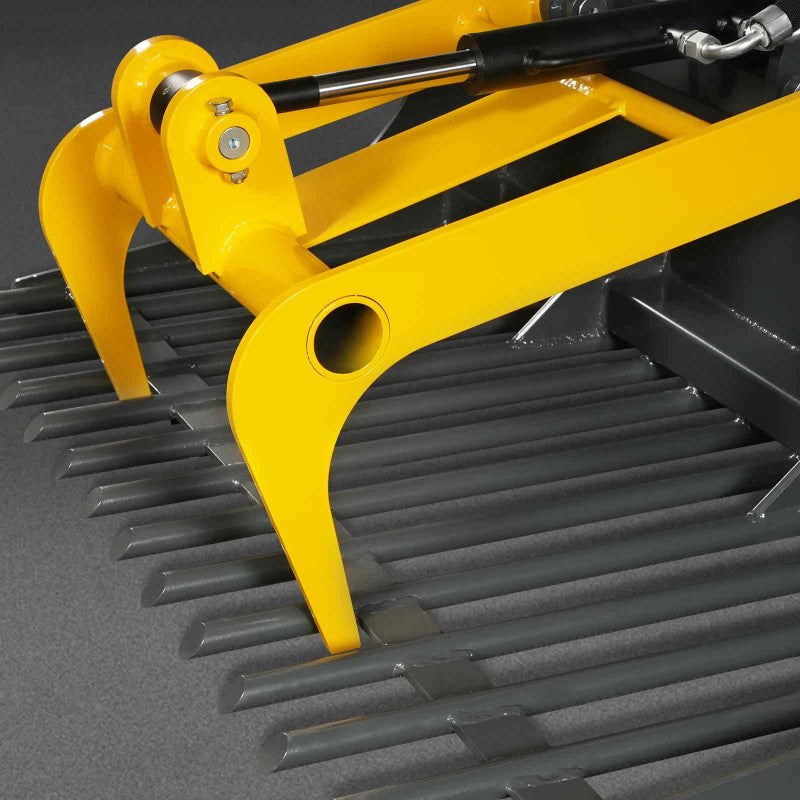

The MechMaxx 20" Rock Grapple Bucket is designed for mini skid steers that need a compact tool for handling rocks, debris, and irregular materials. Its narrow width allows operators to work in tight areas while maintaining controlled gripping action through the dual‑arm grapple design.

The reinforced tines and open‑bottom structure help separate soil from larger material, making it suitable for cleanup, landscaping, and small construction tasks. The universal mini skid steer mount connects directly to compatible machines for fast attachment changes.

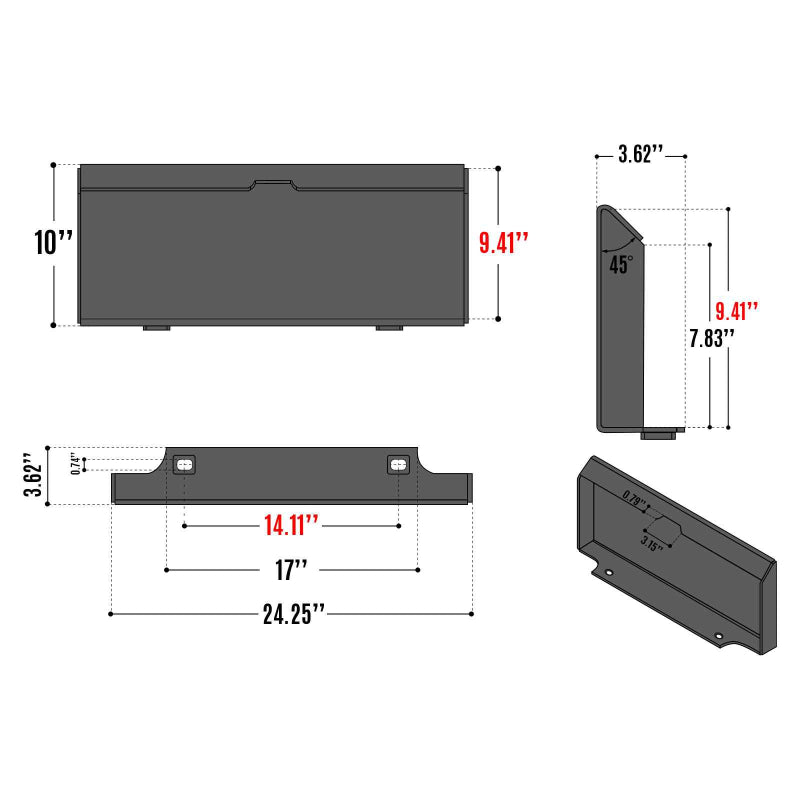

Fits Mini Skid Steers (Universal Mini Mount)

Product Warranty

MechMaxx 20'' Width Mini Skid Steer Rock Grapple Bucket (SKU: 150522) includes a standard one-year manufacturer warranty covering defects in materials and workmanship under normal use.

Product Extended Warranty Plans

Extended warranty plans may be available for select products. Contact us to confirm eligibility and coverage details.

Grapple Width 20 in
Lower tooth spacing 2 in
Tine Thickness 1 in
Side Thickness 0.3 in
Max Pressure 3000 PSI
Overall Size 43x32x23 in
Finish Powder Coating
Warranty 1 Year
Packing Size 44x31x18 in
Weight (N.W./G.W.) 317/384 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
