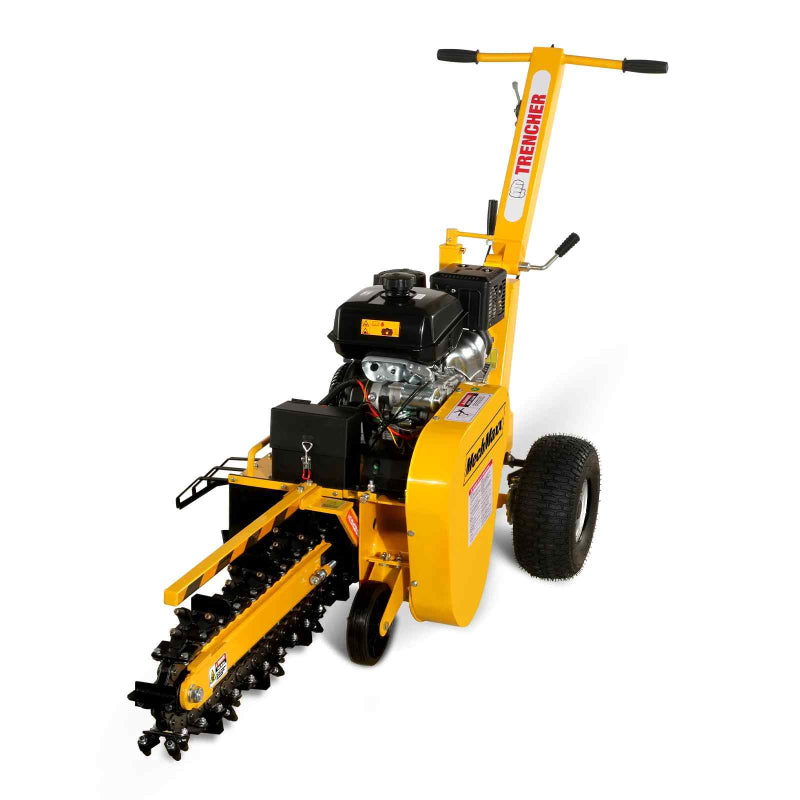

Front angled view of MechMaxx 429cc KOHLER E-start 24-inch ditching mini trencher gallery position 1

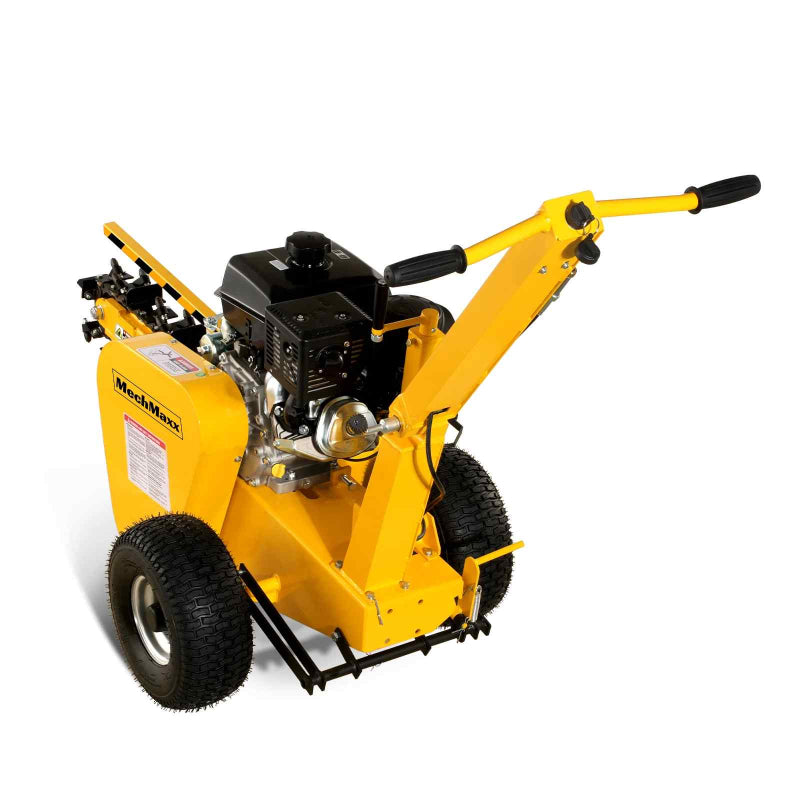

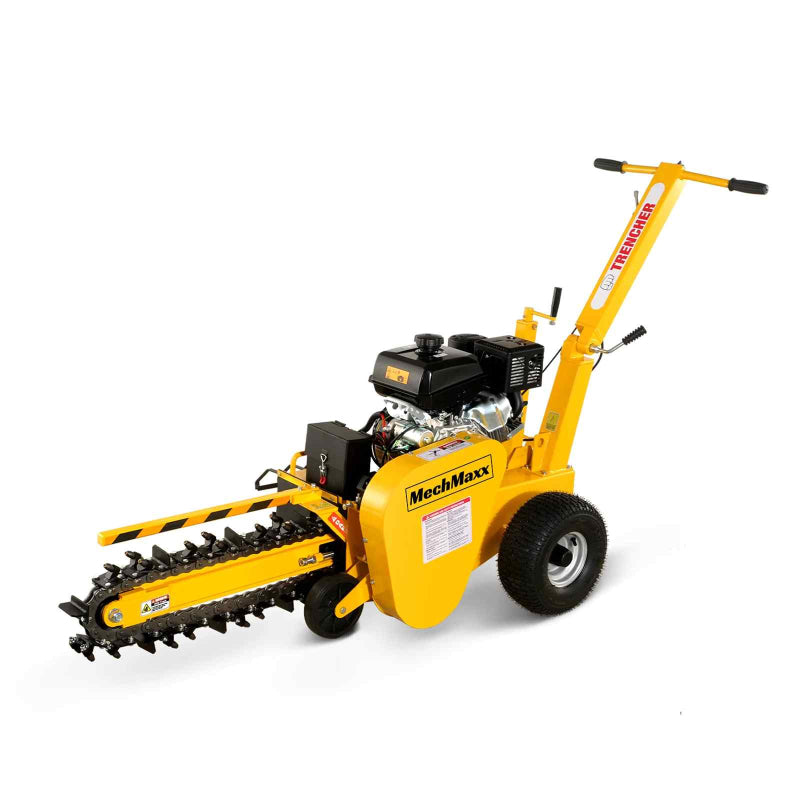

MechMaxx 429cc KOHLER E-start 24'' Ditching Mini Trencher

$2,999.00

Notify me when back in stock

Description

Dig clean, consistent trenches with the TCR1500 mini trencher featuring a 14HP 429cc KOHLER electric‑start engine, 4" trench width, and up to 24" trenching depth for reliable performance in tough, clay‑ridden ground. Designed for landowners, contractors, and property managers, it includes an upgraded thread lifting lever for easy depth adjustment and a front transport wheel for smooth mobility to and from the worksite
Shipping & Returns

Free Shipping on MOST USA‑wide. No extra charges.

30‑day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We’re dedicated to providing the best heavy‑duty equipment built for real‑world jobs.

We partner only with reputable brands to deliver reliable, contractor‑grade tools backed by integrity and service you can trust.

When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.
A portion of every sale helps fund local trade programs and community rebuilding efforts and more.

Found a better price? We’ll match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877
Product Overview Product Overview Mobile

MechMaxx 24" KOHLER E‑Start Ditching Mini Trencher

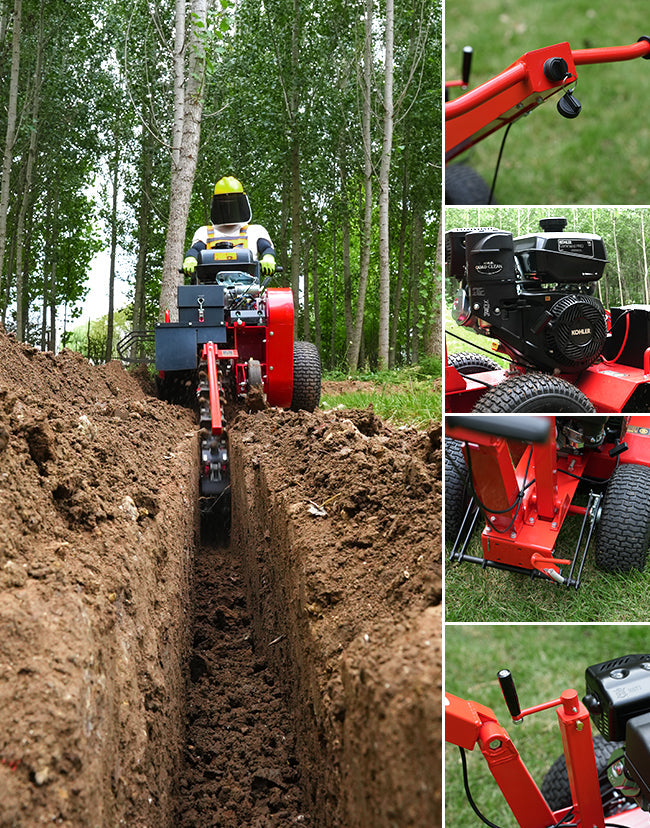

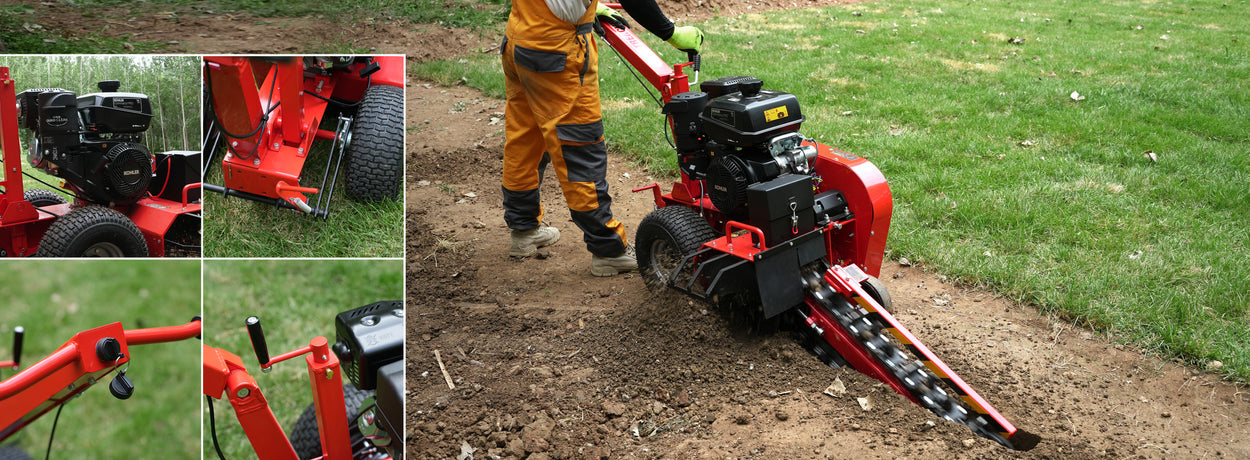

Create narrow trenches efficiently with this KOHLER‑powered 24" mini trencher designed for irrigation lines, cable runs, and small utility installations. The electric‑start engine drives a chain‑and‑bar digging system that supports controlled soil removal within the machine’s rated depth. A compact frame allows the trencher to operate in tight or restricted areas where larger machines cannot maneuver.

The trencher’s structure suits property owners and contractors needing consistent trench formation for routine installation tasks. Its layout supports predictable handling across varied soil conditions.

Product manual (PDF)

Download PDF

Engine manual (PDF)

Download PDF

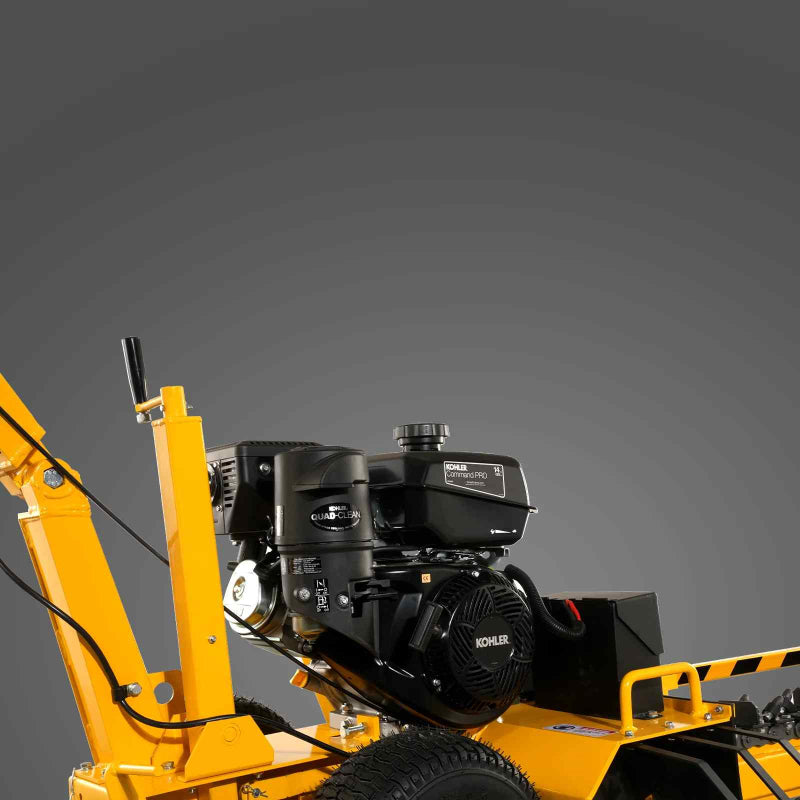

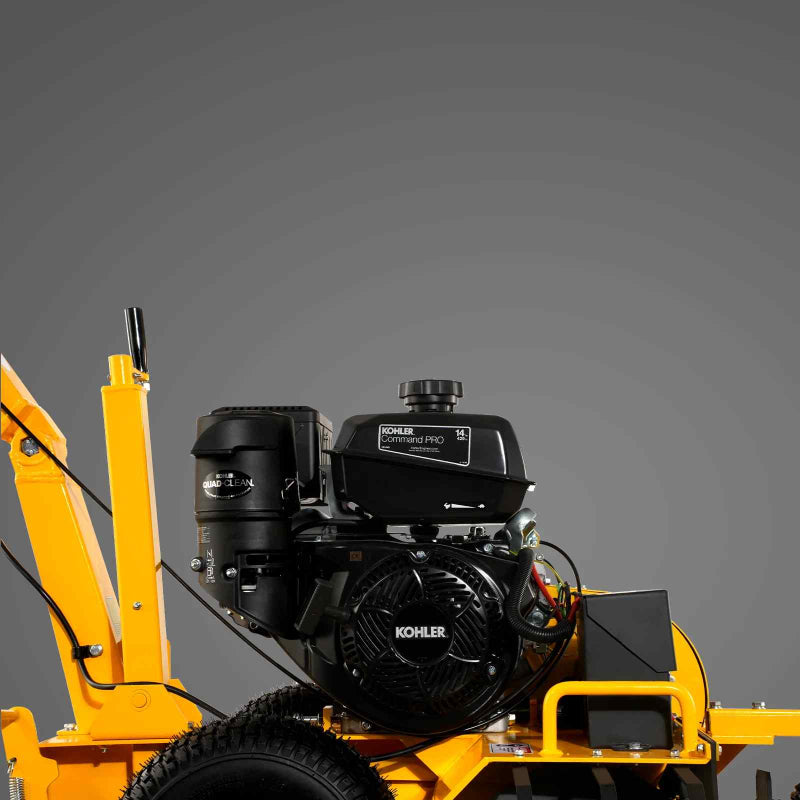

KOHLER® Command PRO®
KOHLER® Command PRO®

This is what it takes to be a PRO. Performance-driven features like a heavy-duty air cleaner, forged-steel crankshaft, electronic ignition and cast-iron cylinder liner. KOHLER® Command PRO® is the standard for professional-grade power and performance.

•Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions

•Large-capacity fuel tank means more time working, less time filling

•Power or repower your equipment without expensive modifications

• 3-year commercial limited warranty

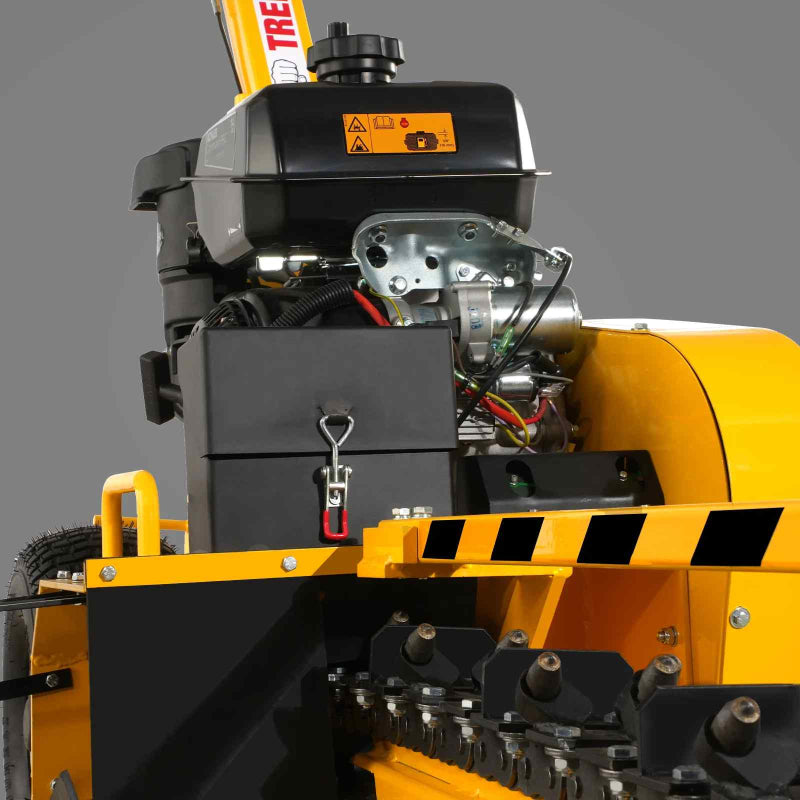

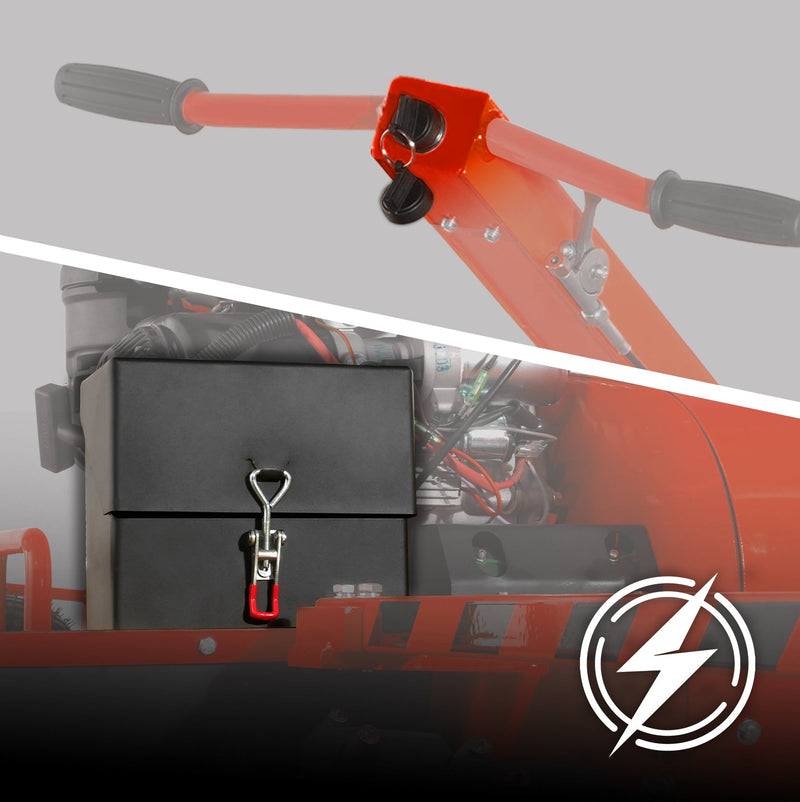

Electric Start and Battery
Electric Start and Battery

The TCR1500 is powered by a 14hp 429cc electric start Kohler gasoline engine, and equipped with a 12V20Ah lead-acid battery. The starting key is located between the two handles.

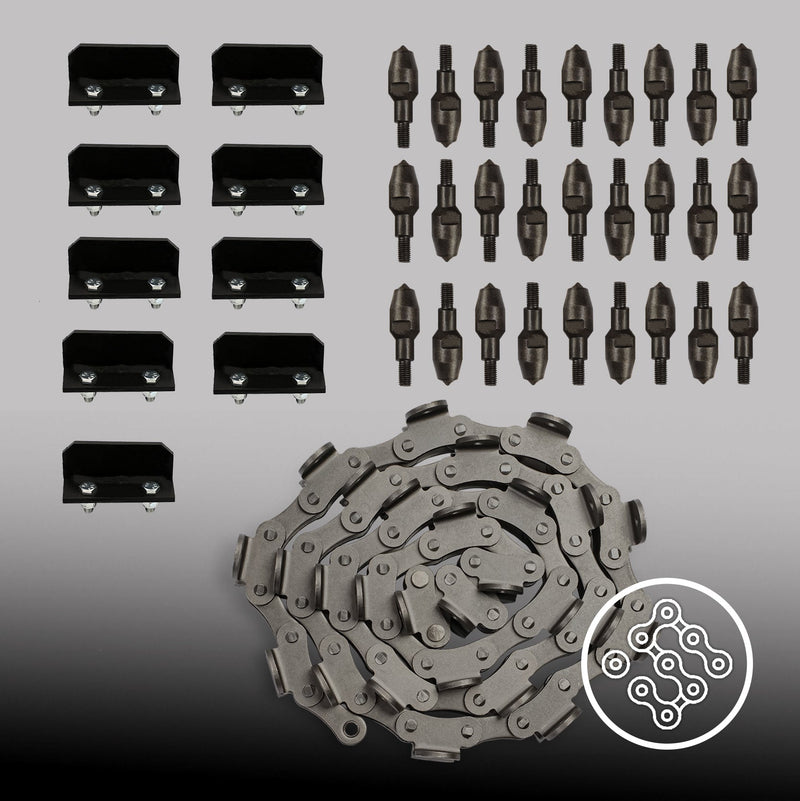

Chain and Teeth
Chain and Teeth

Chain length 81.5’’, chain plate is 4mm thick.27 tungsten carbide cutters and 9 moldboards are installed on the thickened chain.

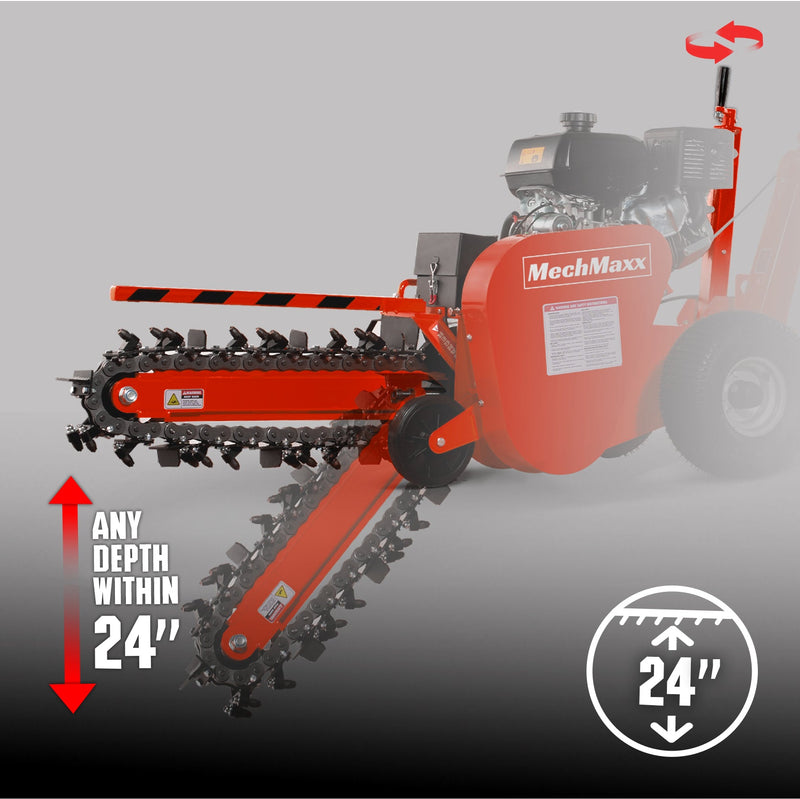

Chain lifting
Chain lifting

The design of the screw spiral lifting structure can fix the trenching depth at any depth within 24’’

  • Assembly & Installation
  • Maintenance
Product Warranty

MechMaxx 429cc KOHLER E-start 24'' Ditching Mini Trencher (SKU: 120201) includes a standard one-year manufacturer warranty covering defects in materials and workmanship under normal use.

Product Extended Warranty Plans

Extended warranty plans may be available for select products. Contact us to confirm eligibility and coverage details.

Engine KOHLER CH440 Carbide Tip Material YG11C Alloy
Certification(S) EPA Phase III, CARB Phase III Chain Length 81.5 in
Engine Type Single Cylinder, 4 Stroke, Air-Cooled, OHV Chain Speed 574 ft / min
Displacement/ HP 429 cc; 14 HP Max. Trench Depth 24 in
Start E-Start Max. Trench Width 4 in
Belt 2 x V-Belts Wheelbase 29 in
Belts Material Kevlar Tire 15 x 6-6 Tubeless Tire
Clutch Centrifugal Clutch Assembled Weight 402 lbs
Carbide Tip 27 x Carbide Alloy High-Pressure Teeth Gross Weight 450 lbs
Scraper 9 Pcs Packing Size  46 x 31 x 34 in
Tip Holder Material 42CrMo Warranty 1 Year



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
