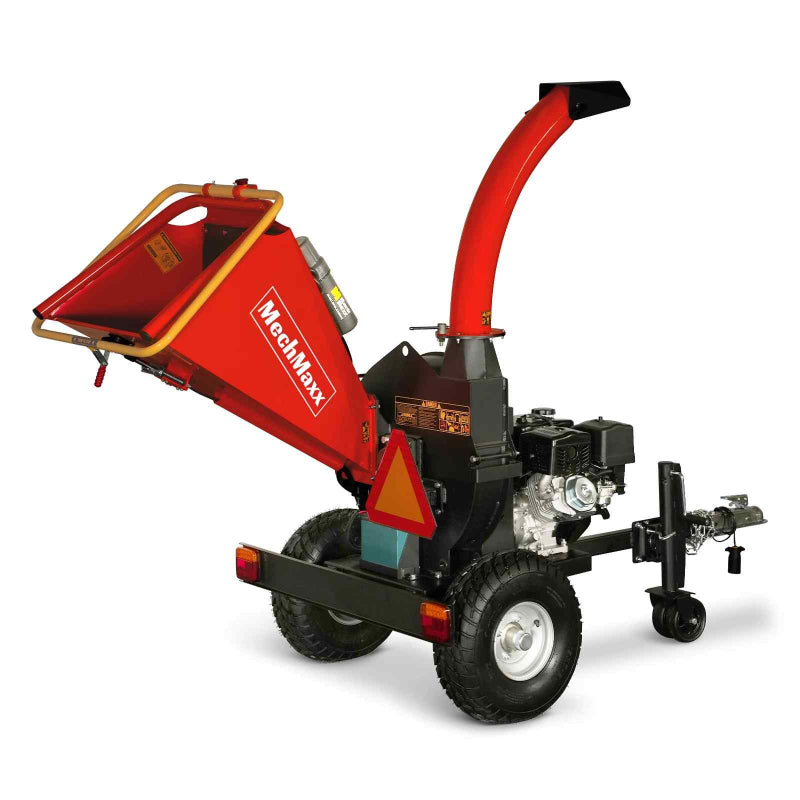

Three-quarter side view of MechMaxx 5-inch Ducar E-Start gas disc wood chipper with tow hitch, gallery position 1

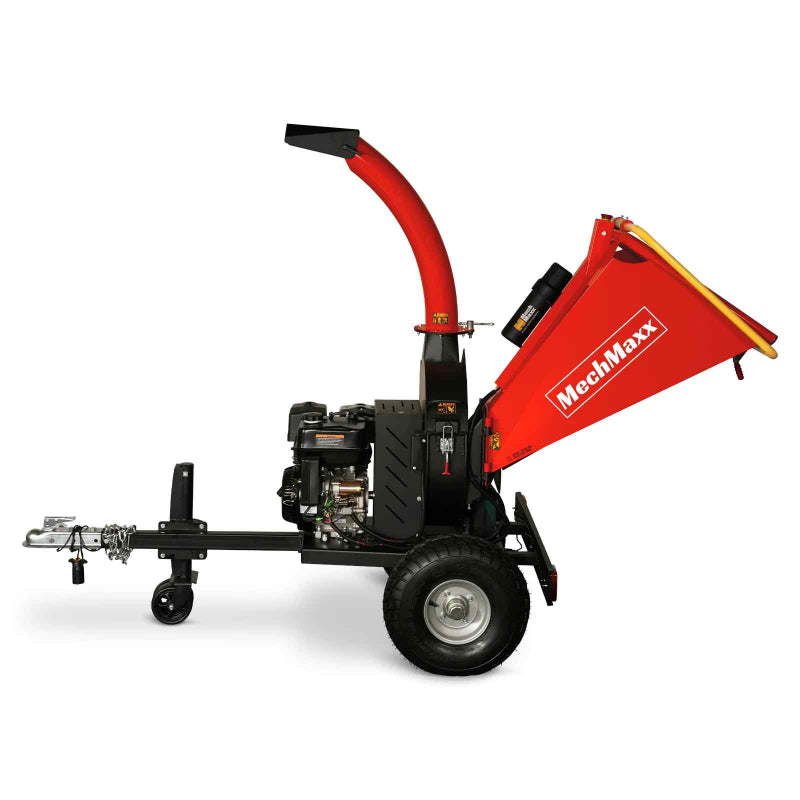

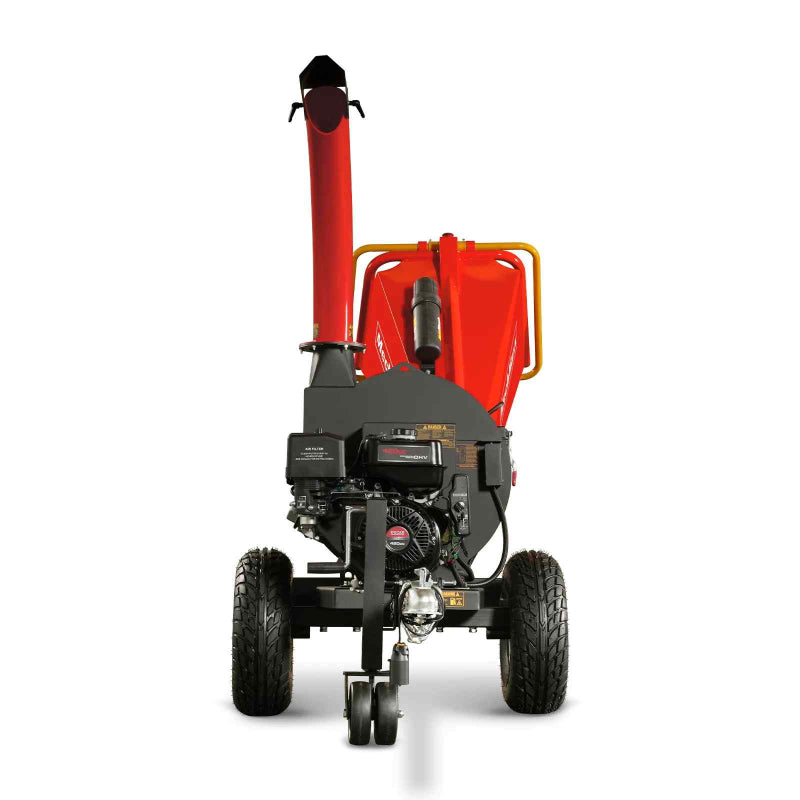

MechMaxx 5" Ducar E-Start Gas-Powered Disc Wood Chipper

$2,299.00

Notify me when back in stock

Description

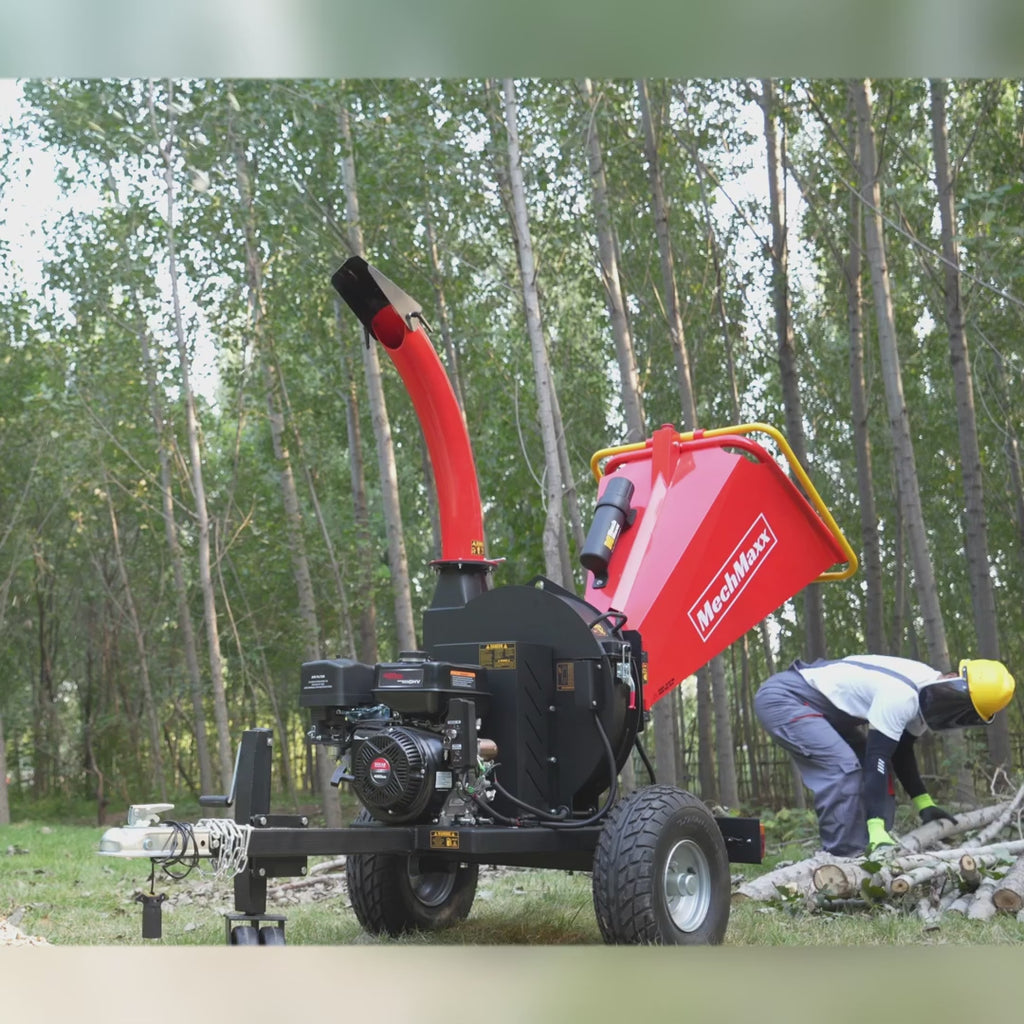

Chip branches up to 5" thick with the P4205 disc wood chipper featuring a 15HP DUCAR electric‑start engine, dual‑sided reversible blades, and a 72" high‑output chute for clean, efficient discharge. Built for landowners, arborists, and rental fleets, it delivers strong chipping performance, 360° rotating discharge, quick‑open hinged chutes for fast blade access, and DOT‑rated tires with taillights for safe towing behind your vehicle.
Shipping & Returns

Free Shipping on MOST USA‑wide. No extra charges.

30‑day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We’re dedicated to providing the best heavy‑duty equipment built for real‑world jobs.

We partner only with reputable brands to deliver reliable, contractor‑grade tools backed by integrity and service you can trust.

When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.
A portion of every sale helps fund local trade programs and community rebuilding efforts and more.

Found a better price? We’ll match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877

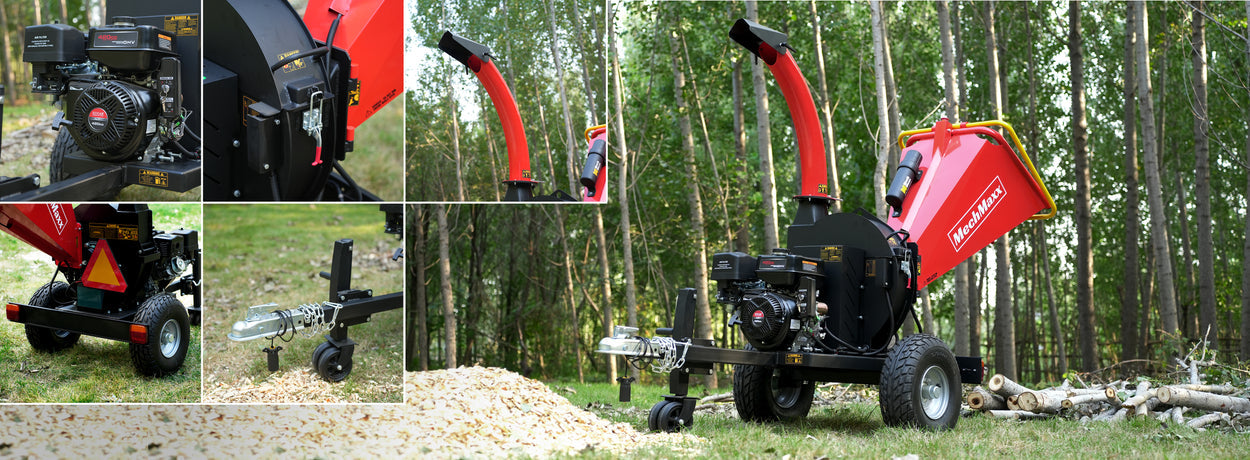

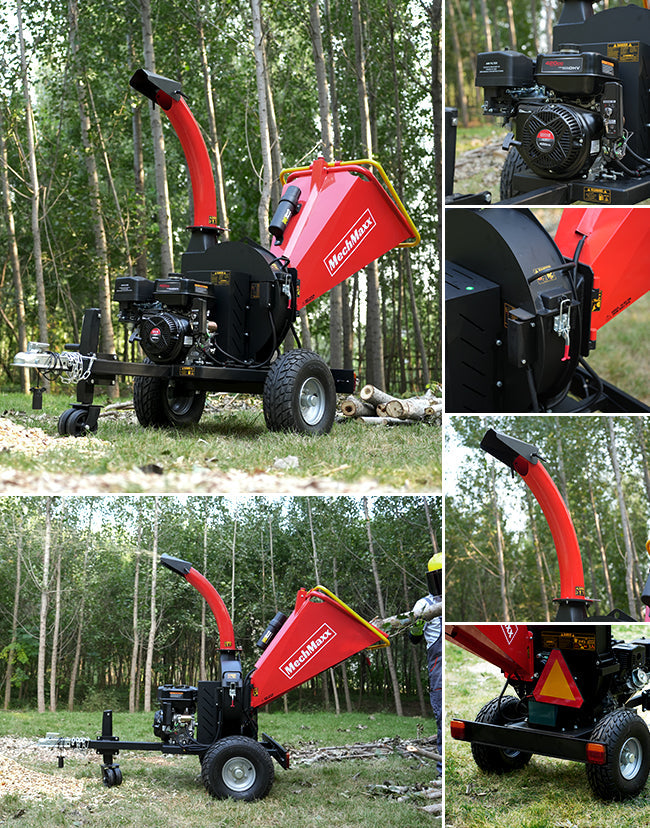

Product Overview Product Overview Mobile

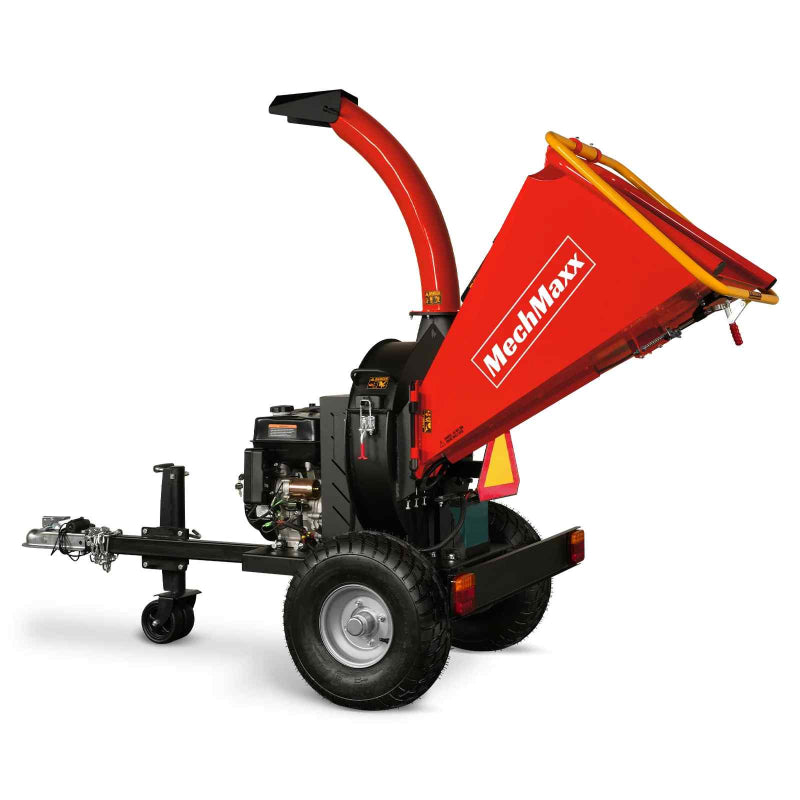

MechMaxx 5" Ducar E‑Start Gas‑Powered Disc Wood Chipper

Reduce branches and yard debris with this 5" disc‑style wood chipper powered by a Ducar electric‑start engine. The disc cutting system supports controlled material reduction, helping operators manage debris efficiently within the machine’s rated capacity. A compact frame improves maneuverability in residential and small‑property environments.

The chipper’s steel housing helps maintain stability during operation, making it suitable for routine cleanup tasks. Its structure suits users needing a compact, dependable chipping solution for regular property maintenance.

Product manual (PDF)

Download PDF

Engine manual (PDF)

Download PDF

Assembly guide (PDF)

Download PDF

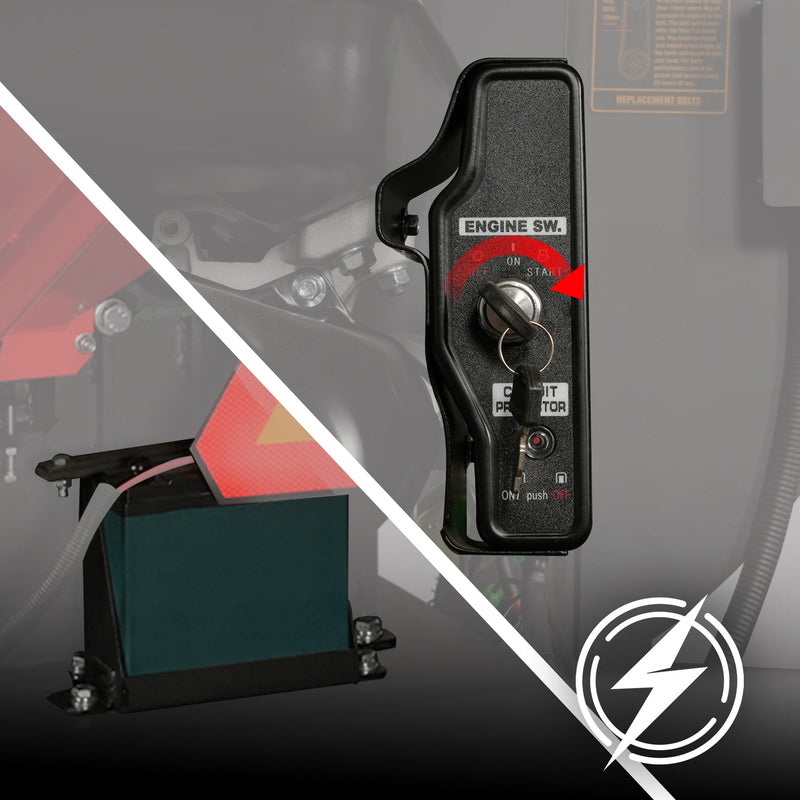

Electric Start and Battery
Electric Start and Battery

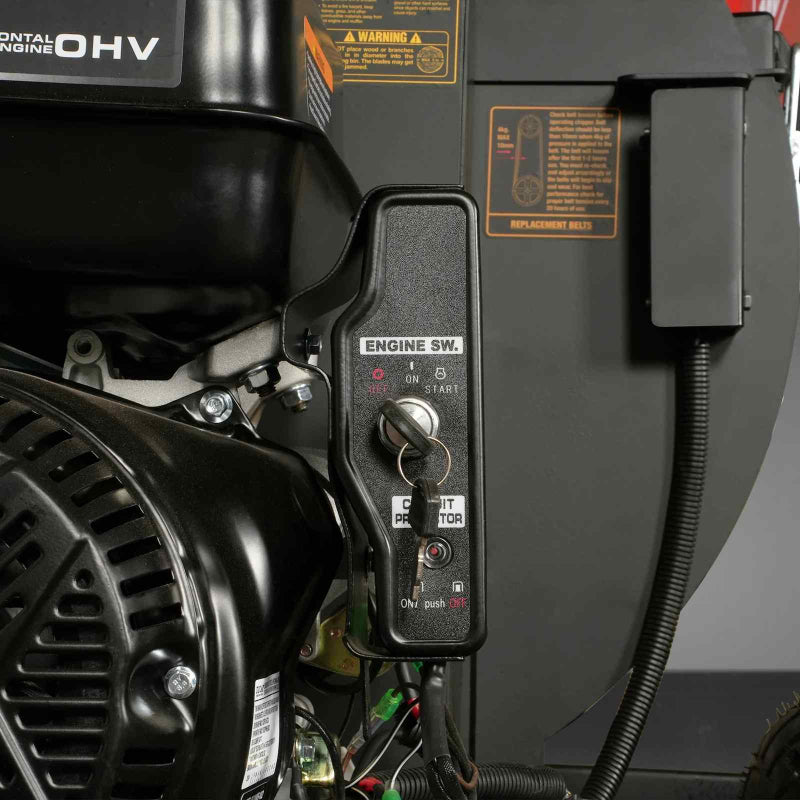

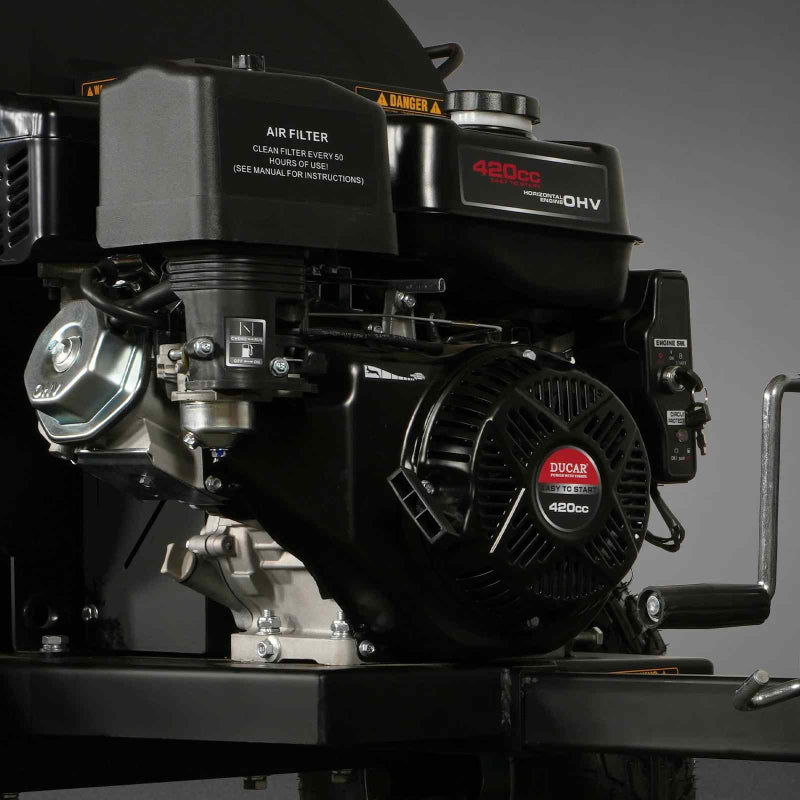

The P4205 Wood Chipper is powered by a 15hp 420cc electric start gasoline engine, and equipped with a 12V20Ah lead-acid battery.

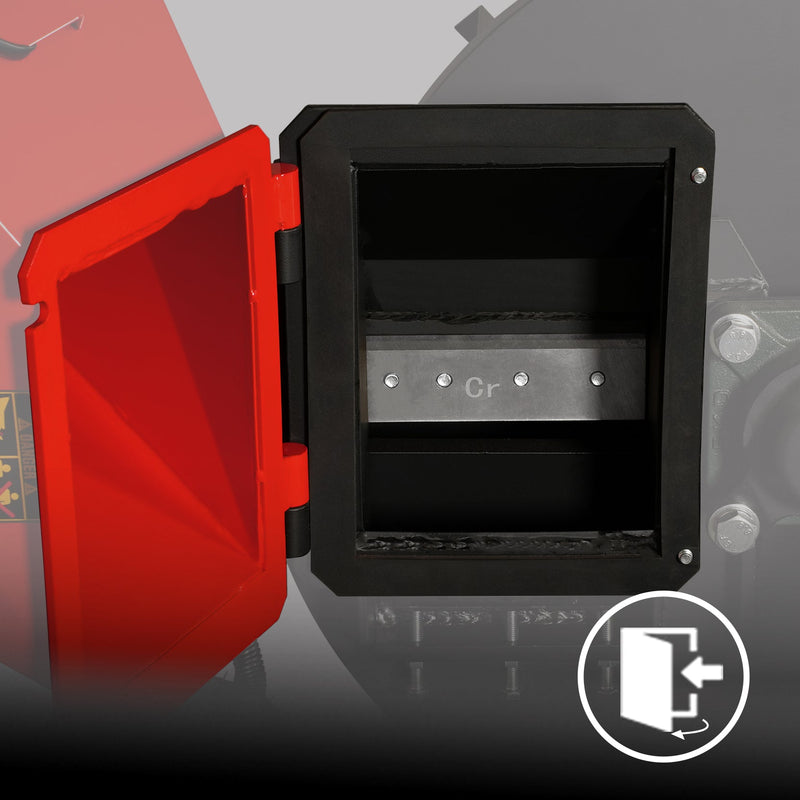

Feeding Chute
Feeding Chute

The left side of the feeding chute is designed with hinges, allowing for convenient side opening to clean residual wood chips and replace blades.

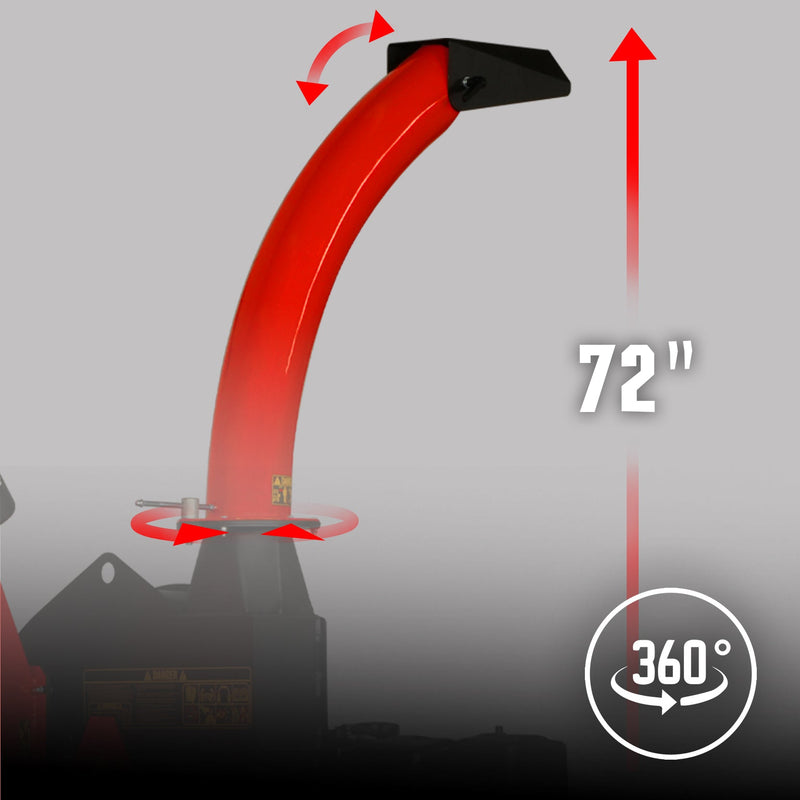

Discharge Chute
Discharge Chute

The discharge chute consists of a 4.8’’ diameter bend pipe, and the top of the discharge chute can reach a height of 72 inches from the ground. The connection between the discharge chute and the blade box features a fastening design, enabling the discharge chute to rotate 360 degrees.

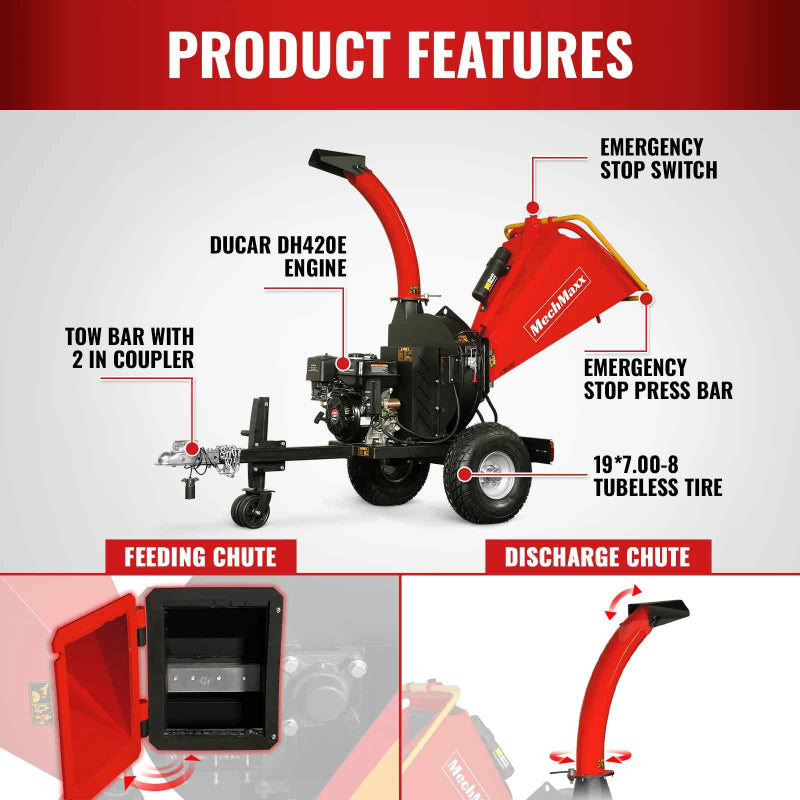

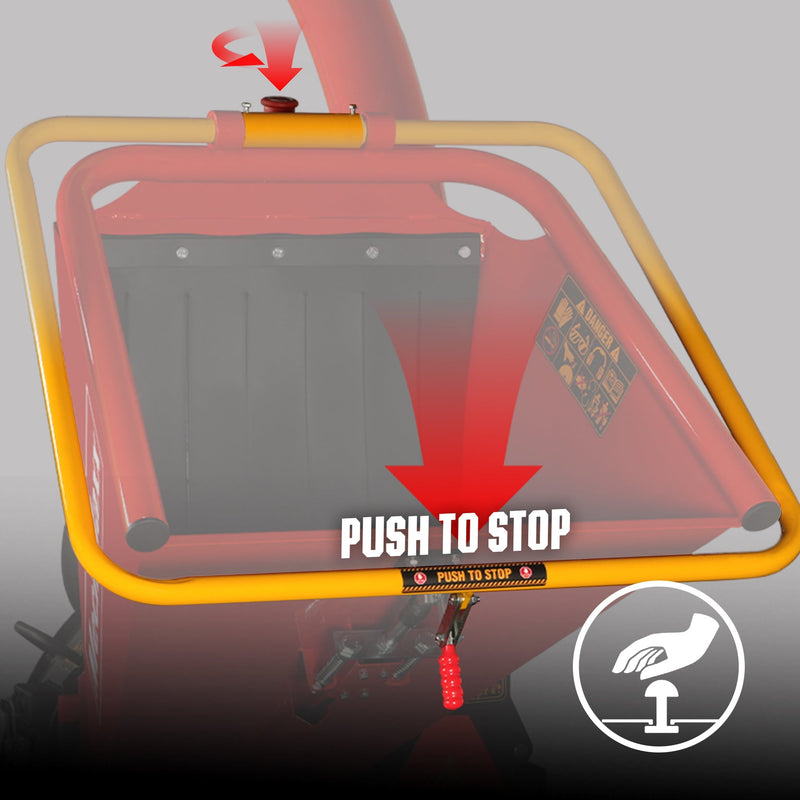

Safety Devices
Safety Devices

On the upper side of the feeding chute, there is an emergency stop button, and on the lower side, there is an emergency stop press bar. These can be used to stop the machine at any time in case of an emergency.

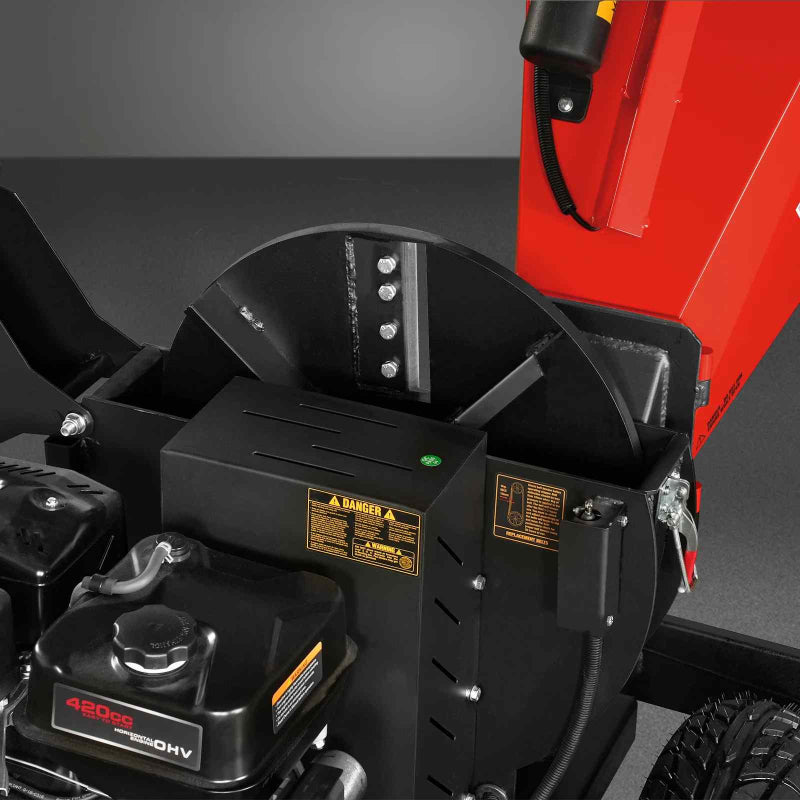

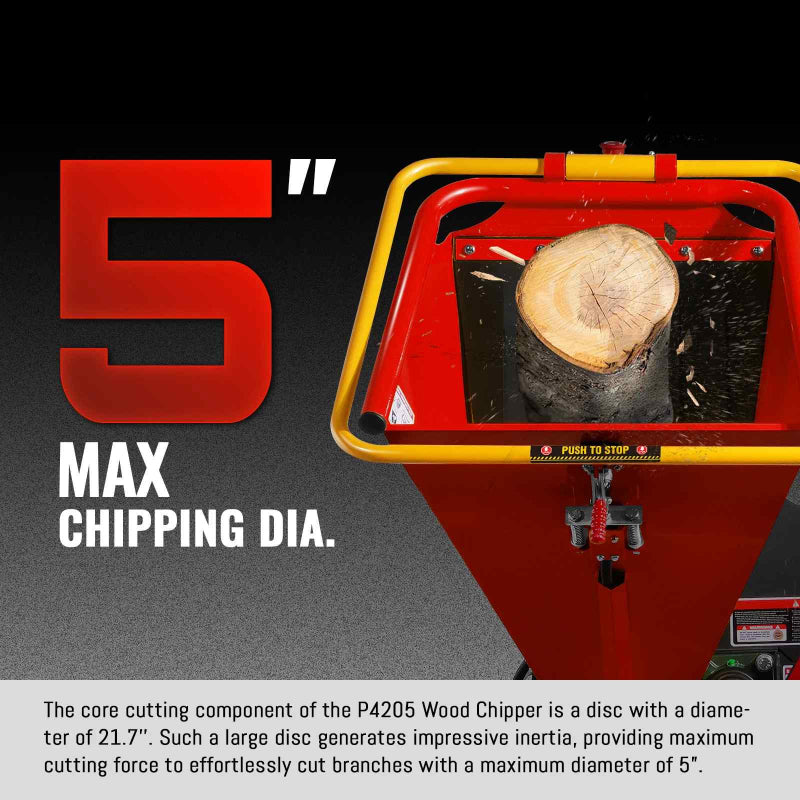

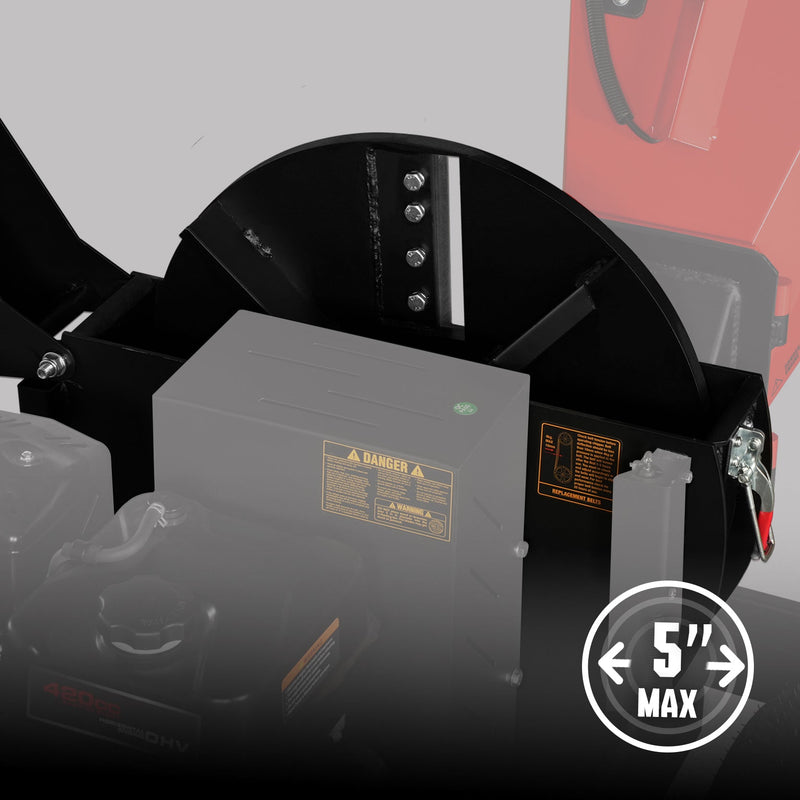

Maximum Wood Chip Diameter 5’’
Maximum Wood Chip Diameter 5’’

The core cutting component of the P4205 Wood Chipper is a disc with a diameter of 21.7’’. There are 2 cutting blades and 4 fins on the disc. Such a large disc generates impressive inertia, providing maximum cutting force to effortlessly cut branches with a maximum diameter of 5” .

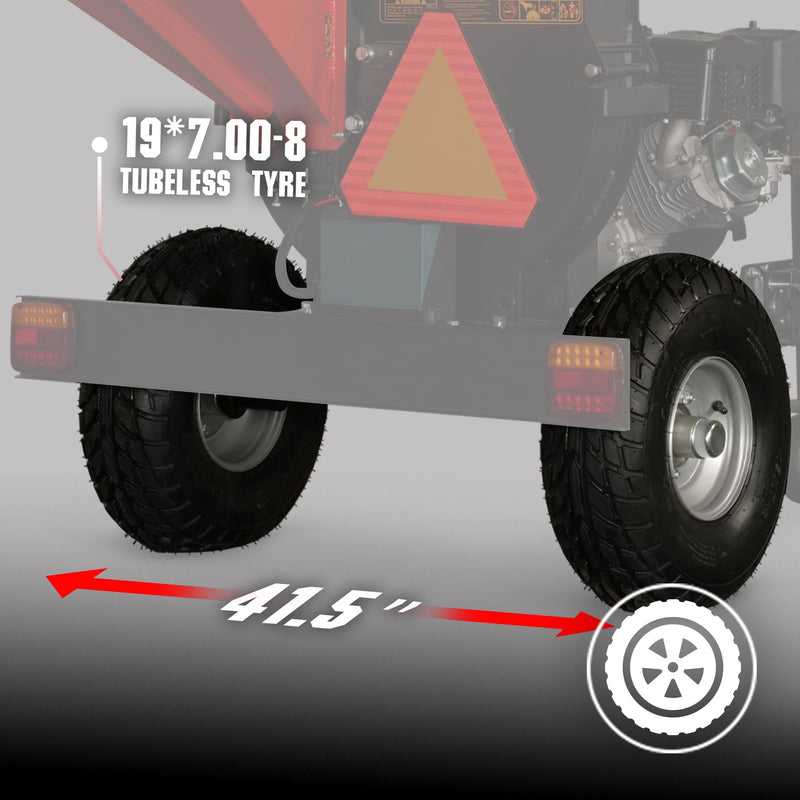

19*7.00-8 tubeless tire
19*7.00-8 tubeless tire

The P4205 is equipped with two DOT-approved tubeless tires sized 19*7.00-8, and the wheelbase reaches an impressive 41.5” , providing enhanced stability when being towed.

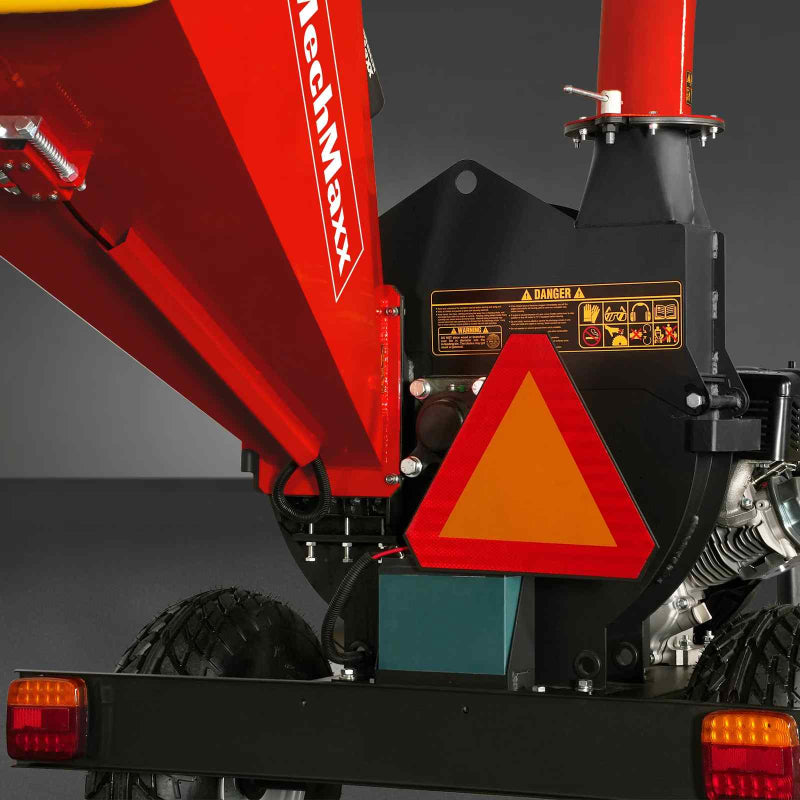

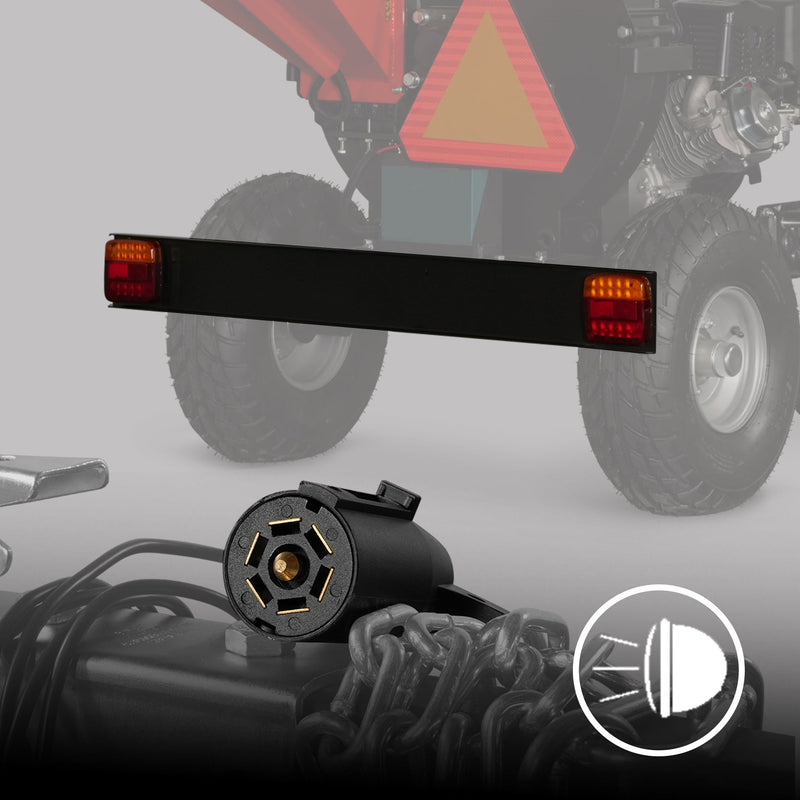

Tail Light and Plug
Tail Light and Plug

The P4205 is equipped with tail light, and on one side of the trailer, there is an American seven-pin plug. The plug can be connected to the towing vehicle when being towed, allowing the tail light of P4205 to synchronize with the vehicle's braking and turning signals.

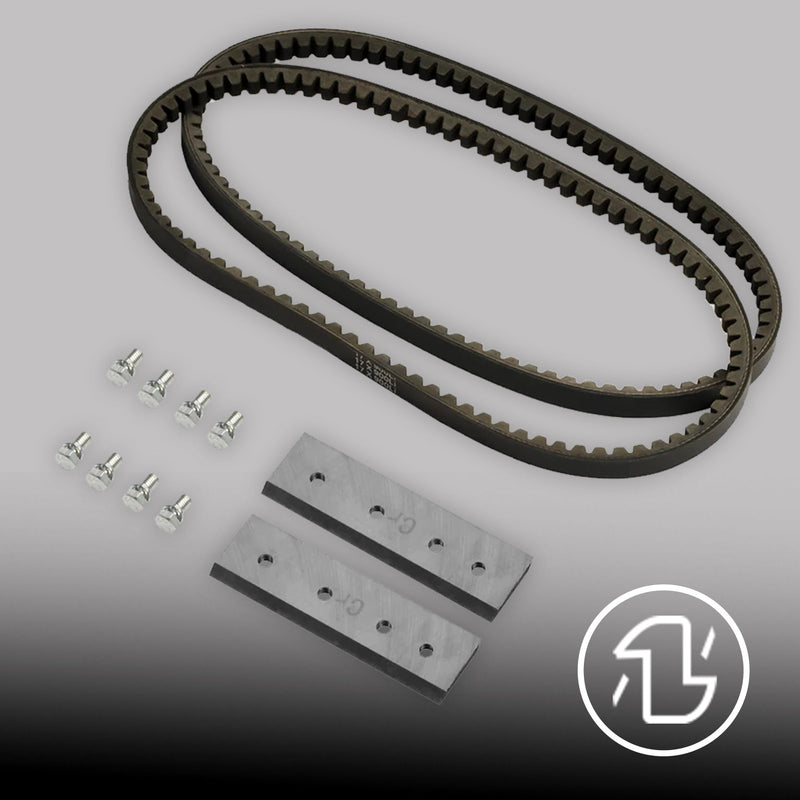

Blade and Belt Material
Blade and Belt Material

Dual-belt drive transmission with 6.7’’ double-edge reversible cutting blades. The belts are made of Kevlar, which is more wear-resistant than ordinary neoprene belts, greatly reducing maintenance frequency. The blades are made of professional A8(5Cr5MoWS), providing the appropriate strength and toughness, significantly extending the blade's lifespan.

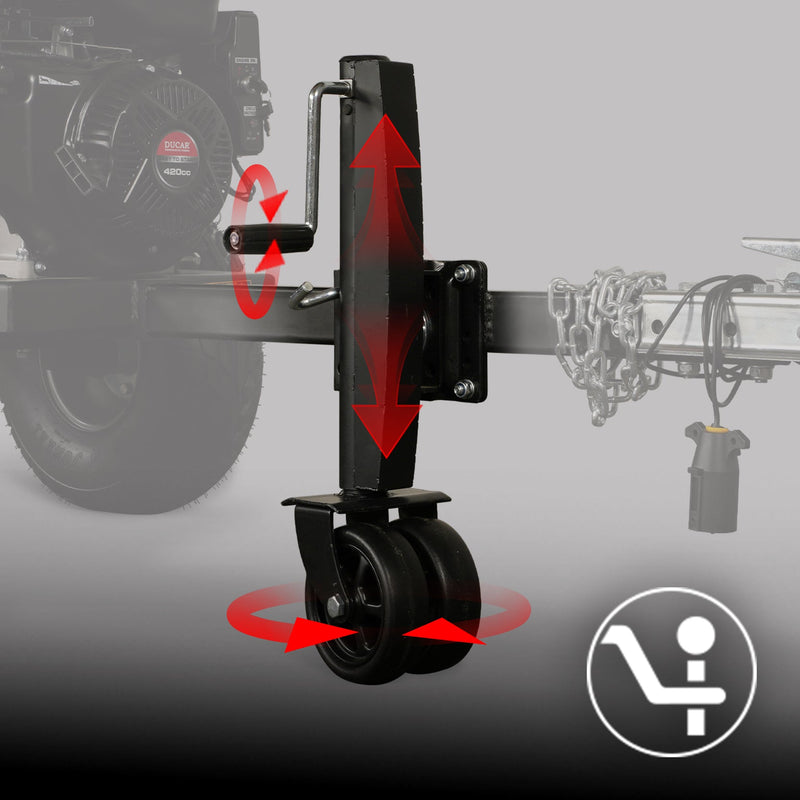

Trailer Hitch and Jockey Wheel
Trailer Hitch and Jockey Wheel

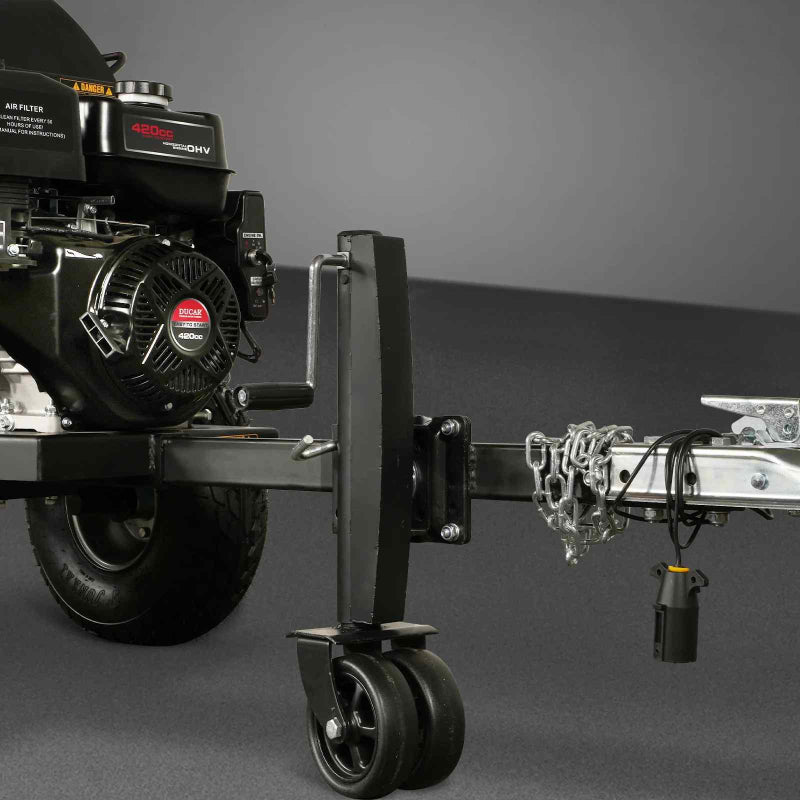

A 2-inch coupler is concealed on the trailer hitch, compatible with a 2-inch trailer ball. The jockey wheel has a dual-wheel design, with a wheel diameter of 6 inches. It can be folded up during towing and its height can be adjusted when in operation.

  • Demonstration
  • Highlights
  • Assembly & Installation-1
  • Assembly & Installation-2
  • Maintenance
Product Warranty

MechMaxx 5" Ducar E-Start Gas-Powered Disc Wood Chipper (SKU: 110602) includes a standard one-year manufacturer warranty covering defects in materials and workmanship under normal use.

Product Extended Warranty Plans

Extended warranty plans may be available for select products. Contact us to confirm eligibility and coverage details.

Engine  DUCAR DH420E Blades Type Double Edge Blade
Engine Type Single Cylinder, 4 Stroke, Air-Cooled, OHV Discharge Chute 360 Degree Rotating
Displacement 420 cc; 15 HP Emergency Stop Stop Bar + Button
Start E-Start Feed Chute Opening Method Hinge
Battery 12V 20Ah Lead-Acid Towing Tow Bar With 2 in Coupler
Belt 2 x V-Belts Tire 19 x 7.00-8 Tubeless
Belts Material Kevlar Wheelbase 41.5 in
Clutch Centrifugal Clutch Package Method Plywood Case
Cutting Method Disc Weight (N.W./G.W.) 547 / 610 lbs
Chipping Dia. 5 in Packing Size (LxWxH) 43 x 31 x 50 in
Reduction Ratio 20:1 Machine Warranty 2 Years
Blades Nos. 2 x Blade; 1 x Anvil Engine Warranty 2 Years
Blades Material A8 （5Cr8MoVSi）
