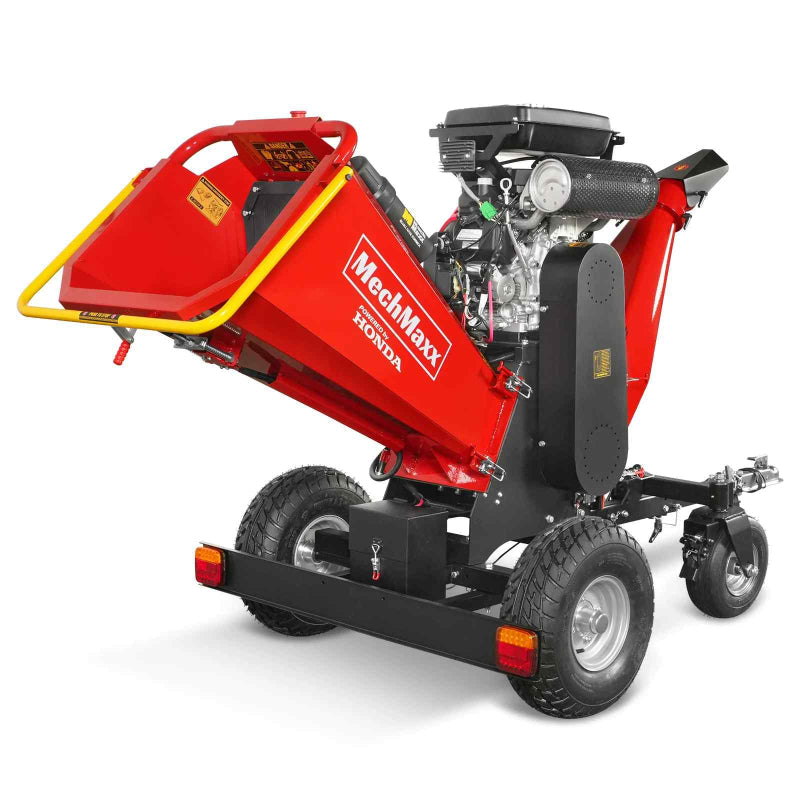

Rear three-quarter view of MechMaxx 8 inch HONDA E-Start 688cc gas-powered drum wood chipper, gallery position 1

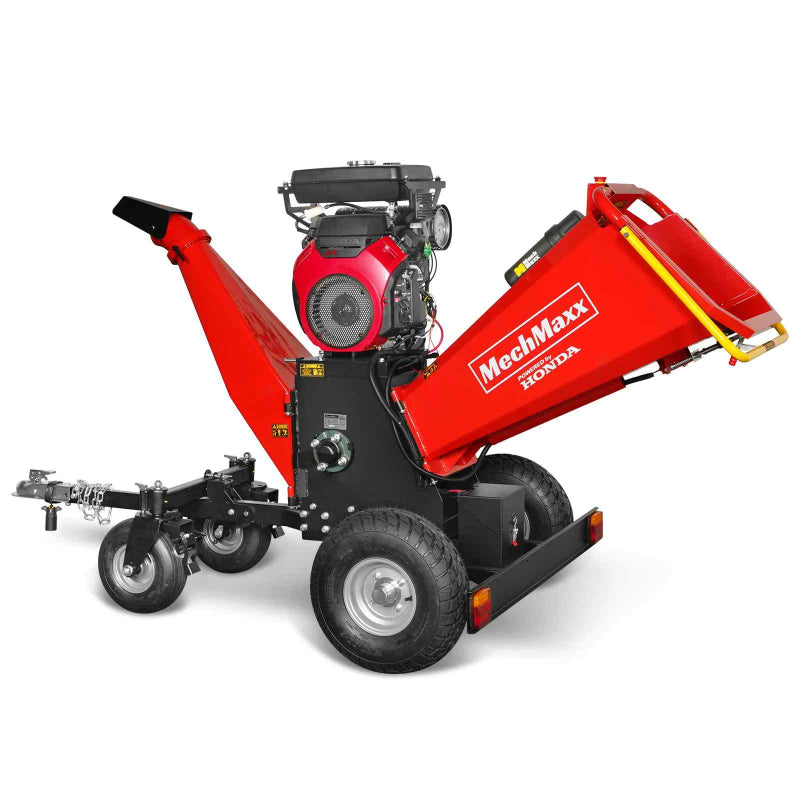

MechMaxx 8 inch HONDA E-Start 688cc Gas Powered Drum Wood Chipper

Save $1,600.00
$6,999.00
$5,399.00

Notify me when back in stock

Description

Chip branches up to 8" thick with the B200 wood chipper featuring a HONDA 688cc 22HP electric‑start engine, a powerful 14" drum roller, and double‑edge reversible blades for long service life. Built for landowners, arborists, and rental fleets, it delivers strong chipping performance, 360° rotating discharge, quick‑open chutes for maintenance, and a wide 48" wheelbase with tubeless tires for stable transport on steep or uneven ground.
Shipping & Returns

Free Shipping on MOST USA‑wide. No extra charges.

30‑day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We’re dedicated to providing the best heavy‑duty equipment built for real‑world jobs.

We partner only with reputable brands to deliver reliable, contractor‑grade tools backed by integrity and service you can trust.

When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.
A portion of every sale helps fund local trade programs and community rebuilding efforts and more.

Found a better price? We’ll match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877

MechMaxx 8" HONDA E‑Start 688cc Gas Powered Drum Wood Chipper

Process branches and woody material efficiently with this 8" drum wood chipper powered by a Honda electric‑start engine. The drum‑style cutting system supports consistent material flow, while the reinforced housing helps manage debris during operation. Its structure suits routine property‑maintenance and light land‑clearing tasks.

The chipper’s compact frame improves maneuverability on residential and small acreage properties. Its layout supports predictable chipping performance for ongoing cleanup and vegetation management.

  • Gasoline/Petrol: Clean, fresh, unleaded gasoline
  • Oil: 10W-30

Product manual (PDF)

Download PDF

Engine manual (PDF)

Download PDF

Assembly guide (PDF)

Download PDF

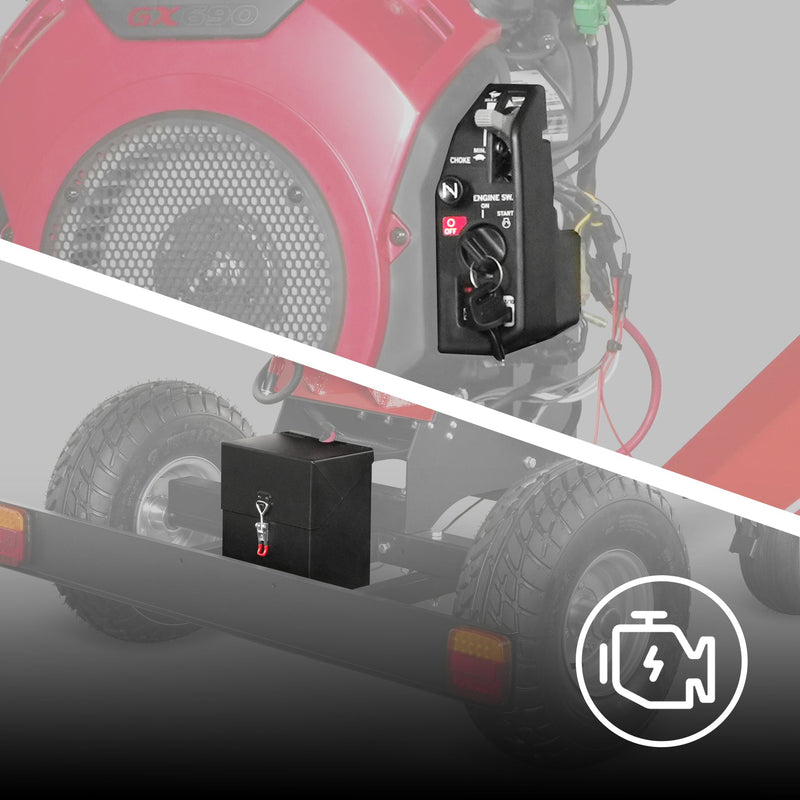

Electric Start and Battery
Electric Start and Battery

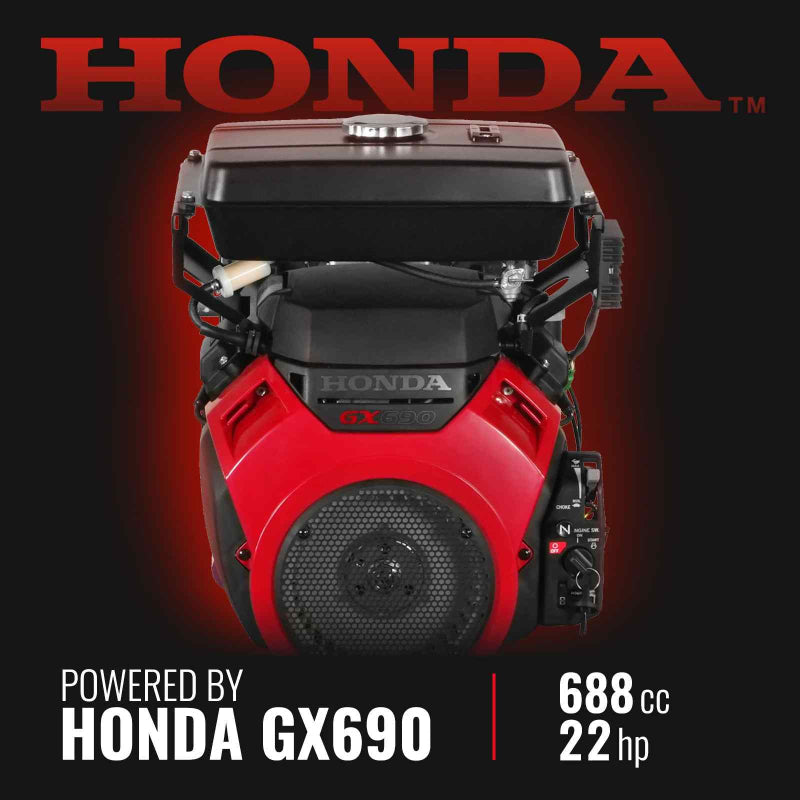

The B200 Wood Chipper is powered by a 22hp 688cc electric start gasoline engine, and equipped with a 36Ah 12V Lead-acid battery.

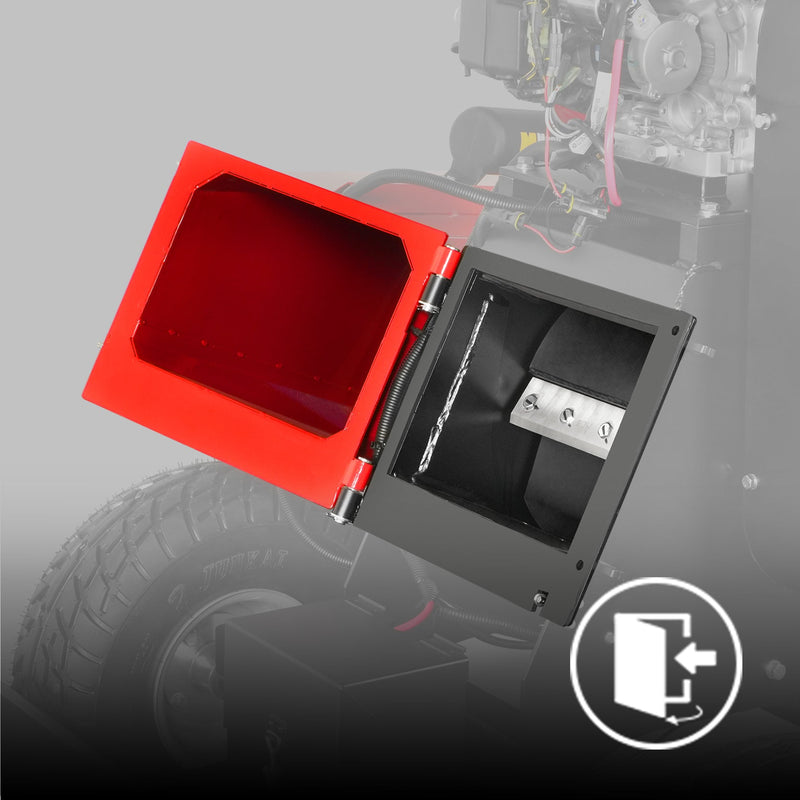

Feeding Chute
Feeding Chute

There are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement on one side of the feeding chute. When the feeding chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

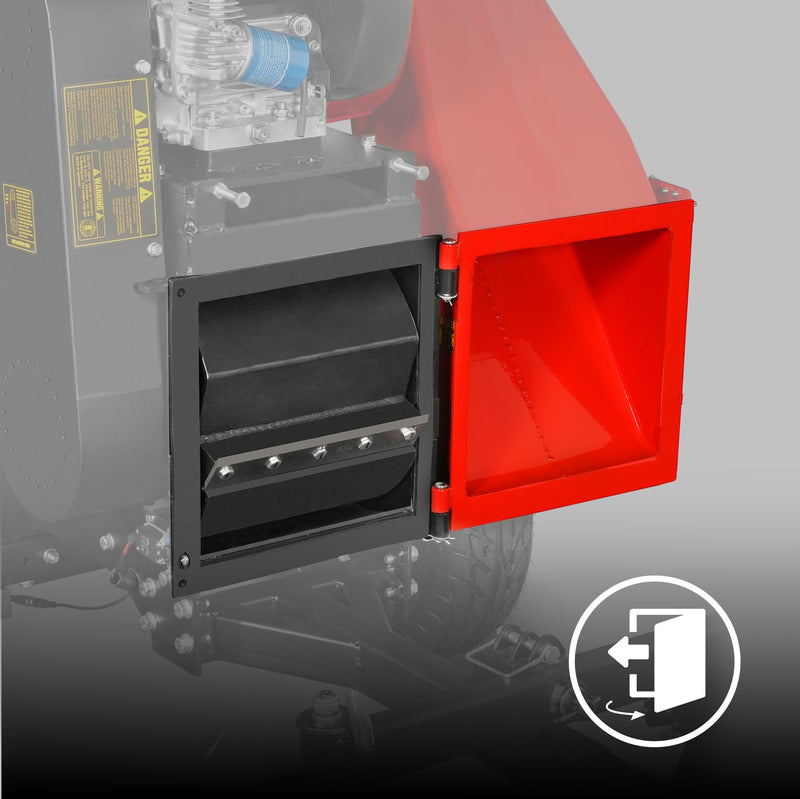

Discharge Chute
Discharge Chute

Similarly, on one side of the discharge chute, there are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement. When the discharge chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

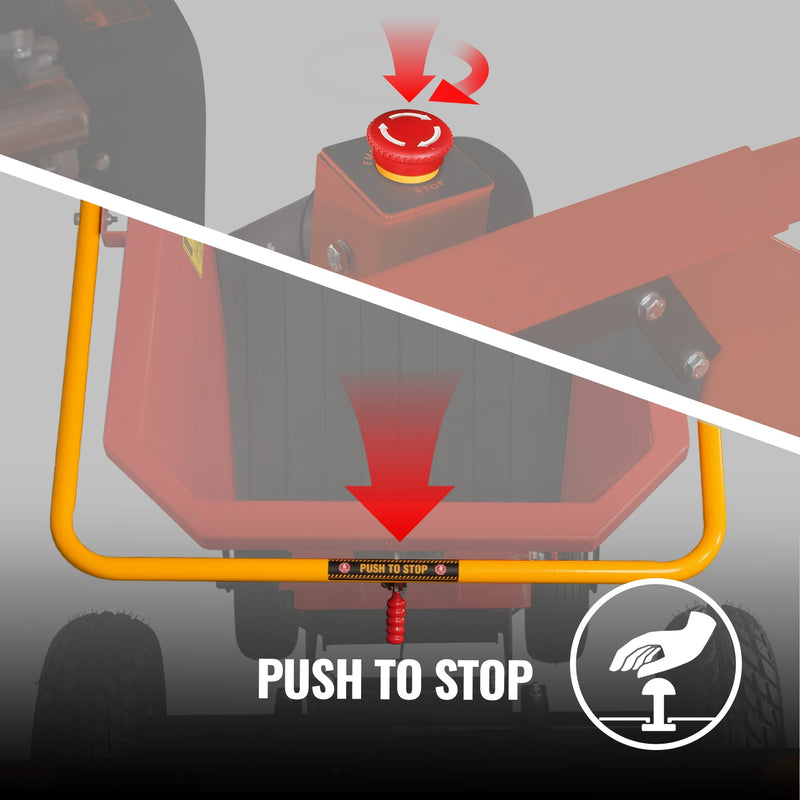

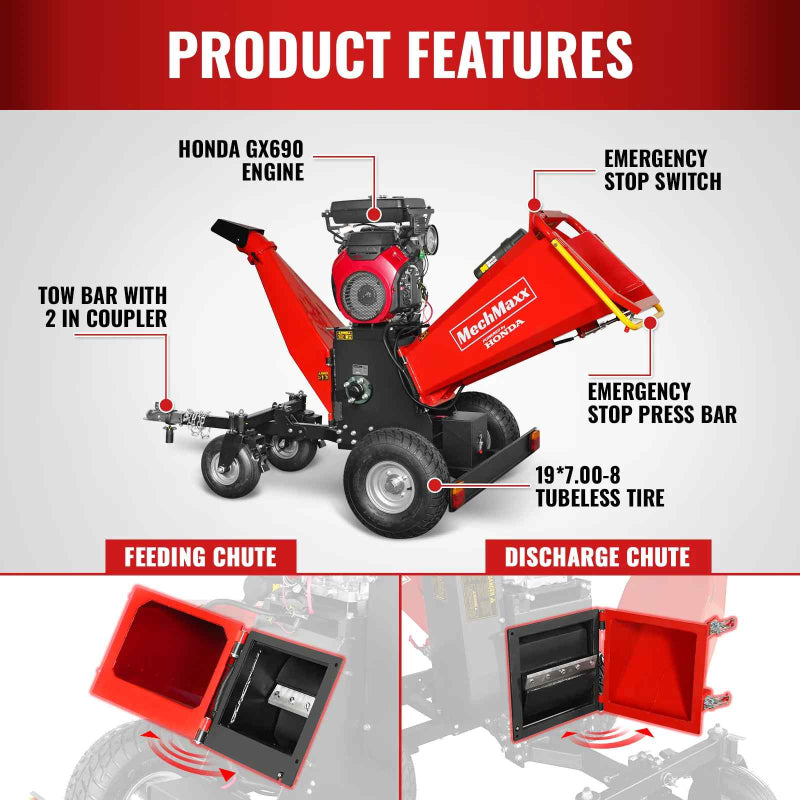

Safety Devices
Safety Devices

On the upper side of the feeding chute, there is an emergency stop button, and on the lower side, there is an emergency stop press bar. These can be used to stop the machine at any time in case of an emergency.

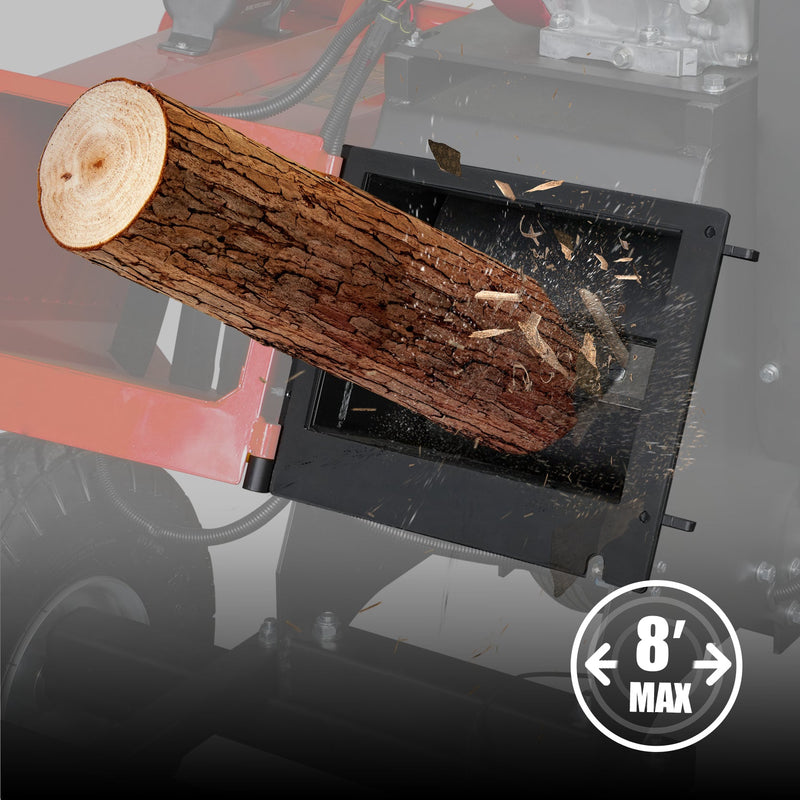

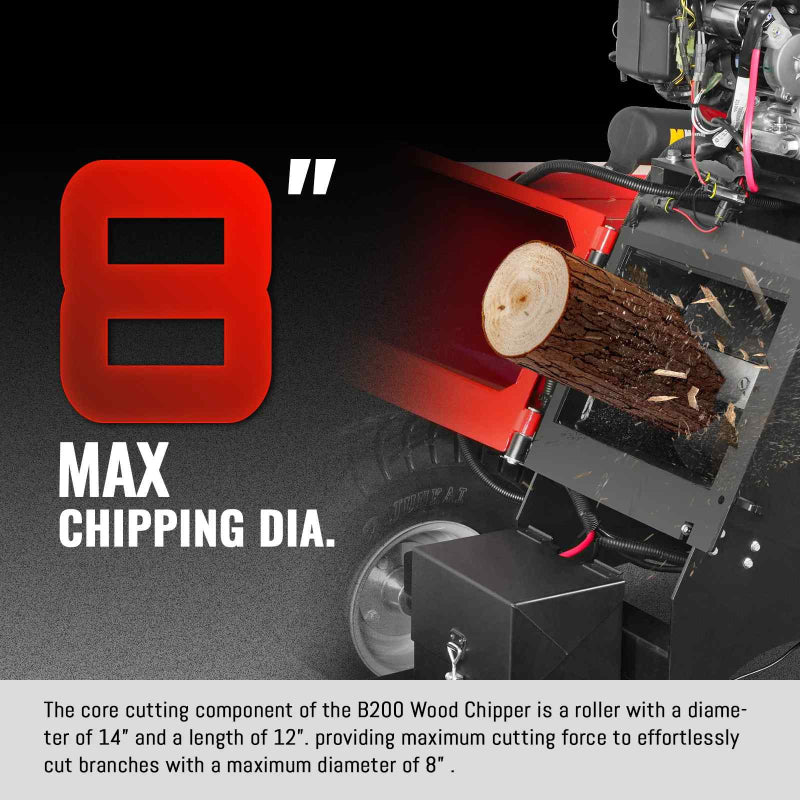

Maximum Wood Chip Diameter 8’’
Maximum Wood Chip Diameter 8’’

The core cutting component of the B200 Wood Chipper is a roller with a diameter of 14” and a length of 12”. Such a large roller generates impressive inertia, providing maximum cutting force to effortlessly cut branches with a maximum diameter of 8” .

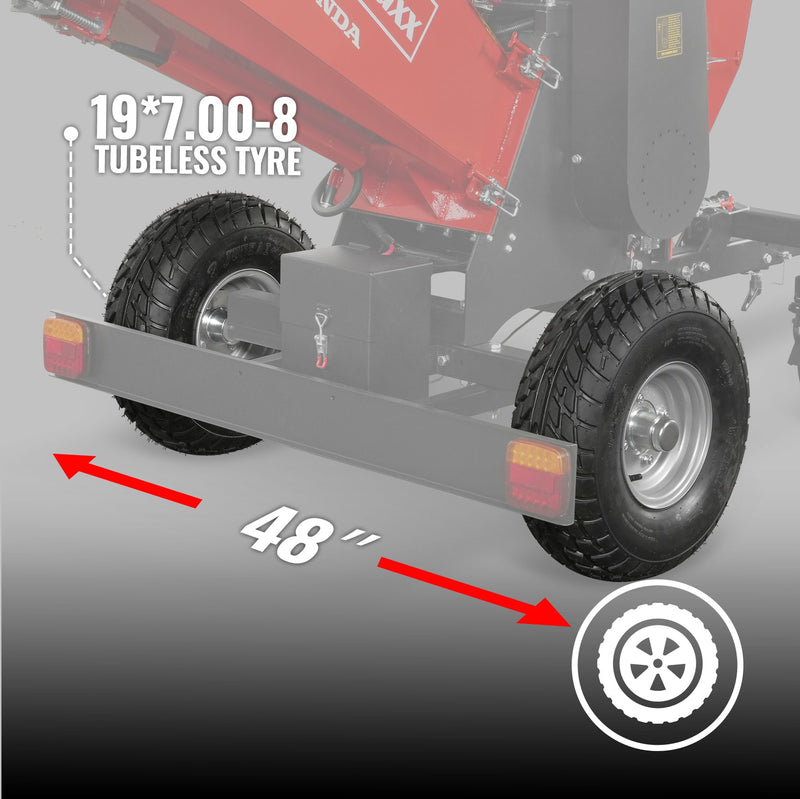

19*7.00-8 tubeless tire
19*7.00-8 tubeless tire

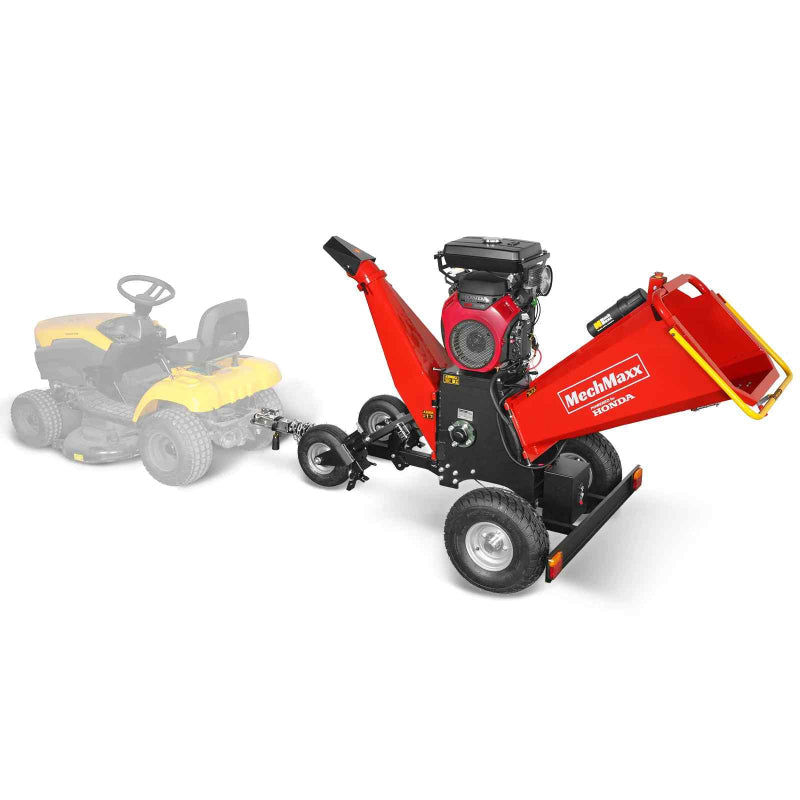

The B200 is equipped with two DOT-approved tubeless tires sized 19*7.00-8, and the wheelbase reaches an impressive 48” , providing enhanced stability when being towed.

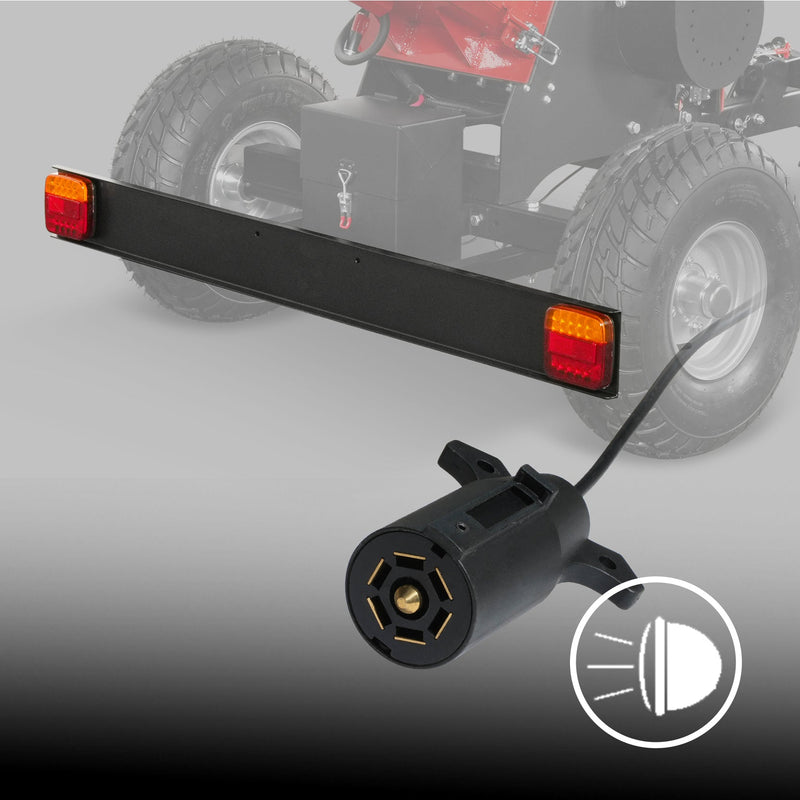

Tail Light and Plug
Tail Light and Plug

The B200 is equipped with tail light, and on one side of the trailer, there is an American seven-pin plug. The plug can be connected to the towing vehicle when being towed, allowing the tail light of B200 to synchronize with the vehicle's braking and turning signals.

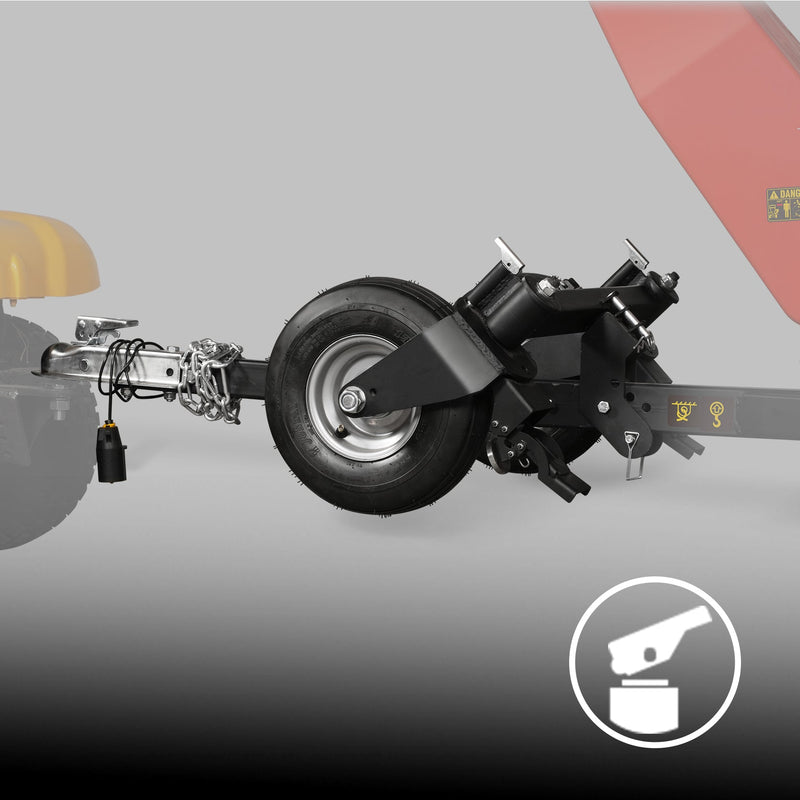

Foldable and Lockable Front Wheels
Foldable and Lockable Front Wheels

When the B200 is being towed, the two 13*5.00-6 tubeless tires need to be folded up. When the B200 is operational, they can be lowered. When the B200 needs to be pushed to a designated work area, the two wheels can be locked to ensure straight-line movement.

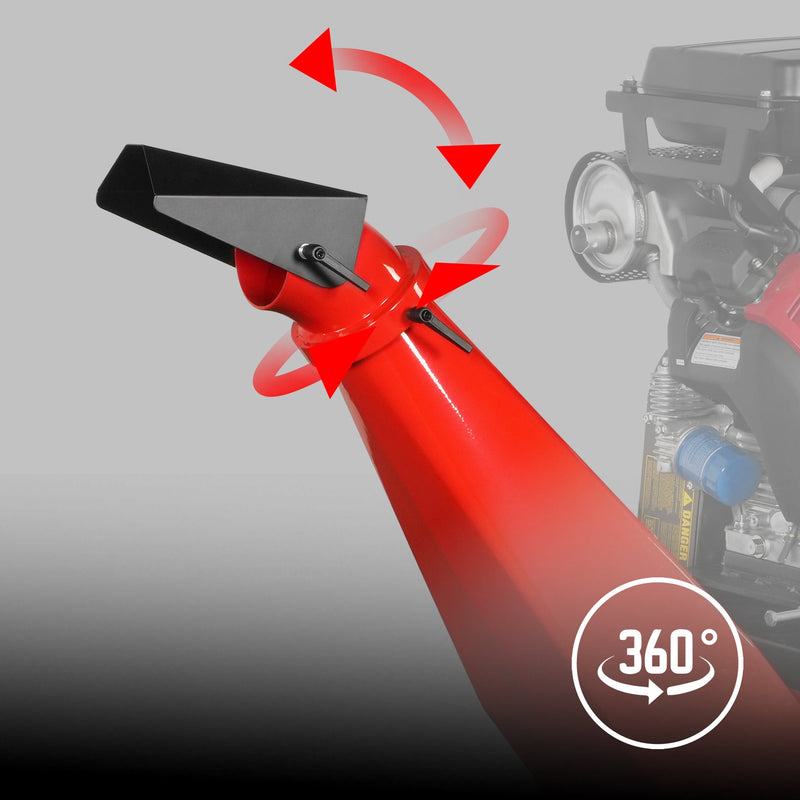

Discharge Chute Design
Discharge Chute Design

The entire discharge chute is stamped and welded together from two molds, providing an aesthetically pleasing design. The discharge chute can be fully opened, allowing for a clearer view of the blade box interior for maintenance and blade replacement. The top of the discharge chute can rotate 360 degrees.

  • Demonstration
  • Highlights
  • Assembly & Installation-1
  • Assembly & Installation-2
  • Assembly & Installation-3
  • Maintenance & Upkeep
Product Warranty

MechMaxx 8 inch HONDA E-Start 688cc Gas Powered Drum Wood Chipper (SKU: 110811) includes a standard one-year manufacturer warranty covering defects in materials and workmanship under normal use.

Product Extended Warranty Plans

Extended warranty plans may be available for select products. Contact us to confirm eligibility and coverage details.

Engine  HONDA GX690 Feed Roller 13.8 in
Engine Type Air cooled 4-stroke OHV petrol engine Knives Nos. 2 x Blade; 1 x Anvil
Displacement/HP 688 cc; 22 HP Knives Material A8 （5Cr8MoVSi）
Rated Power 13.0  kw/3600 rpm Discharge Chute 360 Degree Rotating
Max. Net Torque 48.3  Nm/2500 rpm Emergency Stop Stop Bar + Button
Fuel Capacity 3.17  gal Towing  Tow Bar with 2 in Coupler
Starting Electric Starting Wheel 19*7.00-8 Tubeless
Battery 36Ah 12V Lead-Acid Battery Wheel Base  48 in
Belt 4 x V-Belts Package Method Plywood Case
Belts Material Kevlar Weight (N.W./G.W.) 705/780 lbs
Clutch Centrifugal Clutch Packing Size (L*W*H) 50 x 30 x 49 in
Cutting Method Drum Machine Warranty 2 Years
Max. Chipping Dia. 8 in Engine Warranty 2 Years

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
