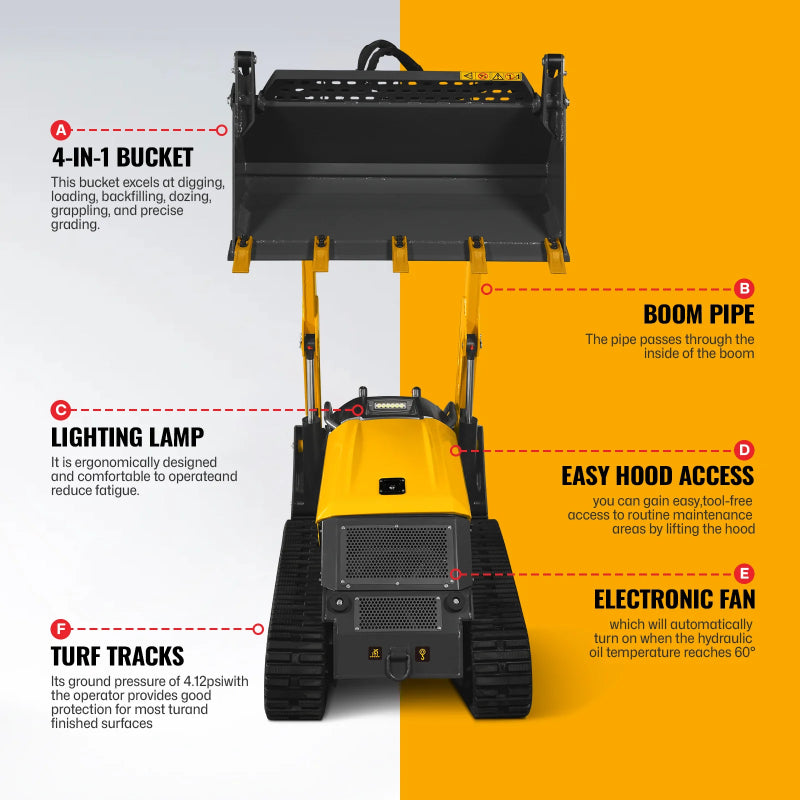

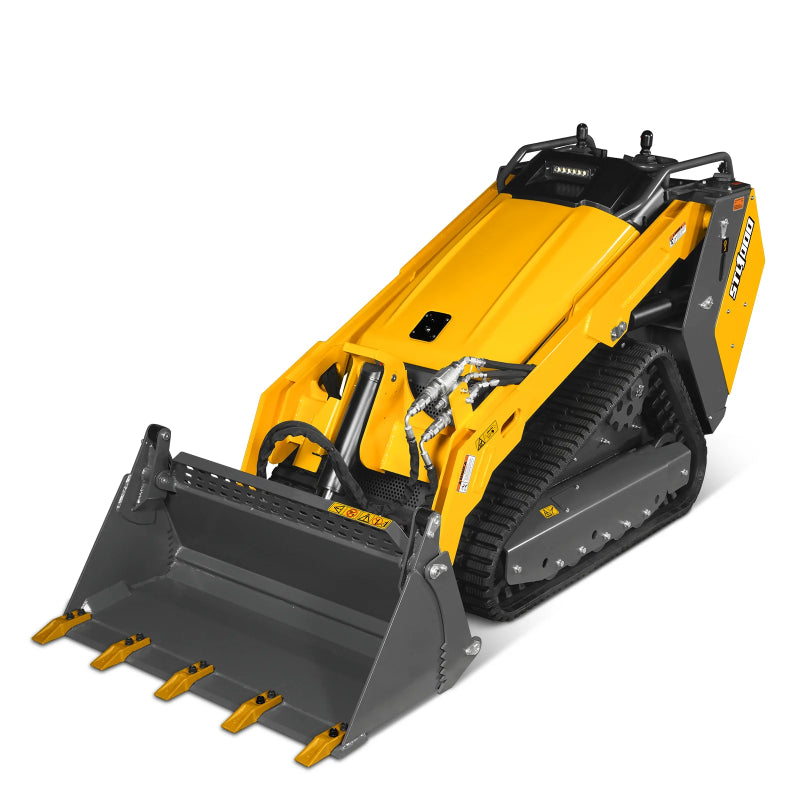

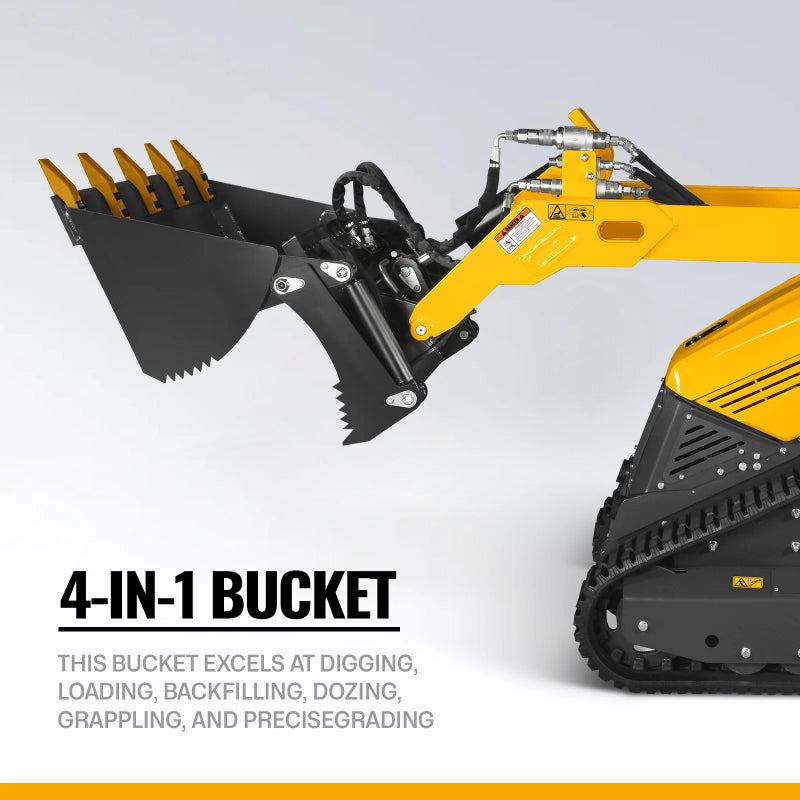

Croba STL1000 Mini Skid Steer Stand-On Compact Track Loader - 4-in-1 Bucket included

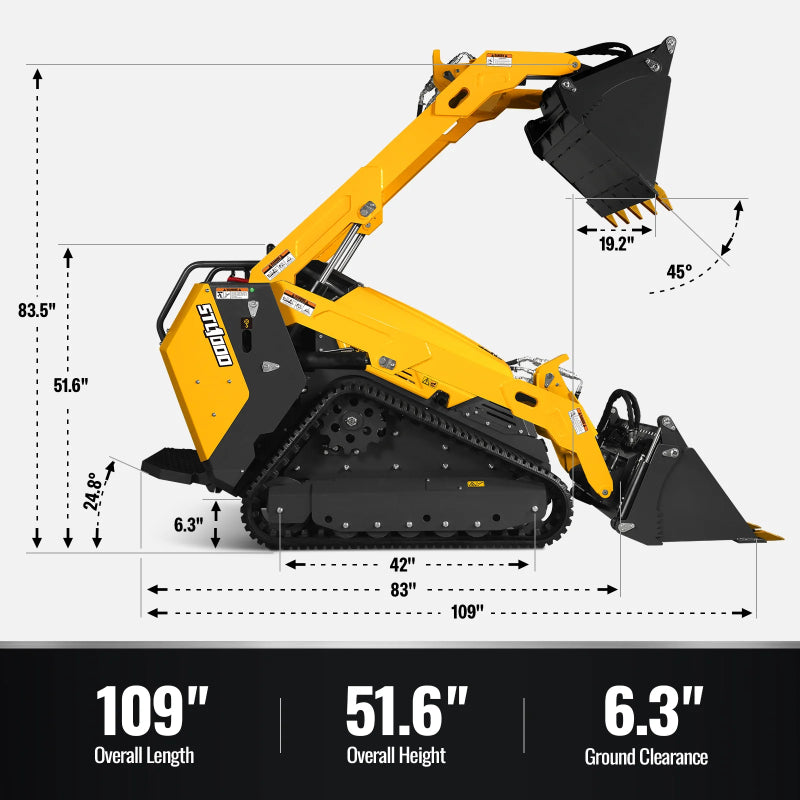

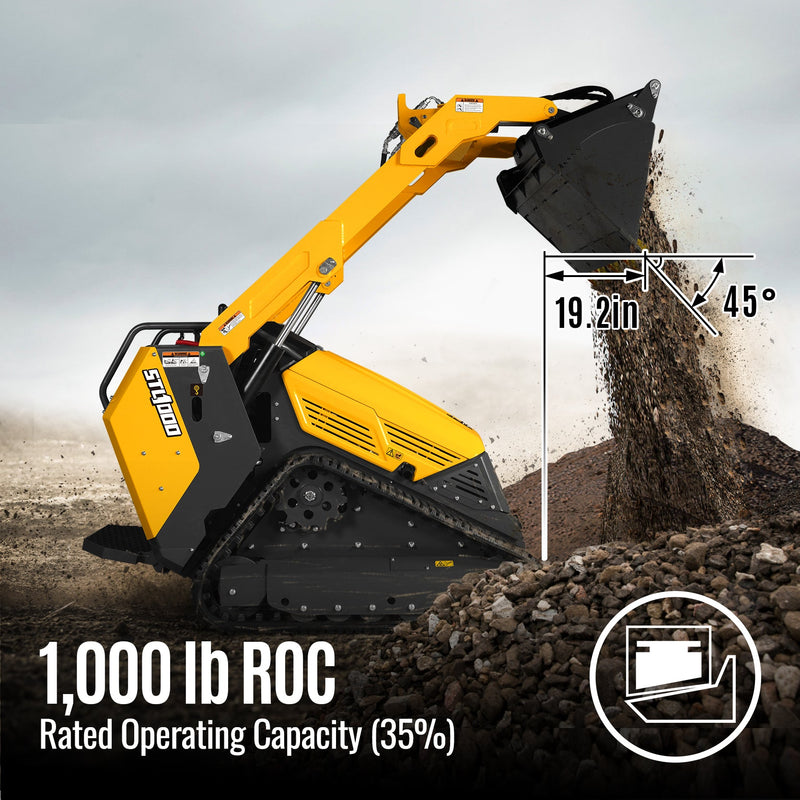

The STL1000 small track loader has a rated operating capacity (35%) of up to an astonishing 1000lb and excellent traction. Vertical lift loader arm has hinge pin height of 83.5 inches and reach of 19.2 inches (45°dump angle).

With the 35.87 in width w/o standard bucket, STL1000 is designed to operate in confined areas where larger equipment cannot fit. The smaller size allows it to fit through tight doorways and are easy to load and transport on a trailer.

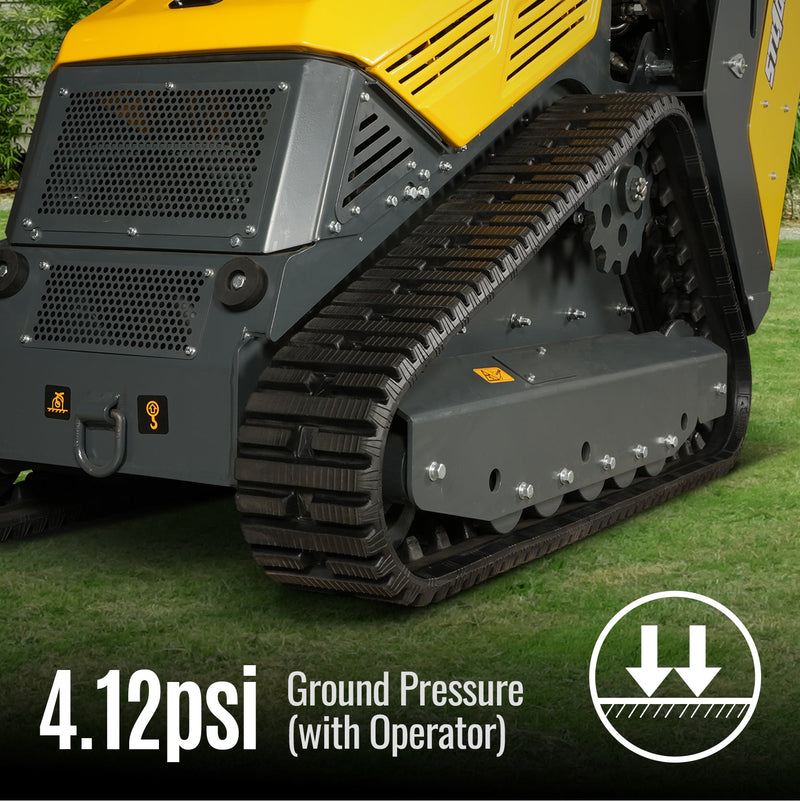

The STL1000 is equipped with turf tracks and allows you to drive on established roads without having to worry about surface damage and repair costs. Its ground pressure of 4.12psi with the operator provides good protection for most turf and finished surfaces.

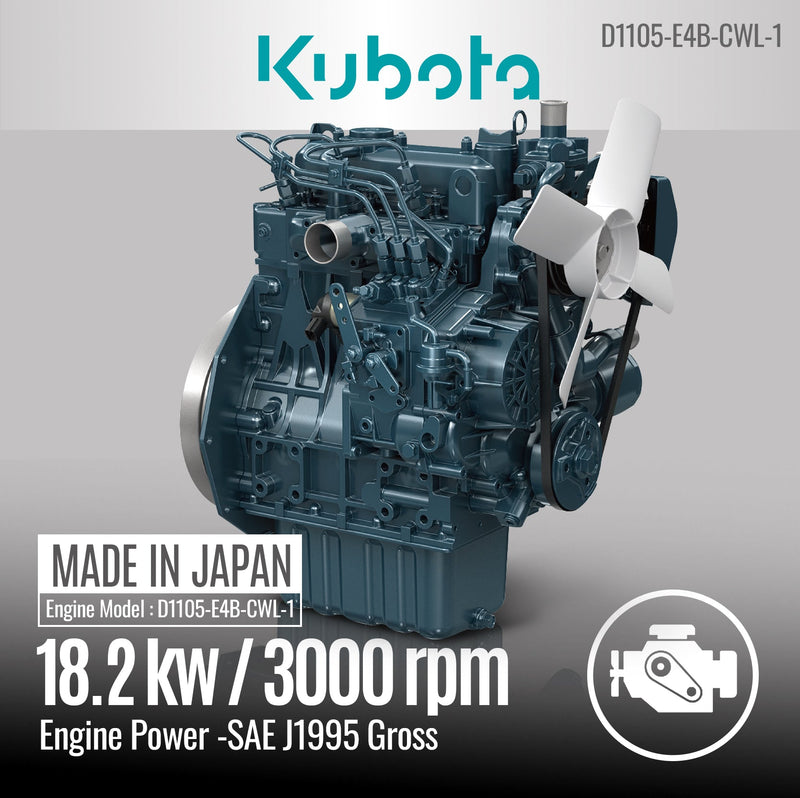

The Kubota 18.2kW diesel engine is an established leader in its horsepower range, selected as the power source of choice by various industrial equipment manufacturers, allows for more torque where it matters so you get more done.

The Gear Pump of the Italian BONDIOLI & PAVESI brand: high volumetric efficiency, strong pressure bearing capacity, compact structure, and high reliability.

The Piston Pump of the Italian BONDIOLI & PAVESI brand can run at high speed, with a rated pressure of up to 350bar. The precise control of displacement enables the vehicle to travel in a straight line, with high reliability and long service life.

It uses high-quality rubber materials with good wear resistance and aging resistance to ensure long-term and efficient operation of the equipment. It has a low natural frequency and good vibration isolation effect. It can effectively absorb high-frequency and low-frequency vibrations generated by the equipment, reduce noise interference, and improve the stability of equipment operation. It is easy to install, and the shell can protect the rubber.

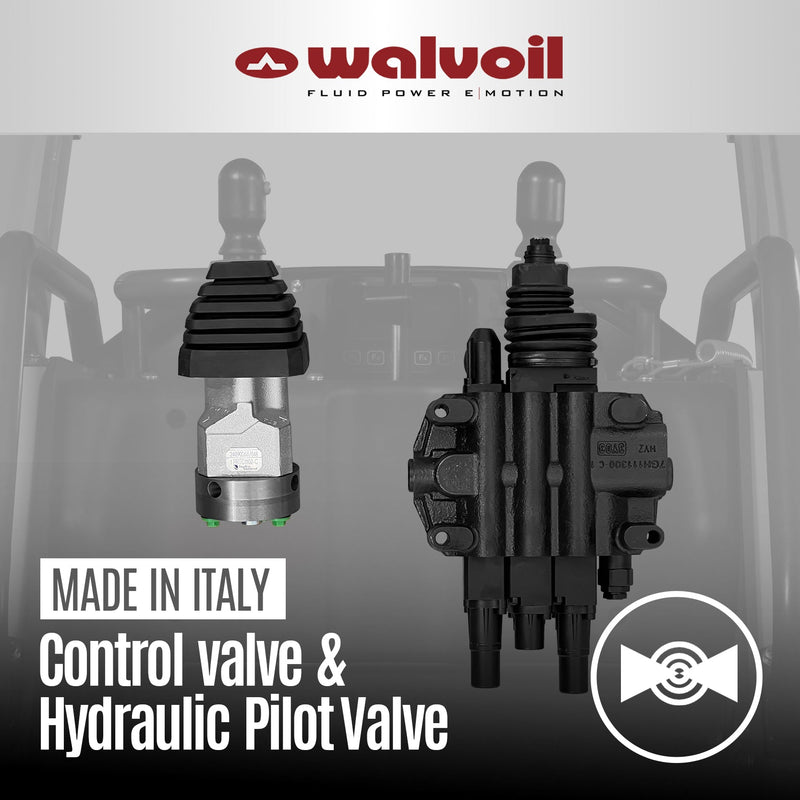

The Italian Walvoil brand Hydraulic pilot valve and Control valve can achieve good micro-operation performance. The pilot valve makes it easy to adjust the vehicle's travel speed. The moderate steering speed can ensure the safety of the driver and passengers. The control valve has excellent linkage of the boom and bucket movements, and has an integrated electromagnetic lock inside to effectively prevent misoperation of the boom and bucket. To prevent danger, the engine can only be started when the attachment handle is in the middle position.

Made in Italy Quick Change Coupler allows to connect and disconnect quickly from any hydraulic circuit, without spillage and ensuring the best performance even under high temperature and pressure. Coupling has never been safer and faster.

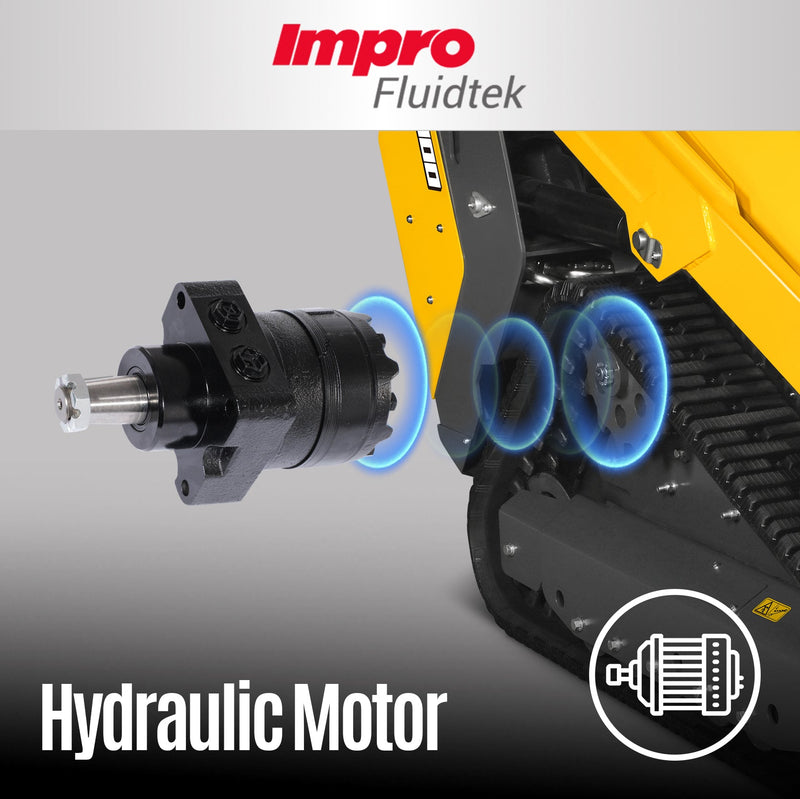

STL1000 uses high-pressure shaft seal to ensure good sealing performance, and does not require an oil drain pipe. It has high volumetric efficiency, good low-speed performance, and can provide high torque.

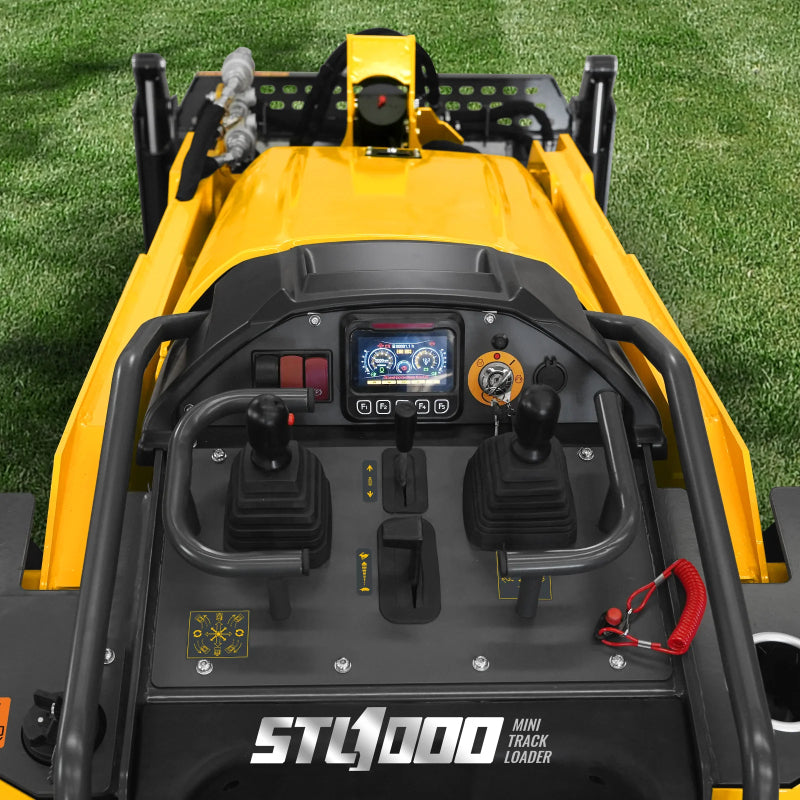

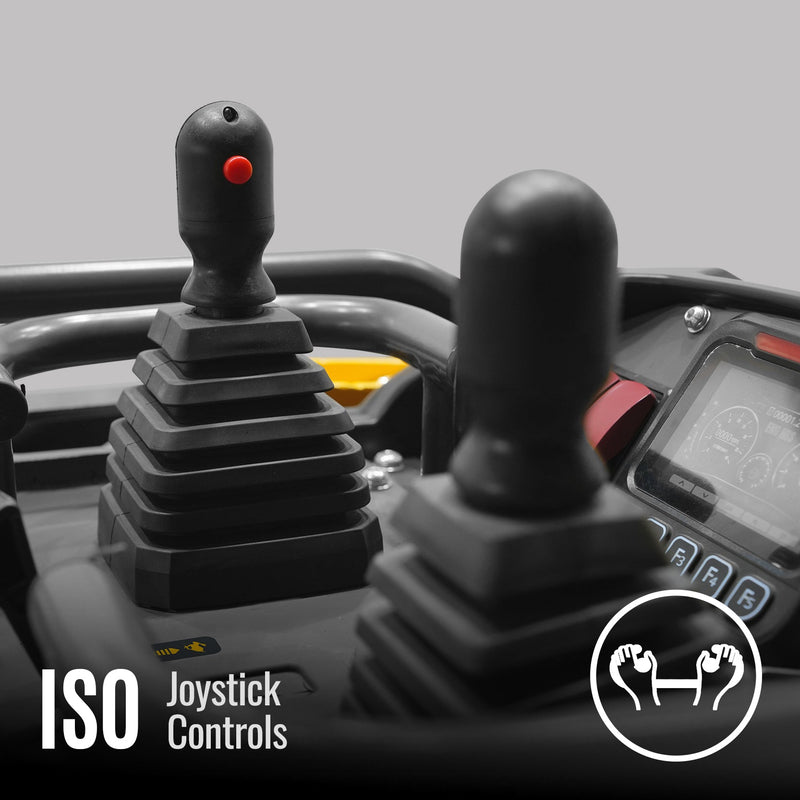

The lS0 joystick control of the STL1000 mini track loader is ergonomically designed, making it comfortable to operate and reducing fatigue.

With the grease type track tension system, the rollers of the STL1000 are sealed and filled with oil for continuous lubrication. There is no need for routine maintenance of the rollers, thus reducing maintenance time.

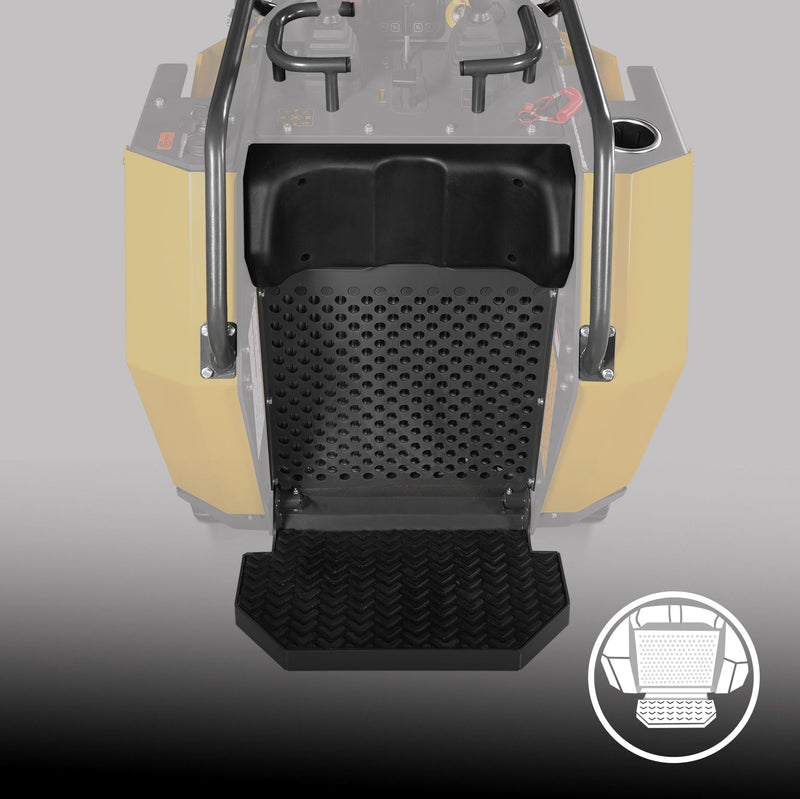

Integrated Ride-on Platform gives you a wider view to the sides of the machine as well as the bucket cutting edge or attachment, can improve the comfort of your working or traveling on the job site.

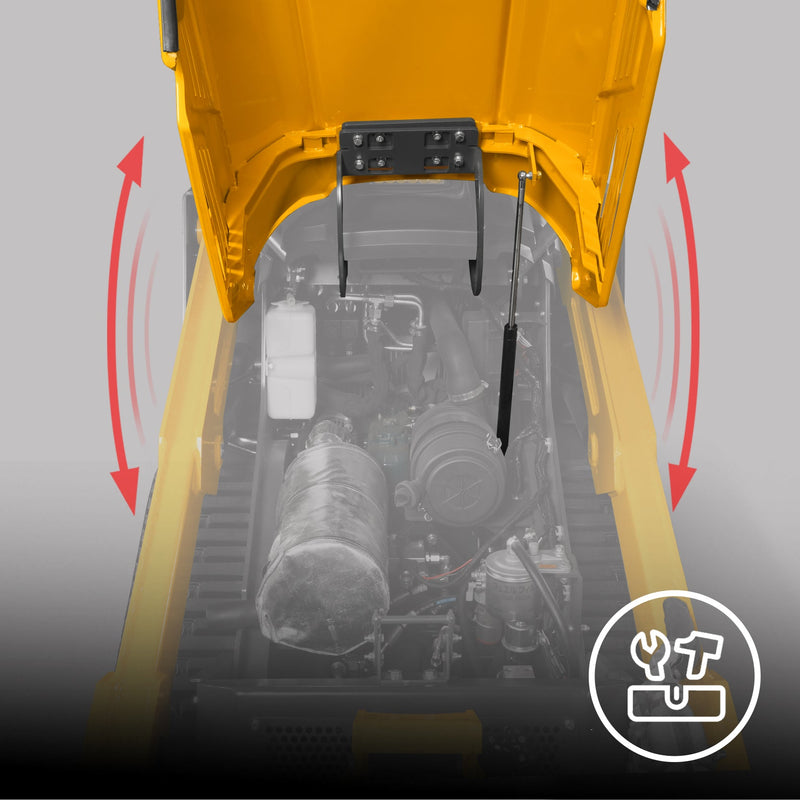

When you need to service your mini track loader, you can gain easy, tool-free access to routine maintenance areas by lifting the hood. Preventive maintenance becomes simple, and you'll be back on the job faster.

STL1000 is equipped with a 4.3’’ Color LCD monitor and a 12 Volt charging port, which allows you to monitor the machine's usage at any time, making daily maintenance easier and improving the machine's efficiency.

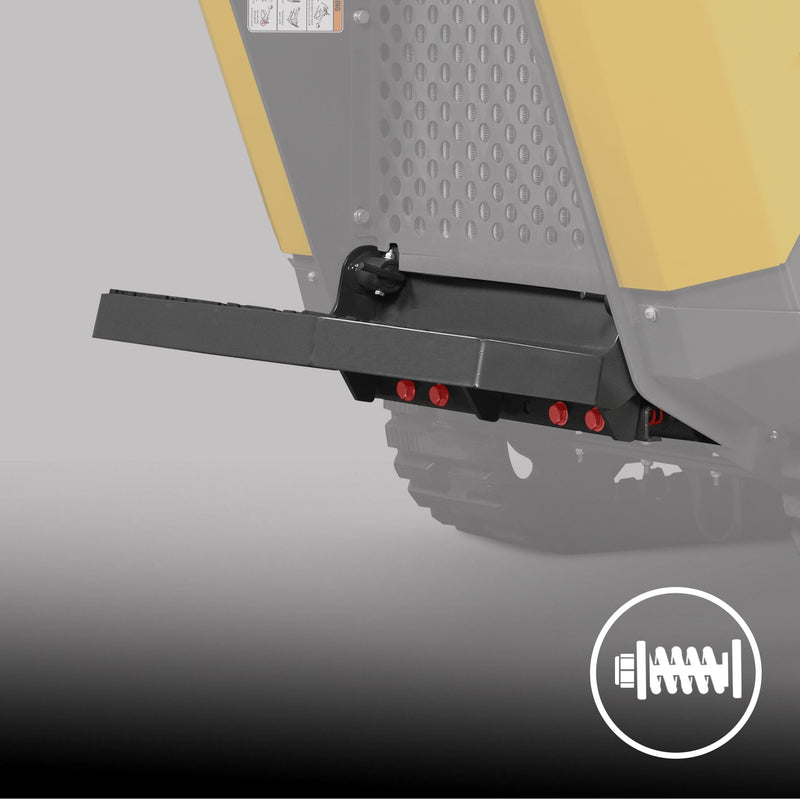

The pedal under the operator's feet is spring-adjustable, and the pedal hardness can be changed according to preference to choose the comfort that suits oneself.

There is also an electronic fan in front of our STL1000, which will automatically turn on when the hydraulic oil temperature reaches 60°. It can reduce the temperature of the machine, reduce failures, and increase the service life and working time of the machine.

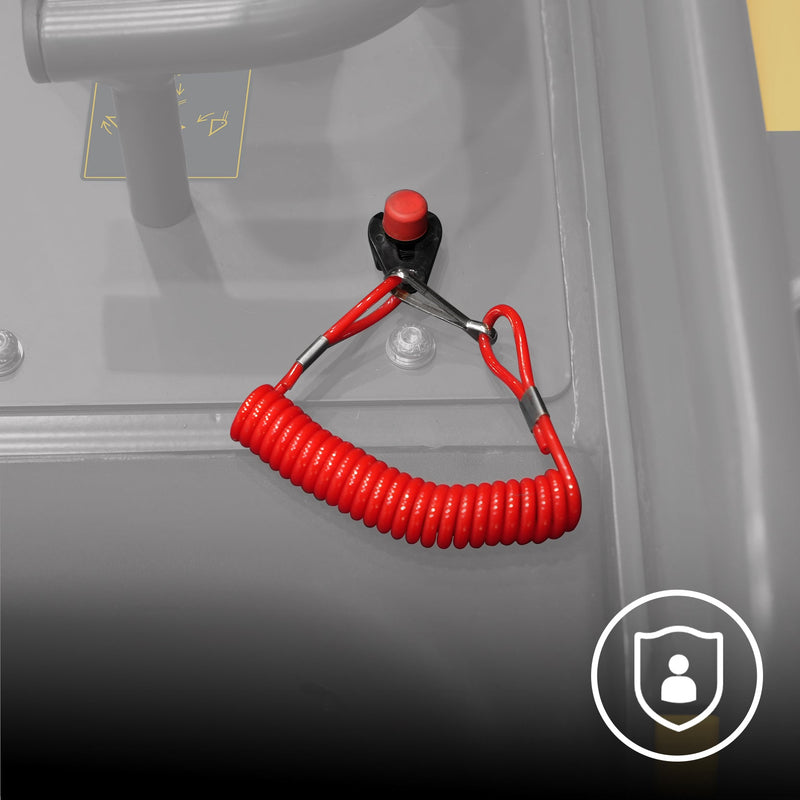

The control panel comes with a safety spring, which the operator fixes on the hand. The emergency safety handle attaches to operator’s hand. If the safety handle disconnects during operation for any reason, the machine will shut off.

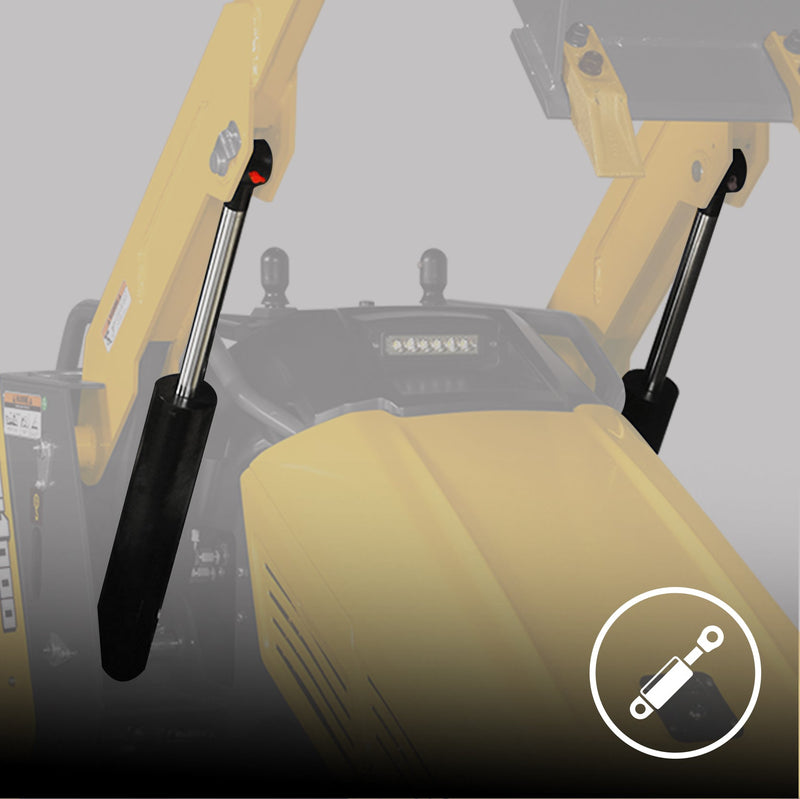

The boom cylinder of STL1000 has a buffer function, which can greatly reduce the vibration of the whole machine when lifting heavy objects and improve user comfort.

The safety card can prevent it from accidentally falling when the boom is raised for maintenance, which greatly ensures the safety of the operator.

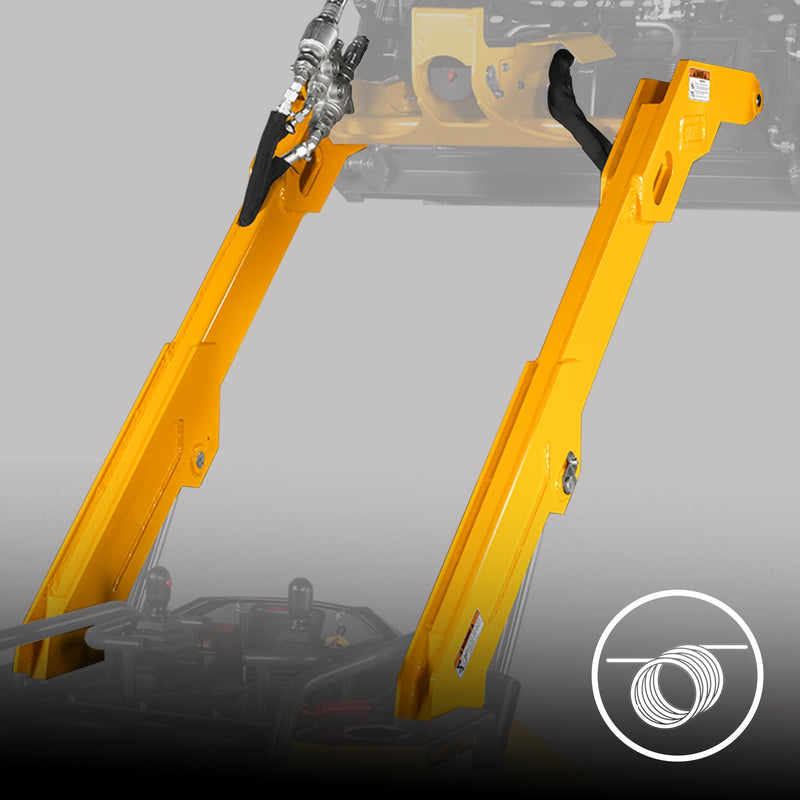

The pipe passes through the inside of the boom. This design makes the appearance neat and tidy, and at the same time ensures that the pipe is not easily damaged or aged due to time.

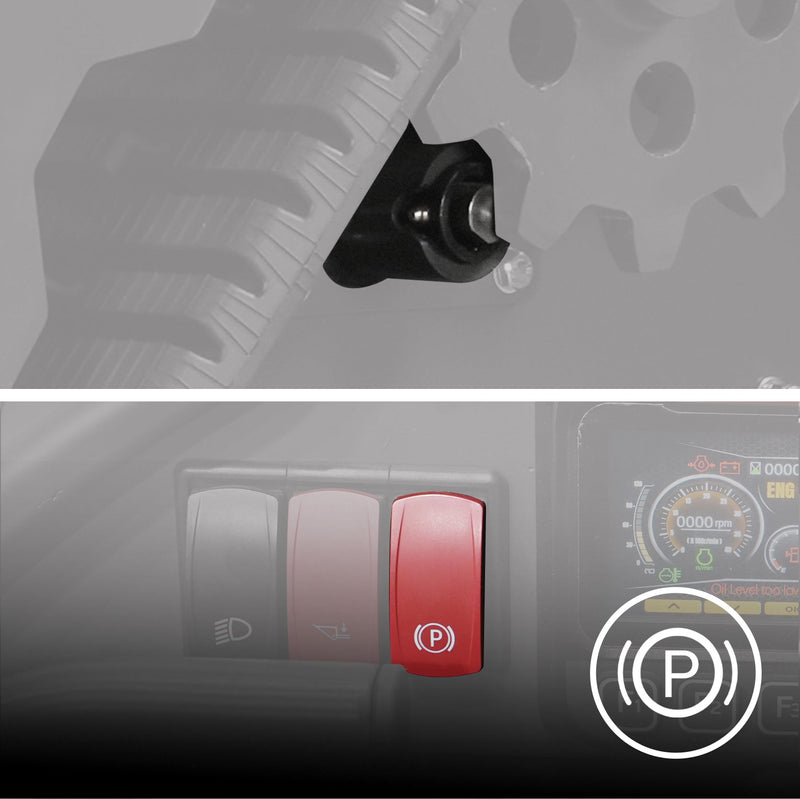

To ensure operational safety, when the operator stops operating the machine, press the stop button on the right and the parking brake will be activated, which can greatly protect safety.

The lift arm bypass switch is used to lower the lift arms when the engine is not running.

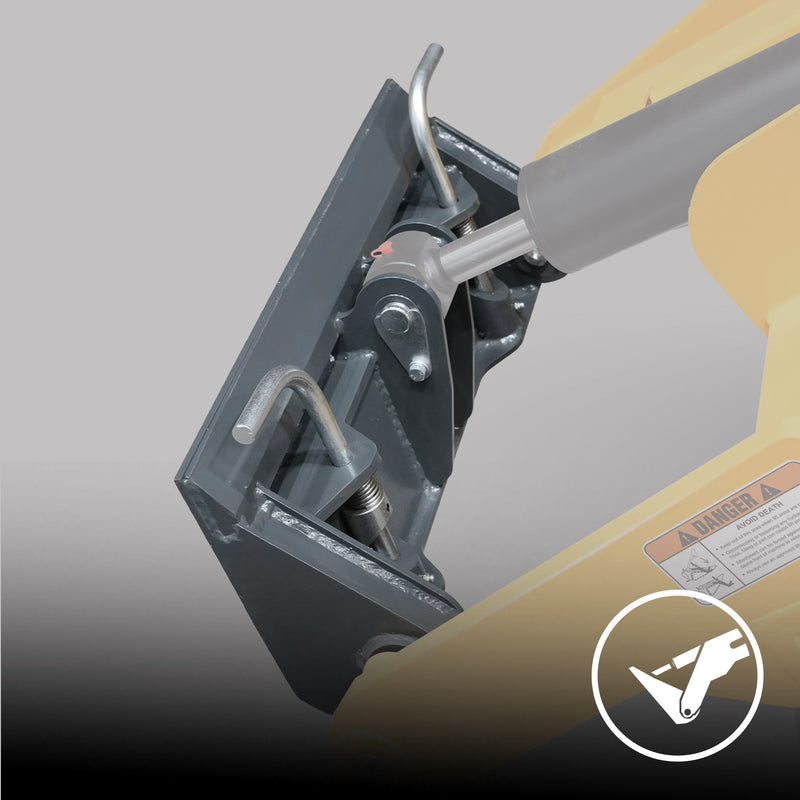

The accessory mounting system uses CII, allows for smaller and more convenient connections to accessories. The pin-on attachment style can be locked at 90 degrees to make the connection more secure, and is equipped with greasable and serviceable pins.
