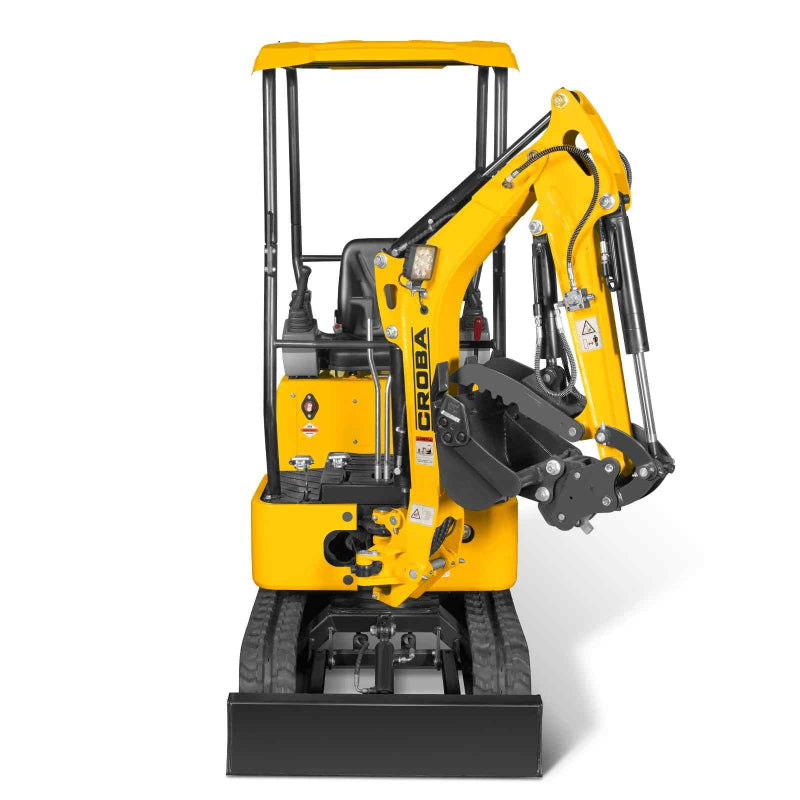

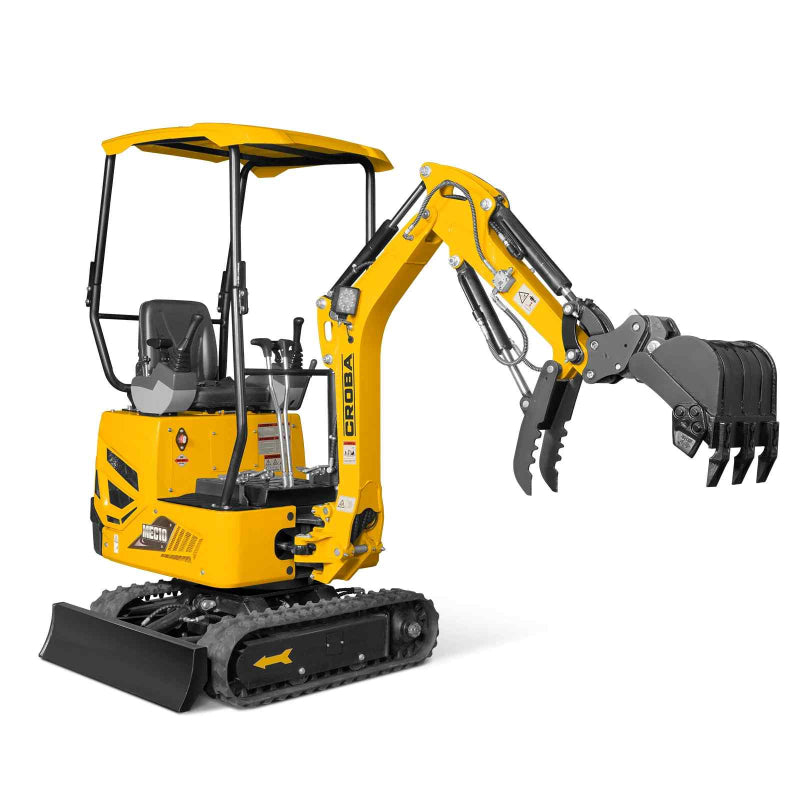

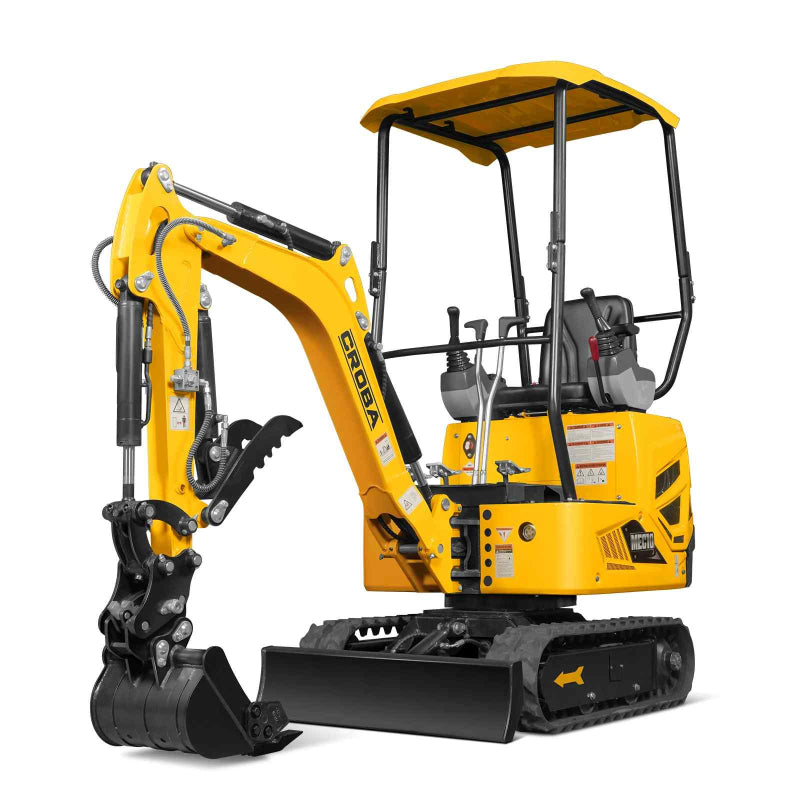

right side view of yellow compact mini excavator with open canopy and digging bucket lowered gallery position 1

MechMaxx MEC10 Mini Excavator with B&S Vanguard Engine

$9,699.00
Model : MEC10 VANGUARD In Stock
MEC10 VANGUARD MEC10 HONDA MEC12 KUBOTA MEC17 KUBOTA MEC17PRO KUBOTA

Notify me when back in stock

Description

Equipped with a B&S Vanguard, this MEC10 Mini Excavator delivers reliable 15HP performance with a compact footprint. Perfect for landscaping and small construction projects, it offers dependable digging power in tight spaces.
Shipping & Returns

Free Shipping on MOST USA‑wide. No extra charges.

30‑day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We’re dedicated to providing the best heavy‑duty equipment built for real‑world jobs.

We partner only with reputable brands to deliver reliable, contractor‑grade tools backed by integrity and service you can trust.

When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.
A portion of every sale helps fund local trade programs and community rebuilding efforts and more.

Found a better price? We’ll match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877

MechMaxx MEC10 Mini Excavator with B&S Vanguard Engine

The MechMaxx MEC10 Mini Excavator with a B&S Vanguard engine is built for users who need a compact digging machine for small property work, trenching, and light excavation. Its size allows it to operate in confined areas such as backyards, narrow paths, and landscaped spaces.

The machine’s hydraulic system supports routine digging and grading tasks, while the quick‑attach mount allows operators to switch between compatible buckets and attachments. The MEC10 is suited for homeowners, small contractors, and property managers who need a compact, engine‑driven excavator for routine tasks.

Product manual (PDF)

Download PDF

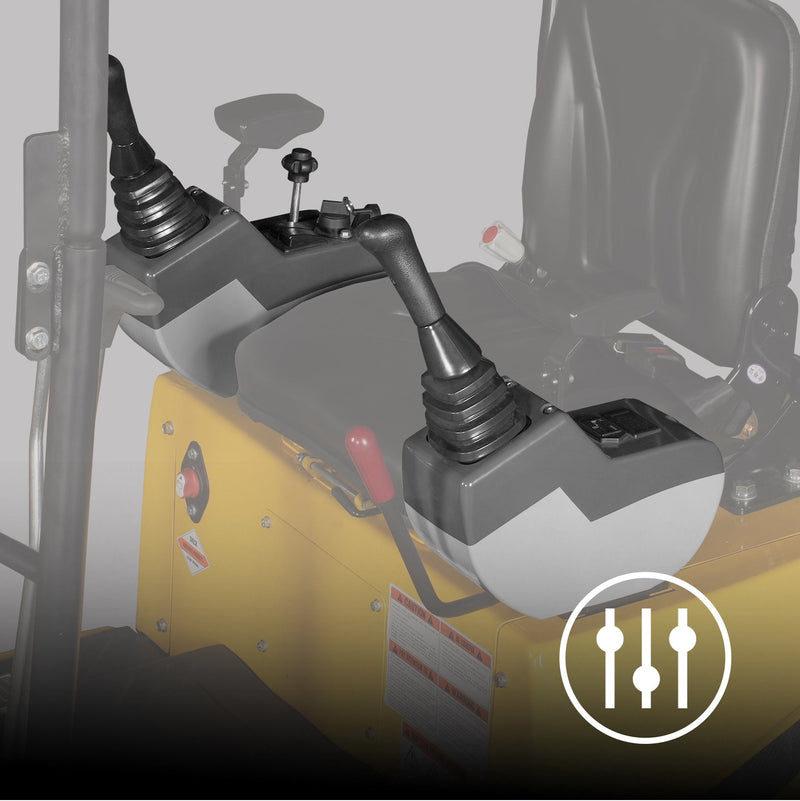

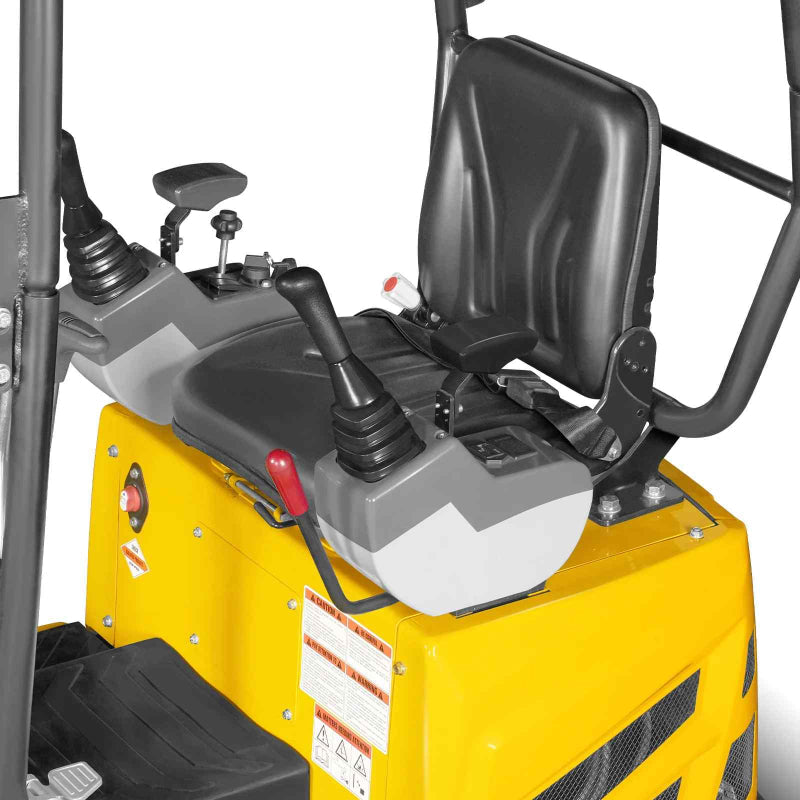

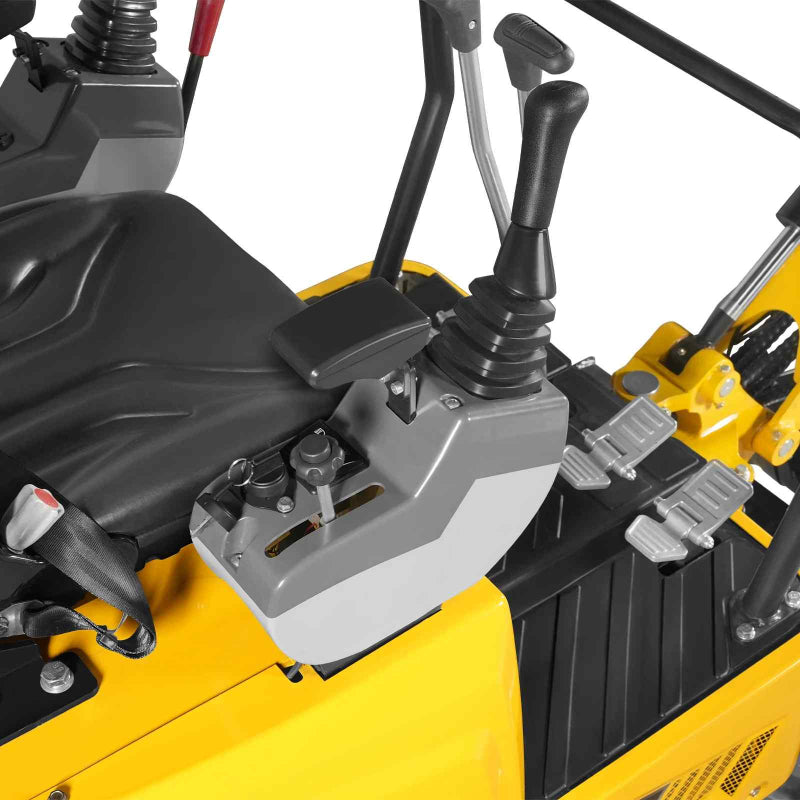

Pilot-Operated Control
Pilot-Operated Control

The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.

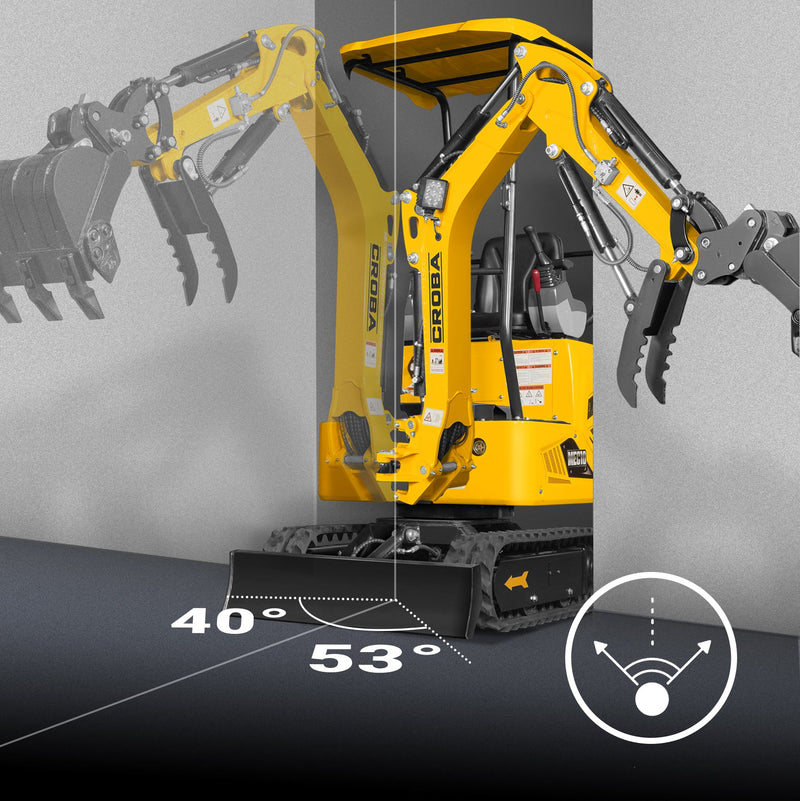

Swing Arc
Swing Arc

The digging arm can swing left and right, turn 53 degrees to the left and 40 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.

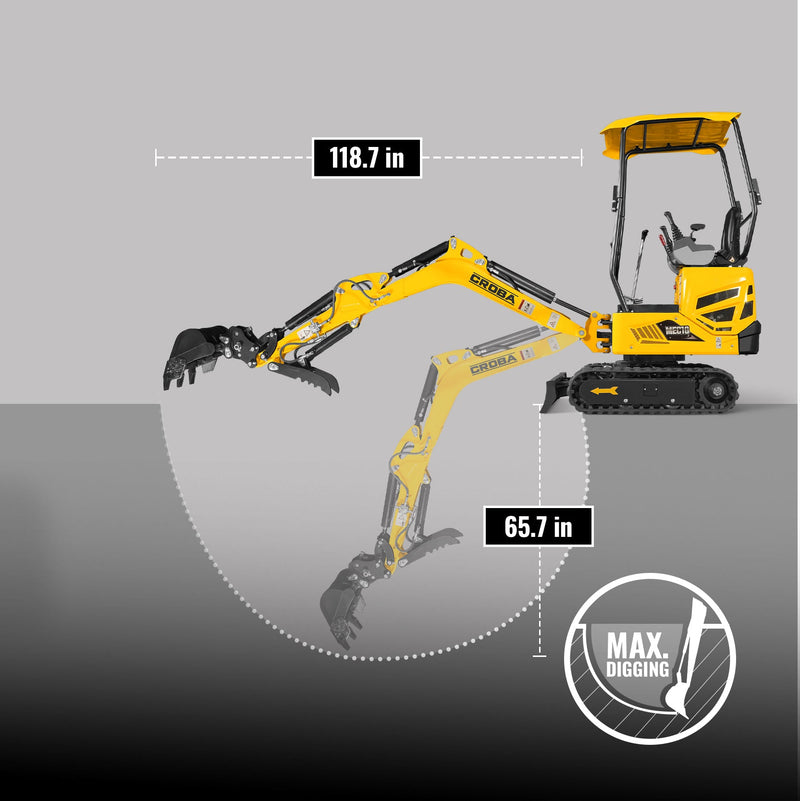

Digging Depth
Digging Depth

It features an all-around 65.7-inch digging depth reach capability and a 118.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

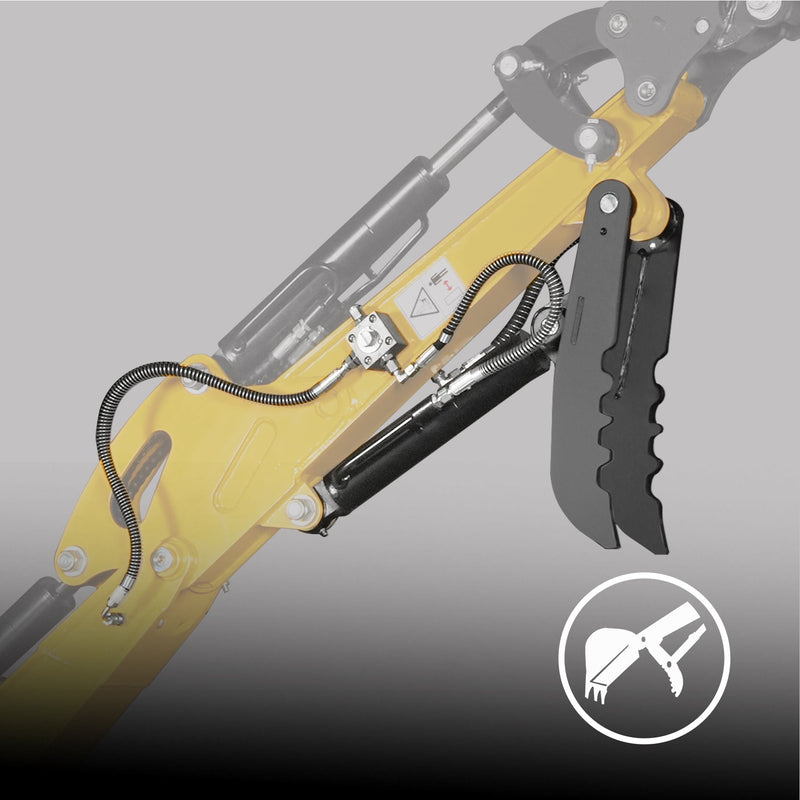

Hydraulic Thumb
Hydraulic Thumb

The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.

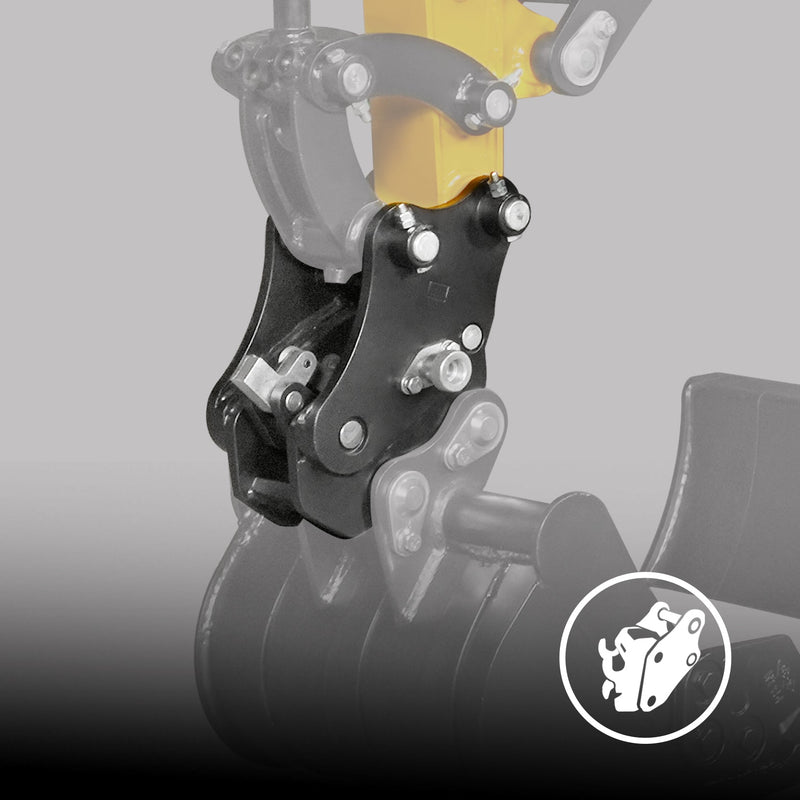

Semi-automatic Quick Hitch
Semi-automatic Quick Hitch

The quick hitch is made of durable steel, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.

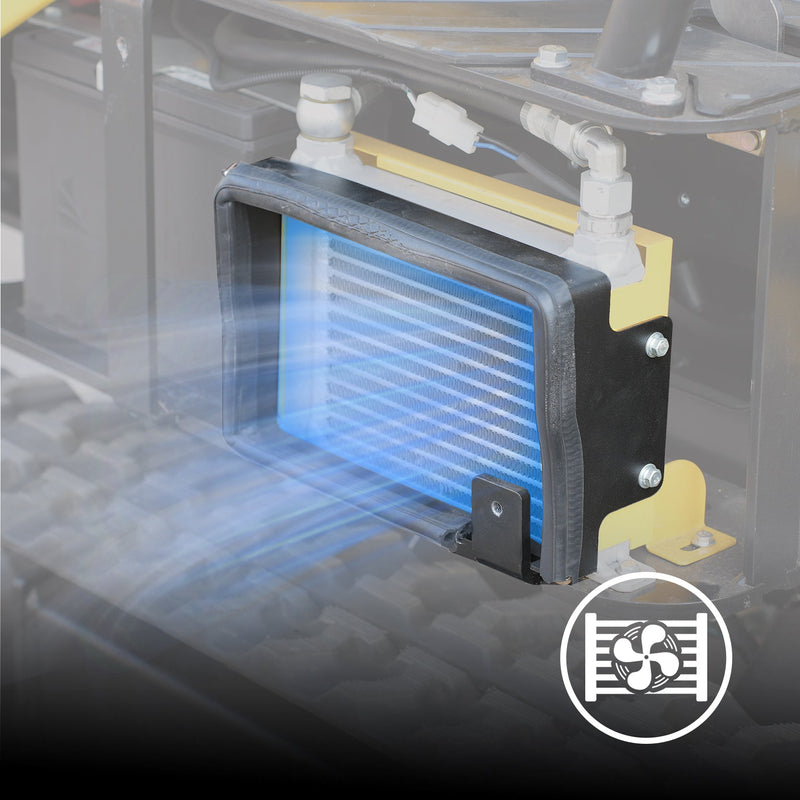

Hydraulic Oil Radiator
Hydraulic Oil Radiator

Hydraulic oil radiator can cool the hydraulic oil, preventing overheating and ensuring proper system operation. It works by dissipating heat from the oil as it circulates through the system, can prevent damage to components and ensure the system's efficiency and longevity.

  • Demonstration-1
  • Demonstration-2
  • Maintenance & Upkeep
Product Warranty

MechMaxx MEC10 Mini Excavator with B&S Vanguard Engine (SKU: 150531) includes a standard one-year manufacturer warranty covering defects in materials and workmanship under normal use.

Product Extended Warranty Plans

Extended warranty plans may be available for select products. Contact us to confirm eligibility and coverage details.

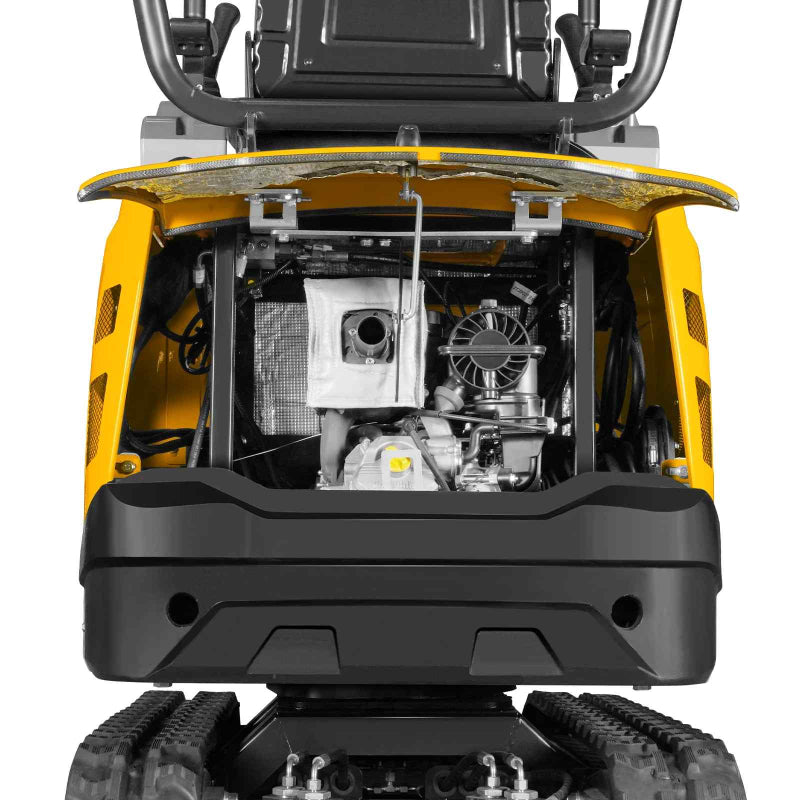

ENGINE
Model Vanguard 25V000 Displacement  408cc
No.Of Cylinders 1 Engine Output 14hp
Stroke 2.638in Warranty for Engine 3-Year
Bore 3.465in Fuel Tank 1.52 gal
Rated speed 3600rpm Engine Oil 0.7gal
TRAVEL SYSTEM
Max. Travel Speed 0.75 mile/h Ground Pressure 5.1psi
Maximum Traction Force 3035 lbf Gradeability - Maximum Maximum 30 degrees
Ground Clearance 15.9in Operating Weight 2370lbs
HYDRAULIC SYSTEM
Hydraulic Oil Tank 3.96gal Max.Discharge Flow 4.65 gpm
SWING SYSTEM
Swing Speed 8rpm Tail Swing Radius 32.6in
DIGGING FORCE
Bucket Digging Force 1619 lbf Arm Digging Force 1191 lbf
Bucket Capacity 0.7 ft³ Bucket Width 15 in
SCOPE OF WORK
Max.Digging Height 109 in Min Turning Radius Of Working Device 48.1in
Max.Dumping Height 80 in Max. Lifting Height Dozer Blade 5.9in
Max.Digging Depth 65.7in Max. Depth Dozer Blade 7.4in
Max.Vertical Digging Depth 62.6in Boom Swing - Left 53°
Max Digging Radius 119in Boom Swing - Right 40°
Max.digging Radius At Ground Level 118.7in
DIMENSIONS
Transportation Length 82in/115in Crawler Wheel Base 36in
Overall Width  37in Track Belt/Shoe Width 7in
Overall Height（To Top Of Cab） 88.5in Track Length 48.5in
Counter Weight Ground Clearance 16in Track Width 37in
SERVICE
Package Method Wood Case Warranty for Machine 1 Year
Packing Size 91x40x98 in Weight (N.W./G.W.)  2180/2440 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
