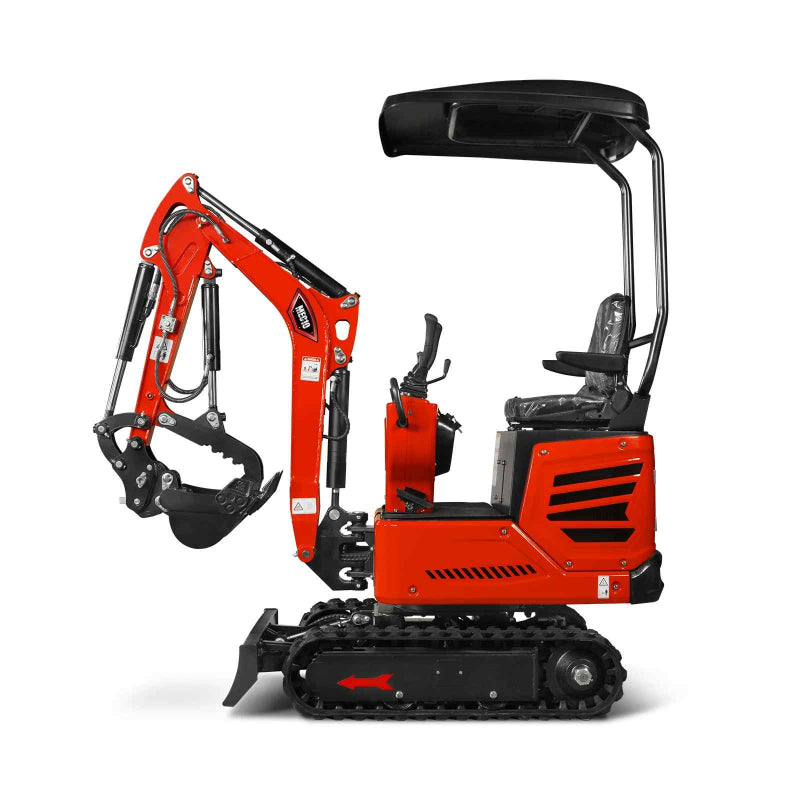

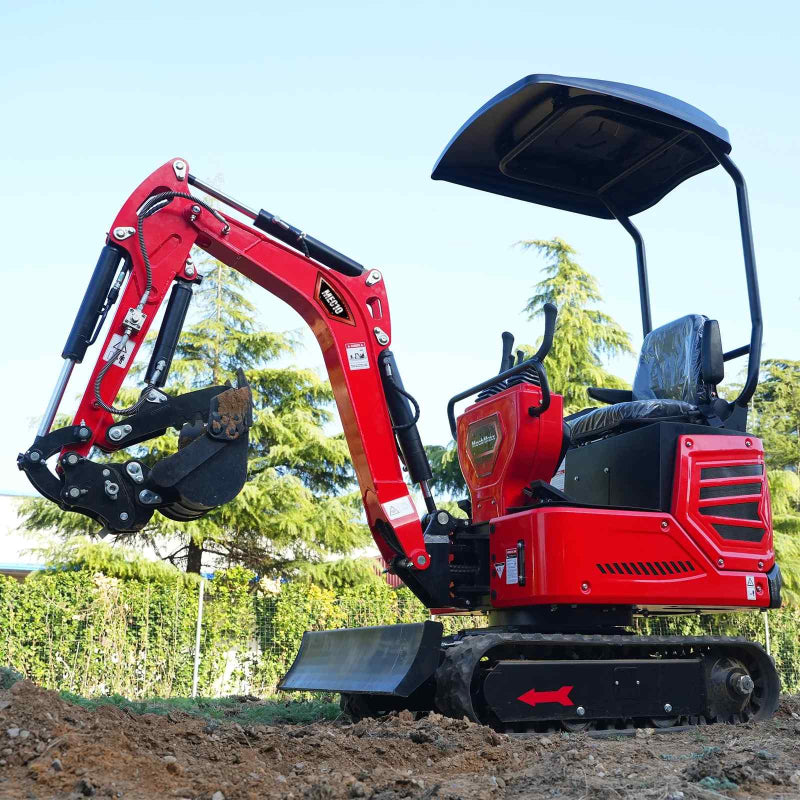

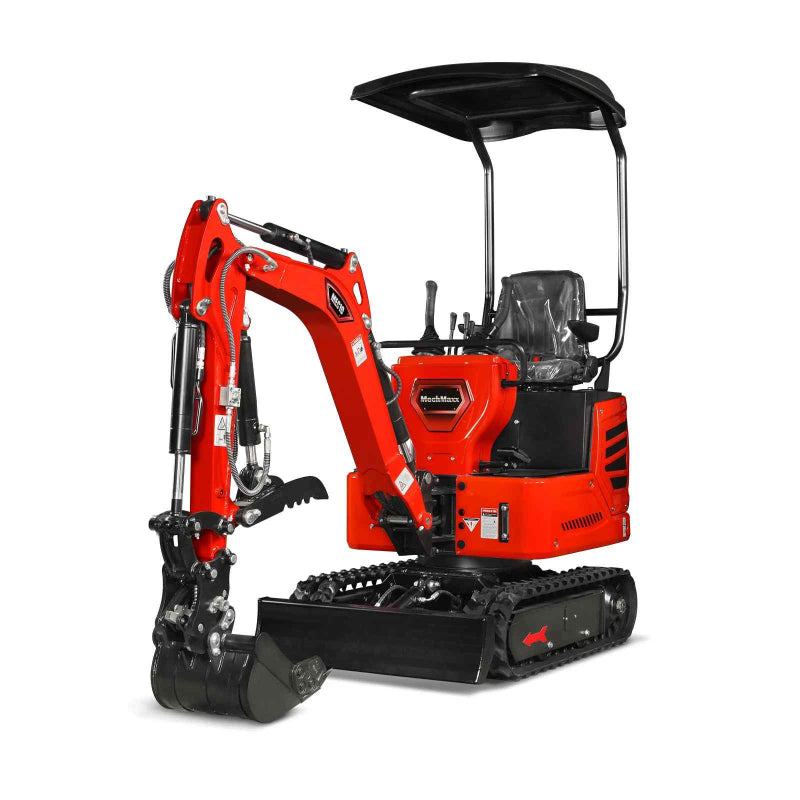

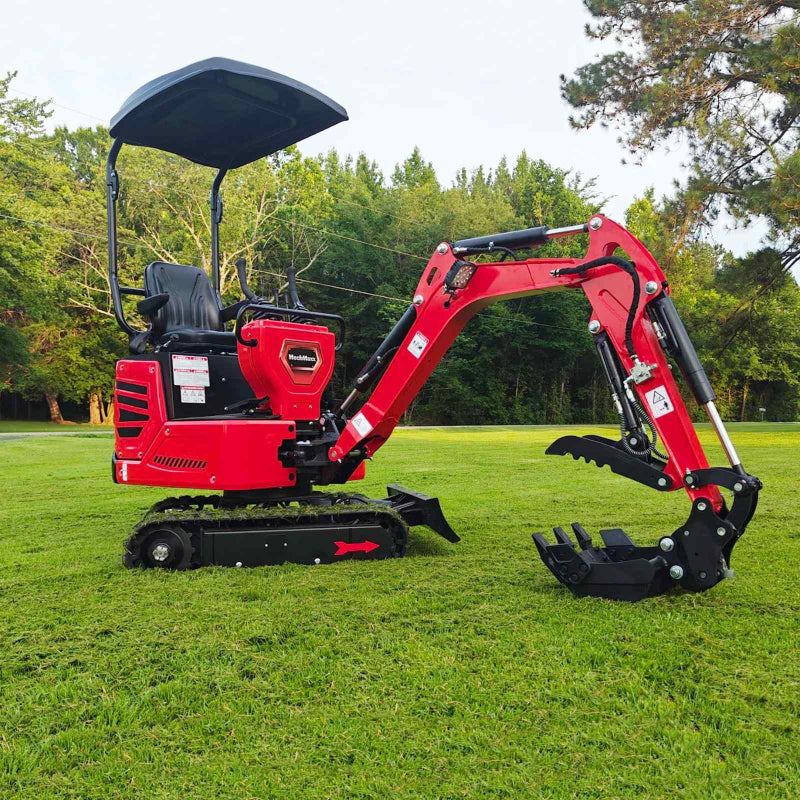

front angled view of red MechMaxx MEC10 mini excavator with Honda GX390 engine gallery position 1

MechMaxx MEC10 Mini Excavator with HONDA GX390 Engine

$8,699.00
Model : MEC10 HONDA In Stock
MEC10 HONDA MEC10 VANGUARD MEC12 KUBOTA MEC17 KUBOTA MEC17PRO KUBOTA

Notify me when back in stock

Description

Weighing 2,280 lbs, the MEC10 is ideal for landscaping and small construction projects. Its HONDA GX390 engine delivers reliable performance in tight spaces.
Shipping & Returns

Free Shipping on MOST USA‑wide. No extra charges.

30‑day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We’re dedicated to providing the best heavy‑duty equipment built for real‑world jobs.

We partner only with reputable brands to deliver reliable, contractor‑grade tools backed by integrity and service you can trust.

When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.
A portion of every sale helps fund local trade programs and community rebuilding efforts and more.

Found a better price? We’ll match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877
Product Overview Product Overview Mobile

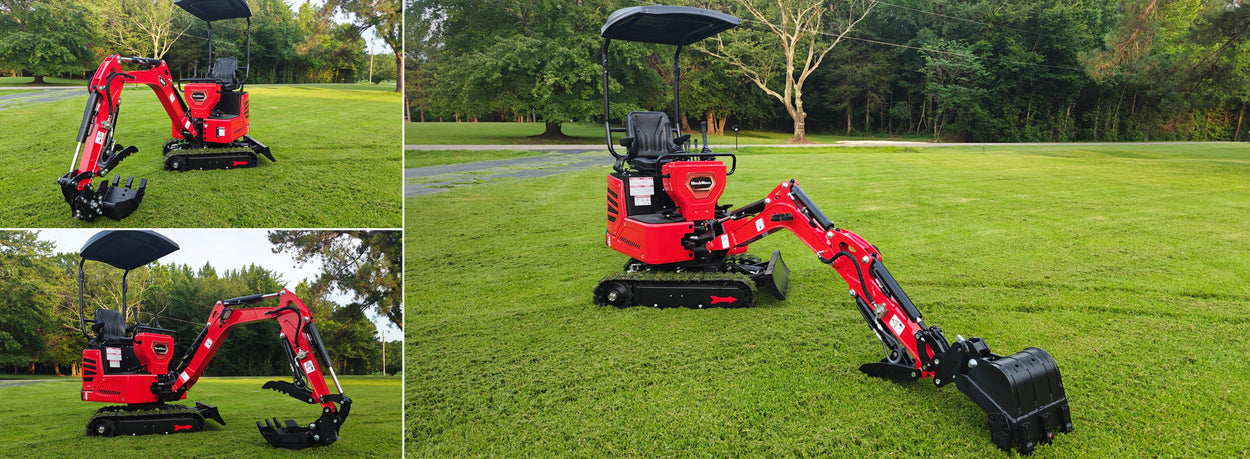

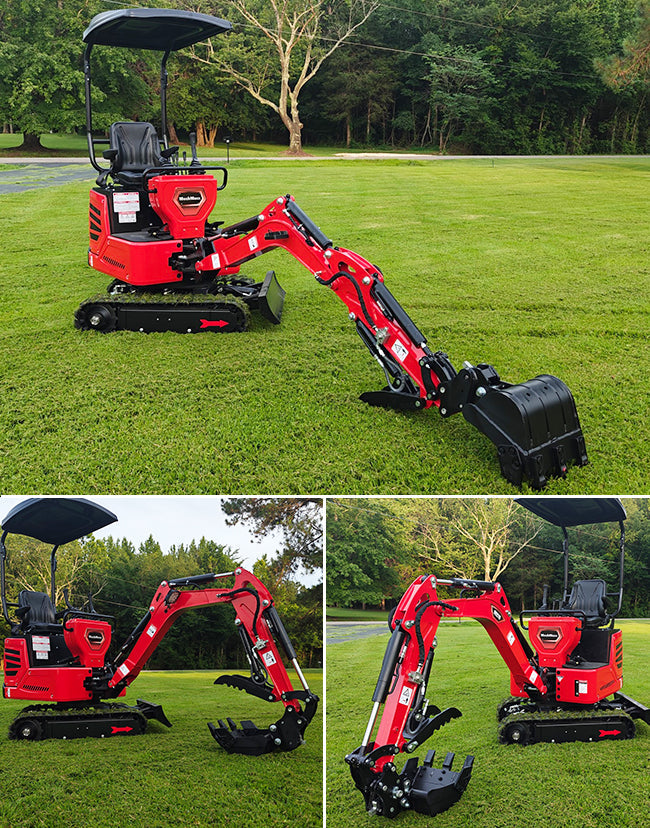

MechMaxx MEC10 Mini Excavator with Honda GX390 Engine

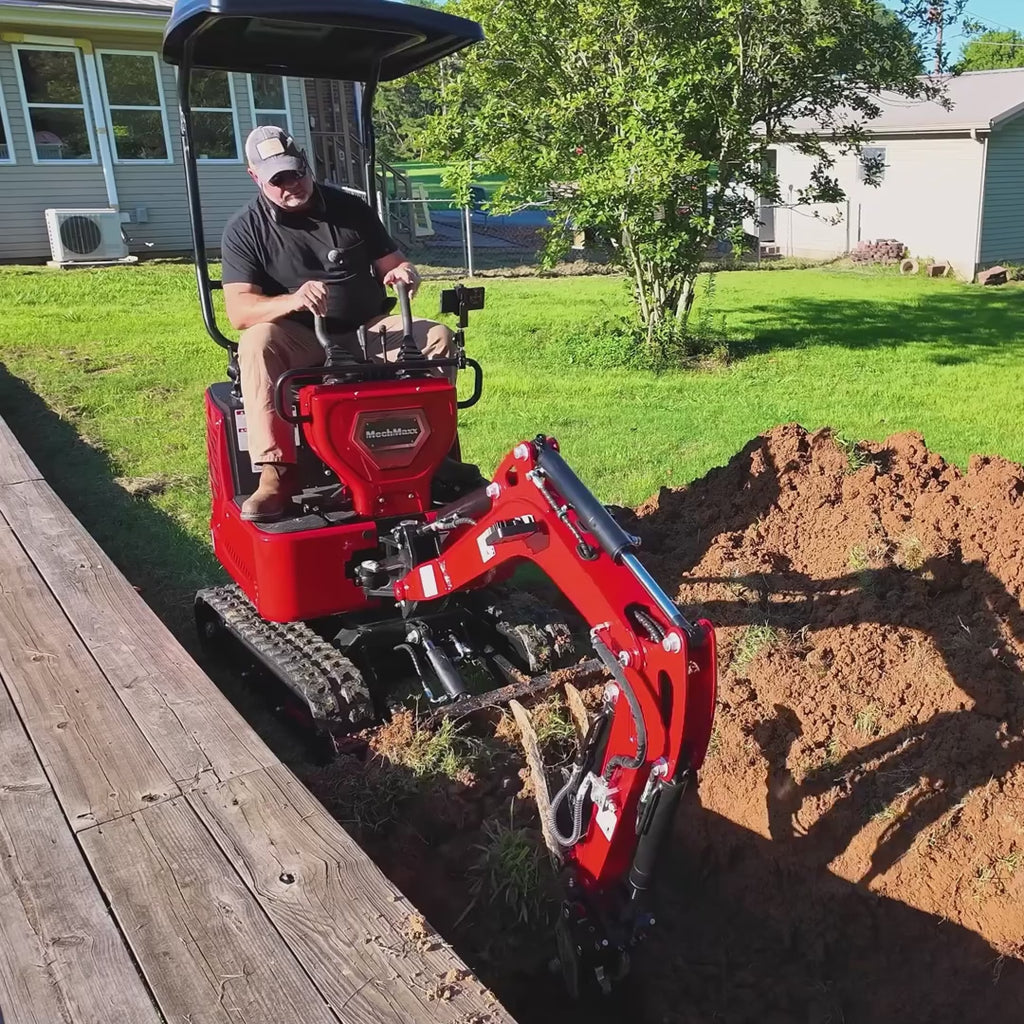

The MechMaxx MEC10 Mini Excavator with a Honda GX390 engine offers a compact platform for digging, trenching, and small‑scale site work. Its lightweight frame and narrow width make it suitable for areas where access is limited or where larger equipment cannot maneuver.

The machine includes a quick‑attach system for compatible buckets and attachments, along with auxiliary hydraulics for powered tools. Its layout supports controlled operation for routine excavation tasks on residential and small commercial properties.

Product manual (PDF)

Download PDF

Engine manual (PDF)

Download PDF

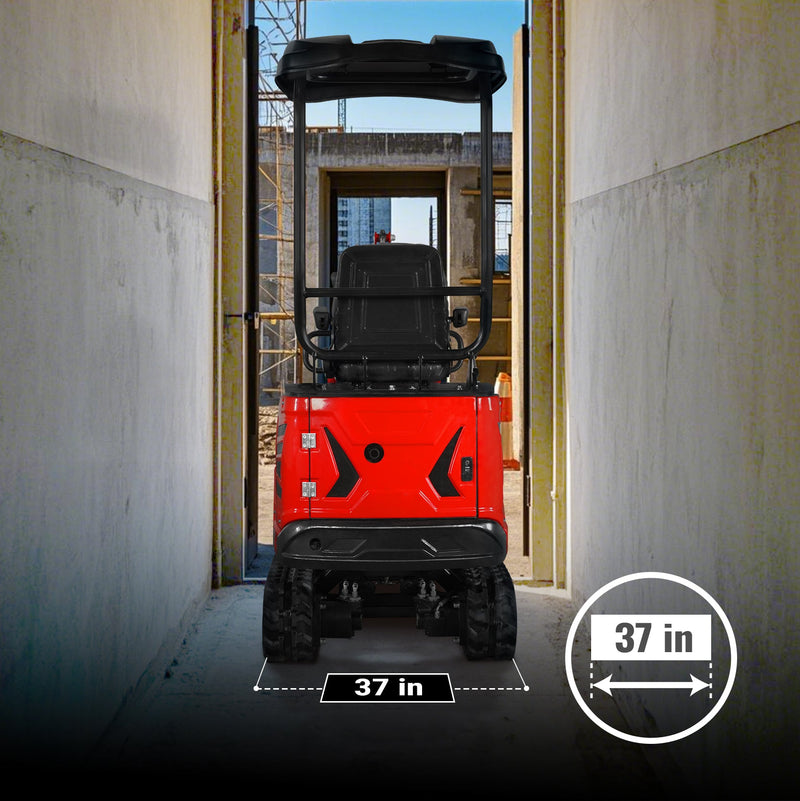

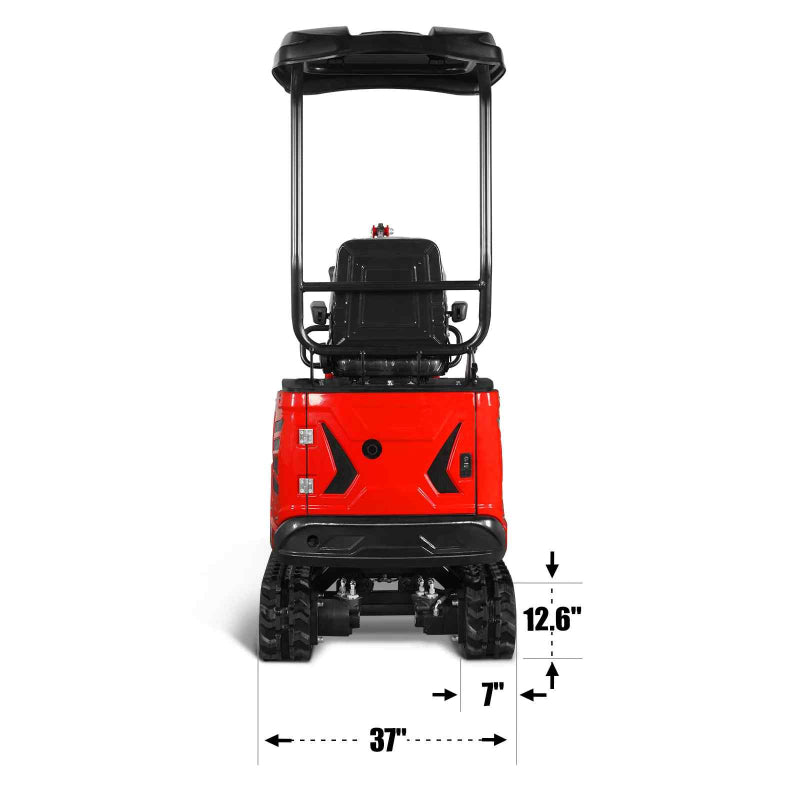

Chassis Width
Chassis Width

At 37 in, its chassis width is much smaller than a standard excavator, making it ideal for working in backyards, narrow alleys, and other tight spaces.

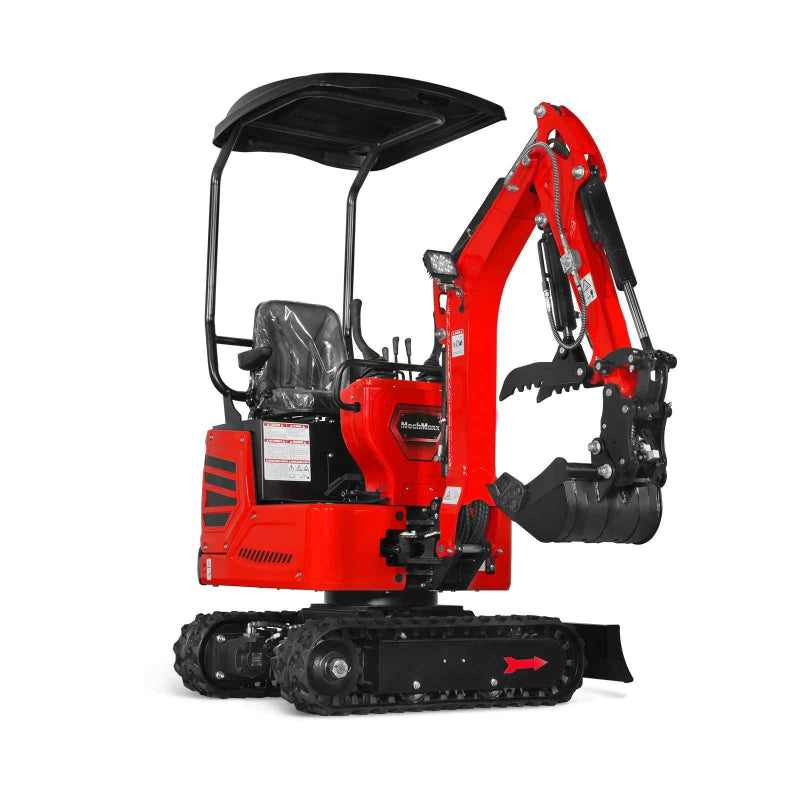

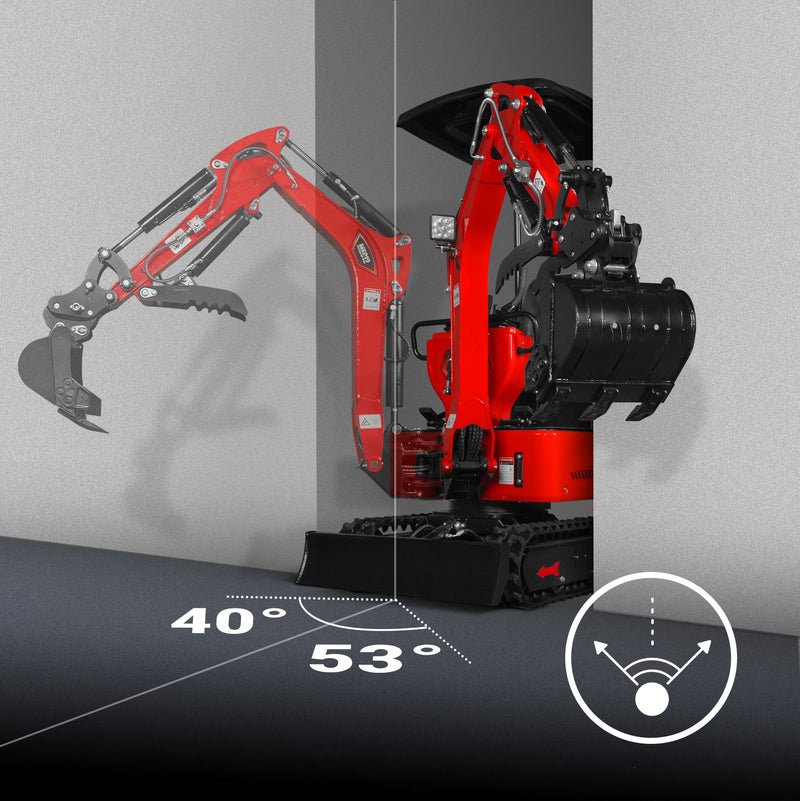

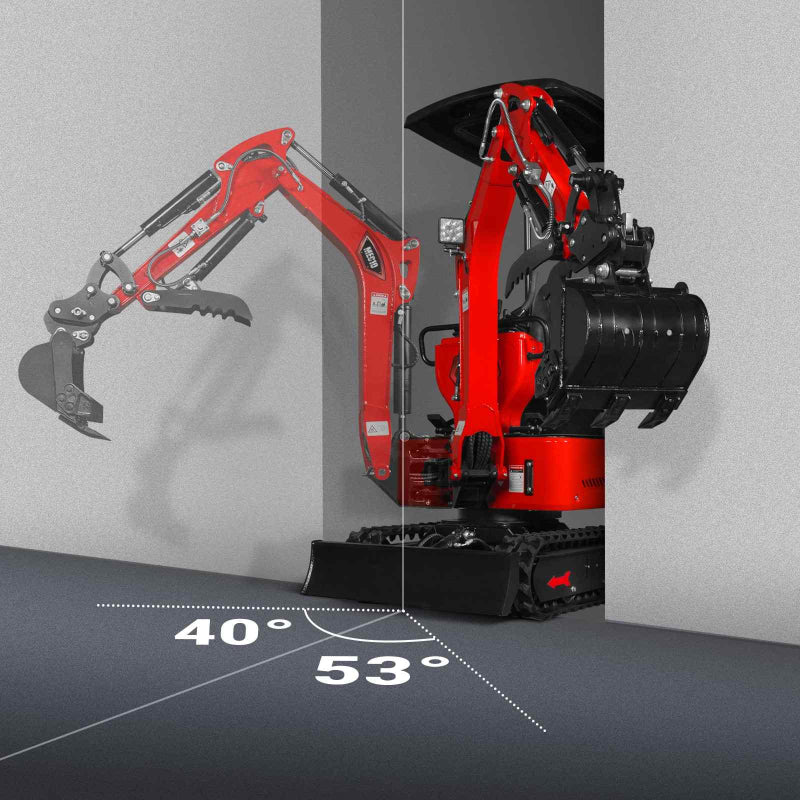

Swing Arc
Swing Arc

The digging arm can swing left and right, turn 53 degrees to the left and 40 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.

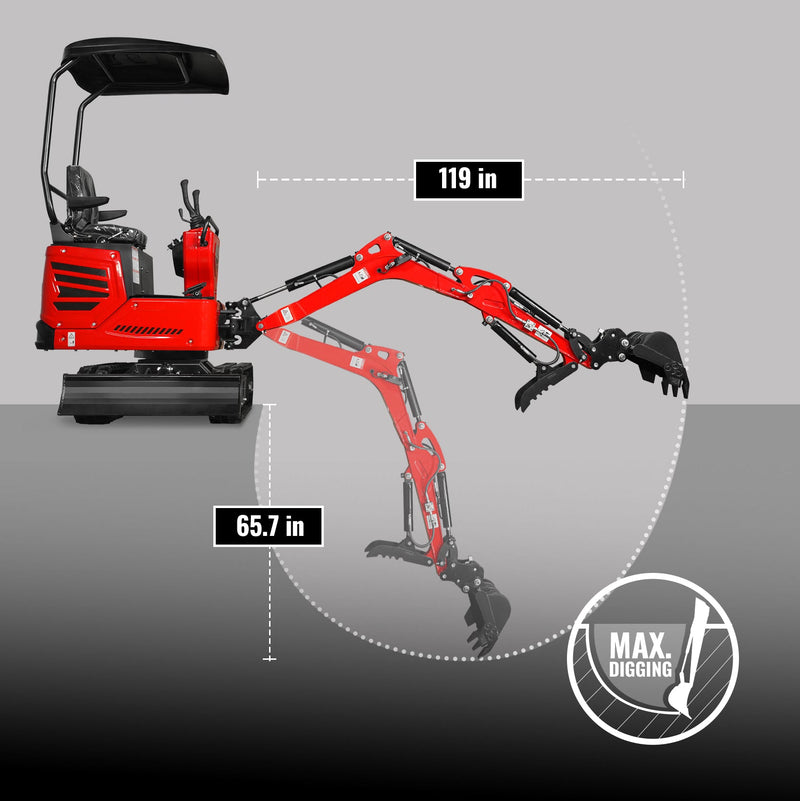

Digging Depth
Digging Depth

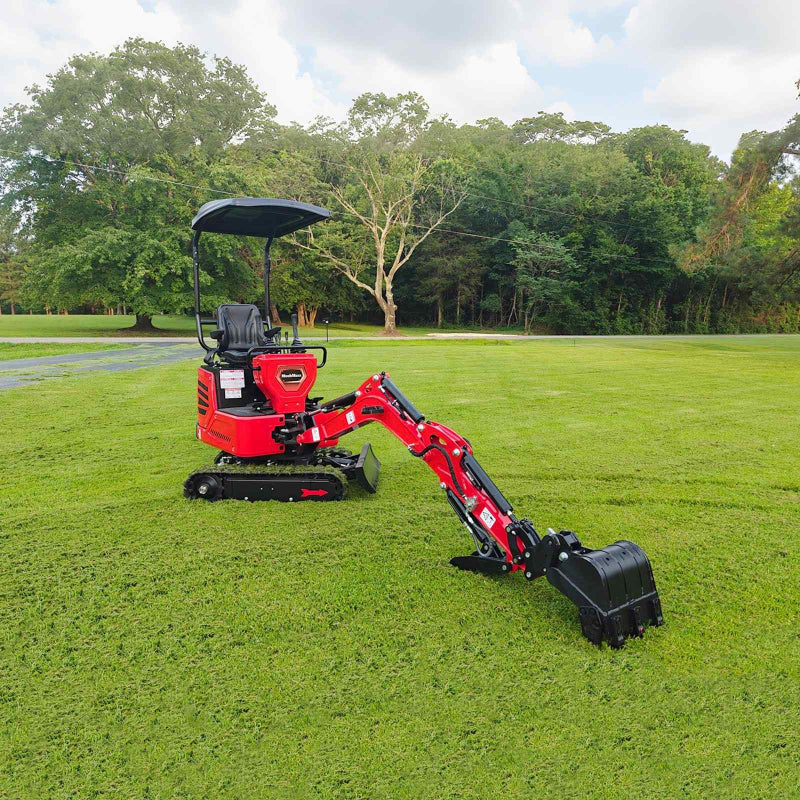

It features an all-around 65.7-inch digging depth reach capability and a 119-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

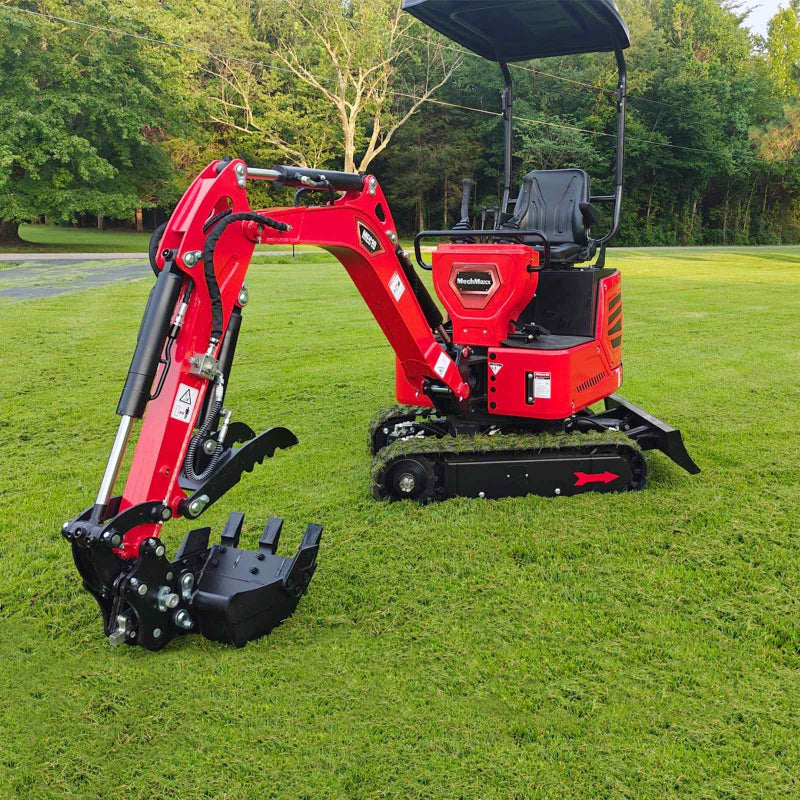

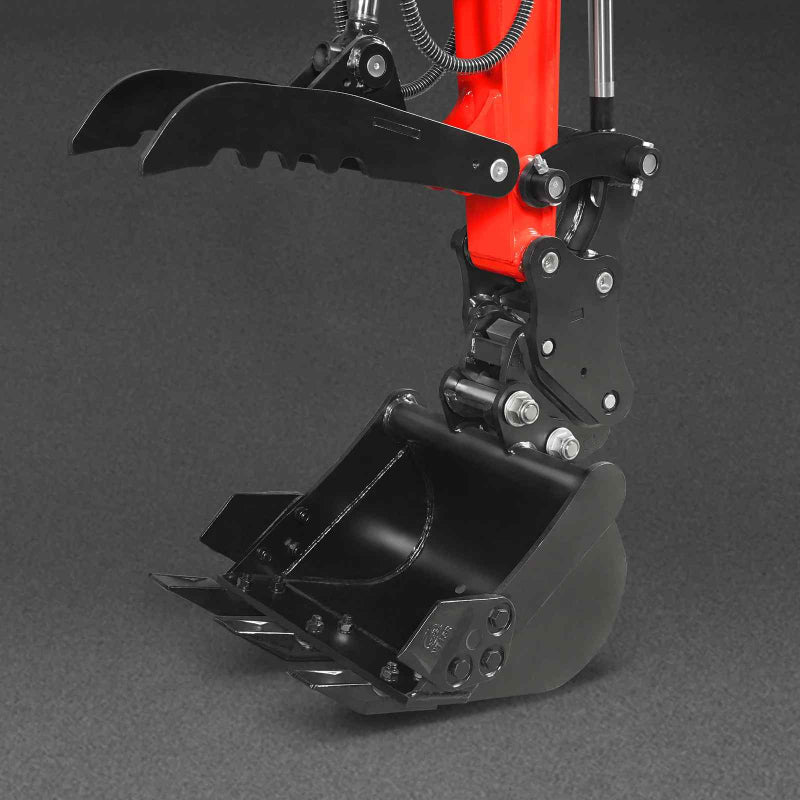

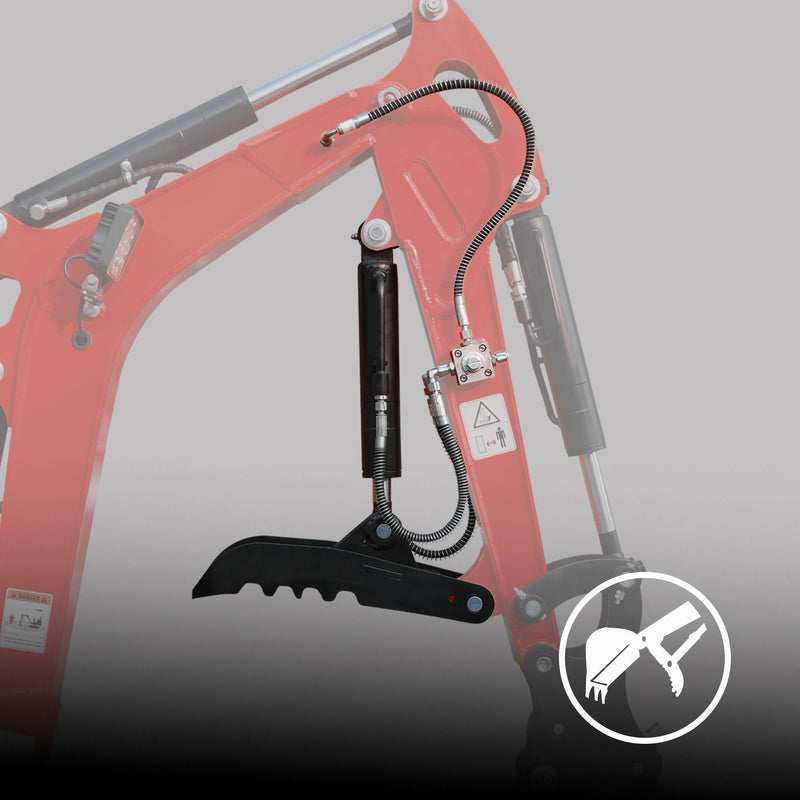

Hydraulic Thumb
Hydraulic Thumb

The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.

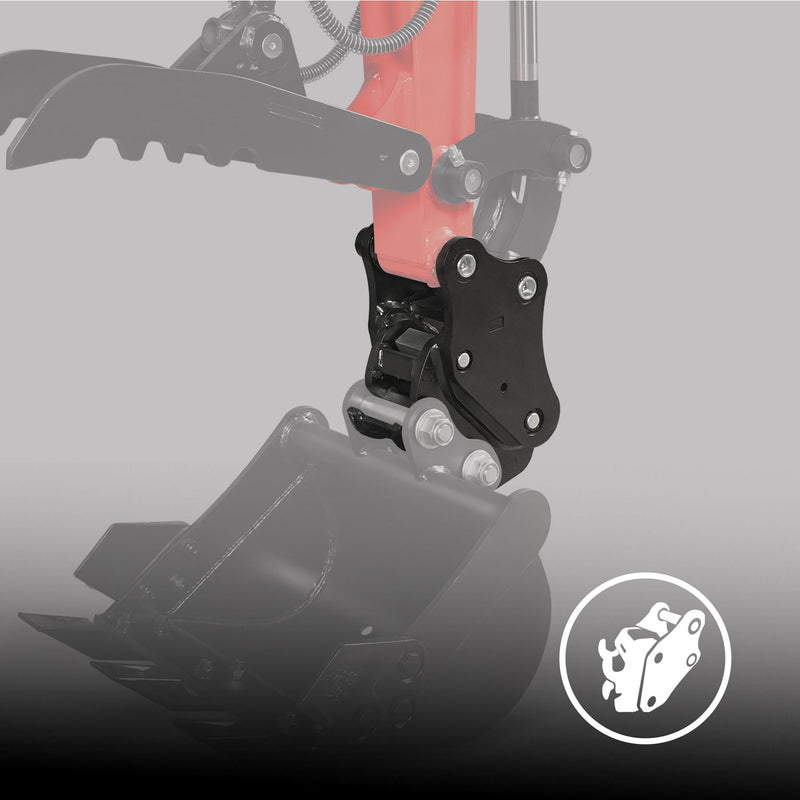

Semi-automatic Quick Hitch
Semi-automatic Quick Hitch

The quick hitch is made of durable steel, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.

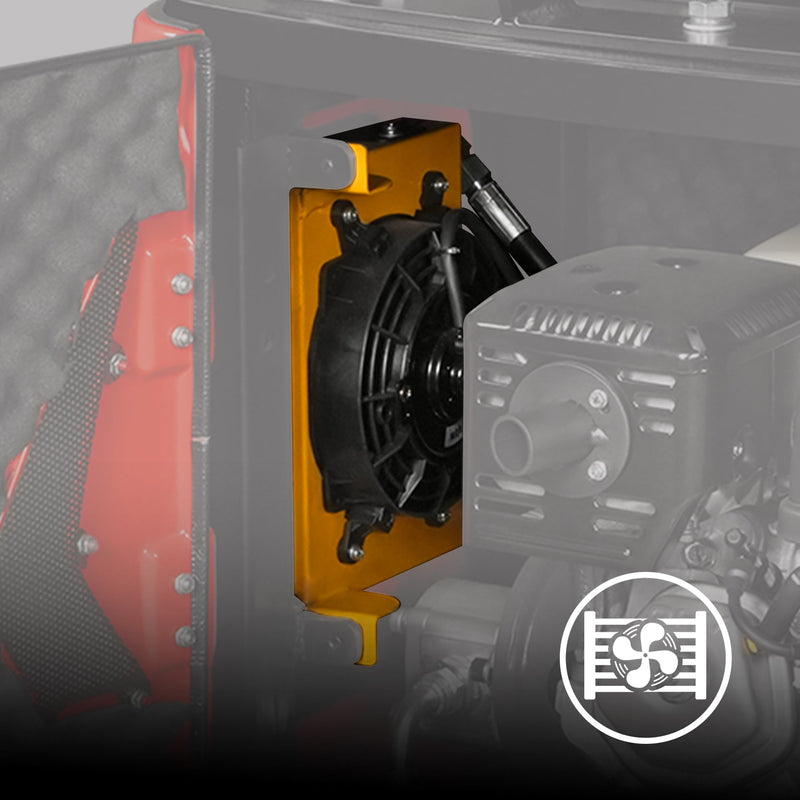

Hydraulic Oil Radiator
Hydraulic Oil Radiator

Hydraulic oil radiator can cool the hydraulic oil, preventing overheating and ensuring proper system operation. It works by dissipating heat from the oil as it circulates through the system, can prevent damage to components and ensure the system's efficiency and longevity.

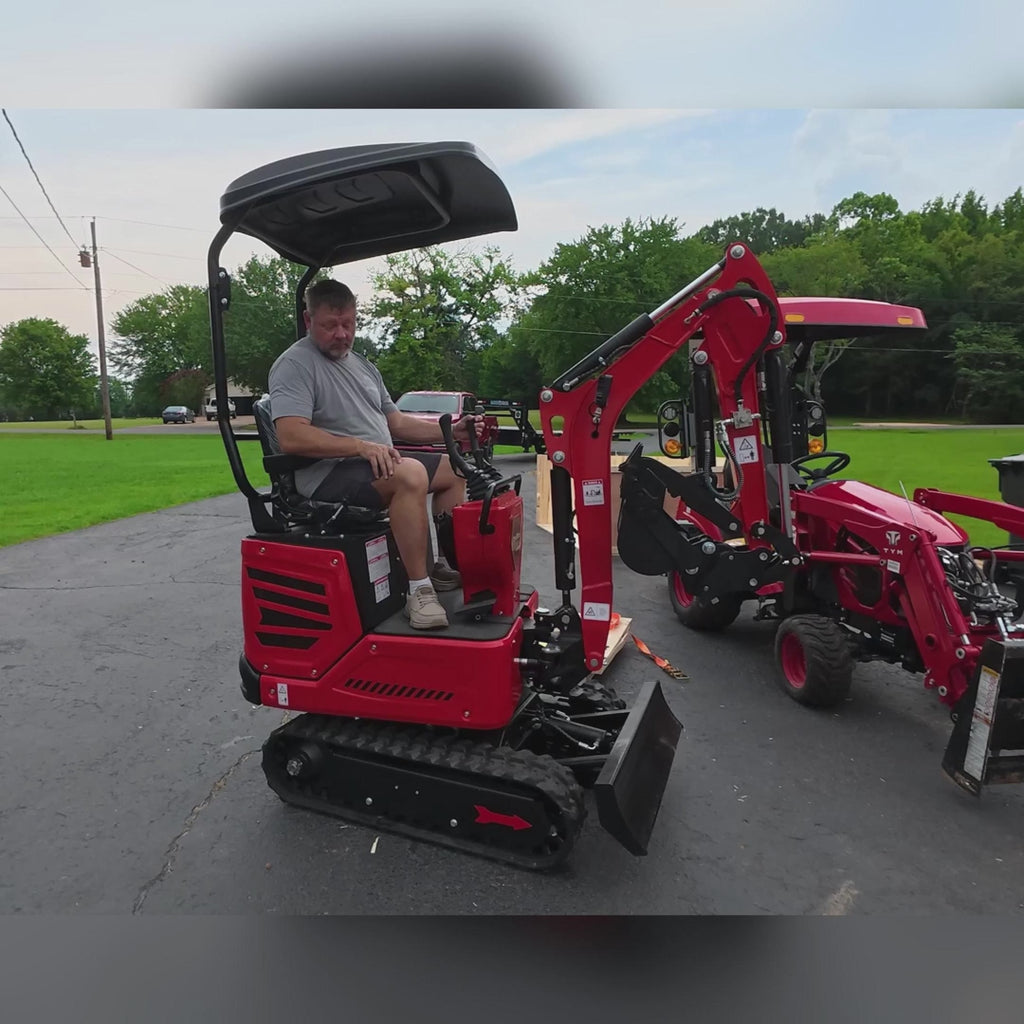

  • Demonstration-1
  • Demonstration-2
  • Maintenance & Upkeep
Product Warranty

MechMaxx MEC10 Mini Excavator with HONDA GX390 Engine (SKU: 150530) includes a standard one-year manufacturer warranty covering defects in materials and workmanship under normal use.

Product Extended Warranty Plans

Extended warranty plans may be available for select products. Contact us to confirm eligibility and coverage details.

Standard Bucket Capacity 0.7 cu-ft Auxiliary Std Flow 5.7 gal/min
Standard Bucket Width 15 in Max. Tractive Force 3035 lbf
Max. Travel Speed 0.75 mile/h Arm Digging Force  1191 lbf
Slewing Speed 11 rpm Bucket Digging Force  1619 lbf
Max. Gradeability 30° Rated Lift Capacity 728 lb
Track Ground Pressure 5.1 psi Lift Radius 80 in
Hydraulic Oil Tank Capacity 3.96 gal Operating Weight 2280 lb

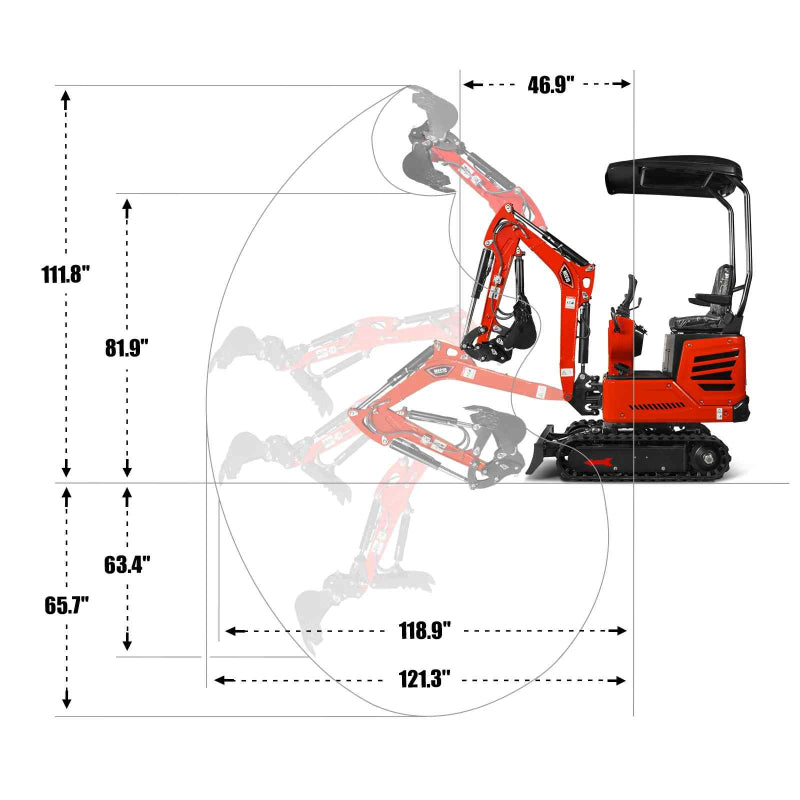

Operating Range
Max.Digging Radius On Ground  119 in Max. Vertical Digging Depth 63.3 in
Max. Digging Depth 65.7 in Min. Turning Radius 46.8 in
Overall Operating Height (Fully Raised) 111.8 in Max. Lifting Height Dozer Blade 5.9 in
Max. Digging Radius 121 in Max. Depth Dozer Blade 7.4 in
Max. Unloading Height 81.8 in

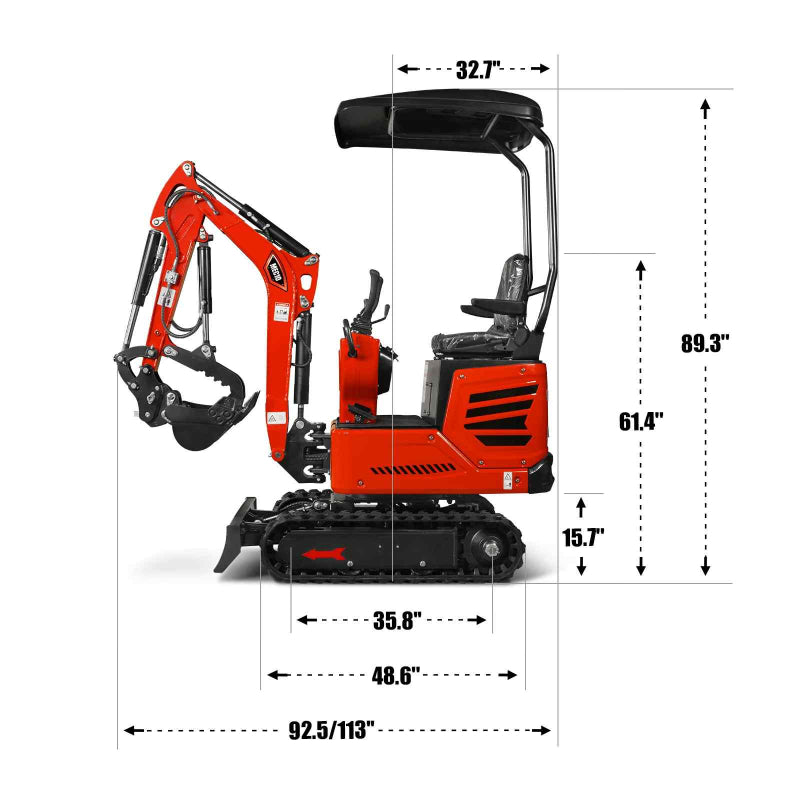

Main Dimensions
Wheel Track 35.8 in Track Height 12.6 in
Track Length 48.6 in Transportation Length 92.5/113 in
Upper Chassis Ground Clearance 15.7 in Height Of Seat To Ground 61.4 in
Counterweight Turning Radius 32.6 in Overall Height 89.3 in
Chassis Width 37 in Boom Swing-Right 40°
Track Width 7 in Boom Swing-Left 53°

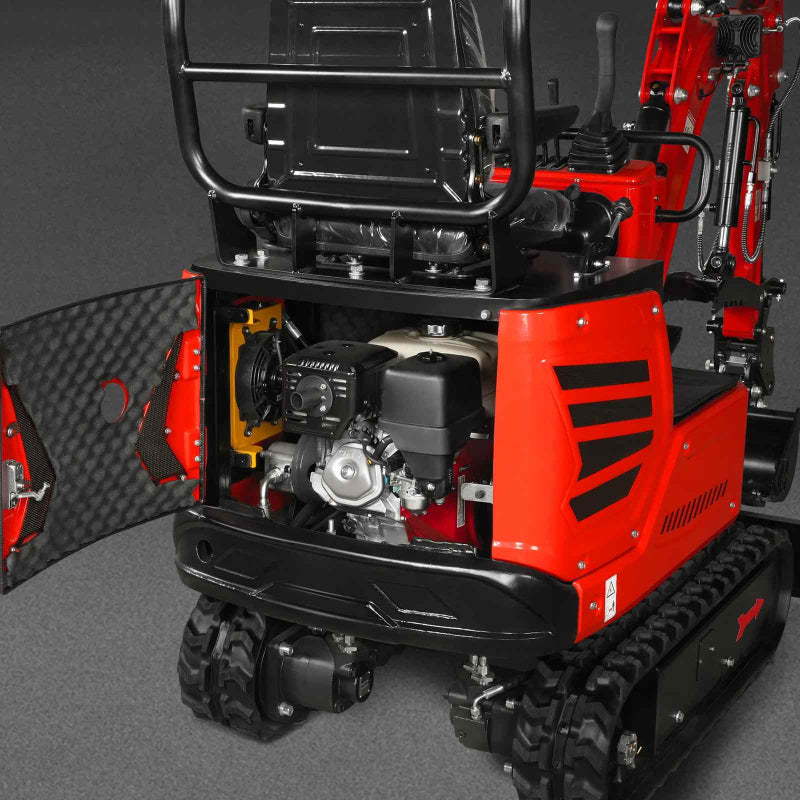

Engine
Model Honda GX390 Max. Net Torque 26.5 N.m/2500 RPM
Displacement 389 cc; 11.7 HP Fuel Tank Capacity 1.6 gal
Engine Type 4-stroke, overhead valve, single cylinder Engine Oil Capacity 0.3 gal
Start Type Electric start  Engine Oil Type 10W-30
Rated Power  8.7 KW/3600 RPM Warranty 1 Year

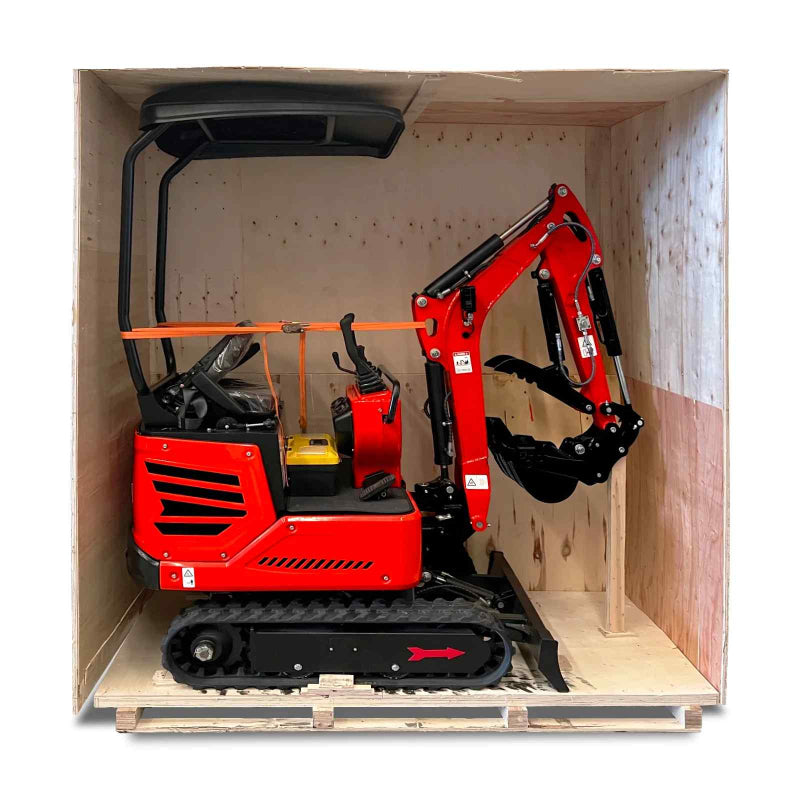

Package
Package Method Plywood Case  Weight (N.W./G.W.) 2100/2376 lb
Dimensions 91x40x98 in



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
