MechMaxx 48'' PTO Driven Light-duty Flail Mower

Save $270.00
Original Price $1,969.00
Current Price $1,699.00
Model : EFS48 In Stock

Notify me when back in stock

⏱ Usually Ships in 10-15 days

Free Shipping for this Product!

Description

Maintain fields, trails, and larger properties with the EFS48 48" light‑duty flail mower featuring forged flail hammers, front safety chains, sealed tapered roller bearings, and a smooth belt‑drive system for efficient power transfer. Built for landowners and small‑farm operators running 15–35 HP tractors, it delivers clean mulching performance, debris control, and stable Category I 3‑point operation for reliable, economical mowing

Shipping & Returns

  • Free Shipping for this Product!

30‑day Easy Returns. Not happy with your product? We'll take it back, no questions asked.

Why Buy From Us

We’re dedicated to providing the best heavy‑duty equipment built for real‑world jobs.

We partner only with reputable brands to deliver reliable, contractor‑grade tools backed by integrity and service you can trust.

When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.
A portion of every sale helps fund local trade programs and community rebuilding efforts and more.

Found a better price? We’ll match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877


UnionBuilt Supply is an authorized dealer of MechMaxx. All manufacturer warranties are honored.

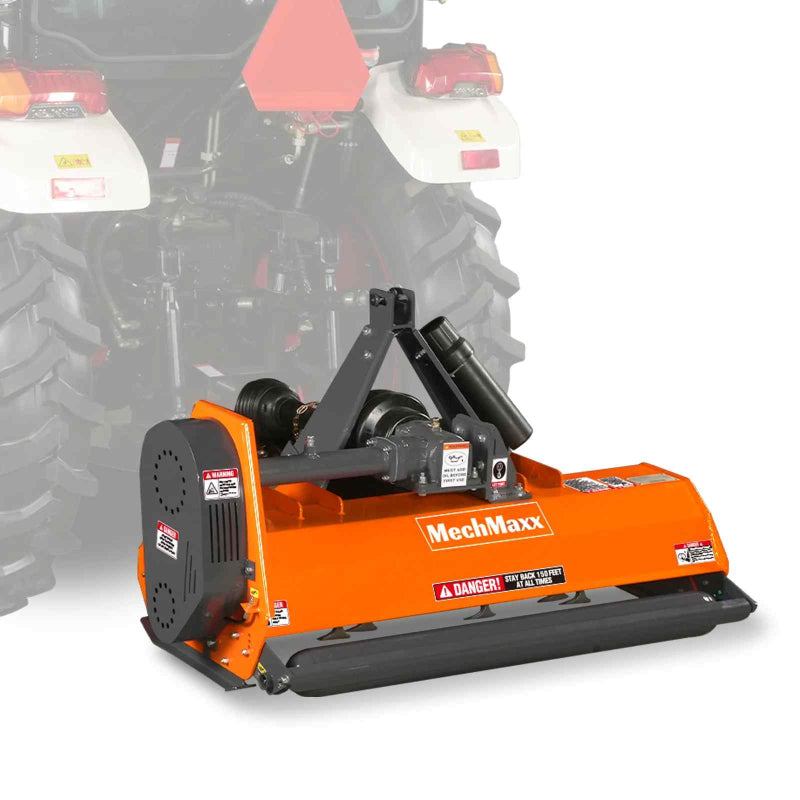

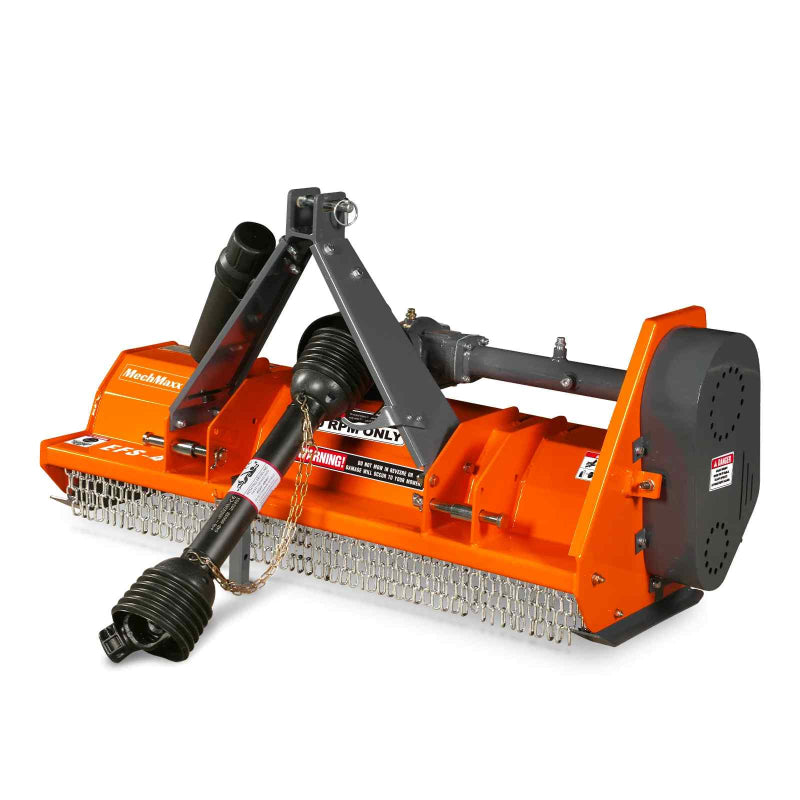

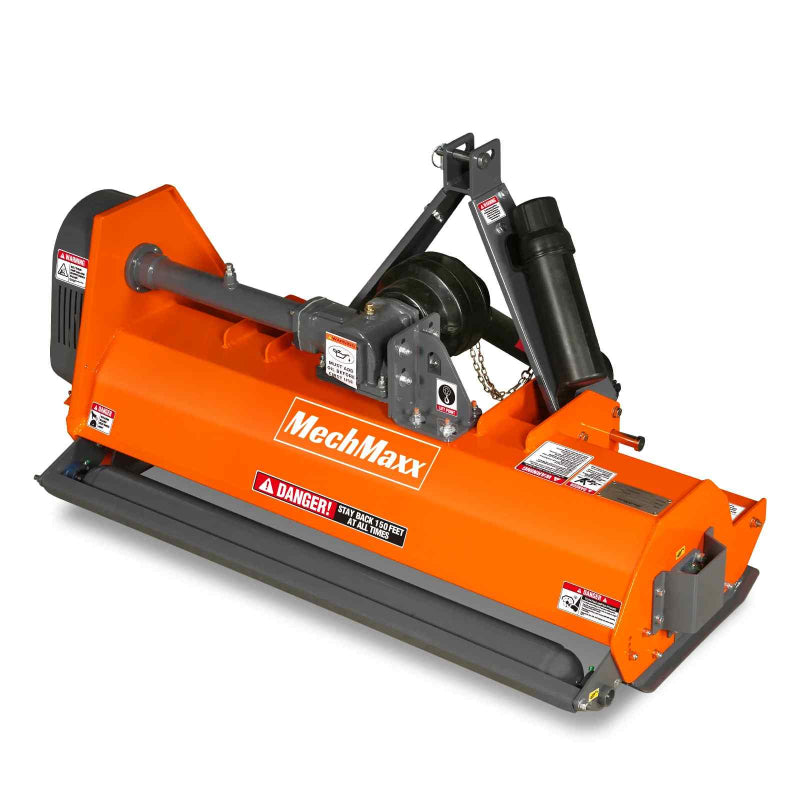

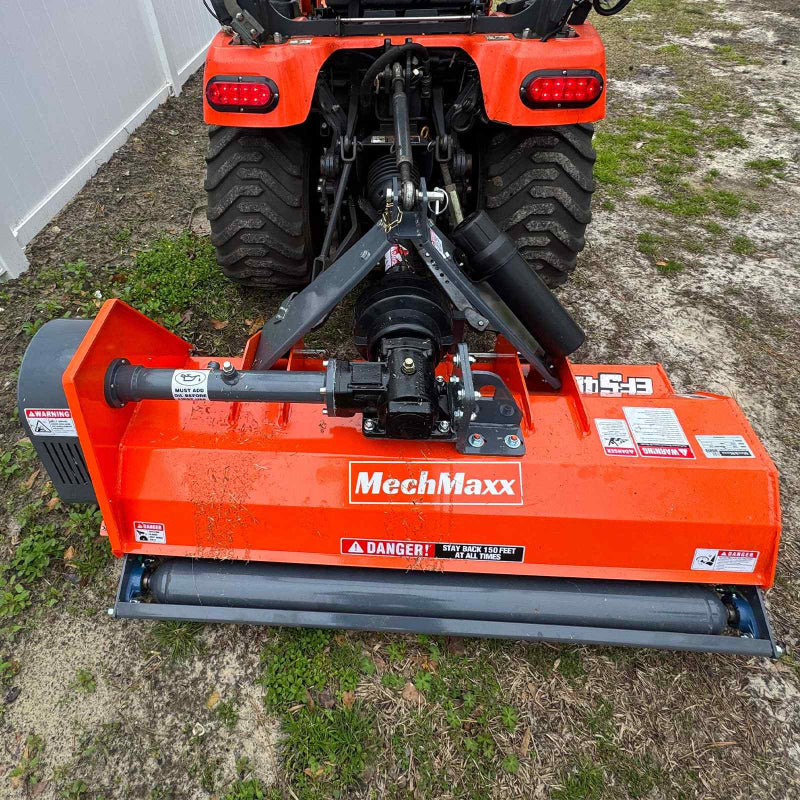

MechMaxx 48" PTO Driven Light‑Duty Flail Mower

Work efficiently in narrow or confined areas with this 48" light‑duty PTO flail mower designed for orchards, pathways, and landscaped zones. The flail rotor supports controlled cutting in grass and soft vegetation, while the belt‑drive system helps maintain smooth power transfer. A compact housing improves maneuverability, making it suitable for properties with limited access.

The mower’s structure supports routine trimming tasks where precision and control are important. Its 3‑point hitch and PTO setup integrate with compatible tractors for maintaining small‑scale properties and tight working areas.

Fits Category I/II 3‑Point Tractors

Product manual (PDF)

Download PDF

•48 in working width for time-saving, economical mowing of bigger areas such as fields, long ditches, building perimeters and large yards.

•This mower can keep your mowing area as short as possible, with 20 number of hammers.

•Compatible with 15-35 HP tractors and operable at 540 RPM for powerful, efficient mowing capabilities.

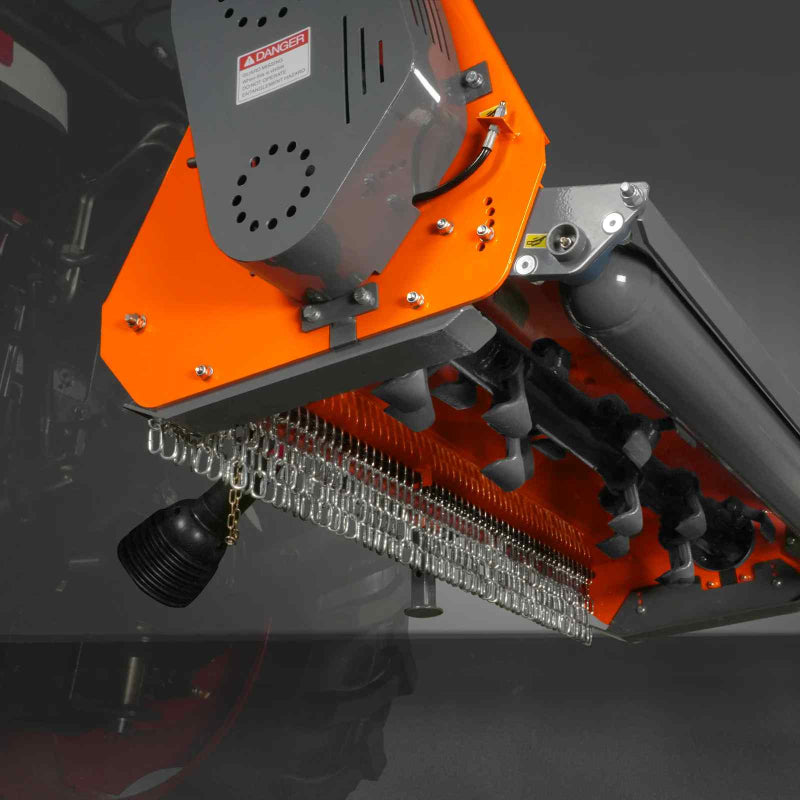

Hammers
Hammers

20 long lasting and durable forged flail hammers grind through tough matted grass, weeds and other overgrown vegetation with ease.

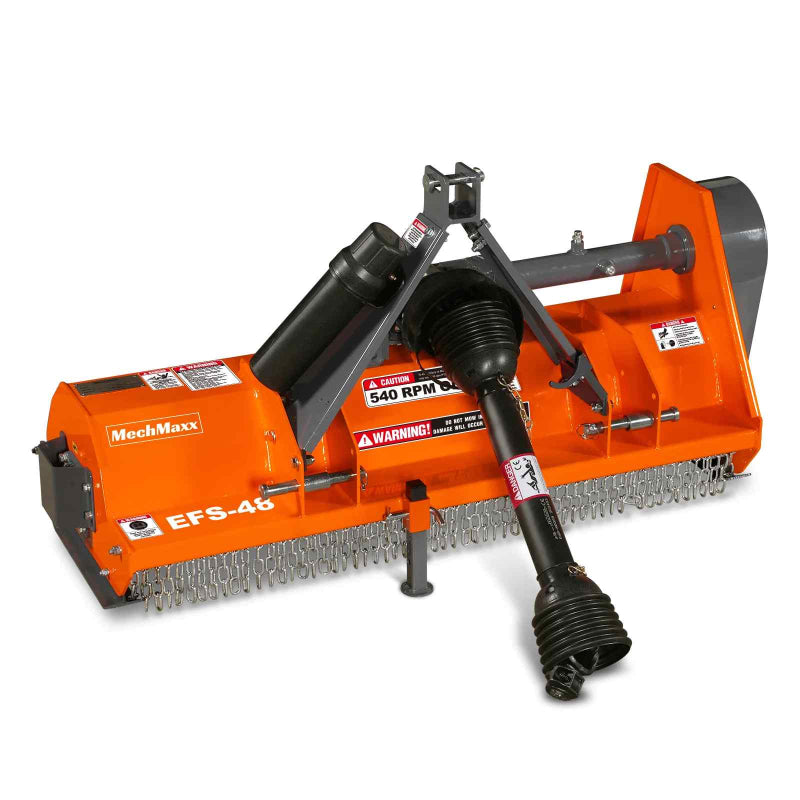

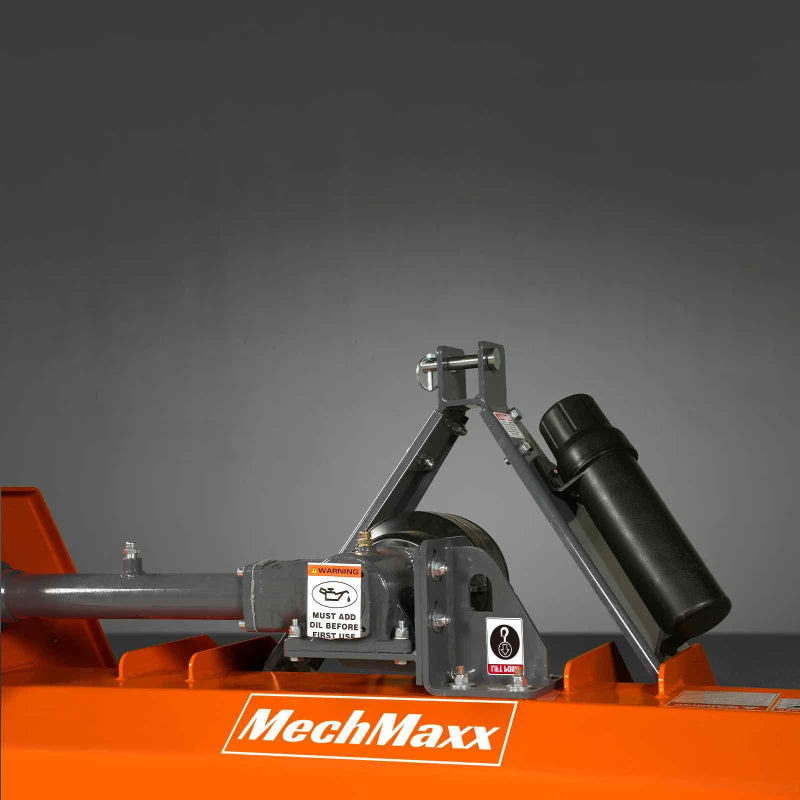

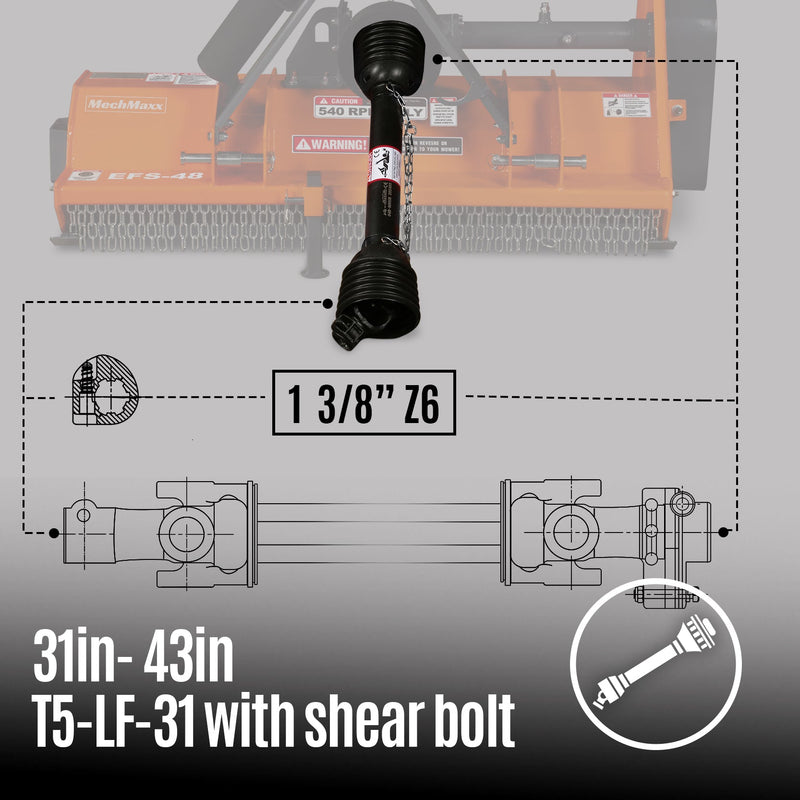

PTO shaft(1- 3/8’’Z6)
PTO shaft(1- 3/8’’Z6)

Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T5-LF-31’’with shear bolt ; 31''-43’’

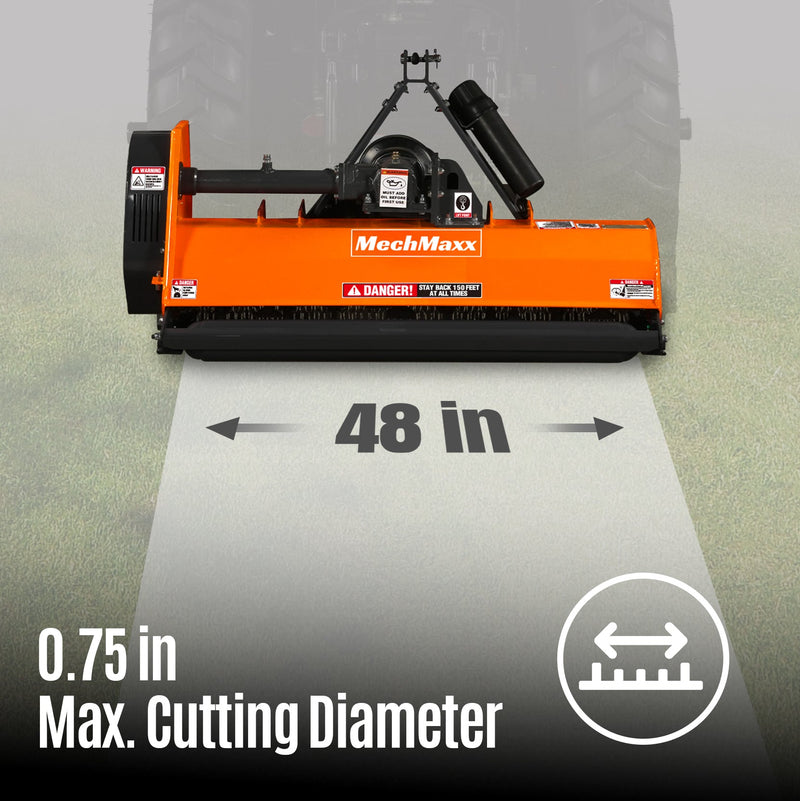

Max Cutting Diameter
Max Cutting Diameter

This EFS mower has its 48’’ working width and the ability to mulch up to 0.75’’ diameter material.

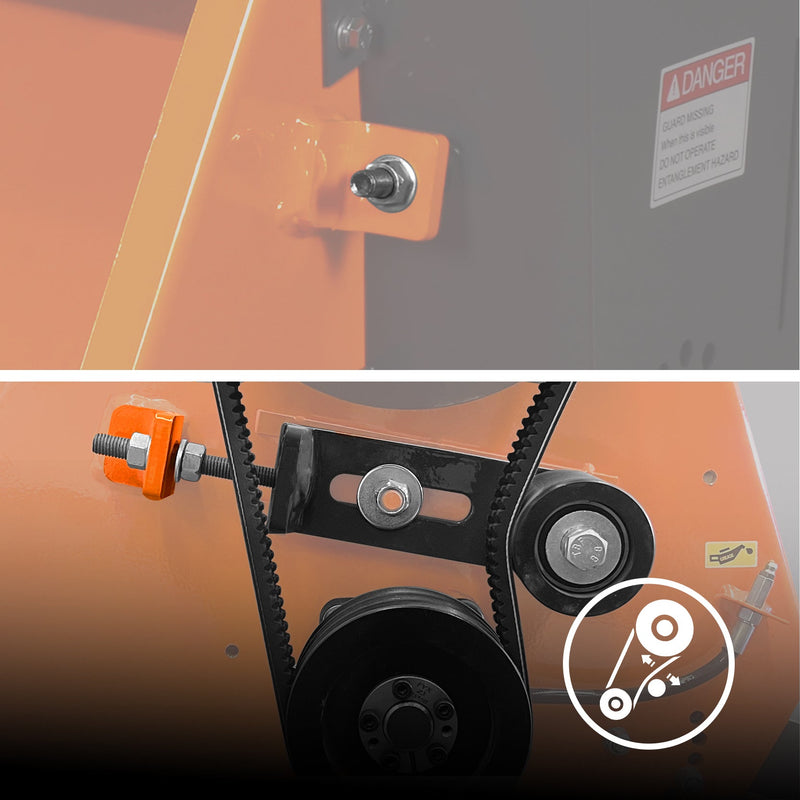

Belt Tensioner
Belt Tensioner

The belt tensioner ensures the drive belt is properly tensioned which is crucial for efficient power transfer from the engine to the flail shaft and, in turn, the cutting blades. This prevents belt slippage, reduces wear on the belt and pulleys, and ensures consistent cutting performance.

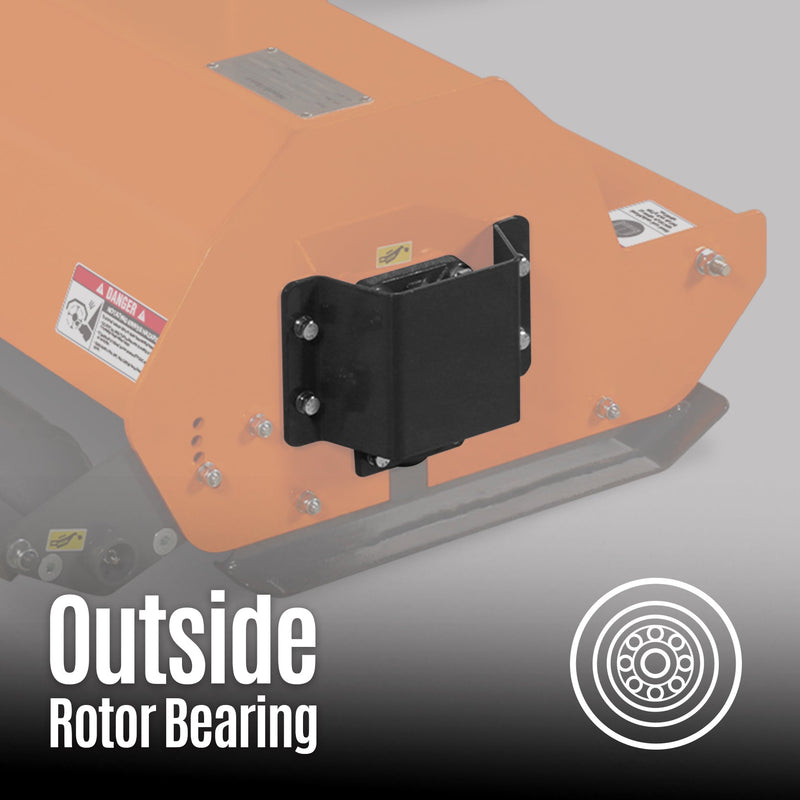

Outside Rotor Bearing
Outside Rotor Bearing

The bearings of the EFS mower are external, which is convenient for user maintenance and later repairs. The high-quality bearings of shaft bearings are required in applications with high loads and dynamic forces. These bearings run smoothly, quietly, and coolly.

Rotor Shaft
Rotor Shaft

The 2958 rpm rotor shaft speed ensures the flails have enough velocity to lift and chop the material, preventing bogging down and resulting in a cleaner cut, can lead to a more efficient and effective cut.

  • Demonstration
Product Warranty

MechMaxx 48'' PTO Driven Light-duty Flail Mower (SKU: 150134) includes a standard one-year manufacturer warranty covering defects in materials and workmanship under normal use.

Product Extended Warranty Plans

Extended warranty plans may be available for select products. Contact us to confirm eligibility and coverage details.

Engine Power Required 15-35HP Drive Type Belt drive
Working Width 48in Number Of Belts 3
Overall Width 56in Belt Size V Belt 13X1041
Blade Ground Clearance 0.6in-1.8in  Drive Belt Tensioner yes
Max. Cutting Diameter

Depends On The Type Of Grass

Deck Material 0.16in
Number Of Blades 20 Side Plate Material 0.24in
Blade Type Hammer PTO Shaft RPM 540 RPM
Size Of Blades 3.5 X 3 X 1.6in Driveline Shaft Length T5-LF-31 with shear bolt 31in- 43in
Blade Weight 0.8lbs Spline End 1.375in   z6
Blade (Tines)Material Cast Steel 3-Point Hitch CAT 1
Rotor Bearing SKF bearing Gearbox Oil Type 85W-90
Rotor Diameter 3in Dimensions (L x W x H)  57 X 30 X 28in
Rotor Swing Diameter 11in Finish  Powder Coating
Rotor Thickness 0.3in Warranty 1 year
Rotor Shaft Speed 2958 rpm Weight (N.W./G.W.) 379/470 lbs
Blade Speed 142 ft/s

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.



  • 5 stars: 28 (93%)
  • 4 stars: 2 (7%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
J
Joseph A

This Flail mower is a monster. I have 3 acres of brush and small saplings and it’s doing an amazing job of clearing Was very easy to set up. Packaging was very well thought out and easy to assemble. Couldn’t be happier with it. Solid attachment.

M
Matthew

Mower arrived on time. It was packaged well in a sturdy steel frame. Top link mount was easy to assemble. Depending on the size tractor you have it may be necessary to cut the PTO shaft down a few inches. Overall very impressed with the cut of this equipment.

J
James G

Needed a brush mower for clearing fire breaks around the property, went with the 48” flail over a rotary mower for better mobility in tight spaces, i.e. between trees.

Running on a little workmaster 25s and so far it’s working great through some under brush. Mulches everything up into small pieces so there’s hardly even any clean up afterwards. Compared to manually cutting the brush down with a combination of hedge trimmers and chainsaws, this is obviously so much more efficient.

Tested running over a small stump and while it didn’t knock the stump down it didn’t seem to complain. Not something I plan on doing often but I suspect a rotary mower might be damaged by this. Happy with the quality, even at the non sale price I paid, will likely be buying from mechmaxx again.

B
Bryan

Absolutely stoked about this flail mower! Was skeptical at first, but now I’m a believer. Have property that has been neglected for years. Purchased a tractor and couple of various three point implements. However, a mower wasn’t something I was purchasing used. Had to make a decision between a belly mower, a bush hog, or a flail. Ultimately I ended up deciding on the flail, and purchased through Mechmaxx. So glad I did! I have a couple of hours into using this piece of equipment at this point, and it’s already seriously proven it’s worth many times over. Extremely happy with this purchase!

J
James P

Working better than expected! Bought a couple months ago and finally got around to doing some property maintenance. This thing is chewing through the brush in my pasture. I would recommend anyone on the fence about purchasing to pull the trigger. You will not be disappointed.

Currently have it on my Kioti cs2220. On the lower end of the horse power requirements but don’t have an issue as long as I move slow.

J
James P

This flail mower is awesome! Bought a couple months ago and finally got some time to do property maintenance. It is very well built especially for the price! I run it on a kioti cs2220. It’s at the lower end of the hp range but it has mowed everything I have thrown at it. If you were on the fence about purchasing I would buy it now!

U
Umed Z

I was a bit skeptical about the Mechmaxx products, but I could not resist the price tag. Other brands were way too expensive. A few months ago, I purchased a 48" flail mower. I used it to clear up brushes that were about 1/2 inch thick. As seen in the video clips and pictures, it did a great job. This is a great flail mower. I do not regret my purchase.

M
M.McCoy

Hi this my first project with this flail mower as you can see it did a great job, the mower cuts through thick brush pretty well and it’s fairly quiet.I like the fact it doesn’t have a wheel in rear like a bush-hog that allows to drop it down in the ditch bank.

W
Wade P

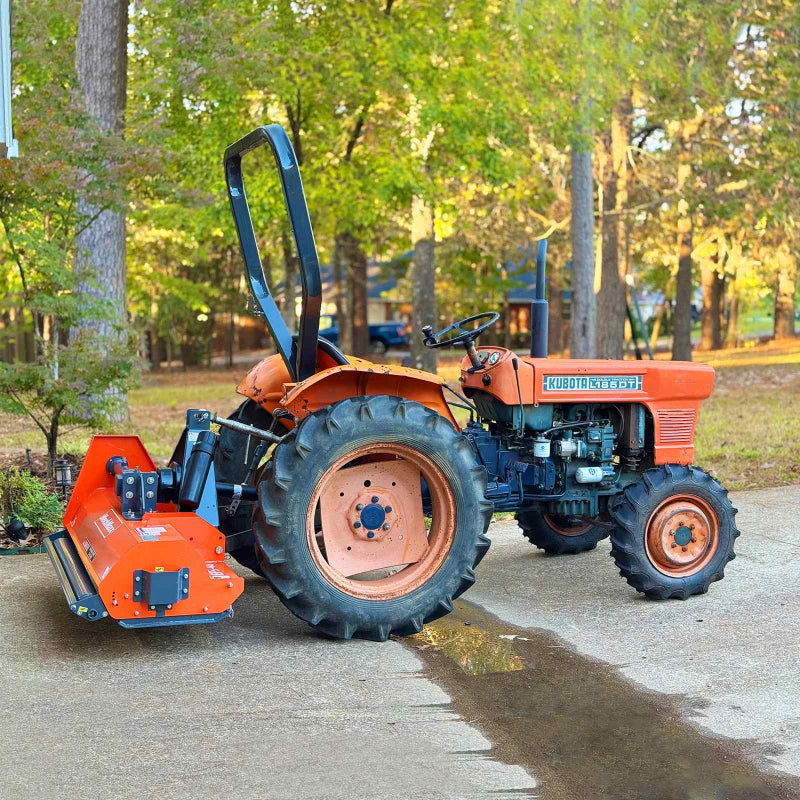

Instead of a lawn mower for around our house I wanted an old tractor I could work on. I bought a 1981 Kubota L185DT with 15 PTO HP. I watch Peek’s Peak Hobby Homestead on YouTube, so I was familiar with MechMaxx, and had seen that they offer a couple of standard flail mowers with a minimum requirement of 15 PTO HP. During the Equipment Expo in Louisville, KY last year I decided to grab one. It took about a week to be delivered and I was really surprised by how well it was packaged. They built a steal frame around it and then wrapped it in plastic, which completely protected it during transport. The day after it was delivered the fall rains began, and so today, March 2, 2025, was the first time I’ve been able to use it. The build quality seems very good. The welds look good, and every bolt was good and tight. I did have a burr in the PTO shaft coupler that I had to file out before it would slide on, but that wasn’t a big deal to take care of. I put oil in her, checked the belts, gave her some grease, and put her to work. I mowed about half an acre with her today, and a lot of it was 1/2 inch thick brush, which she just ate up. I will say that she is all my little Kubota can handle, but she did her job well. This is a good little mower, and I would buy it again if I had the choice.

W
Wesley T

Was looking for an affordable flail mower for my bx23s. This thing really surprised me with how well it cuts and how big of things it’ll cut. Came packaged in a nice metal crate as well which was a pleasant surprise. So far it’s been nothing but great for me and my small brush removal business. Added some before and after pics of things I’ve done with it. Would defiantly buy one again.

G
Glen v

The mower is well built and fit my Mahindra max 20 with ease the drive shaft had to be shortened by about 7 inch but that is standard procedure with a compact tractor. I used it to clear some trails that had overgrown. The shipping was on time. I wish I could have shown a picture of it on the tractor but by the time I received the review request I hade already completed that task and removed it for the winter.

K
Kenny J

This thing kicks A&&!!!!!! Buy it!!

R
Randal B

Great mower really works well and very simple to follow step to getting it ready and how it works

R
RICHARD G J

Excellent product! Very sturdy and well made. It’s my second purchase from MechMaxx and I have been pleased with their quality!

K
Kenneth B

Everything was fine.

S
Scott K

So far so good. Took a bit of effort to put it together and right size the PTO hook up. But after first use seems to be a quality piece of machinery and happy with quick delivery

B
Bartley C

Connected to my Kubota BX1870
Great addition... to anyones tractor implement arsenal
I have very rough 2 acres to maintain... does great job
Love how finished product looks ....not clumps of grass
Smooth even cut.... Highly recommend ... very satisfied with purchase

T
Terry B

I am very happy with my filial mower

R
Raul M

The mower is great, delivered promptly. Best of all the steel crate it arrived in makes a great work table, easy recycle.😁
