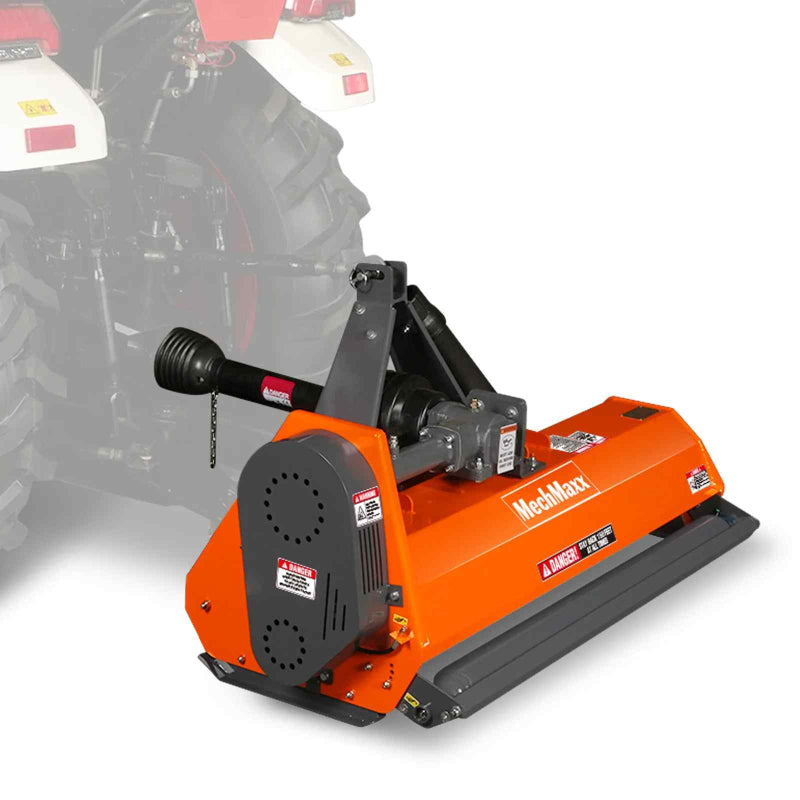

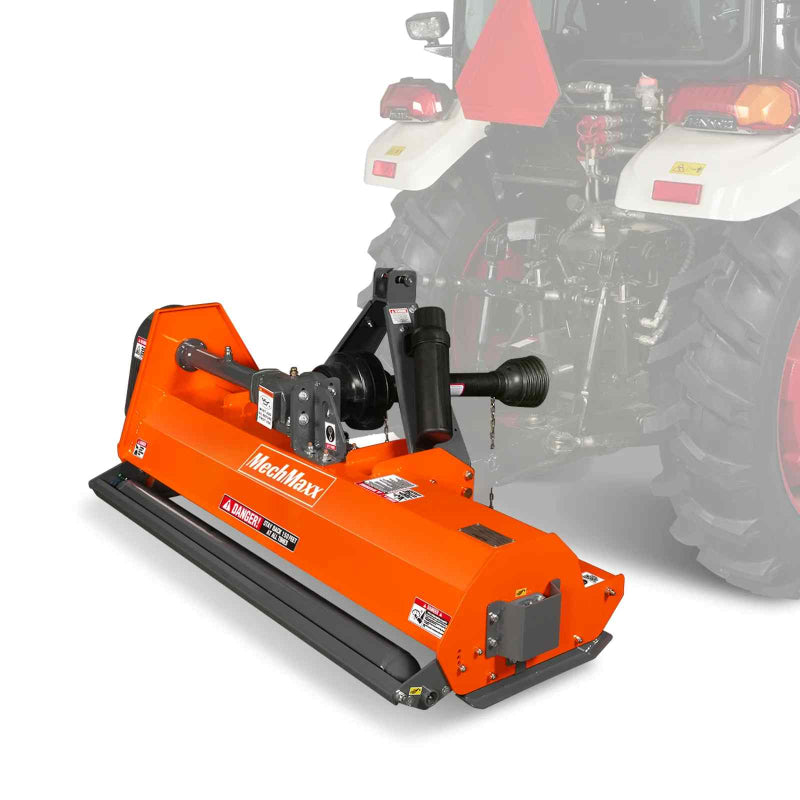

Left-angle view of orange MechMaxx 60-inch PTO driven light-duty flail mower attached to tractor, gallery position 1

MechMaxx 60'' PTO Driven Light-duty Flail Mower

by MechMaxx
Save $270.00
$2,169.00
$1,899.00
Model : EFS60 In Stock
EFS60 EFS48

Notify me when back in stock

Description

Cut larger areas efficiently with the EFS60 60" light‑duty flail mower featuring forged flail hammers, front safety chains, sealed tapered roller bearings, and a smooth belt‑drive system for reliable power transfer. Built for landowners and small‑farm operators running 15–35 HP tractors, it delivers clean mulching performance, debris control, and stable Category I 3‑point operation for maintaining fields, trails, and acreage with confidence
Shipping & Returns

Free Shipping USA-wide. No extra charges. Ever.

30-day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We are dedicated to providing the best heavy-duty equipment built for real-world jobs possible. We partner only with reputable brands to deliver reliable, contractor-grade tools backed by integrity and service you can trust. When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.


Found a better price? We can match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877
  • This mower will save time and economically cut plants in larger areas.
  • The attachment has a flail hammer to help the mower push through dense debris.
  • The included PTO drive shaft easily connects to your tractor and the belt drive allows for efficient power transfer.
  • Offset category 1, 3 point knot.
  • It is recommended for 15-35HP tractors.
  • Front safety chains keep out debris, sealed tapered roller bearings, and have brackets for easy storage when not in use.

Product manual (PDF)

Download PDF

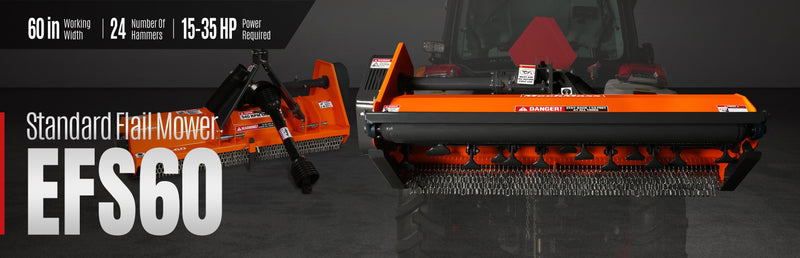

•60 in working width for time-saving, economical mowing of bigger areas such as fields, long ditches, building perimeters and large yards

•This mower can keep your mowing area as short as possible, with 24 number of hammers.

•Compatible with 15-35 HP tractors and operable at 540 RPM for powerful, efficient mowing capabilities

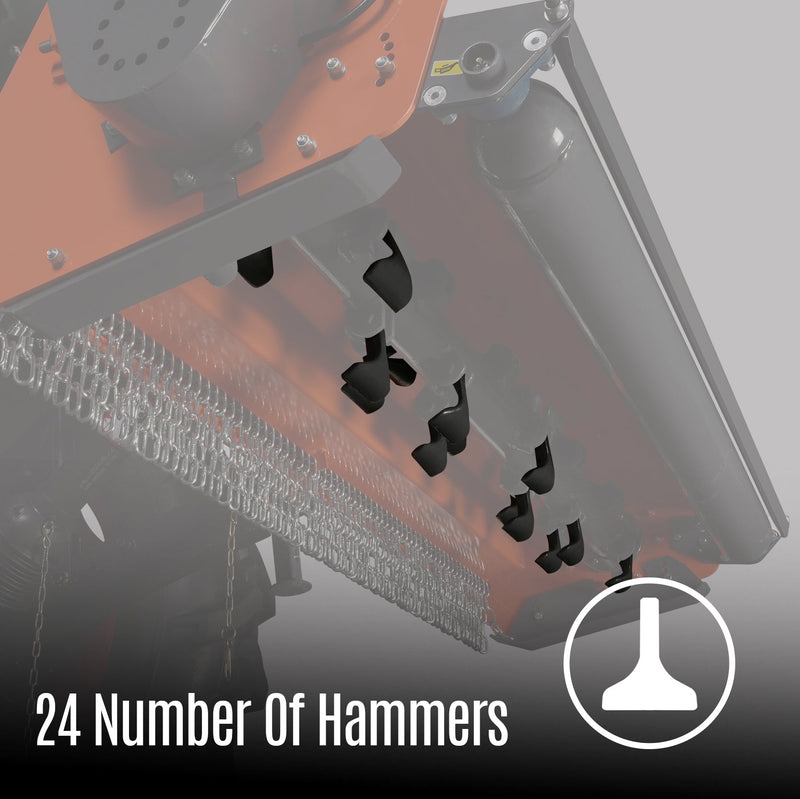

Hammers
Hammers

24 long lasting and durable forged flail hammers grind through tough matted grass, weeds and other overgrown vegetation with ease.

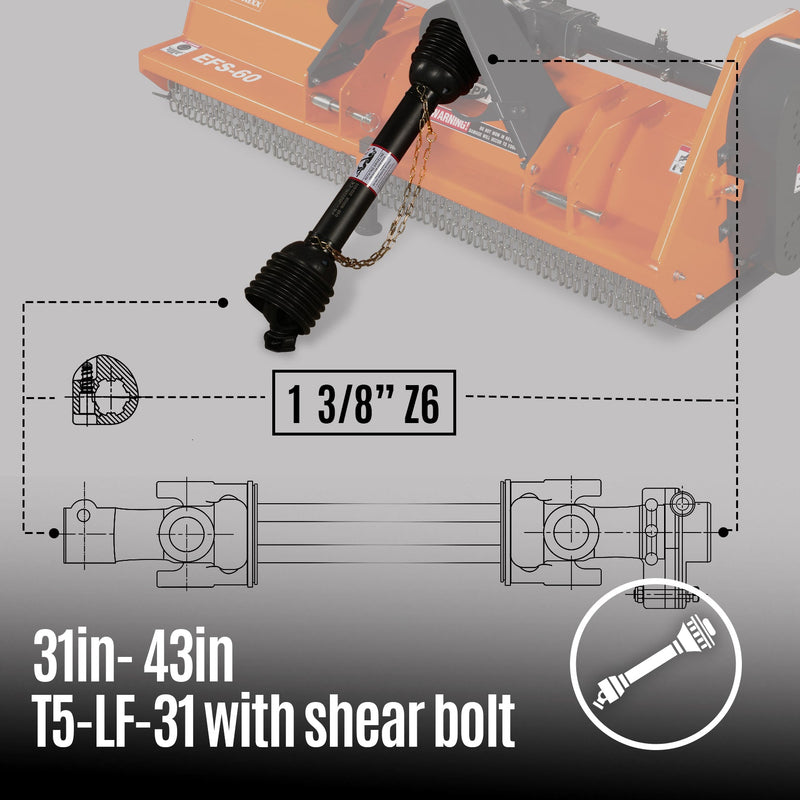

PTO shaft(1- 3/8’’ Z6)
PTO shaft(1- 3/8’’ Z6)

Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T5-LF-31’’ with shear bolt ; 31’’-43’’

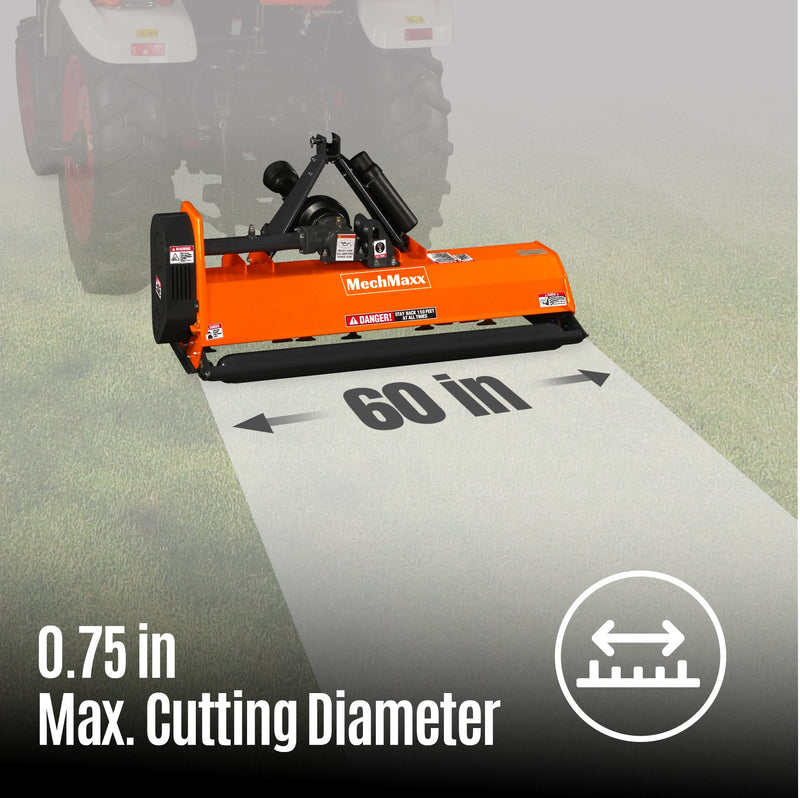

Max Cutting Diameter
Max Cutting Diameter

This EFS mower has its 60’’ working width and the ability to mulch up to 0.75’’ diameter material.

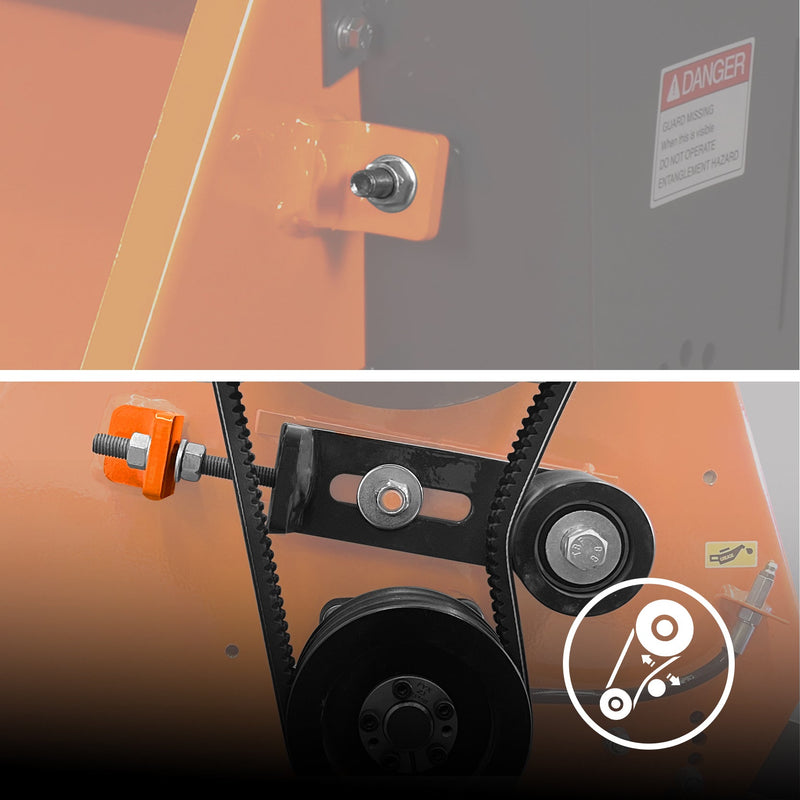

Belt Tensioner
Belt Tensioner

The belt tensioner ensures the drive belt is properly tensioned which is crucial for efficient power transfer from the engine to the flail shaft and, in turn, the cutting blades. This prevents belt slippage, reduces wear on the belt and pulleys, and ensures consistent cutting performance.

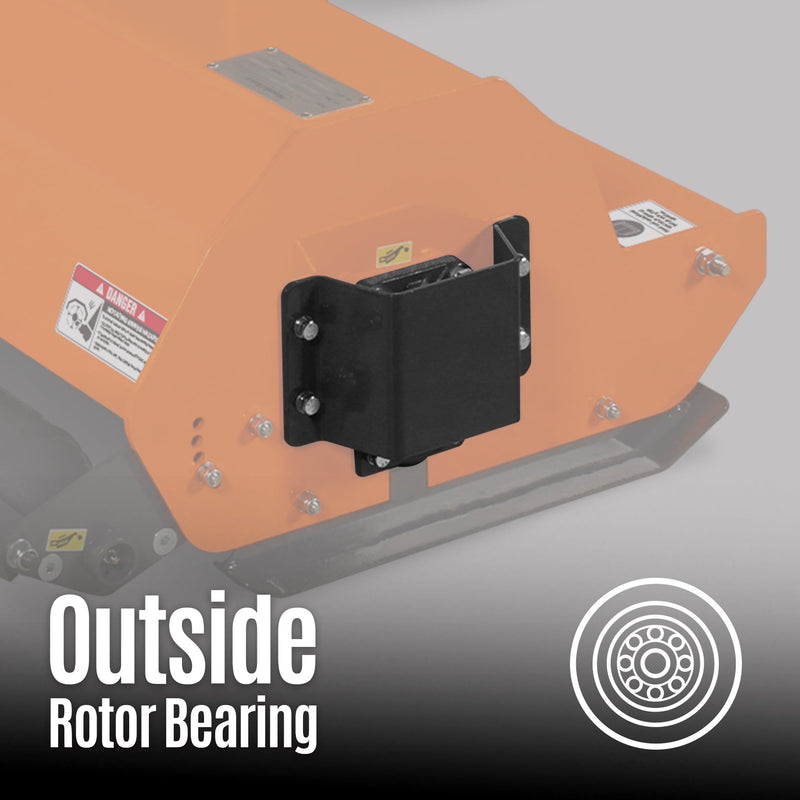

Outside Rotor Bearing
Outside Rotor Bearing

The bearings of the EFS mower are external, which is convenient for user maintenance and later repairs. The high-quality bearings of shaft bearings are required in applications with high loads and dynamic forces. These bearings run smoothly, quietly, and coolly.

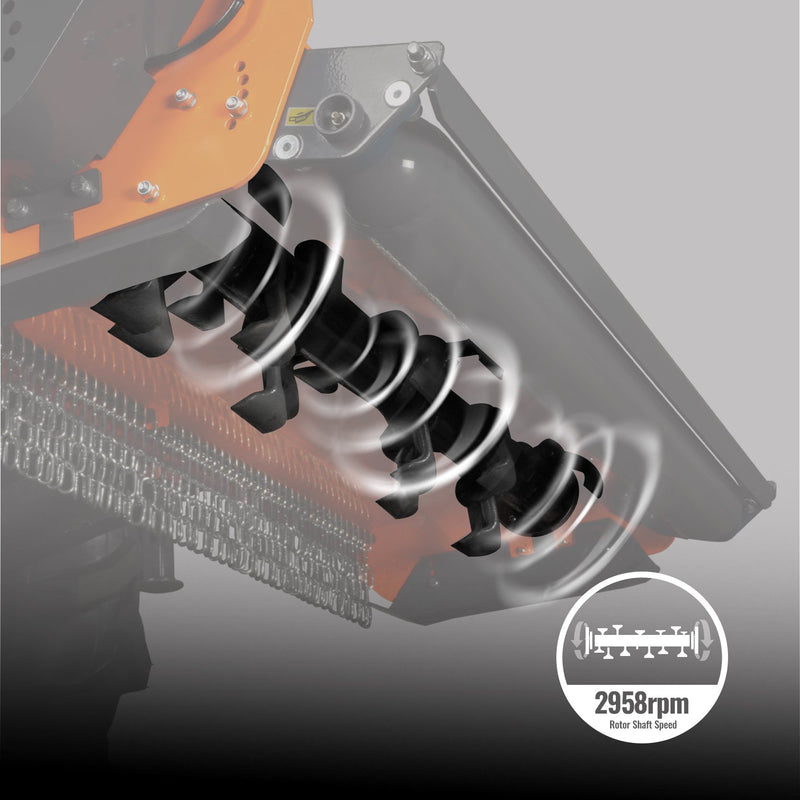

Rotor Shaft
Rotor Shaft

The 2958 rpm rotor shaft speed ensures the flails have enough velocity to lift and chop the material, preventing bogging down and resulting in a cleaner cut, can lead to a more efficient and effective cut.

Product Warranty

MechMaxx 60'' PTO Driven Light-duty Flail Mower (SKU:150135) stands up to extreme testing and come with a one-year warranty for engine, one-year warranty for machine.

Product Extended Warranty Plans

Our extended warranty plans provide an additional 1 to 2 years of product protection on select eligible products.

Engine Power Required 15-35HP Drive Type Belt drive
Working Width 60in Number of Belts 3
Overall Width 65in Belt Size V Belt 13 X 1041
Blade Ground Clearance 0.6in-1.8in  Drive Belt Tensioner Yes
Max. Cutting Diameter

Depends On The Type Of Grass

 Deck Thickness 0.16in
Number Of Blades 24 Side Plate Thickness 0.24in
Blade Type Hammer PTO Shaft RPM 540 RPM
Size Of Blades 3.5 X 3 X 1.6in Driveline Shaft Length T5-LF-31 with shear bolt ；31- 43in
Blade Weight 0.8lbs Spline End 1.375in  z6
Blade （Tines）Material Cast Steel 3-Point Hitch CAT 1
Rotor Bearing SKF bearing Tractor Mount Reversible
Rotor Diameter 3in Gearbox Oil Type 85W-90
Rotor Swing Diameter 11in Dimensions (L x W x H)  65 x 30 x 28in
Rotor Thickness 0.3in Finsh  Powder Coat Paint  Galvanized Steel
Rotor Shaft Speed 2958 rpm Warranty 1 year
Blade Speed 142 ft/s  Weight (N.W./G.W.) 406/503 lbs
