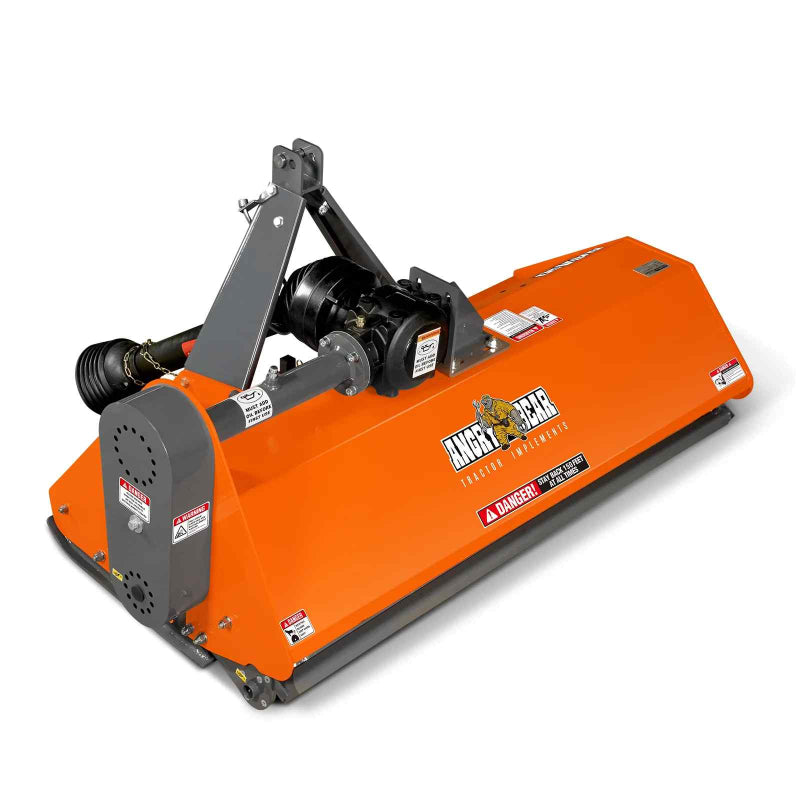

Left-side view of orange 60-inch PTO driven MechMaxx flail mower showing PTO shaft and frame, gallery position 1

MechMaxx NAM60 60'' PTO Driven Flail Mower

Save $200.00
$2,699.00
$2,499.00
Model : NAM60 In Stock
NAM60 NAM68 NAM72 NAM68H NAM72H

Notify me when back in stock

Description

Maintain fields, trails, and larger properties with the NAM60 60" PTO flail mower featuring forged flail hammers, front safety chains, and a smooth belt‑drive system for efficient power transfer. Designed for landowners and farmers running 30–60 HP tractors, it delivers strong mulching performance, debris control, and stable Category I 3‑point operation for reliable, cost‑effective mowing.
Shipping & Returns

Free Shipping on MOST USA‑wide. No extra charges.

30‑day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We’re dedicated to providing the best heavy‑duty equipment built for real‑world jobs.

We partner only with reputable brands to deliver reliable, contractor‑grade tools backed by integrity and service you can trust.

When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.
A portion of every sale helps fund local trade programs and community rebuilding efforts and more.

Found a better price? We’ll match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877

MechMaxx 60" PTO Driven Flail Mower

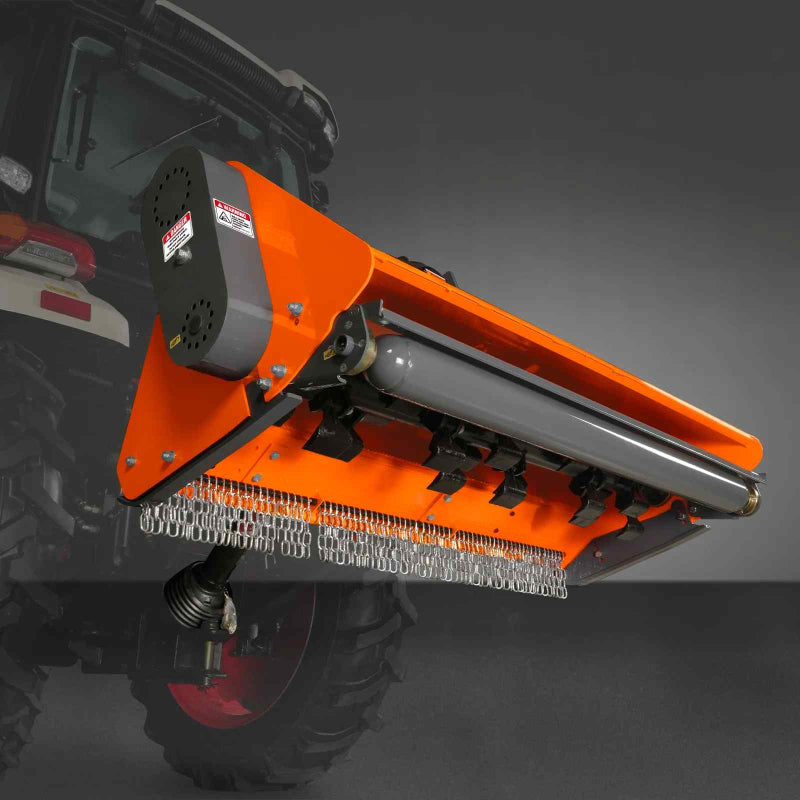

Handle tight areas and smaller fields with this 60" PTO flail mower built for tractors needing a compact but capable cutting tool. The forged flail hammers and reinforced deck support controlled mulching in grass and light brush, while the belt‑drive system helps maintain smooth power transfer. Front safety chains help manage debris movement, supporting predictable cutting performance in varied conditions.

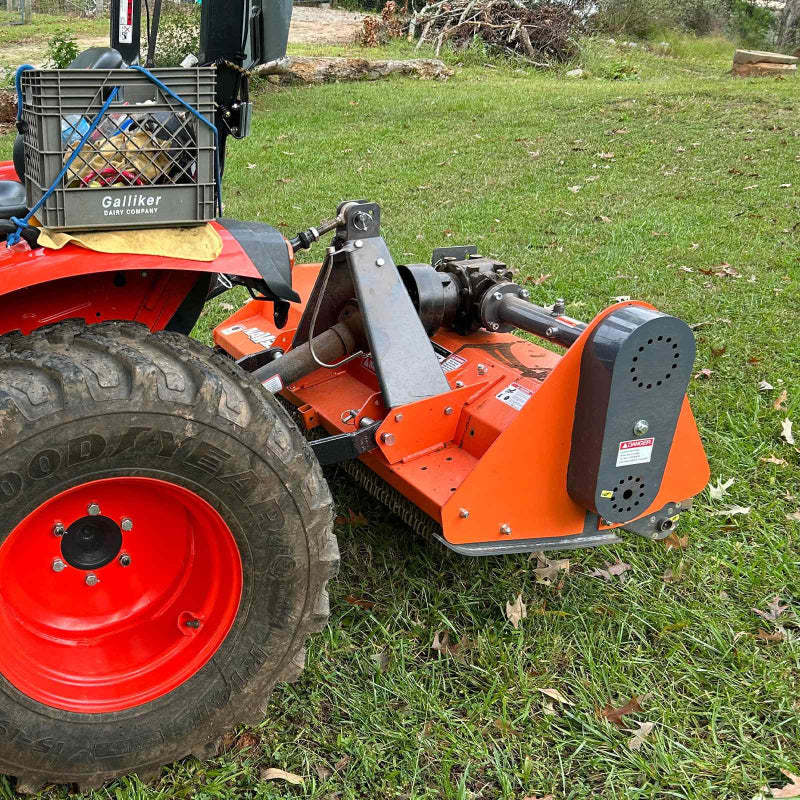

The mower’s compact frame makes it suitable for orchards, property edges, and areas where maneuverability is essential. Its 3‑point hitch and PTO setup integrate with compatible tractors for routine vegetation management on small to mid‑sized properties.

Fits Category I/II 3‑Point Tractors

Product manual (PDF)

Download PDF

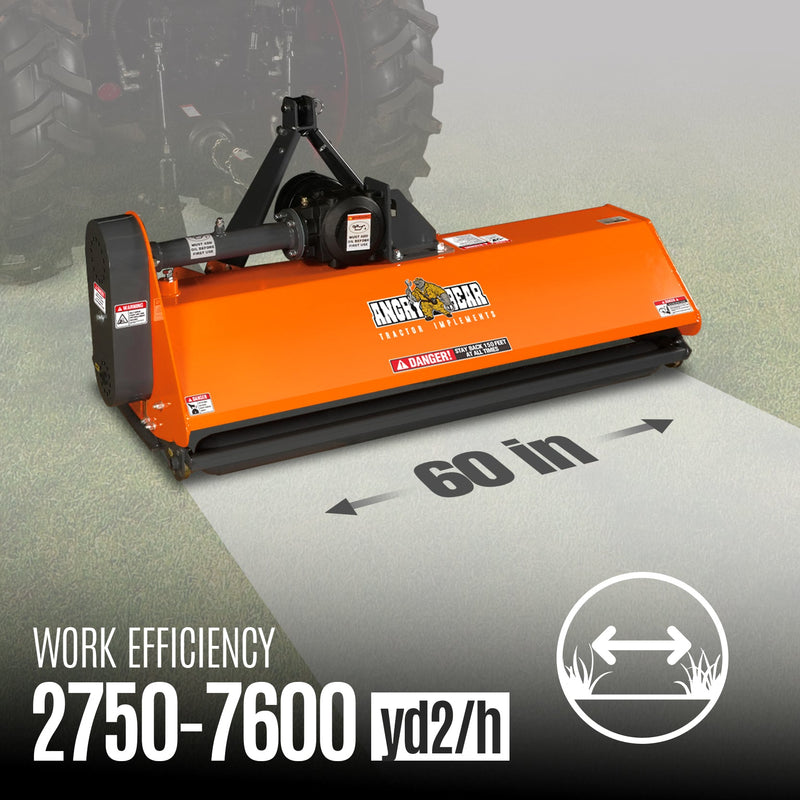

Max Cutting Diameter
Max Cutting Diameter

This NAM mower has its 60’’ working width and the work efficiency up to 2750-7600 yd2/h.

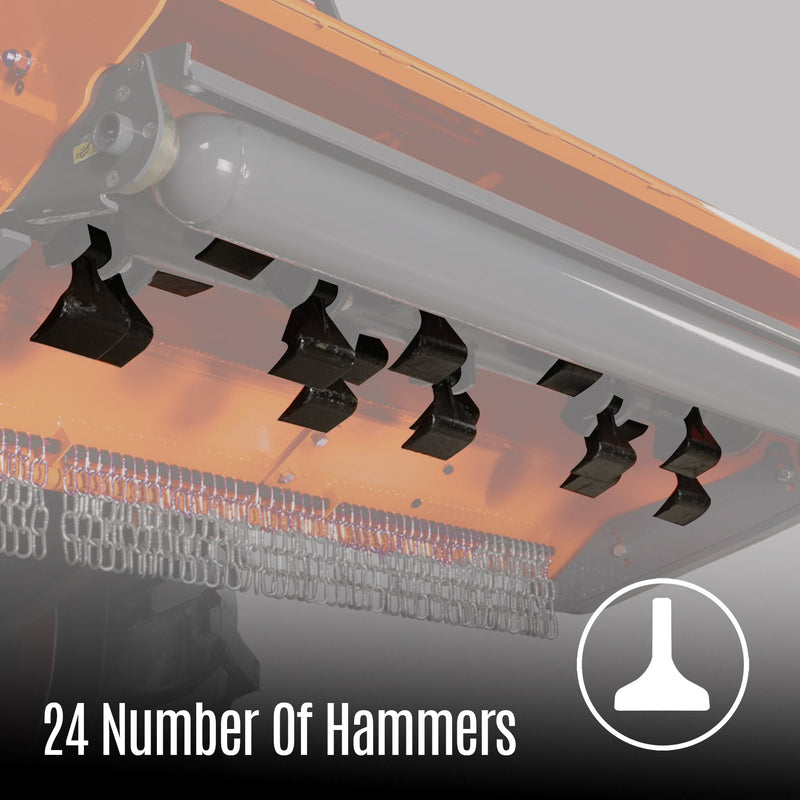

Hammers
Hammers

24 long lasting and durable forged flail hammers grind through tough matted grass, weeds and other overgrown vegetation with ease.

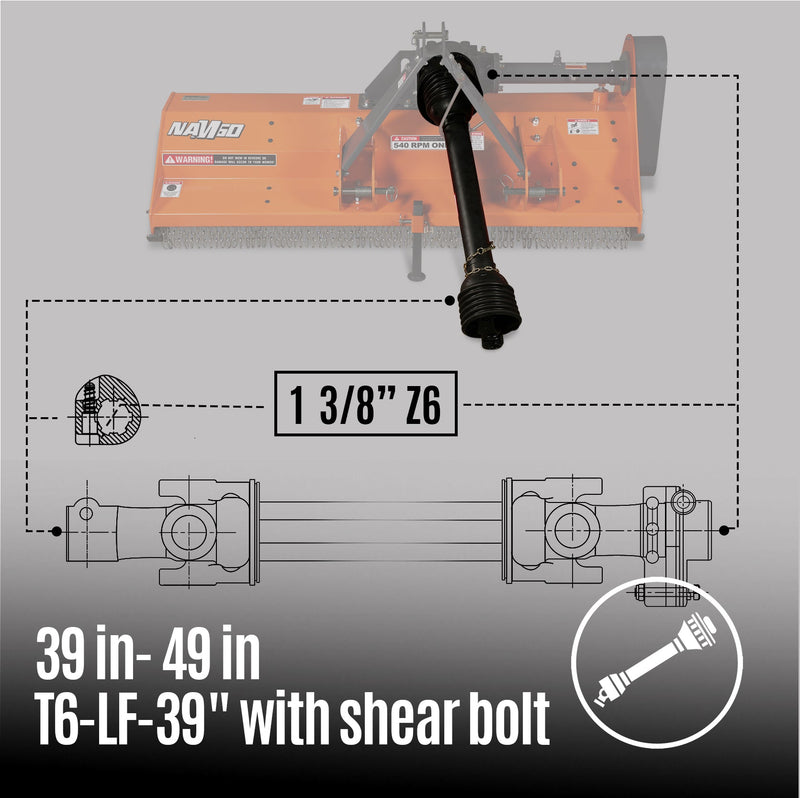

PTO shaft(1- 3/8’’Z6)
PTO shaft(1- 3/8’’Z6)

Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T6-LF-39’’with shear bolt ; 39''-49’’

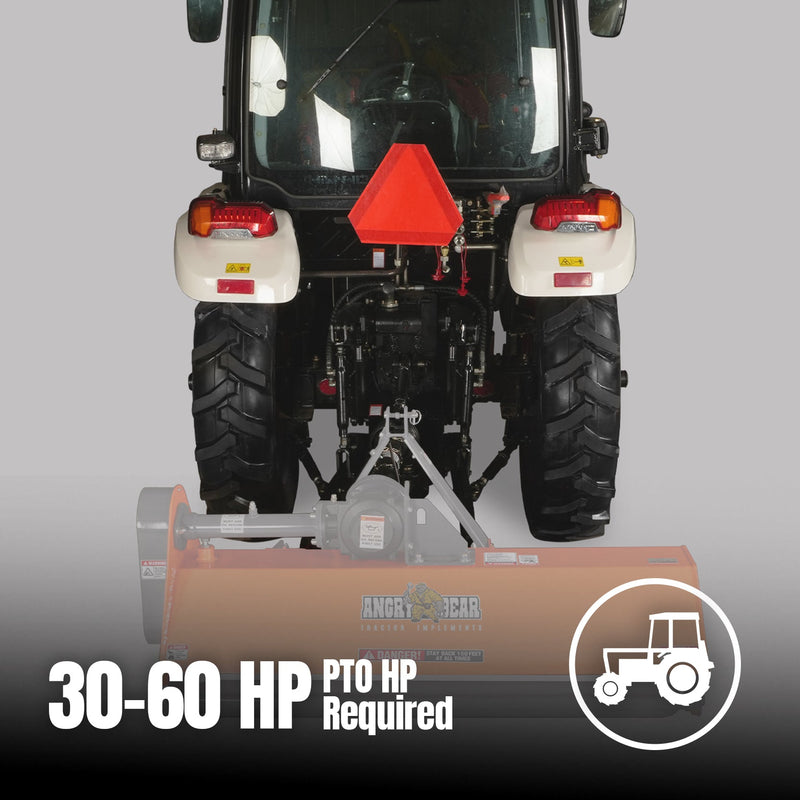

PTO Required
PTO Required

Extremely sturdy flail mower engineered to provide optimal performance when used with tractors with PTO power of 30-60HP.

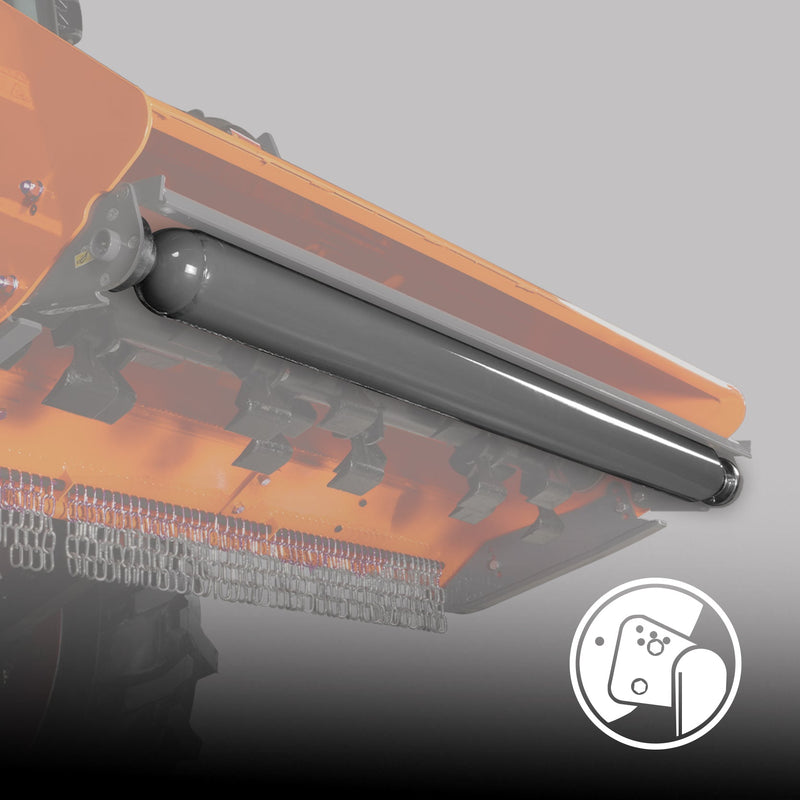

Adjustable Height Roller Bar
Adjustable Height Roller Bar

Adjustable Height Roller Bar adjusts to raise or lower the cutting height to your desired need.

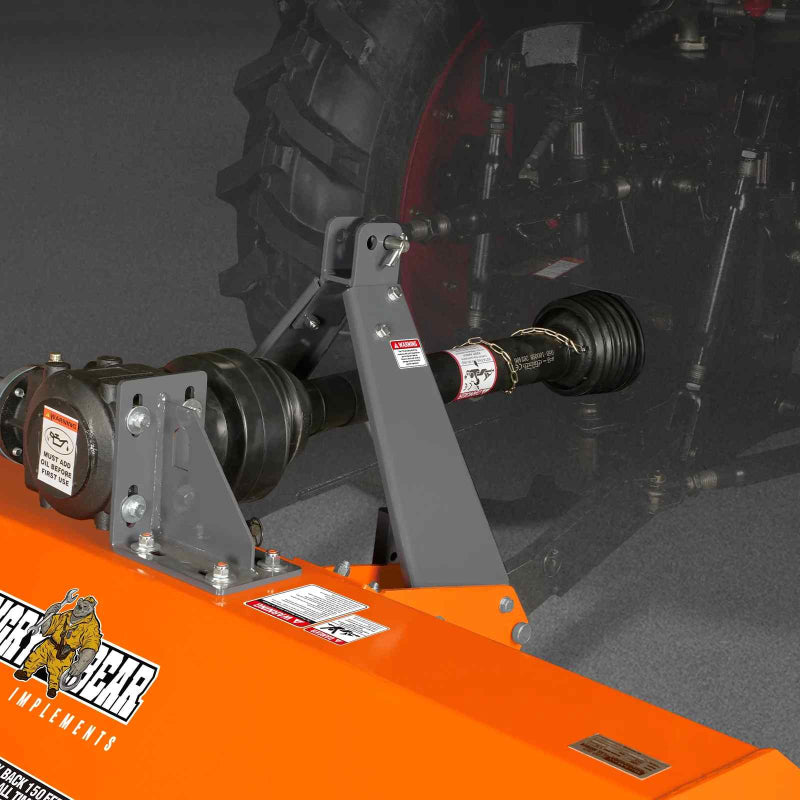

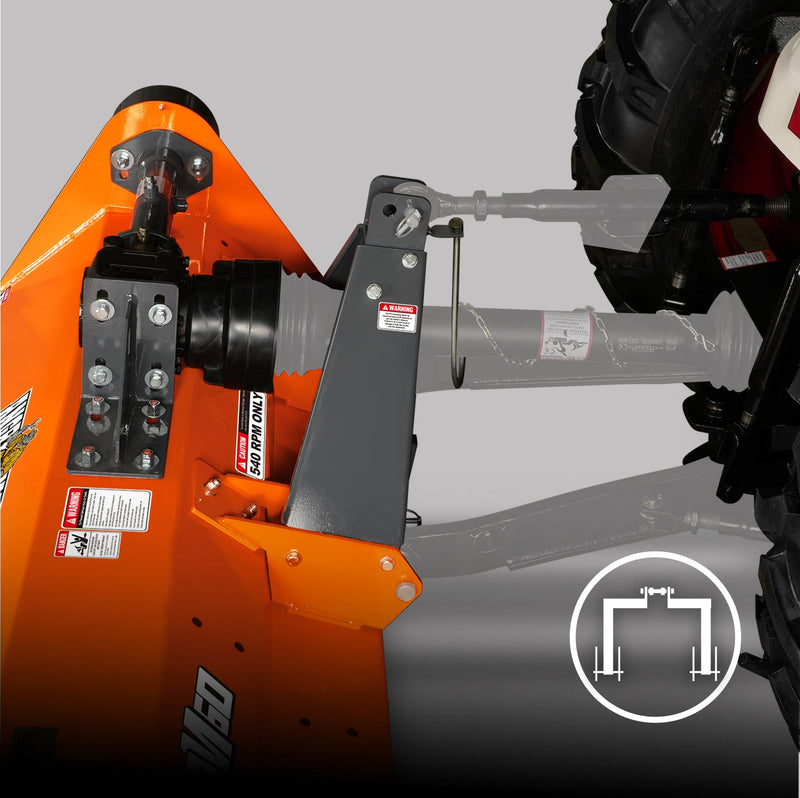

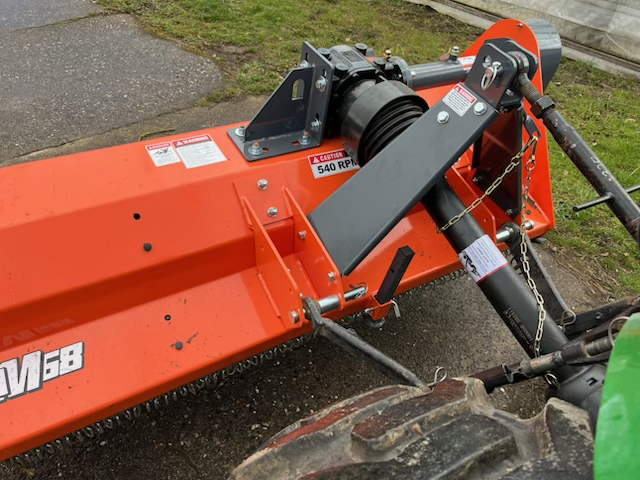

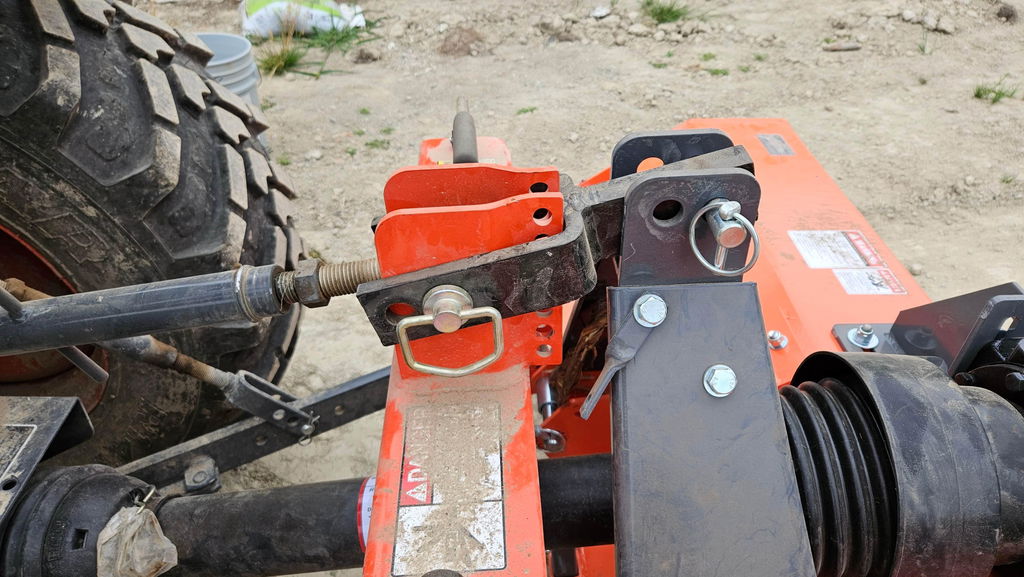

3 Point Hitch Cat. 1
3 Point Hitch Cat. 1

The three-point connection ensures the stability of the mower connected to the tractor and remains stable when the machine is running, improving mowing efficiency and reducing working time.

Product Warranty

MechMaxx NAM60 60'' PTO Driven Flail Mower (SKU: 150137) includes a standard one-year manufacturer warranty covering defects in materials and workmanship under normal use.

Product Extended Warranty Plans

Extended warranty plans may be available for select products. Contact us to confirm eligibility and coverage details.

Engine Power Required 30-60HP Number of Belts 3
Working Width 60in Belt Size V Belt 17 X 991
Overall Width 65in Drive Belt Tensioner Yes
Blade Ground Clearance 0.6in-2in  Deck Thickness 0.16in
Max. Cutting Diameter

Depends On The Type Of Grass

 Side Plate Thickness 0.25in
Number Of Blades 24 PTO Shaft RPM 540 RPM
Blade Type Hammer Driveline Shaft Length T6-LF-39" with shear bolt ;39"-49"
Blade Weight 1.8lbs Spline End 1 3/8" Z6
Blade （Tines）Material Cast Steel 3-Point Hitch CAT 1
Rotor Bearing SKF bearing Gearbox Oil Type 85W-90
Roller Diameter 4in Dimensions (L x W x H)  70 x 34 x 26in
Rotor Diameter 5in Finsh  Powder Coat Paint  Galvanized Steel
Rotor Swing Diameter 14in Warranty 1 year
Drive Type Belt drive Weight (N.W./G.W.) 595/662lbs
