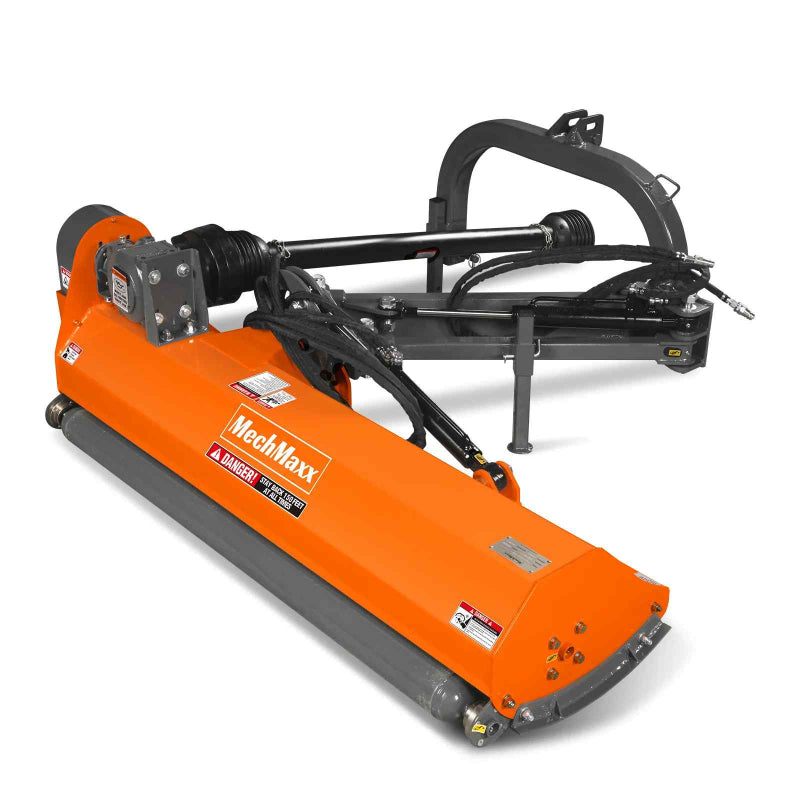

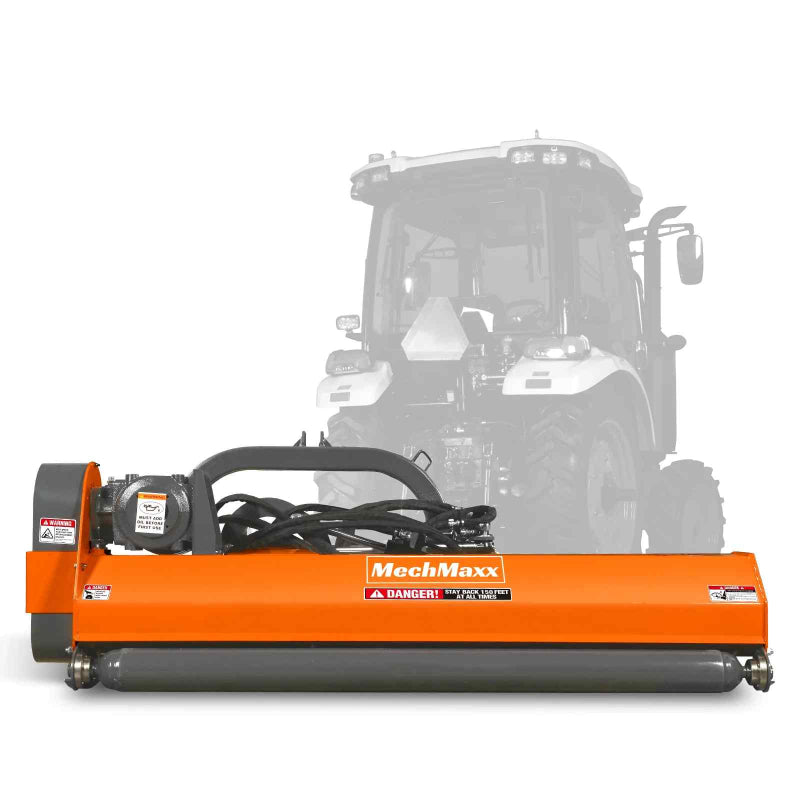

front view of orange MechMaxx 65-inch standard 3 point offset flail ditch bank mower, gallery position 1

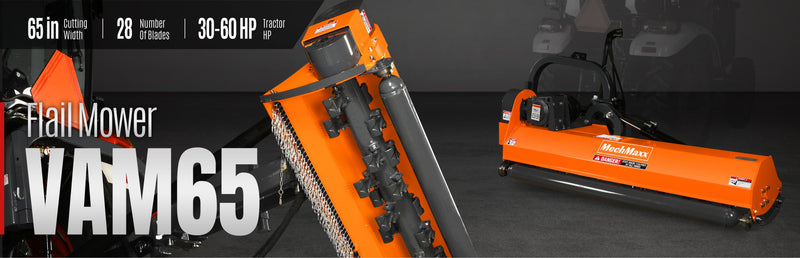

MechMaxx 65" Standard 3 Point Offset Flail Ditch Bank Mower

Save $600.00
$3,899.00
$3,299.00
Model : VAM65 In Stock
VAM65 VAM48 VAM60 VAM72

Notify me when back in stock

Description

Clear ditches, banks, and roadside areas with the VAM65 65" offset flail mower featuring a flail hammer rotor, front safety chains, sealed tapered roller bearings, and an efficient belt‑drive system for smooth power transfer. This mower is built for landowners and farmers running 30–60 HP tractors who need reliable cutting performance, debris control, and stable 3‑point Category I operation for maintaining larger properties.
Shipping & Returns

Free Shipping on MOST USA‑wide. No extra charges.

30‑day Easy Returns. Not happy with your product? We'll take it back, no questions asked.
Why Buy From Us

We’re dedicated to providing the best heavy‑duty equipment built for real‑world jobs.

We partner only with reputable brands to deliver reliable, contractor‑grade tools backed by integrity and service you can trust.

When you buy from UnionBuilt Supply, you’re investing in quality gear and a company committed to supporting the trades and the communities they serve.
A portion of every sale helps fund local trade programs and community rebuilding efforts and more.

Found a better price? We’ll match it with our Price Match Guarantee!


Question? We'd love to have a chat!
Email: Support@unionbuiltsupply.com
Phone: (833) 982-7877

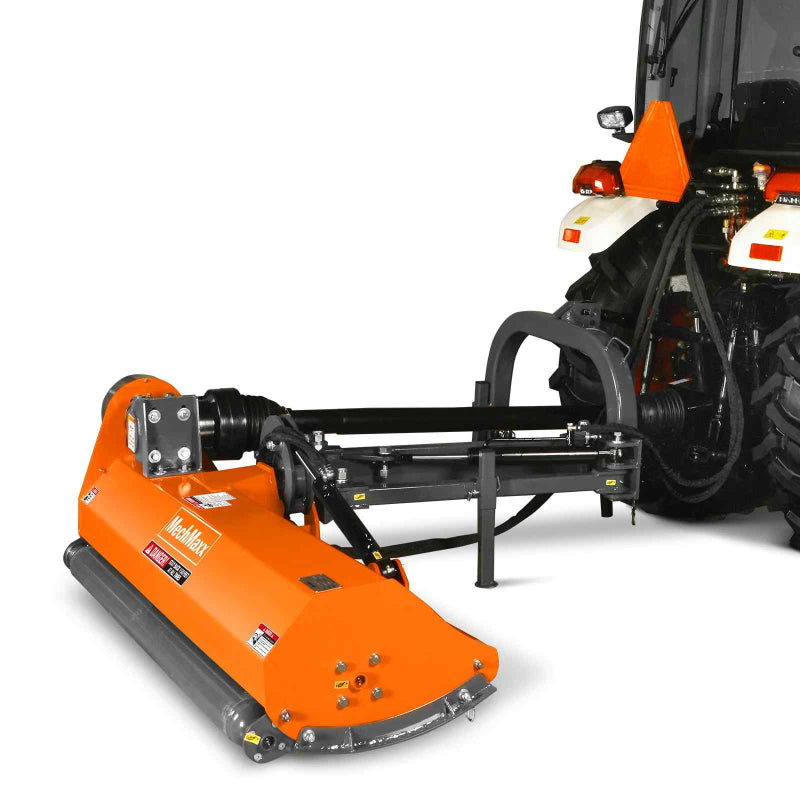

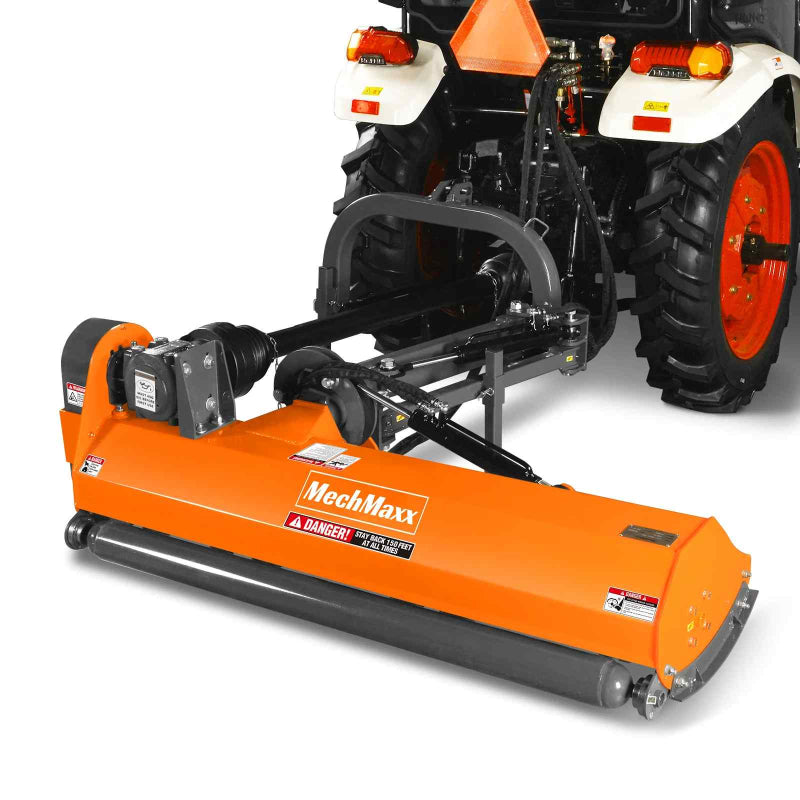

MechMaxx 65" Standard 3‑Point Offset Flail Ditch Bank Mower

The MechMaxx 65" Offset Ditch Bank Flail Mower is designed for tractors that need a compact, adjustable mower for slope and edge work. Its offset arm and adjustable cutting angle allow operators to mow along ditches, embankments, and roadside edges.

A reinforced housing and balanced rotor support routine vegetation control in grass and light brush. The mower connects to standard 3‑point hitch and PTO systems for consistent operation.

Fits Category I/II 3‑Point Tractors

Product manual (PDF)

Download PDF

•65 in working width for time-saving, economical mowing of bigger areas such as fields, long ditches, building perimeters and large yards

•This mower can keep your mowing area as short as possible with 28 number of blades.

•Compatible with 30-60 HP tractors and operable at 540 RPM for powerful, efficient mowing capabilities.

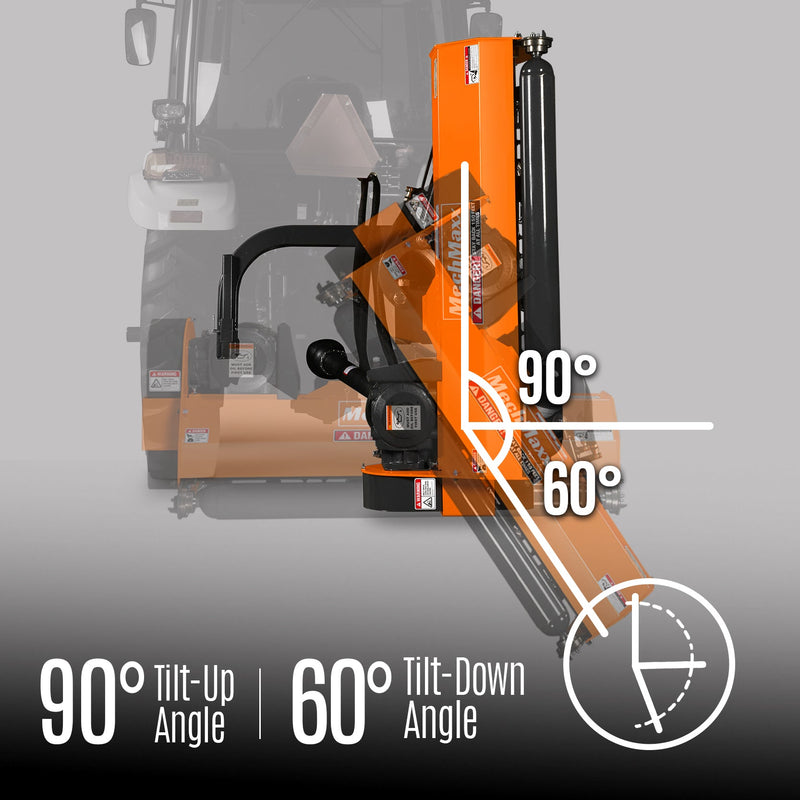

Rotation Angle
Rotation Angle

Hydraulically controlled with 60°Tilt-Down Angle and 90°upwards tilt for versatile cutting capabilities

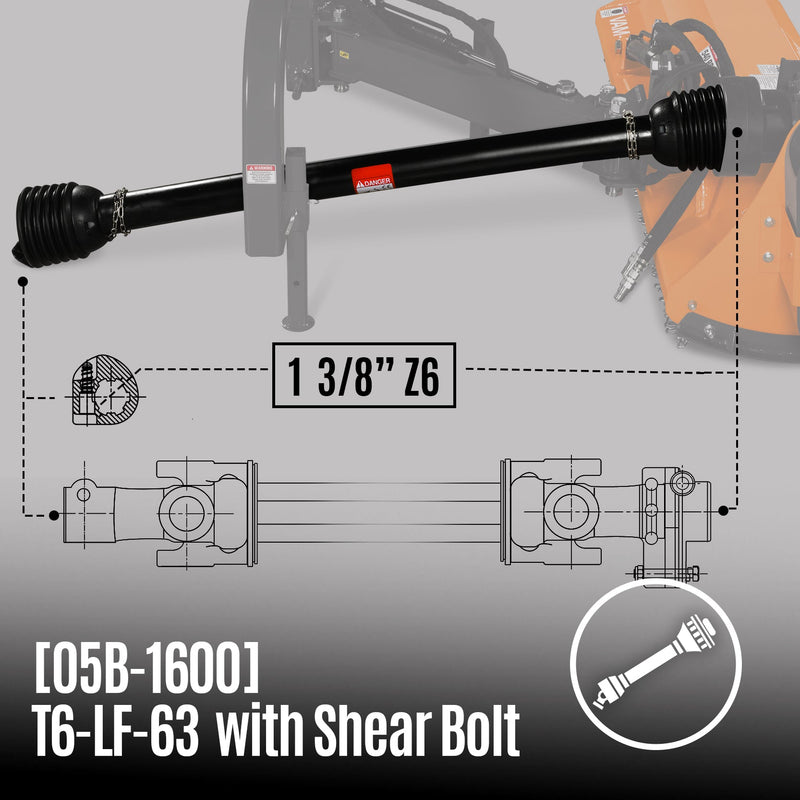

PTO shaft(1- 3/8’’ Z6)
PTO shaft(1- 3/8’’ Z6)

Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T6-LF-63'' with shear bolt ; 63''-77''

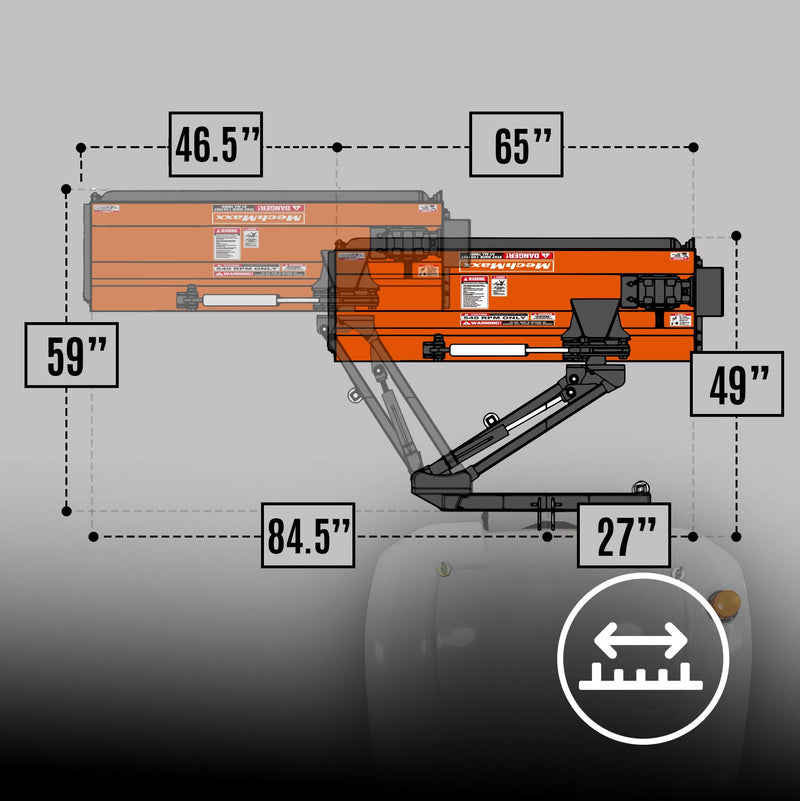

Side Movement
Side Movement

Hydraulically controlled side to side movement & right side offset, adjustable cutting direction to cut distant overgrown areas.

Product Warranty

MechMaxx 65" Standard 3 Point Offset Flail Ditch Bank Mower (SKU: 150145) includes a standard one-year manufacturer warranty covering defects in materials and workmanship under normal use.

Product Extended Warranty Plans

Extended warranty plans may be available for select products. Contact us to confirm eligibility and coverage details.

Engine Power Required 30-60 HP Rotor Shaft Speed 2356 rpm
Working Width 65in Hydraulic Fittings Size G1/2 in
Overall Width 72in Hydraulic Hoses Quantity 4
Min. Blade Ground Clearance 0.6in Drive Type Belt Drive
Max. Cutting Diameter

Depends On The Type Of Grass

 Spline End 1.375in  Z6
Offset Distance From The Center (Maximum) 85in Driveline Shaft Length T6-LF-63  With Shear Bolt ;
63-77 in [05B-1600]
Tilt-Up Angle 90° PTO Shaft Speed 540 rpm
Tilt-Down Angle 60° 3-Point Hitch CAT 1
Number Of Blades 28 Deck Thickness 0.16in
Blade Type Hammer Side Plate Thickness 0.25in
Size of Blades 3.5 x 3.2 x 1.6in Number of Belts 3
Blade Weight 0.9 lbs Belt Size V Belt 17 x 991
Blade Material Cast Steel Gearbox 0il Type 85W-90
Rotor Bearing SKF Bearing Dimensions (L x W x H) 72 x 27.5 x 28 in
Rotor Diameter 4.3in Finsh  Powder Coating
Blade Swing Diameter 14in Warranty 1 Year
Rotor Thickness 0.3in Weight (N.W./G.W.) 701/820 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
